To order
State
New
Minimum required tractor power (HP HP PS)
50
working width (mm)
2000
Number of V-belts
4
Weight (kg)
466
Flail mower with hydraulic shift EFGCH 220 M TRX
EFGCH220P TRX
Do you have any questions?

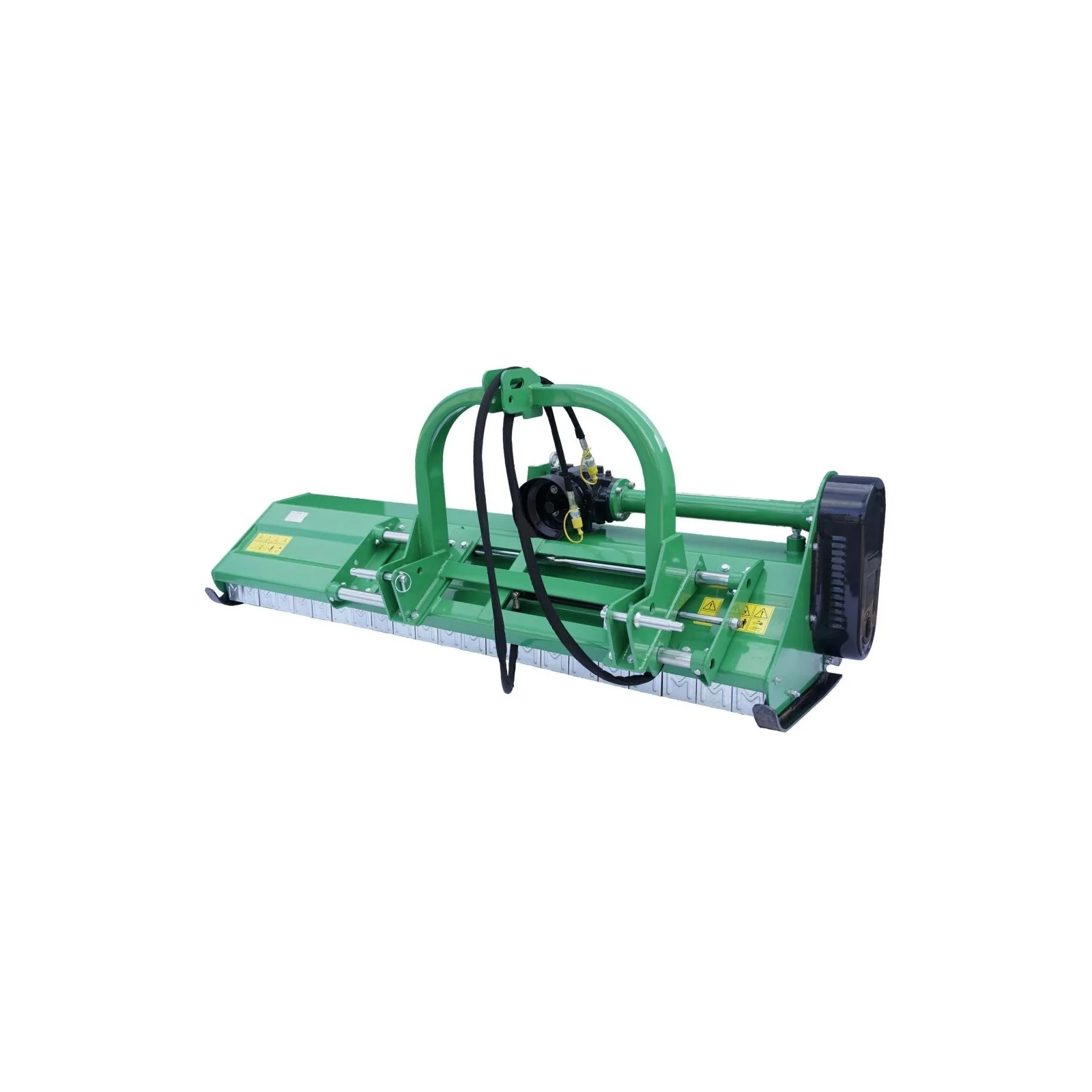

Flail mower with hydraulic shift EFGCH 220 M TRX
Heavy-duty flail mower (mulching), model EFGCH-M, with side shift.
It is equipped with heavy hammers that work very well in wasteland. The large gear allows you to connect the mower to a tractor with higher power. Additionally, it is equipped with a hydraulic side shift.
Application:
- clearing all types of wasteland,
- mowing roadsides,
- mowing green areas in cities
- maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes
- mowing green areas in parks
- as a cleaning machine in orchards and nurseries
Advantages:
- can be easily used in urban areas because the number of flying stones and their impact are greatly limited,
- when caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often,
- it can also cope in unkempt areas with more stones, branches and other obstacles,
- cut green material quickly turns into humus, and old grass does not grow back so quickly,
- has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,
- the gearbox has a one-way clutch
- simple construction ensures reliability and low repair costs
Technical data:
- working width - 220 cm
- total width - 230 cm
- minimum tractor power - 100 HP
- side shift 40 cm
- max efficiency - 2.2 ha/h
- max speed - 10 km/h
- number of V-belts - 4 pcs
- gear type - angular with clutch
- weight - 466 kg
- mounted on KATI 3-point suspension,
- equipped with a reinforced angle gear with a clutch,
- cutting elements: 36 hammers weighing 700g mounted on a screw diameter 16, possibility of purchasing "Y" knives, max diameter of cut branches: Ø 50 mm,
- adjustable cutting height,
- very good mowing quality.
Moreover, our company:
- issues a one-year warranty,
- we provide service and spare parts,
Specification
State
New
Mark
TRX
Minimum required tractor power (HP HP PS)
50
working width (mm)
2000
Yield (ha/h)
2.2
NEXT DOOR
3 point
KAT I
KAT I
Number of V-belts
4
Number of hammers
36
Weight (kg)
466
sideshift (mm)
400
Sideshift type
Hydraulic
Color
Green
Overall width (mm)
2300
