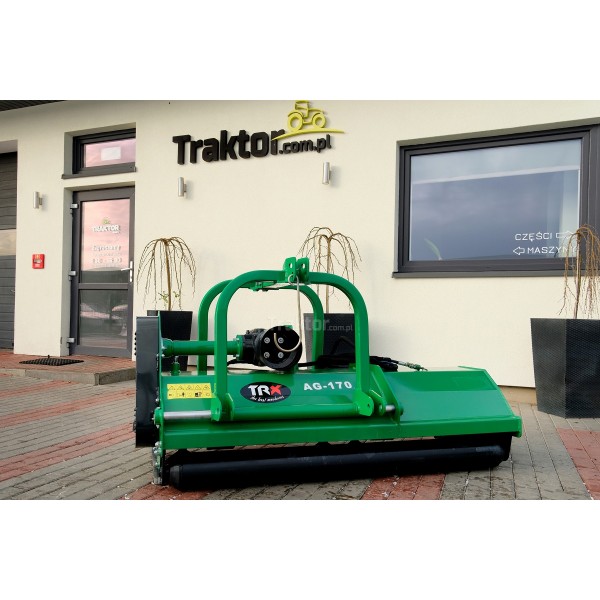

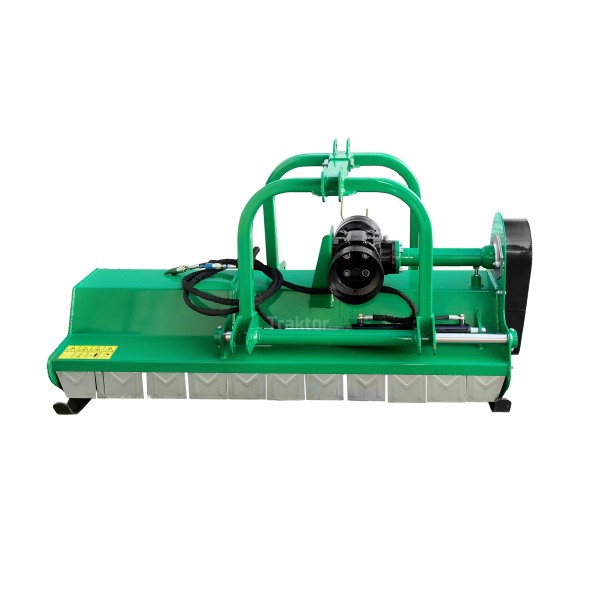

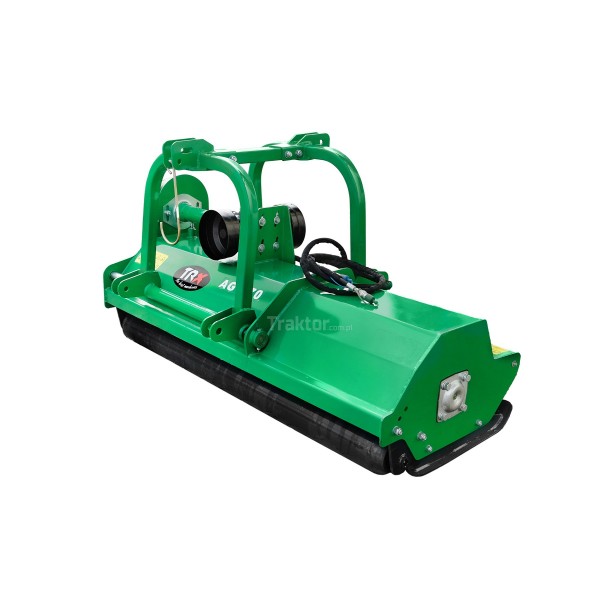

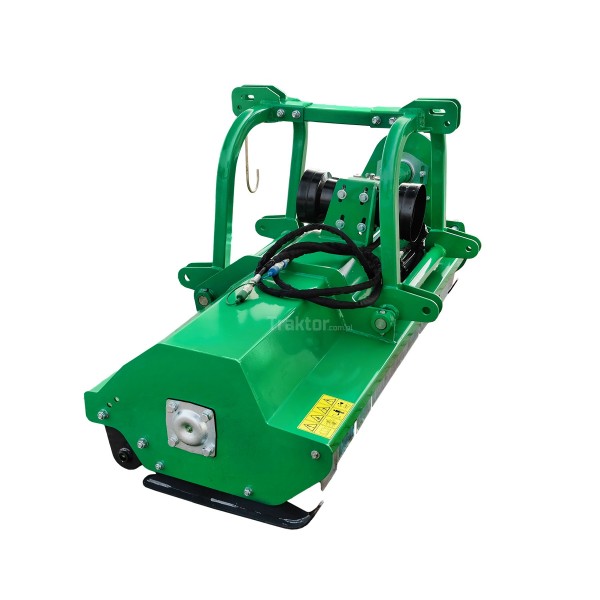

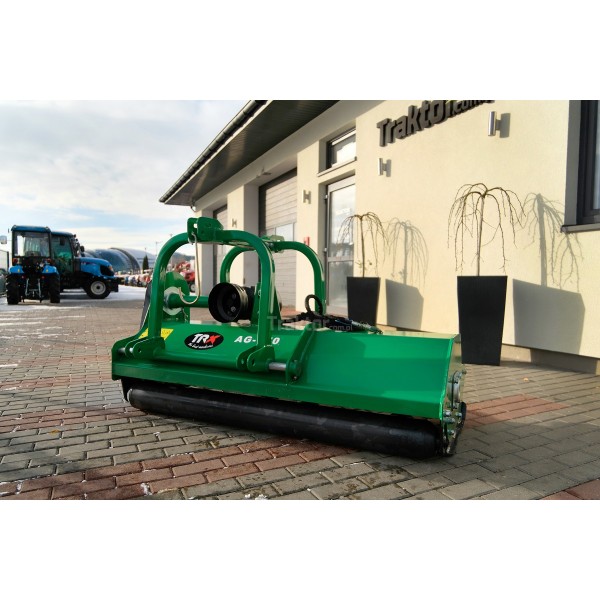

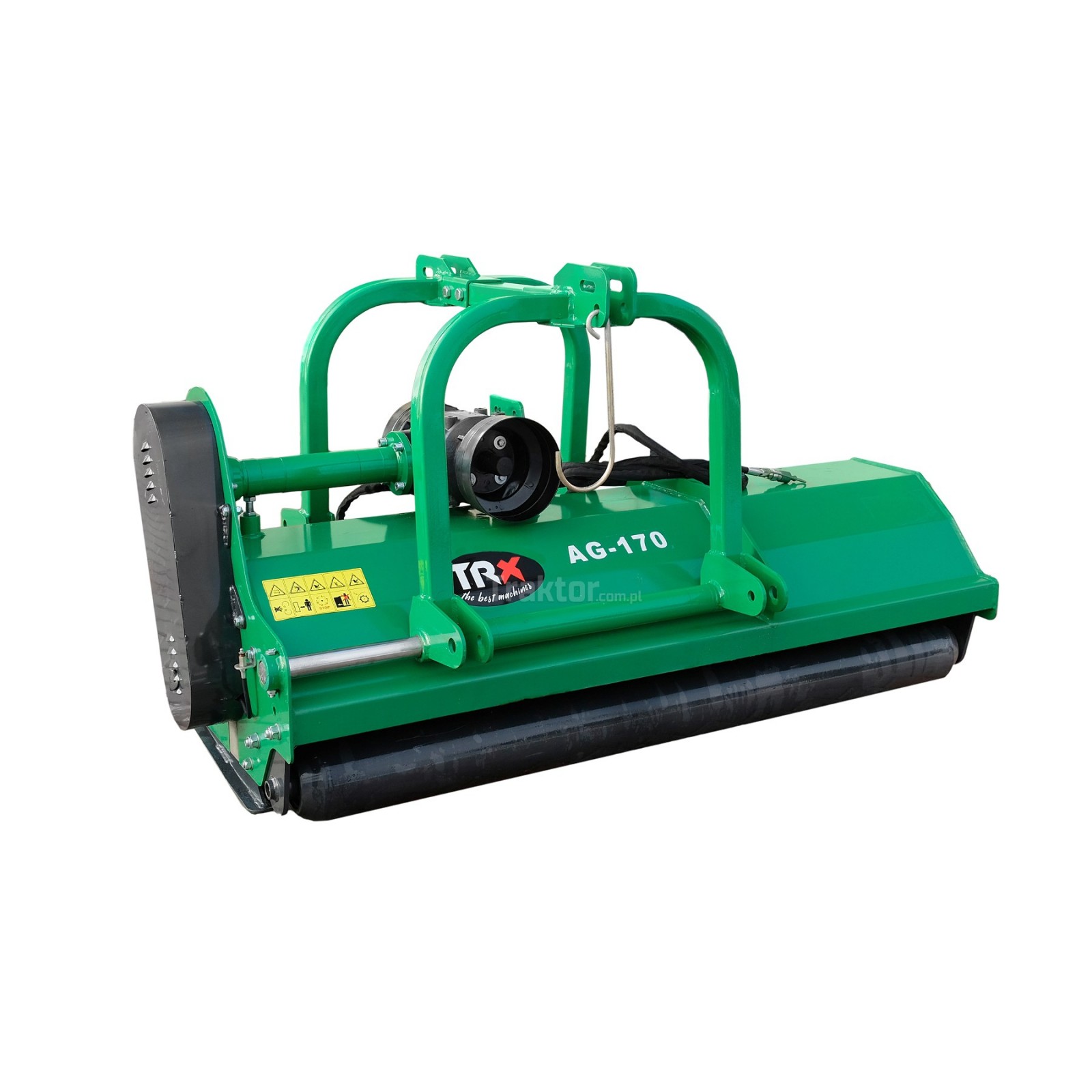

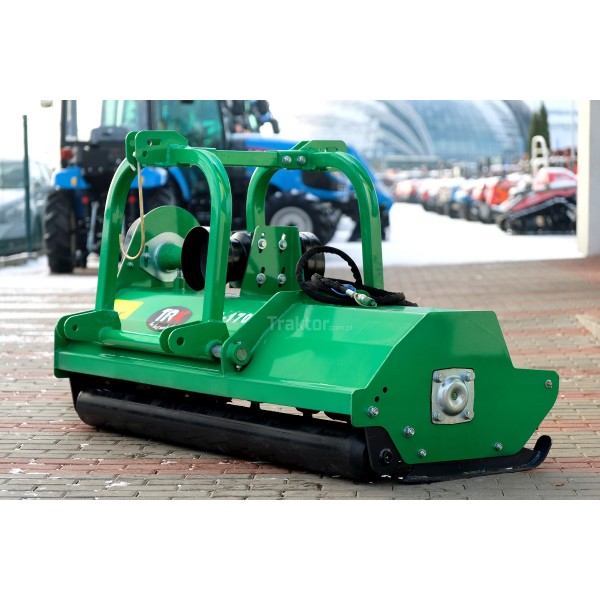

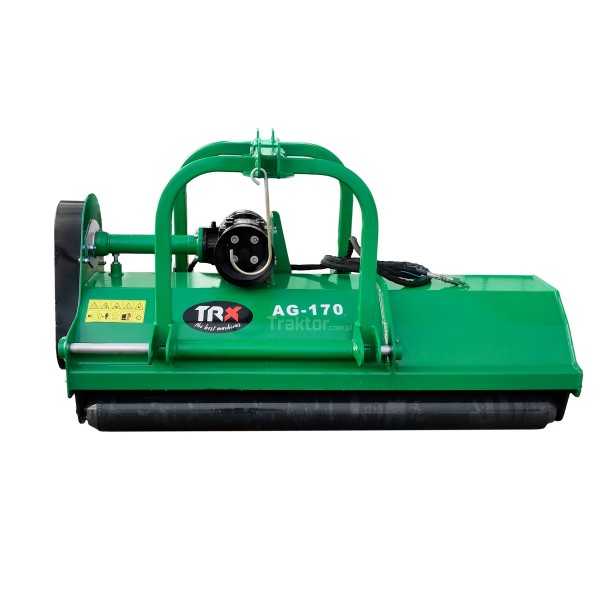

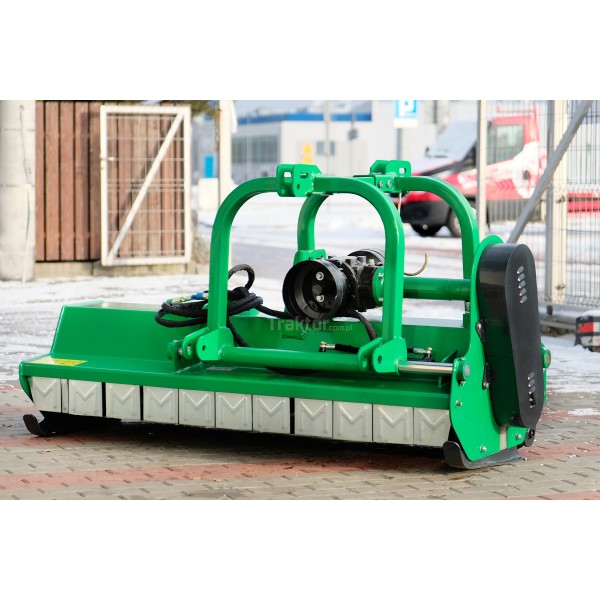

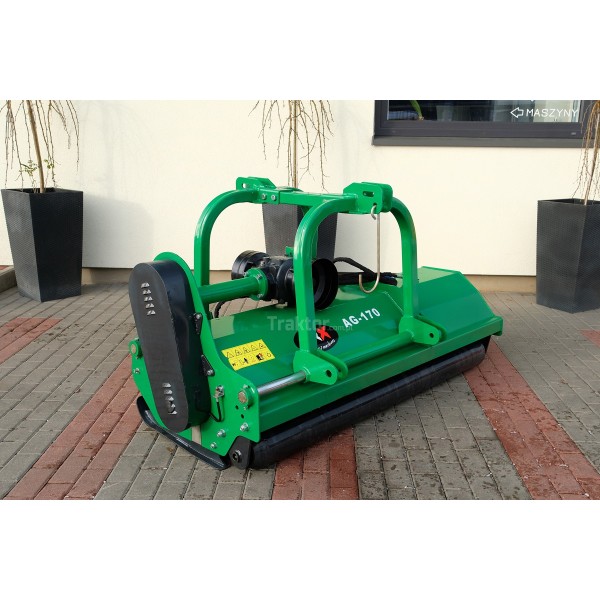

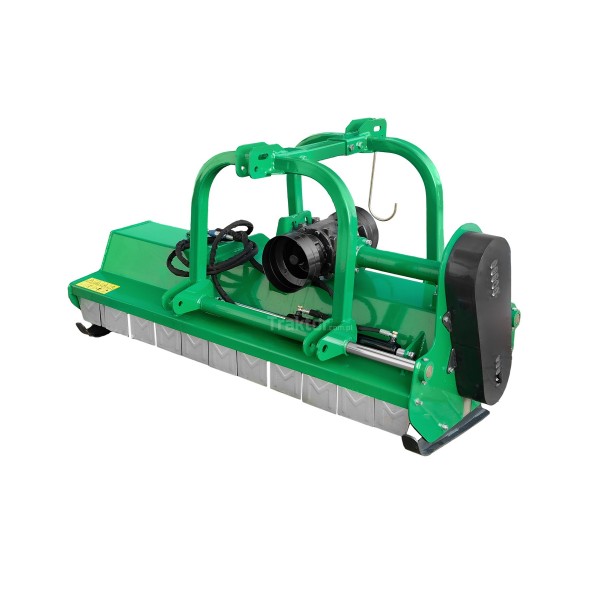

Flail mower with double-sided hydraulic shift AG 170 TRX

Super-heavy class flail mower (mulching) model AG with side shift and the possibility of mounting it on the front of the tractor. The flail mower model AG, due to its massive construction and the heaviest hammers, is very well suited for professional municipal works. It is equipped with a hydraulic sideshift.

Application:

• clearing all kinds of waste
• clearing of roadsides
• mowing green areas in cities
• care of pastures, meadows, recreational areas, bushes for cleaning purposes
• mowing green areas in parks
• as a cleaning machine in orchards and nurseries

 Advantages:

• it can be easily used in urbanized areas because the number of flying stones and their impetus are very limited
• when taking care of lawns, there is no need to collect mulched grass if this procedure is repeated quite often
• it also copes with neglected terrain where there are more stones, branches and other obstacles
• the cut green material quickly turns into humus, and the old grass does not grow back so quickly
• has a double protection against damage to the gear: hammers bounce off a stable obstacle, belts on pulleys slip in case of too much resistance
• the gearbox has a one-way clutch
• simple construction ensures reliability and low repair costs

 Technical data:

• working width - 170cm
• total width - 186cm
• minimum tractor power - 30 hp

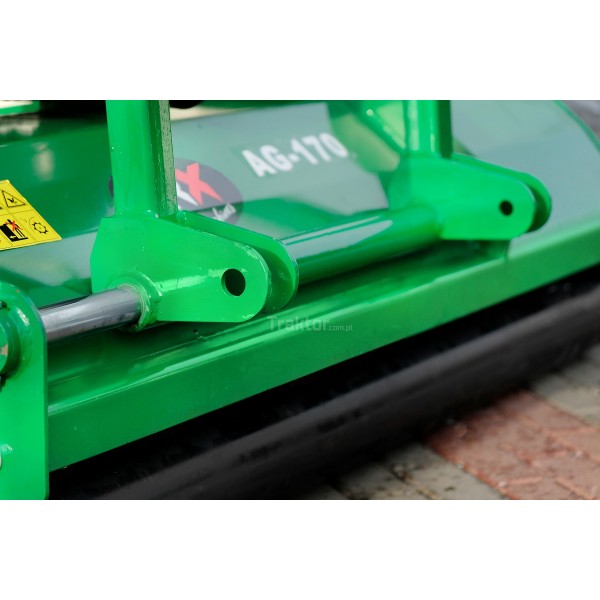

• sideshift 25 cm
• maximum capacity - 1.70 ha/h
• max speed - 10 km/h
• number of V-belts - 4 pcs
• gear type - angular with clutch
• weight - 370 kg
• mounted on the 3-point KATI hitch both at the front and at the rear of the tractor

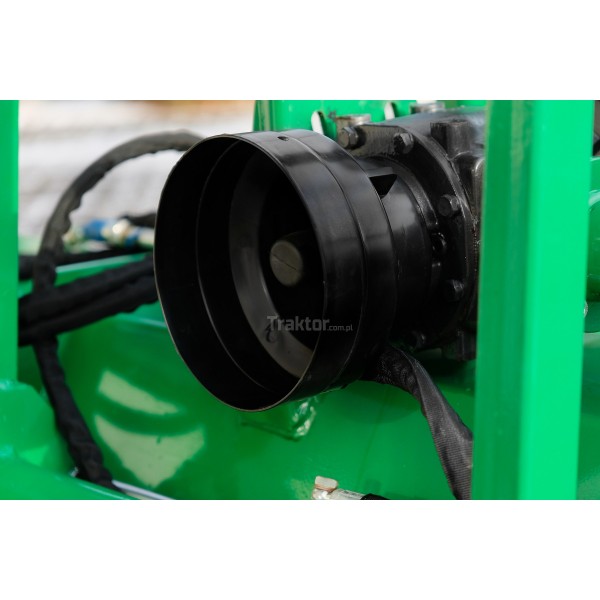

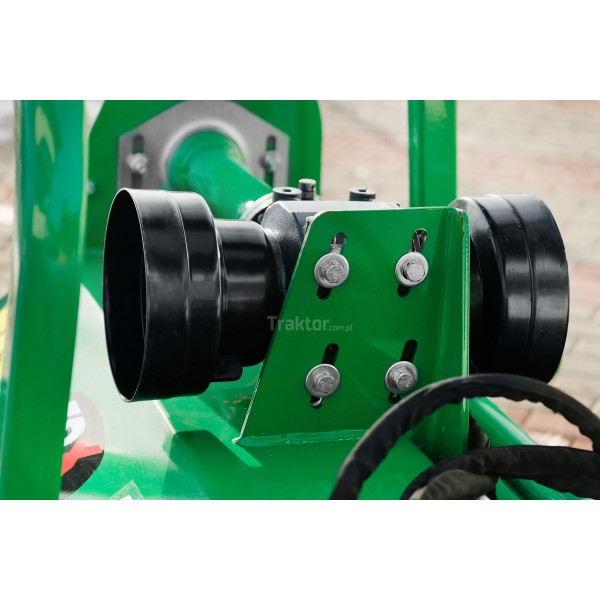

• equipped with a reinforced angular gear with a clutch
• cutting elements: 16 hammers weighing 1,200 g mounted on a fi 16 screw
• adjustable cutting height
• very good mowing quality
