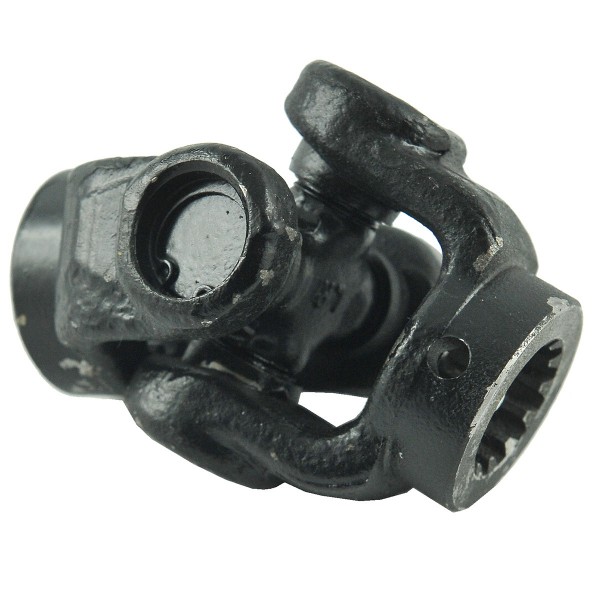

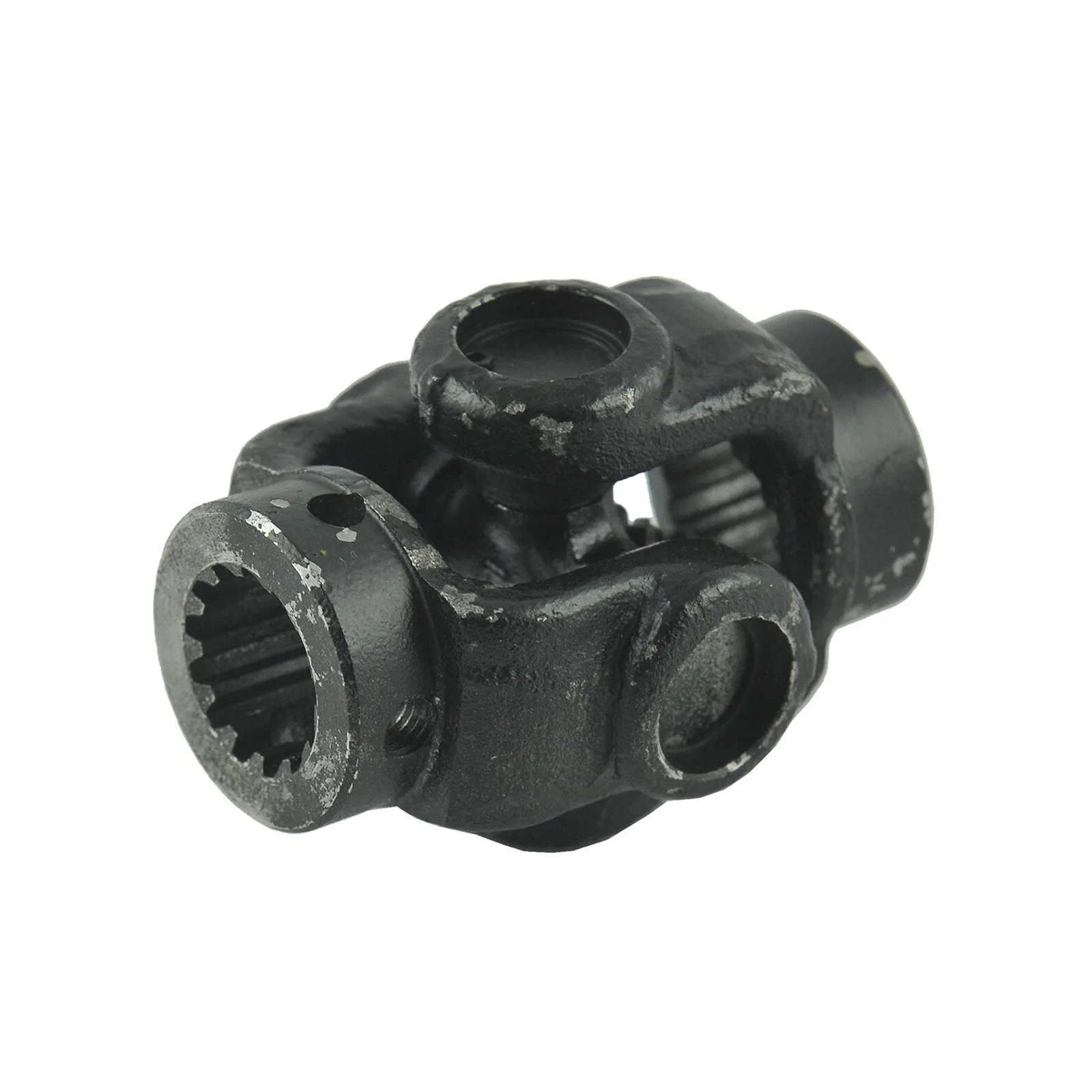

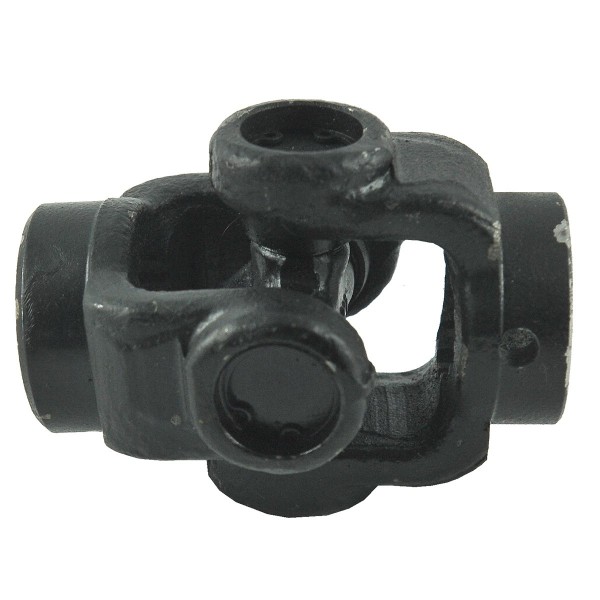

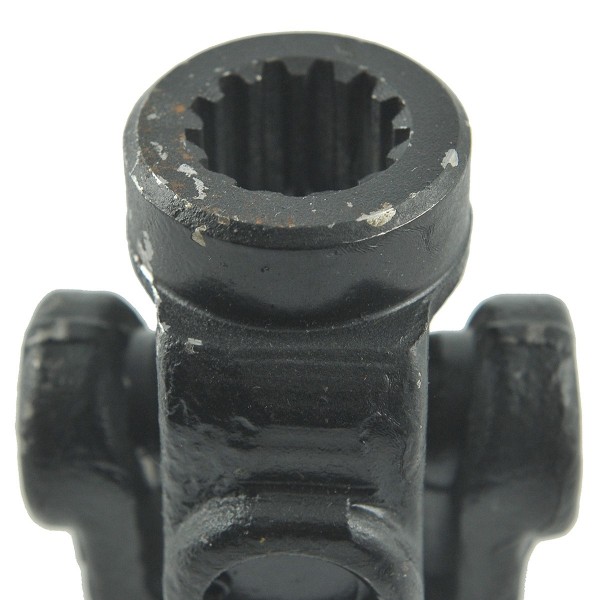

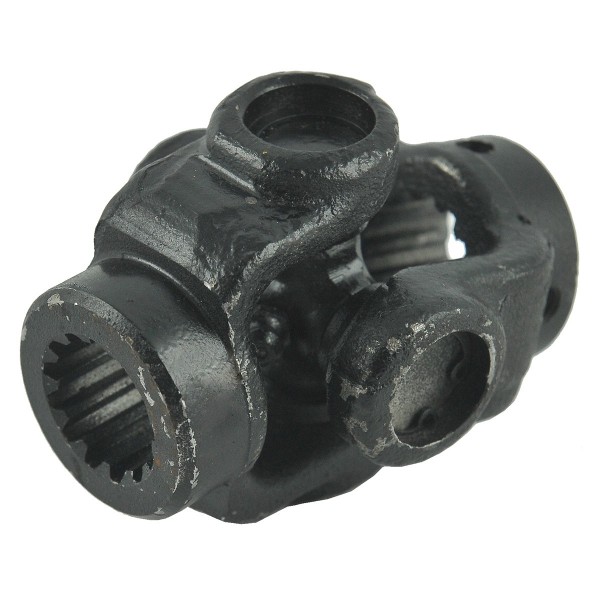

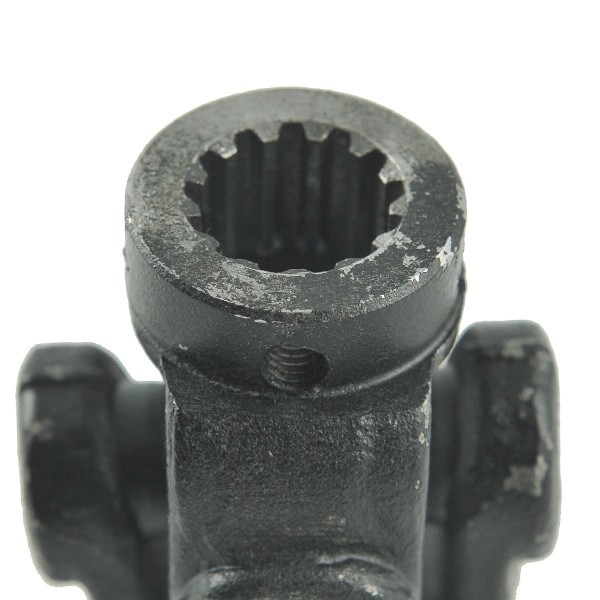

U-joint 13T/13T / Iseki TU
Cardan joint with a total length of 89 mm , cutter with the number of teeth 13T / 13T and an internal diameter of 25 mm measured between the teeth of the cutter for Iseki tractors of the Iseki TU120, Iseki TU125F, Iseki TU127F, Iseki TU135F, Iseki TU137F, Iseki TU140, Iseki TU145 series, ISEKI TU150, ISEKI TU155, ISEKI TU160, ISEKI TU167, ISEKI TU170, ISEKI TU175, ISEKI TU177, ISEKI TU180, ISEKI TU185, ISEKI TU197, ISEKI TU200, ISEKI TU205, ISEKI TU217, ISEKI TU220, ISEKI TU225, ISEKI TU2440 TU2440 , Iseki TU245, Iseki TU257, Iseki TU318, Iseki TU320, Iseki TU324, Iseki TU1400, Iseki TU1500, Iseki TU1600, Iseki TU1700, Iseki TU1900, and others.
Cardan joint , universal joint or swing joint is an element whose main task is to transmit drive, torque from the active shaft to the passive shaft, which can be at a significant angle to each other. Cardan coupling, cross coupling , or swing coupling are all correct names for a joint that consists of two fork-like elements joined together by a cross connection. Cardan joints come with shafts, with ends with a milling cutter or a fork locked with a wedge.
Dimensions :
- total length: 89 mm,
- internal diameter 25 mm (measured between the cutter teeth), 21.20 mm (measured together with the cutter teeth),
- cross: 54 x 20 mm,
- cutter length: 20 / 20 mm,
- number of teeth: 13T / 13T.
Tractor models :
Iseki :
- Iseki TU120,
- Iseki TU125F,
- Iseki TU127F,
- Iseki TU135F,
- Iseki TU137F,
- Iseki TU140,
- Iseki TU145,
- Iseki TU150,
- Iseki TU155,
- Iseki TU160,
- Iseki TU167,
- Iseki TU170,
- Iseki TU175,
- Iseki TU177,
- Iseki TU180,
- Iseki TU185,
- Iseki TU197,
- Iseki TU200,
- Iseki TU205,
- Iseki TU217,
- Iseki TU220,
- Iseki TU225,
- Iseki TU237,
- Iseki TU240,
- Iseki TU245,
- Iseki TU257,
- Iseki TU318,
- Iseki TU320,
- Iseki TU324,
- Iseki TU1400,
- Iseki TU1500,
- Iseki TU1600,
- Iseki TU1700,
- Iseki TU1900,
- Iseki, TU2100.
Warehouse :
M01:B76
Specification
Magazyn: M01:B76
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Iseki TU120
- Iseki TU135
- Iseki TU140
- Iseki TU145
- Iseki TU150
- Iseki TU155
- Iseki TU160
- Iseki TU167
- Iseki TU170
- Iseki TU175
- Iseki TU177
- Iseki TU180
- Iseki TU200
- Iseki TU220
- Iseki TU240
Iseki TU125
Iseki TU127
Iseki TU185
Iseki TU197
Iseki TU205
Iseki TU217
Iseki TU225
Iseki TU237
Iseki TU245
Iseki TU257
Iseki TU318
Iseki TU320
Iseki TU324
Iseki TU1400
Iseki TU1500
Iseki TU1600
Iseki TU1700
Iseki TU1900
Iseki TU2100
Number of teeth (pcs/T-teeth)
13T / 13T
Inner Diameter (mm)
21.20
25
Overall length (mm)
89
Cutter(s) length (mm)
20 / 20
