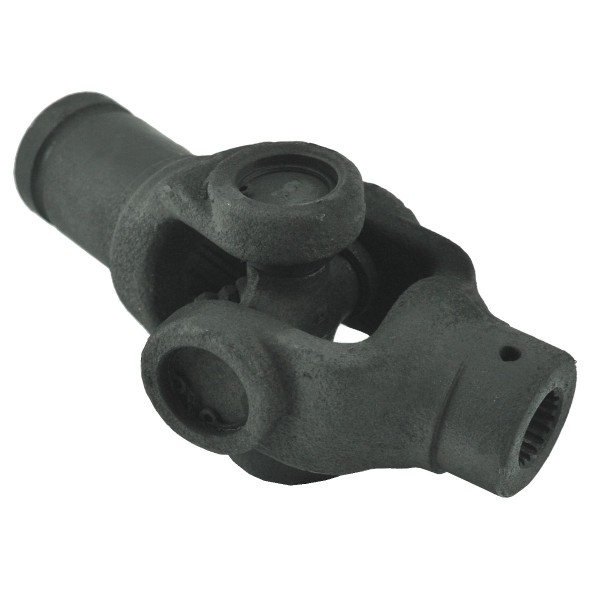

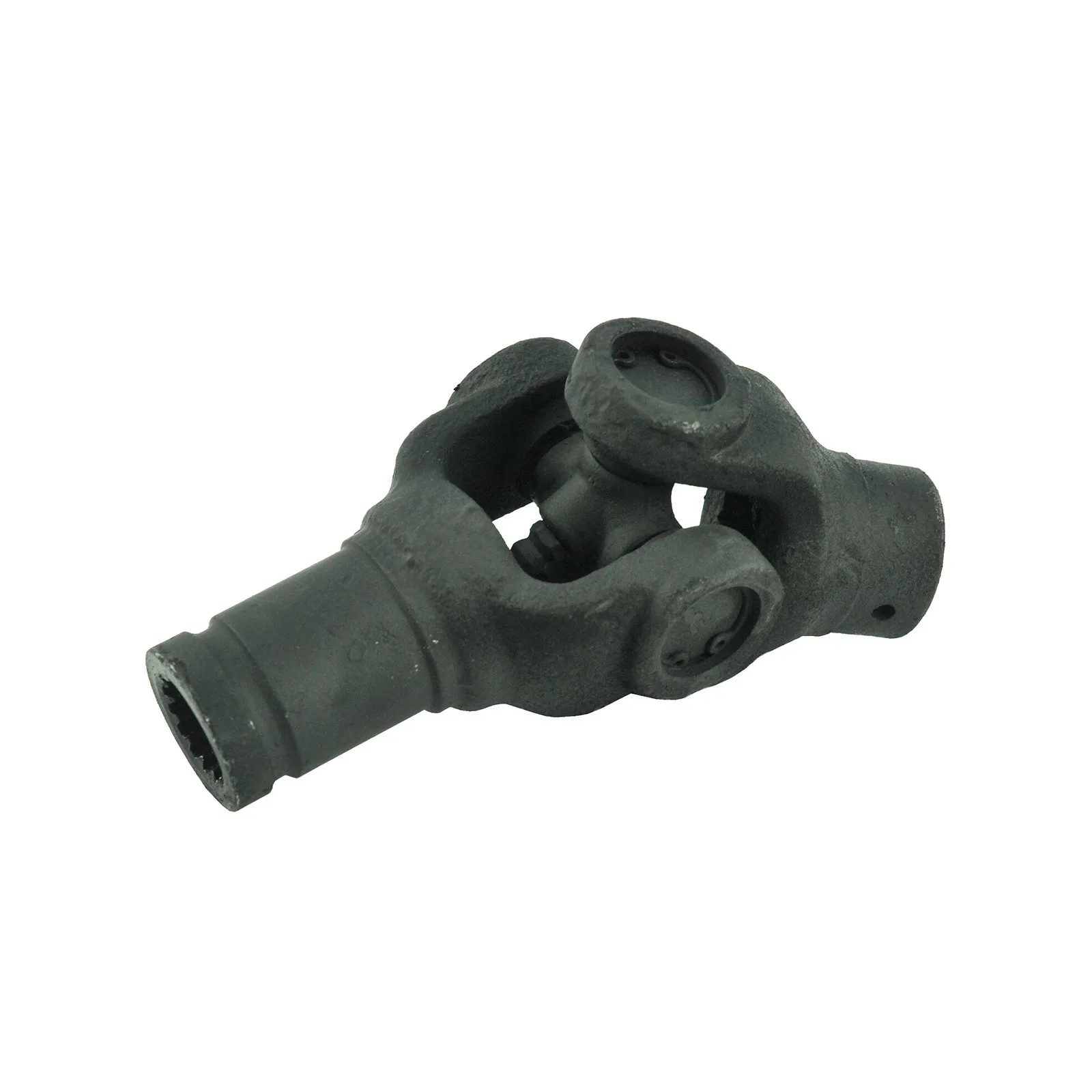

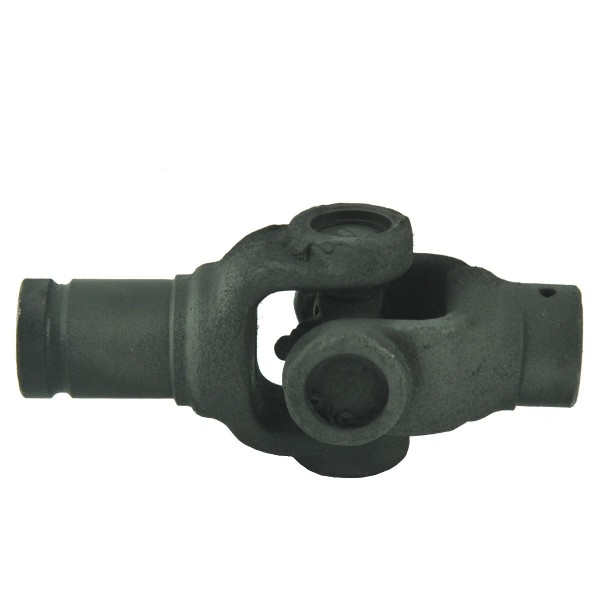

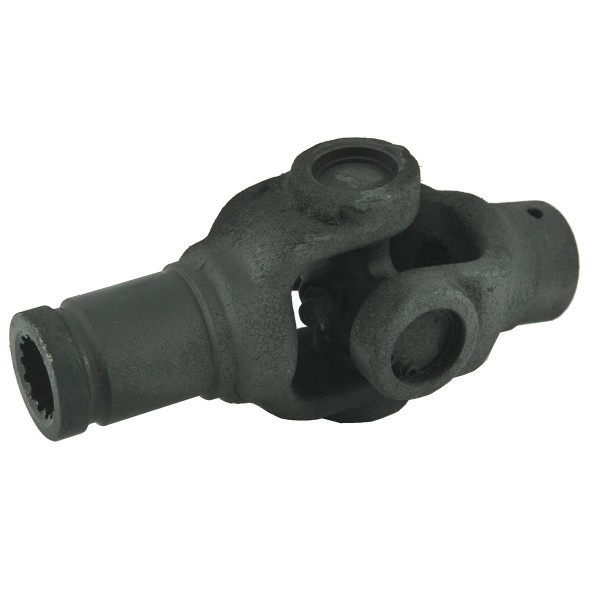

Cardan joint / 14T/20T / Kubota B5000 / B5001 / B4200 / ZB5000 / ZB5001 / B10

Cardan joint with a total length of 137 mm and a cutter with a number of teeth 14T / 20T and an internal diameter of 16.50 mm (20T) / 19.50 mm (14T) measured between the cutter teeth for Kubota tractors of the Kubota B10, Kubota B5000, Kubota B5001, Kubota B4200, Kubota ZB5000, Kubota ZB5001 series and others.

A cardan joint , universal joint or pivot joint is an element whose main task is to transmit drive, torque from the driving shaft to the driven shaft, which may be at a significant angle to each other. A cardan clutch , universal joint or pivot clutch are all correct names for a joint that consists of two fork-shaped elements connected to each other by a cross connection. Cardan joints are available with shafts, with ends with a milling cutter or a fork locked with a wedge.

Dimensions :

• total length: 137 mm,

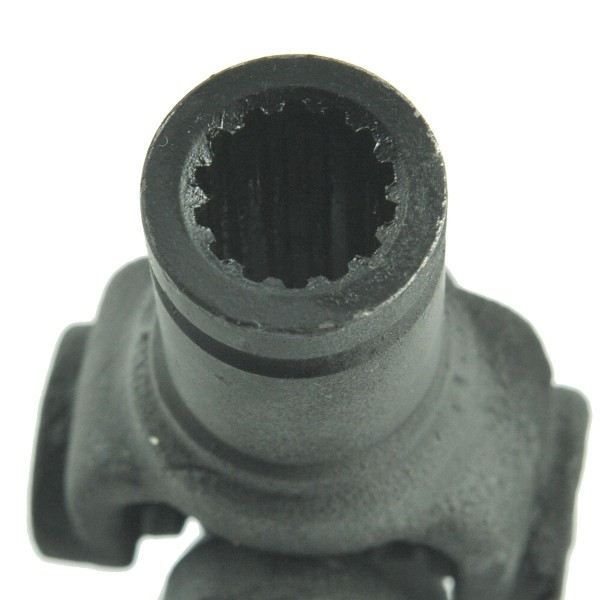

• inner diameter (14T): 19.50 mm (measured between cutter teeth), 17 mm (measured together with cutter teeth),

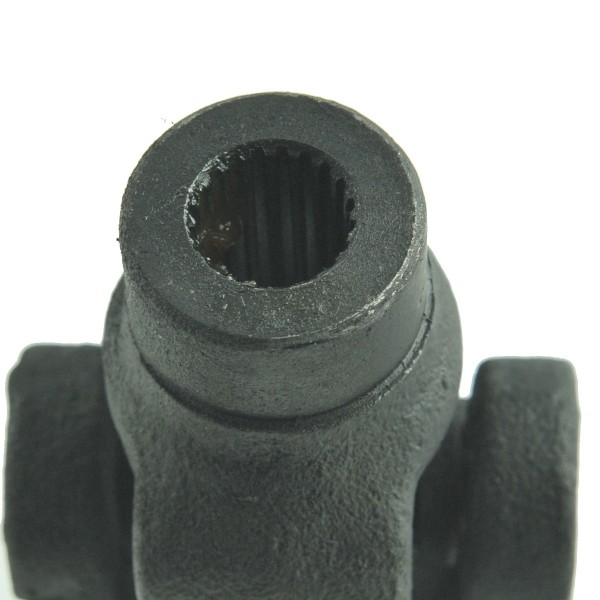

• inner diameter (20T): 16.50 mm (measured between cutter teeth), 14 mm (measured together with cutter teeth),
• cross: 55 x 20 mm,
• cutter length: 32 mm (20T) / 52 mm (14T),
• number of teeth: 14T / 20T.

Tractor models :

Kubota :

• Kubota B10,
• Kubota B5000,
• Kubota B5001,
• Kubota B4200,
• Kubota ZB5000,
• Kubota ZB5001.
