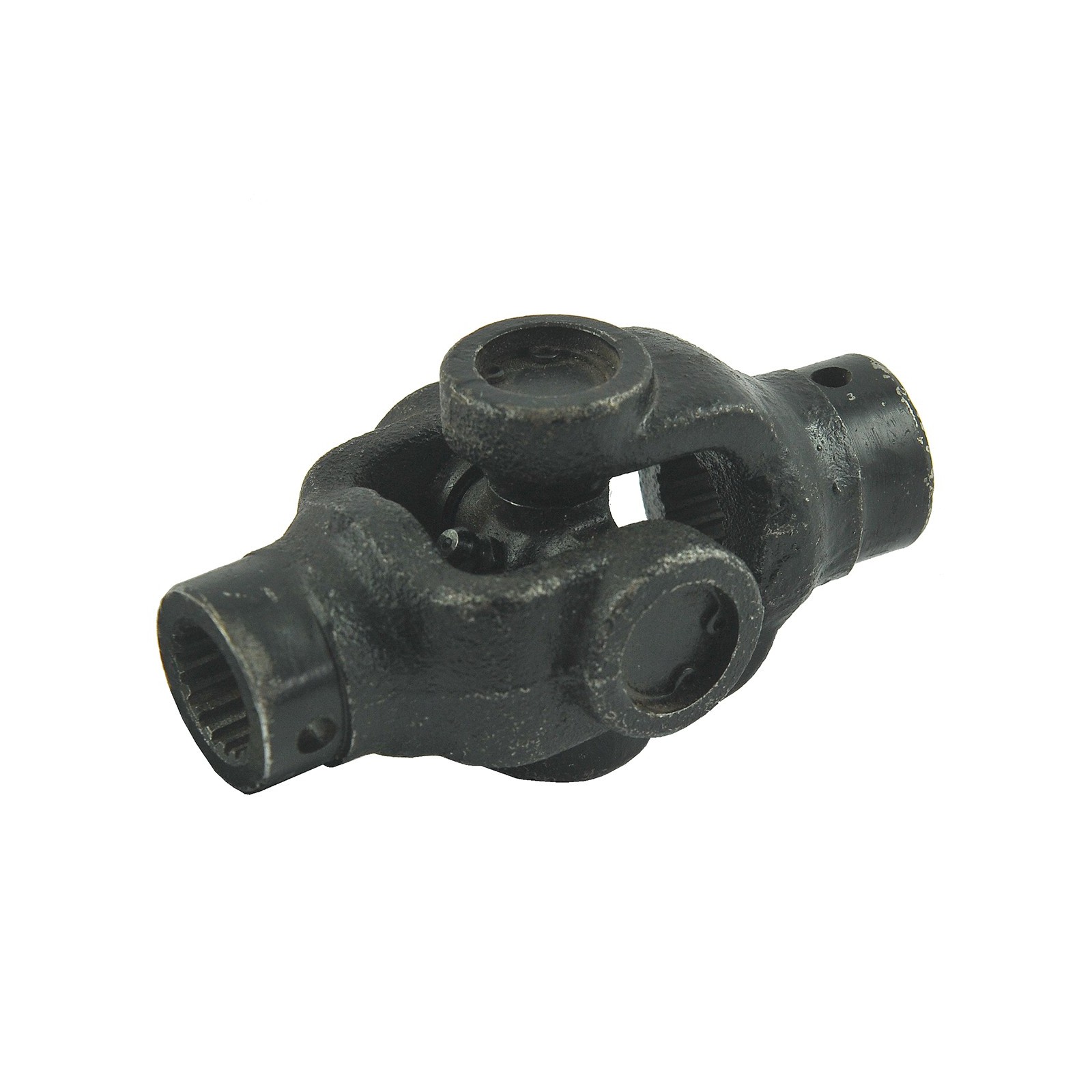

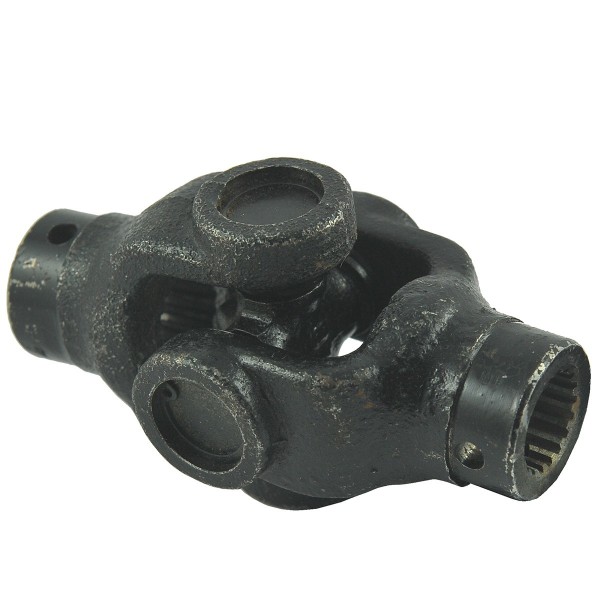

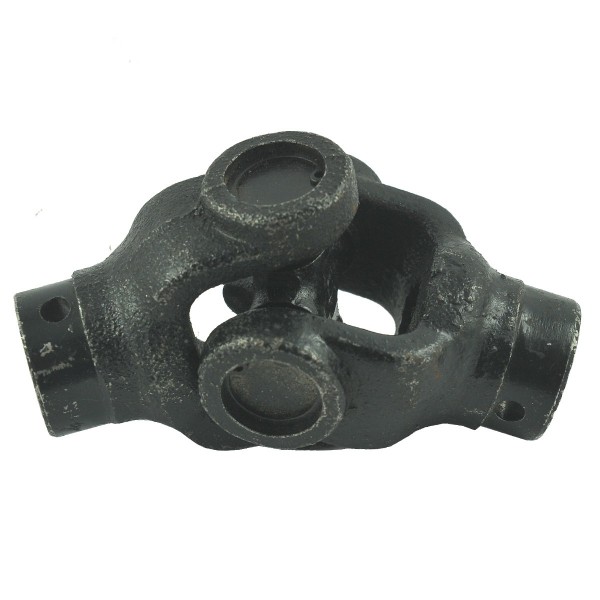

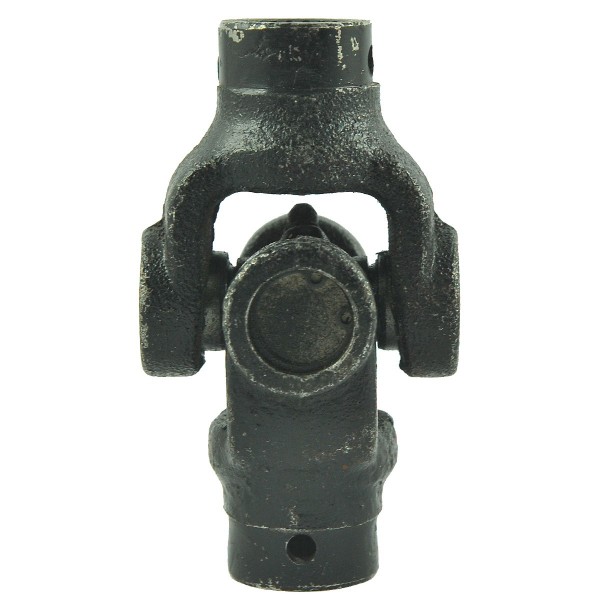

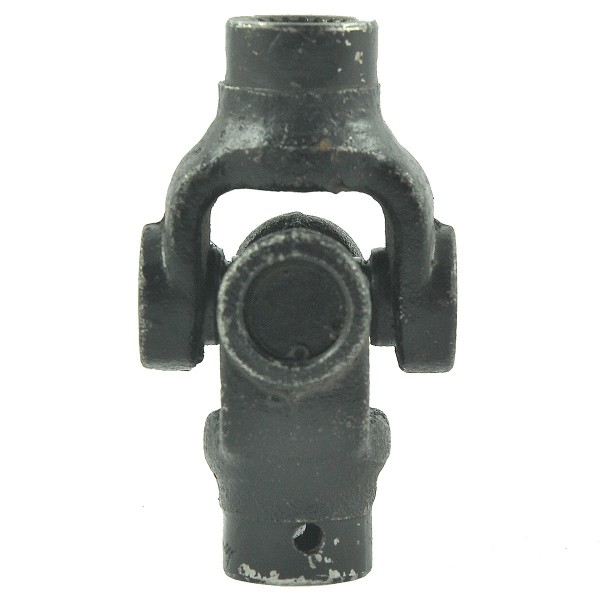

Cardan joint / 18T/18T / 112 mm / Kubota B1200 / Iseki TX1400/TX1510 / 66864-15421 / 29005

Cardan joint (cross joint 66591-56321) with a total length of 112 mm and a cutter with the number of teeth 18T / 18T and an internal diameter of 19.90 mm measured between the teeth of the cutter for Iseki tractors of the Iseki TX1400 series, Iseki TX1510 of the Kubota series , Kubota B1200 series and others

Cardan joint , universal joint or pivot joint is an element whose main task is to transfer the drive and torque from the active shaft to the passive shaft, which may be at a significant angle to each other. Cardan coupling , cross coupling or swing coupling are all correct names for a joint that consists of two fork-shaped elements joined together by a cross joint. Cardan joints are available with shafts, with ends with a cutter or fork, blocked with a wedge.

Dimensions :

• total length: 112 mm,

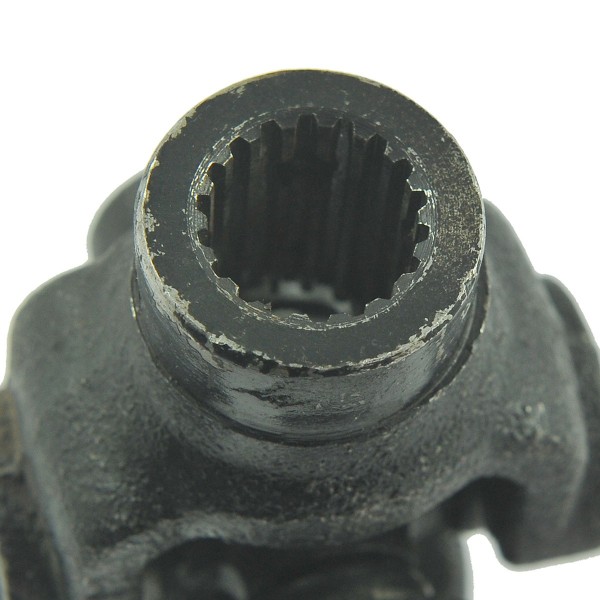

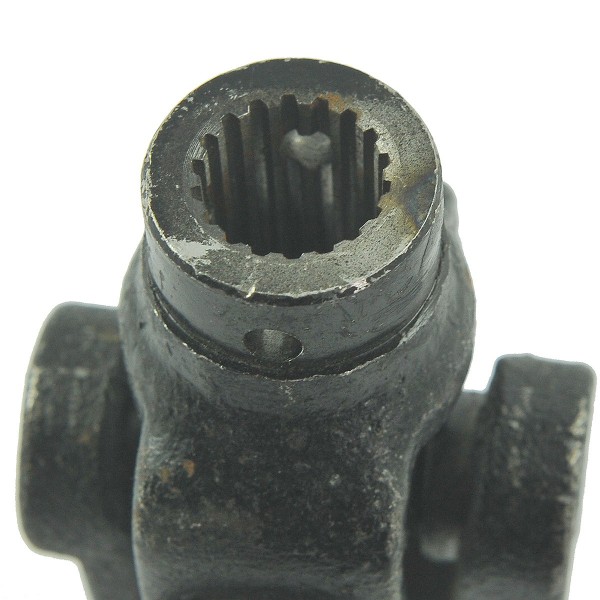

• inner diameter: 19.90 mm (measured between the cutter teeth), 17.50 mm (measured together with the cutter teeth),
• cross (66591-56321): 20 x 54.60 mm,
• cutter length: 32 / 32 mm,
• number of teeth: 18T / 18T,
• original part numbers: ( 5-04-500-05 spare part), 66864-15421.

Tractor models :

Kubota :

• Kubota B1200.

Iseki :

• Iseki TX1400,
• Iseki TX1510.

Warehouse :
M01:B75/B86
