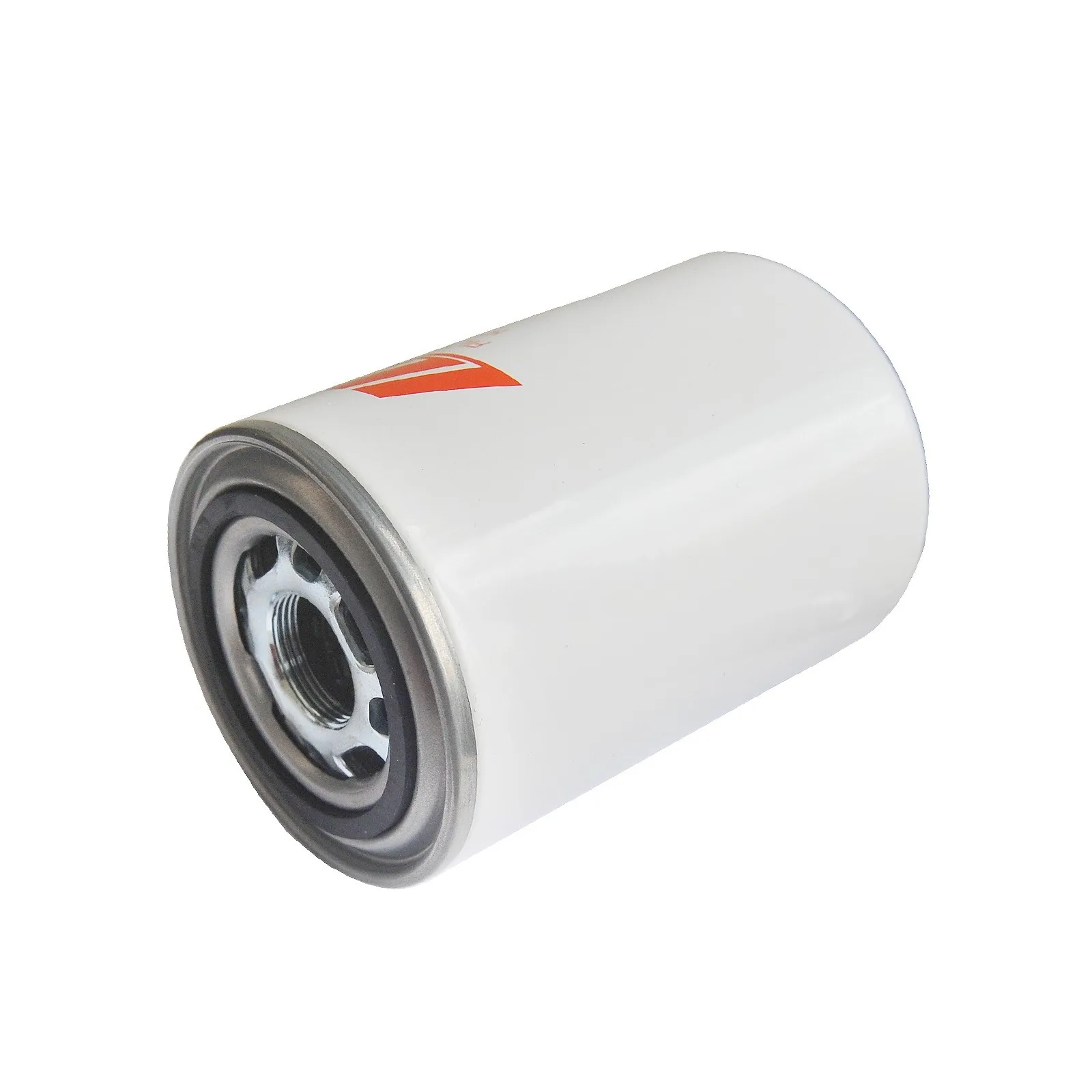

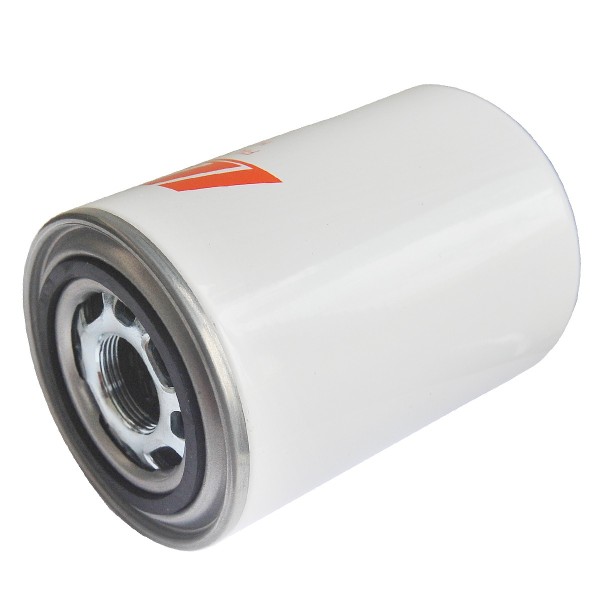

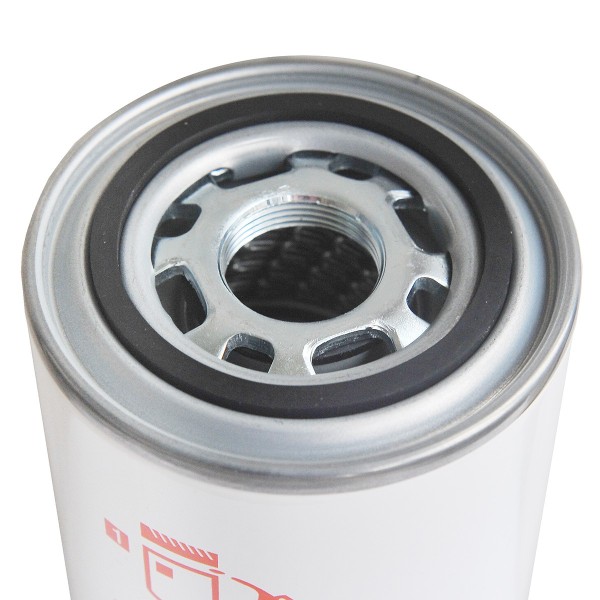

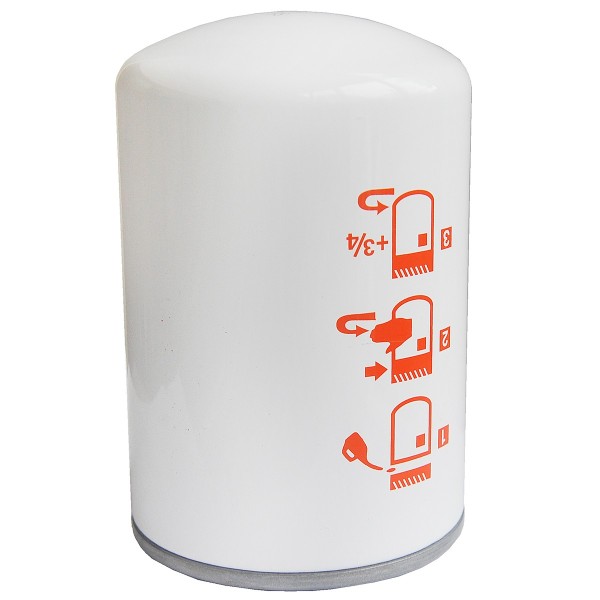

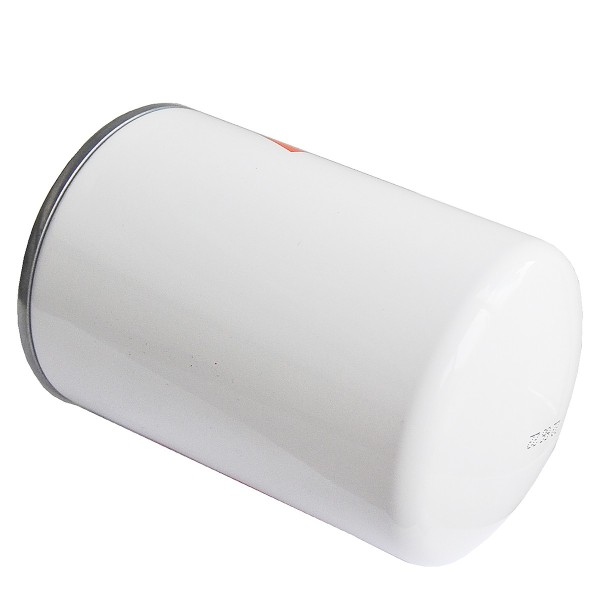

Hydraulic oil filter / 1"1/8-16UNF / 100 x 145 mm / Iseki TF317/TF321/TF325 / 1614-508-2620-0 / SH60077

Hydraulic filter 150 mm high, 100 mm in diameter with 1"1/8-16UNF thread for Iseki tractors of the Iseki TF317, Iseki TF321, Iseki TF325 series and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or are generated during the use of the tractor, e.g. solid (mineral) particles that are generated during the operation of the machine. We change the hydraulic filter every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, approximately every 100 hours for used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's instruction manual and it is usually after the first 50 hours of operation (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box exactly in the hydraulic system oil flow, usually from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.

Dimensions:

• height: 150mm
• outer diameter: 100mm,
• gasket diameter: internal 62 mm, external 72 mm,
• original part numbers: 1614-508-2620-0,
• comparative numbers: SPH 9348,
• part numbers: SH 60077.

Engine Models :

Iseki :

• Iseki E3100.

Tractor models :

Iseki :

• Iseki TF317,
• Iseki TF321,
• Iseki TF325.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
