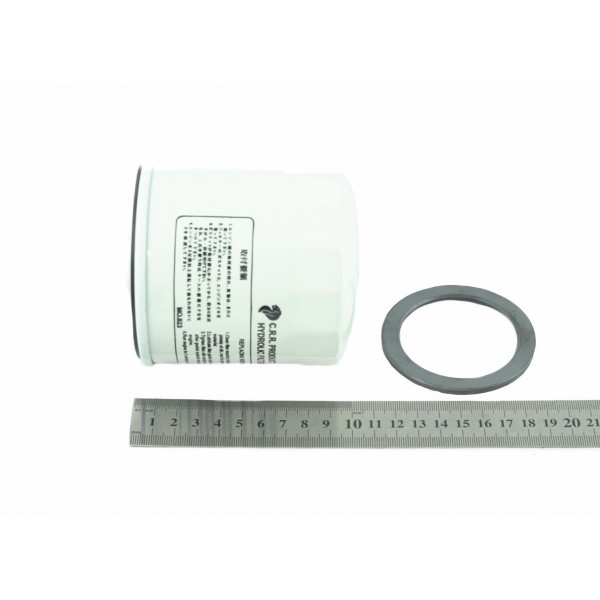

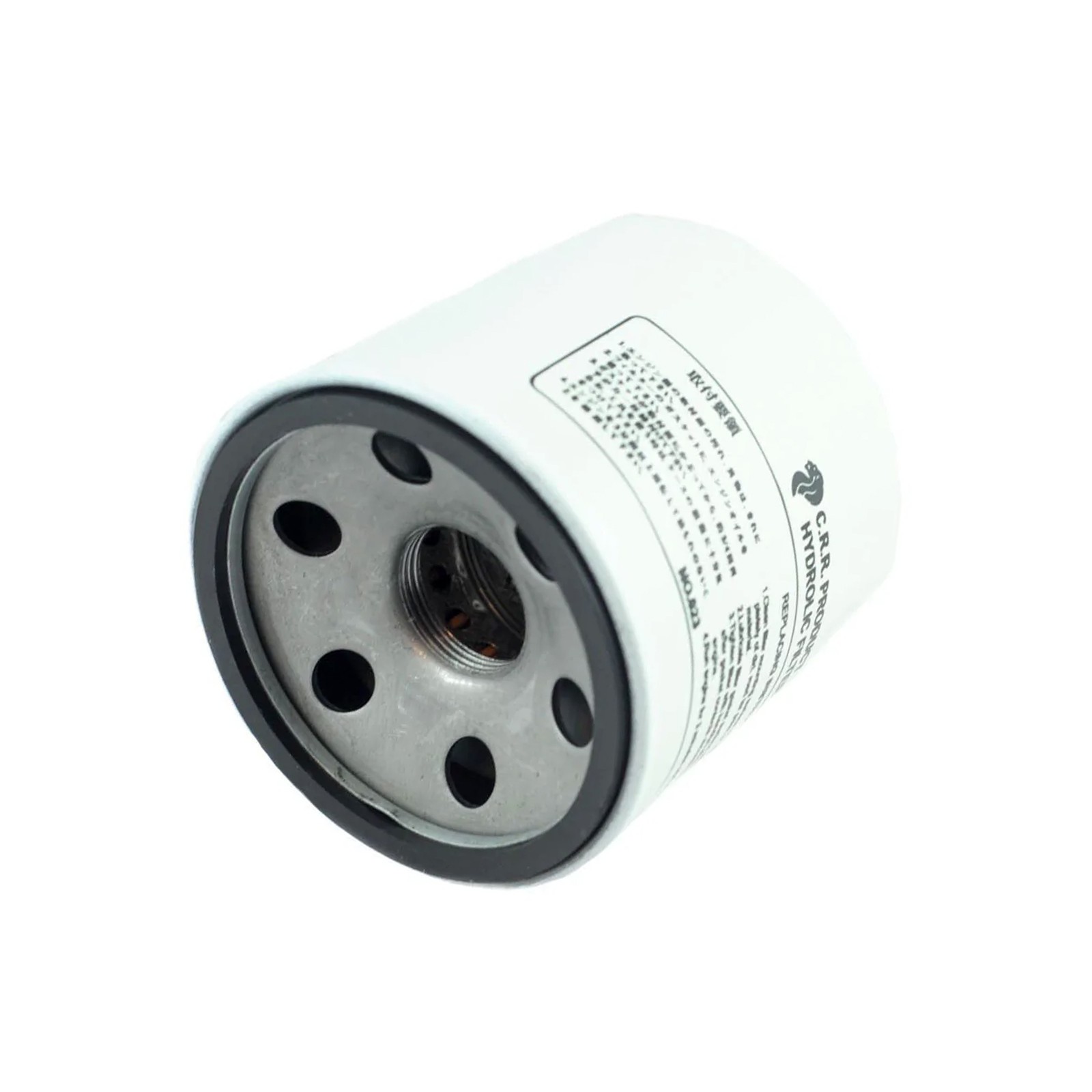

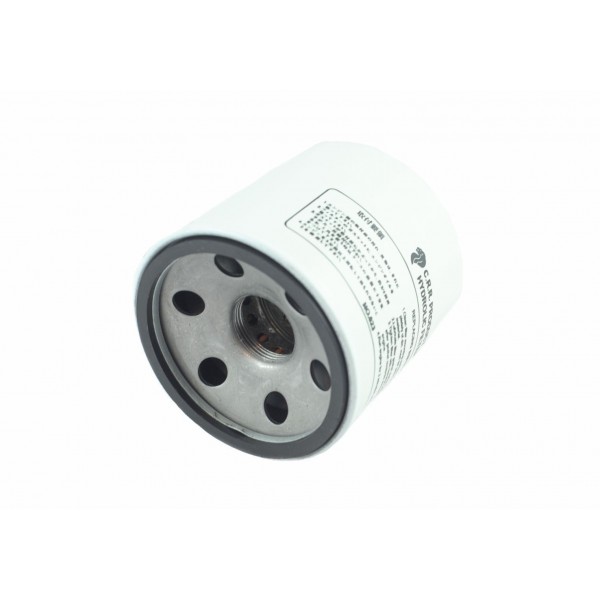

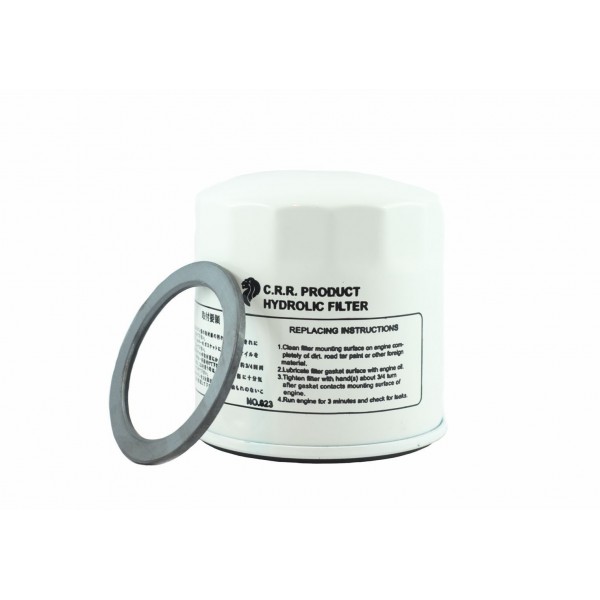

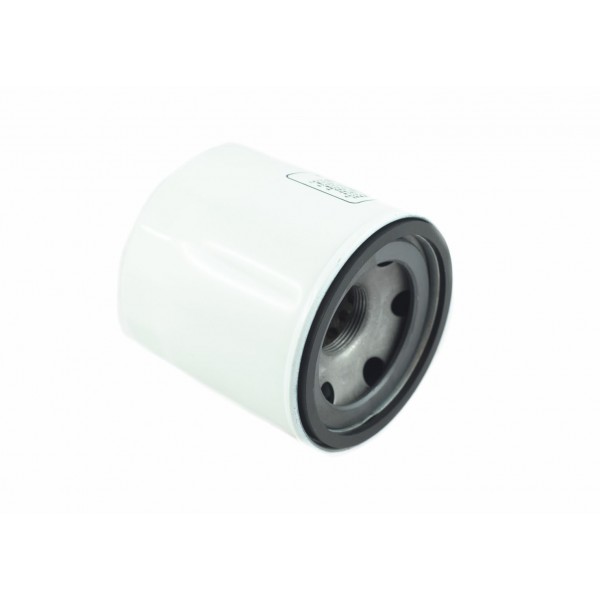

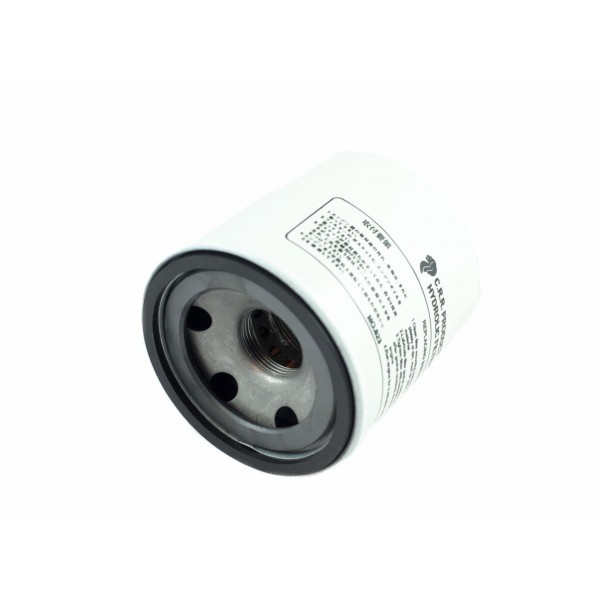

Hydraulic Oil Filter 1 "1 / 8-16UNF / Kubota L / 5-01-123-14 / 3A431-82623

1 "1 / 8-16UNF threaded hydraulic oil filter, 101 x 98 mm , for Japanese Kubota L -series tractors and mini tractors and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or arise during tractor operation, e.g. solid (mineral) particles that arise during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or the vehicle is operated frequently, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the operating manual of the machine, usually after the first 50 hours (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted in the vicinity of the tractor's box exactly along the flow of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor,

Dimensions :

• diameter: 95 mm,
• base diameter: 97.50,
• gasket diameter: outer 90 mm, inner 80 mm,
• height: 100 mm,
• thread: 1 "1 / 8-16UNF,
• magnesium included,
• comparative numbers: 3A431-82623.

Tractor models :

Yanmar :

• Yanmar F180,
• Yanmar AF120.

Kubota :

• Kubota GL220,
• Kubota L2808,
• Kubota L3408.

Replacing the hydraulic filter (regular) and cleaning the insert in the case of a mesh filter is a guarantee of failure-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that may damage our tractor or adversely affect the operation of the machine, reducing its operating parameters.
