zł79.00
To order
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
Hinomoto E2804
Height (mm)
111
Diameter (mm)
94
Base diameter (mm)
96

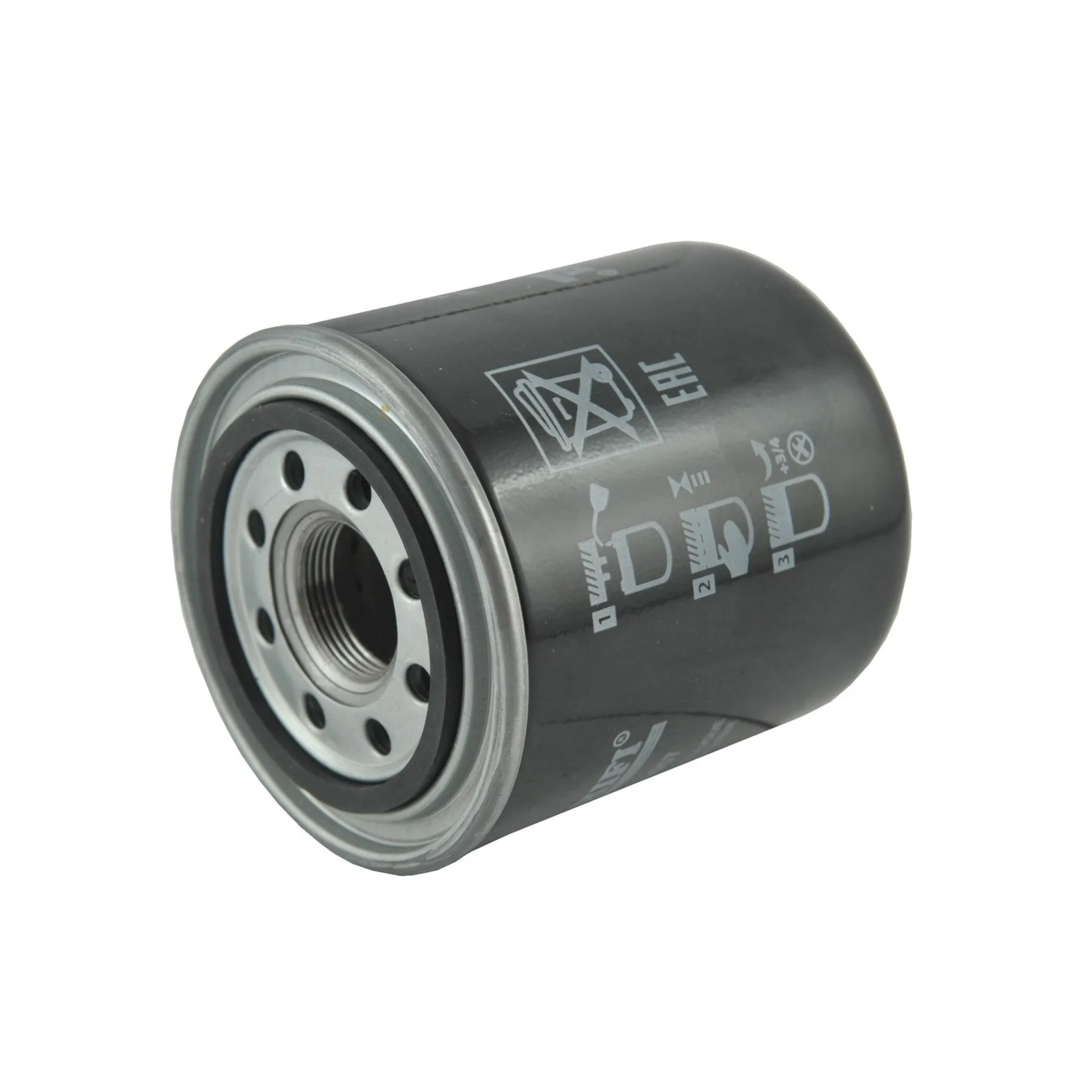

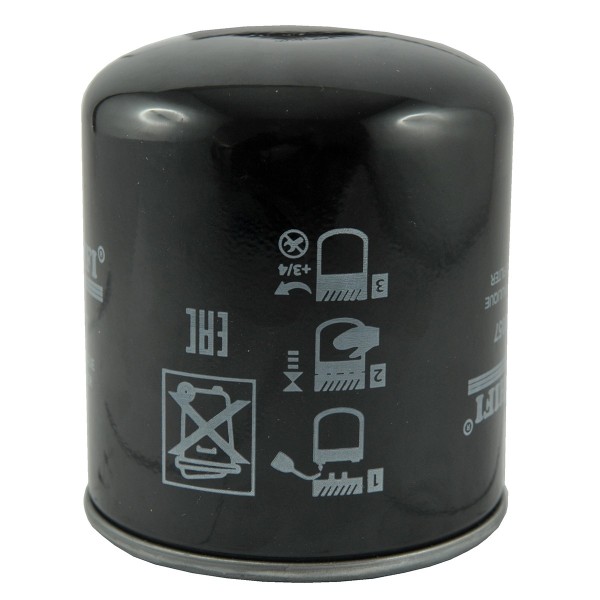

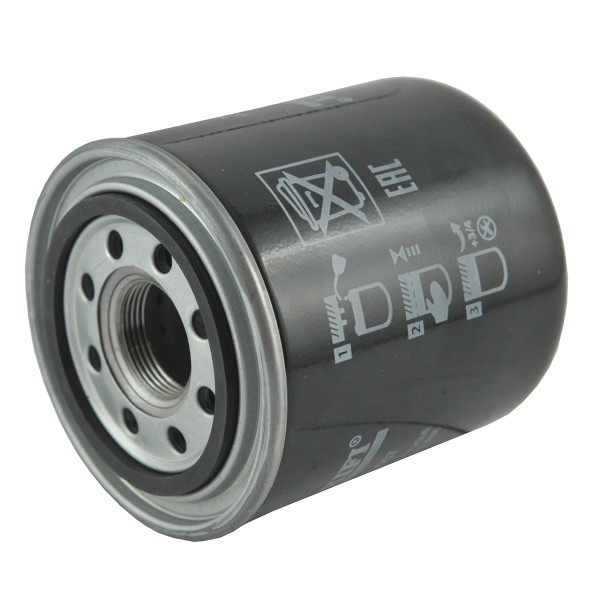

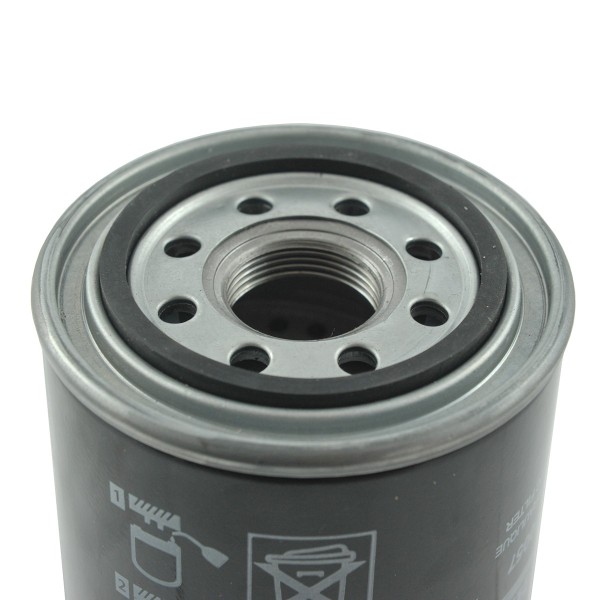

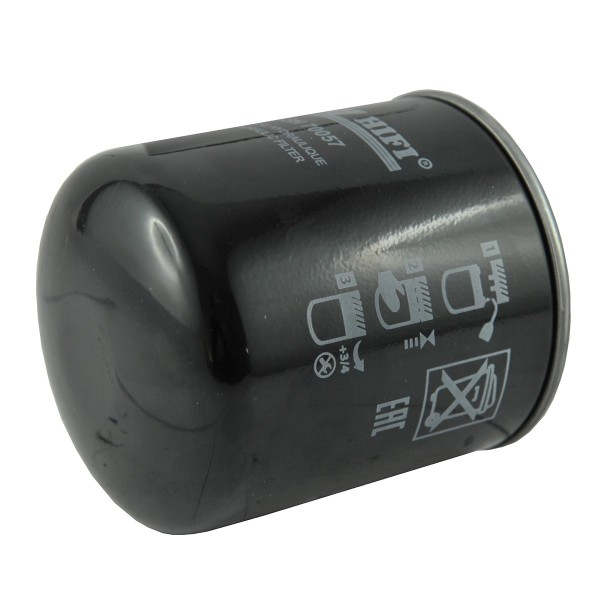

Hinomoto Hydraulic Oil Filter / 1"1/8-16UNF / 111 x 94 mm / SH 70057
75007HS
Do you have any questions?
Hinomoto Hydraulic Oil Filter / 1"1/8-16UNF / 111 x 94 mm / SH 70057
Threaded hydraulic oil filter 1"1/8-16UNF 111mm high x 94mm diameter for Japanese Hinomoto E-series tractors and mini tractors and others.
The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or are generated during the use of the tractor, e.g. solid (mineral) particles that are generated during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, approximately every 100 hours for used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's manual and usually after the first 50 hours of operation (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted near the tractor box exactly in the oil flow of the hydraulic system , usually from the bottom of the box or under the floor of our tractor,
Dimensions :
- height: 111mm,
- diameter: 94mm,
- base diameter 96 mm,
- gasket diameter: internal 62 mm, external 70 mm,
- thread: 1"1/8-16UNF,
- weight: 0.640 kg,
- comparative numbers: SH 70057, SH70057, SP9234.
Tractor models:
hinomoto :
- Hinomoto E2804.
Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
Warehouse :
M01:F54
Specification
Magazyn: M01:F54
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
Hinomoto E2804
Height (mm)
111
Diameter (mm)
94
Base diameter (mm)
96
Weight (kg)
0.750
Thread
1"1/8-16UNF
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
62
Outer seal diameter (mm)
70
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
