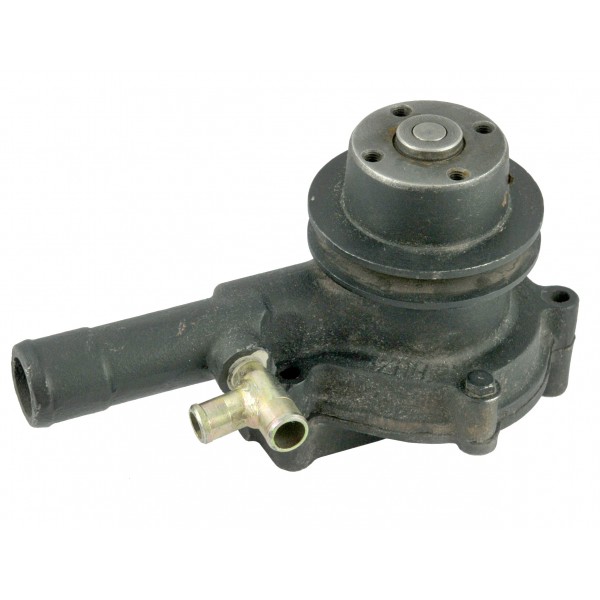

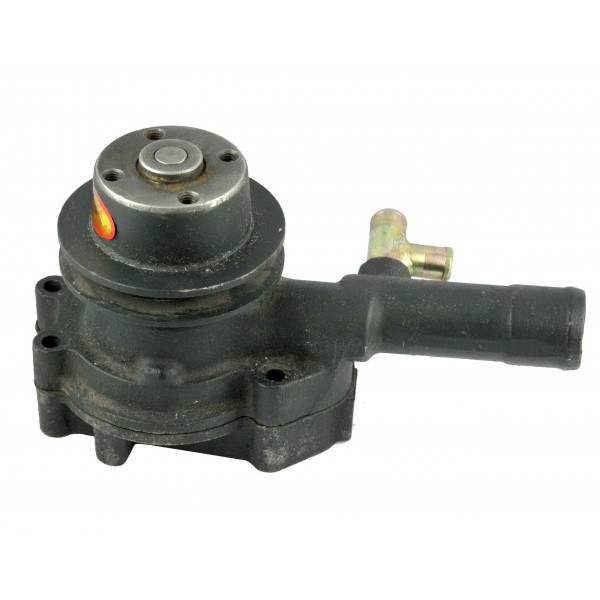

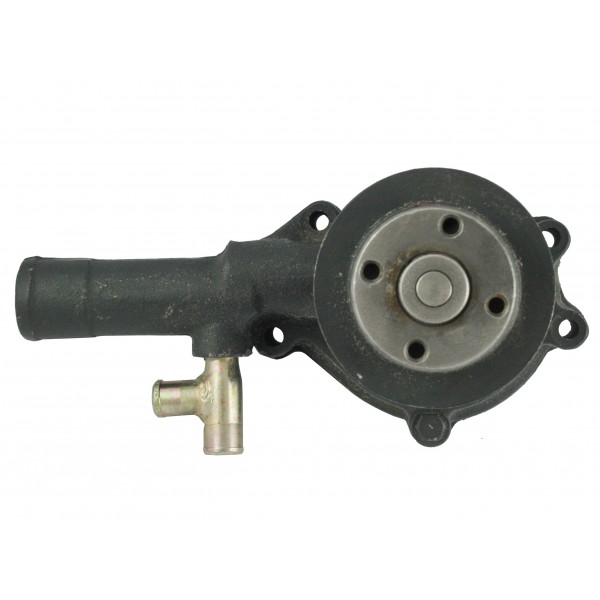

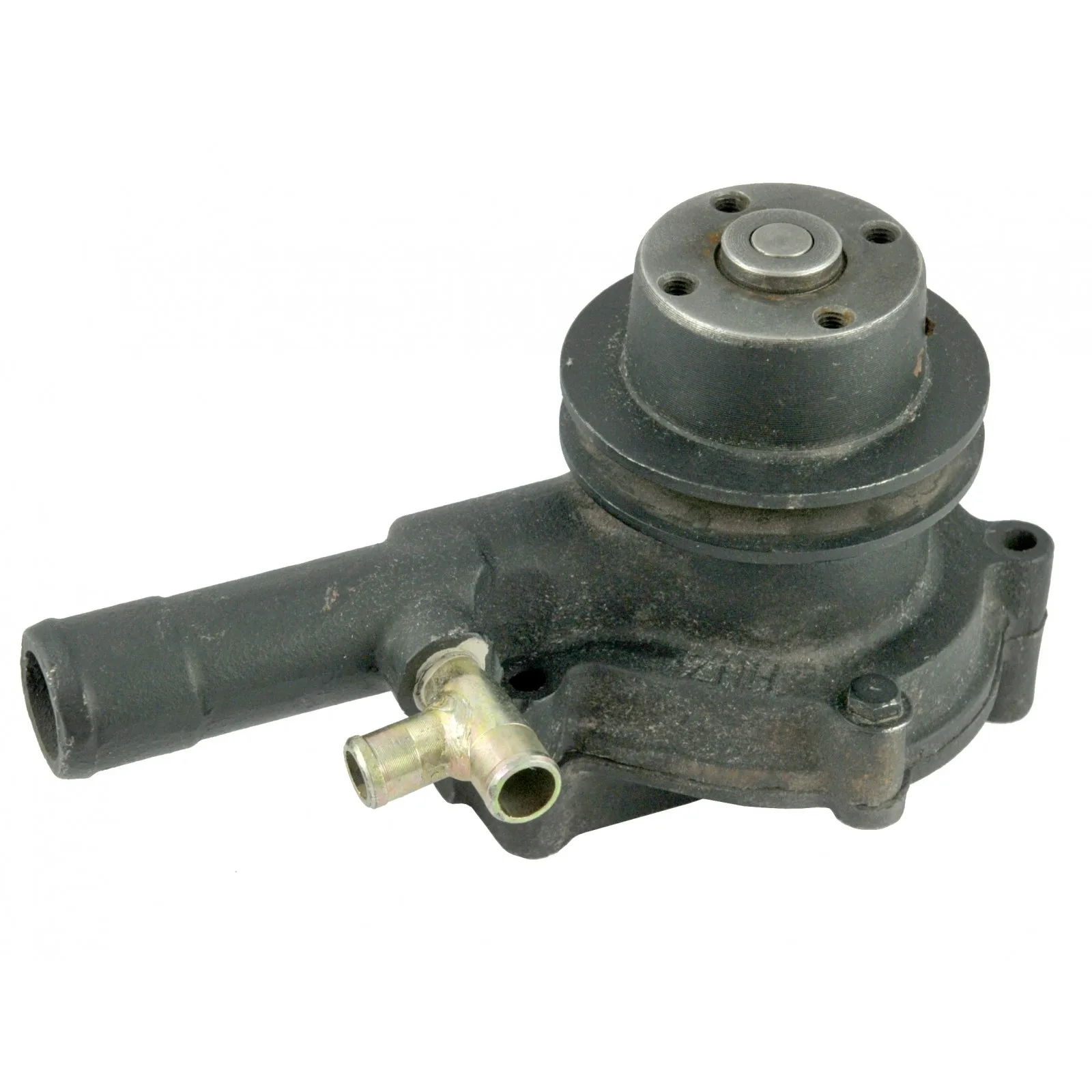

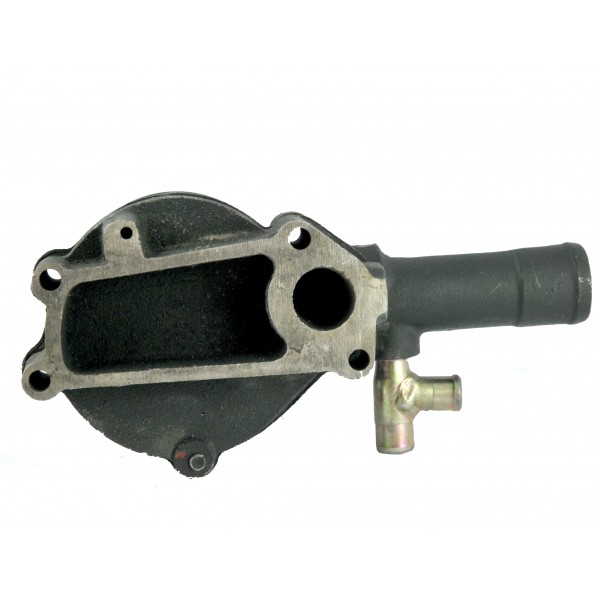

Water Pump - Jinma Mahindra HHZ
The Jinma HHZ water pump , the radiator coolant, is one of the most important elements of the engine cooling system and this cooling method is commonly called water cooling . The engine block and engine head are elements that heat up to very high temperatures during operation and we want to cool them with coolant during operation. Special water channels are bored in the engine and head for the circulation of water, which, to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw the pulley in order, and then the radiator fan, which rotates together with the pulley, providing the air movement needed to cool the radiator while the engine is running.
Dimensions:
- Length/width/height: 250 / 120 / 140 mm.
- Input/output diameter: inside: 24 / 13 / 10 mm, outside: 35 / 18 / 16 mm.
- Flywheel diameter: 65 / 100 mm.
- Flywheel mounting bolt hole spacing: 36 mm (measured apart), 52 mm (diagonally).
- The spacing of the mounting screws is visible in the photo.
Warehouse: M01;B14
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
