Water pump - Yanmar 3TNV76

119717-42002
zł499.00
Tax included PL 23% Dostępny na zamówienie

405,69 netto

  • To order

Do you have any questions?

Water pump - Yanmar 3TNV76

Water pump for tractors and other Yanmar machines with engines of the series Yanmar 3TNV76 and others.

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator during engine operation.

Dimensions :

  • height: 95 mm,
  • total length: 165 mm,
  • flywheel diameter: 50 mm,
  • wheel bolt hole spacing: 39.50 mm (measured diagonally), 28.50 mm (measured apart),
  • nozzle diameter: 21 mm (IN) / 28 mm (OUT),

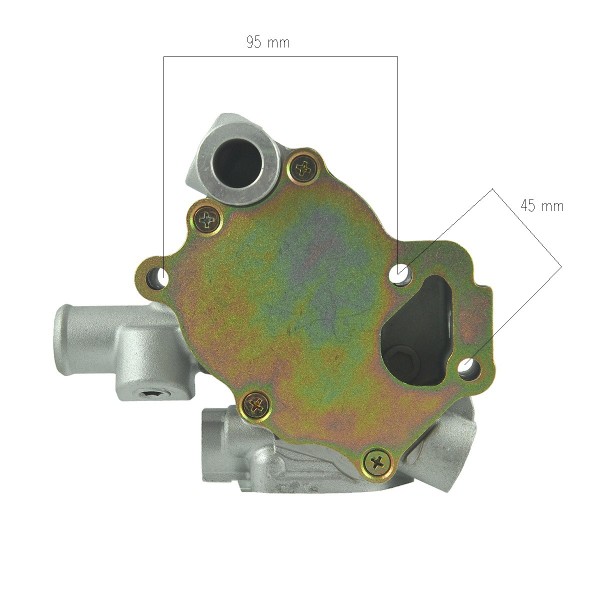

  • the spacing of the holes for the pump mounting screws is clearly visible in the photo,
  • gasket included with the pump,
  • original part numbers: 119717-42002,
  • Comparative numbers: -
  • gaskets and plugs included.

The most common problems and faults of the water pump are the bearing seizure , which is subjected to high rotational speeds and because the elements that directly cooperate with the pump, such as the pulley and the fan, which are not always properly balanced. Too tight a belt , worn belt , too loose V-belt, V-belt installed at the wrong angle , poor lubrication or lack of lubrication are other causes that cause water pump damage. The first signs of water pump damage or signs of improper operation are an unusual sound from under the hood, a coolant stain under the tractor or temperature jumps visible on the dashboard gauges.

Magazine: M01:B15

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:B15
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Yanmar 3TNV76
Height (mm)
95
Overall length (mm)
165
Wheel diameter (mm)
50
Connection diameter (a) (mm)
23 (IN) / 28 (OUT)
Machine models
Yanmar SV20
Yanmar VIO20-3
Yanmar VIO20-4
Yanmar VIO25-3
Yanmar VIO25-4
Original Part Number (OEM)
119717-42002
