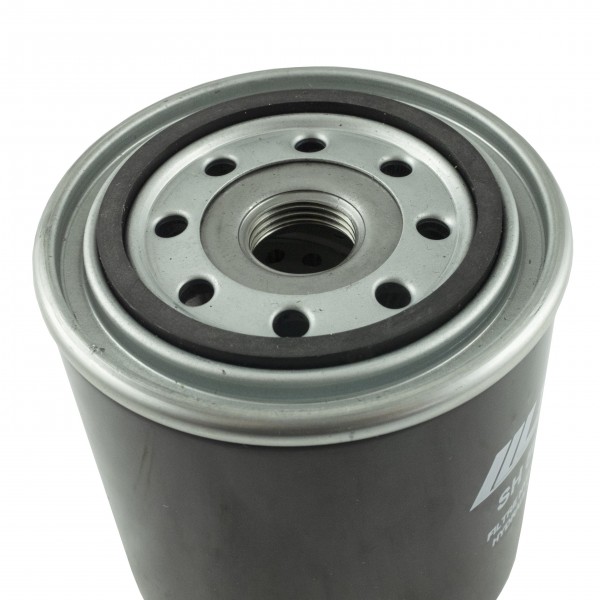

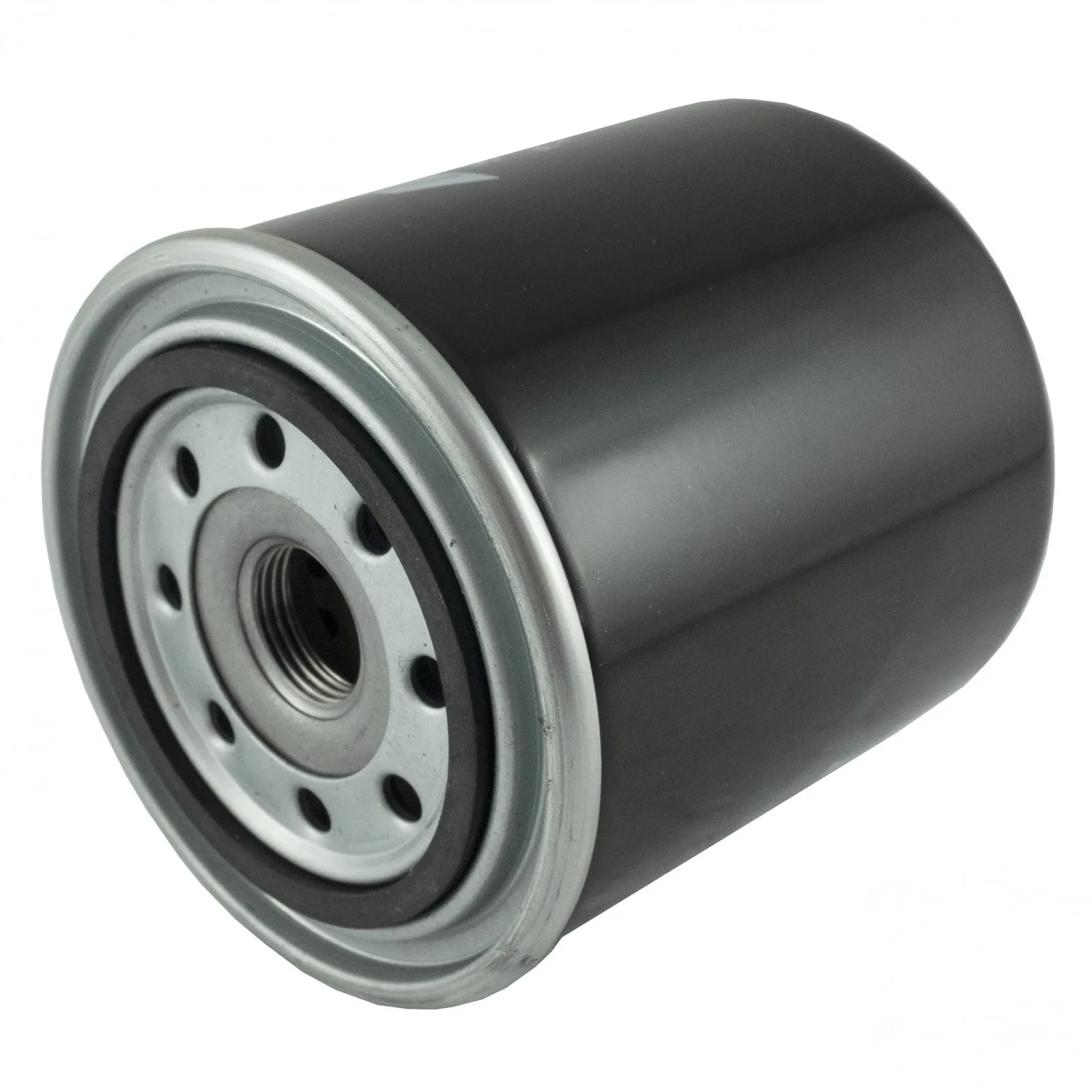

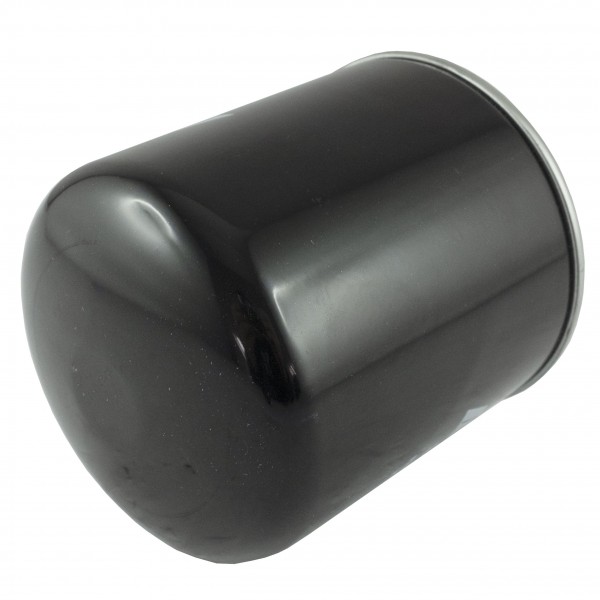

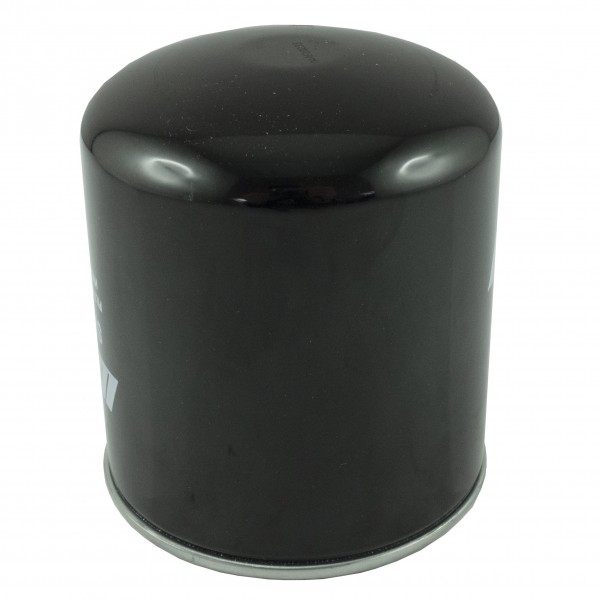

Hydraulic oil filter 111 x 95 mm, 13/16"-16UN, Case, Caterpillar

Hydraulic oil filter 111 x 94 mm, 13/16"-16UN, Case.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor.

Dimensions :

• Diameter: 95 mm.
• Height: 111 mm.
• Thread: 13/16"-16UN, 19.10 mm.
• Seal diameter: external: 71 mm, internal: 62 mm.
• Weight: 0.620 kg.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
