To order
Condition
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota D1463
Tractor models
- Kubota KT230
Height (mm)
103
Diameter (mm)
81

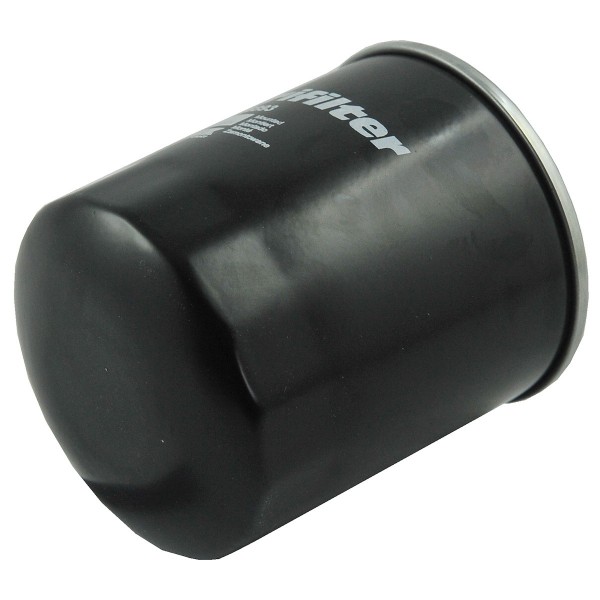

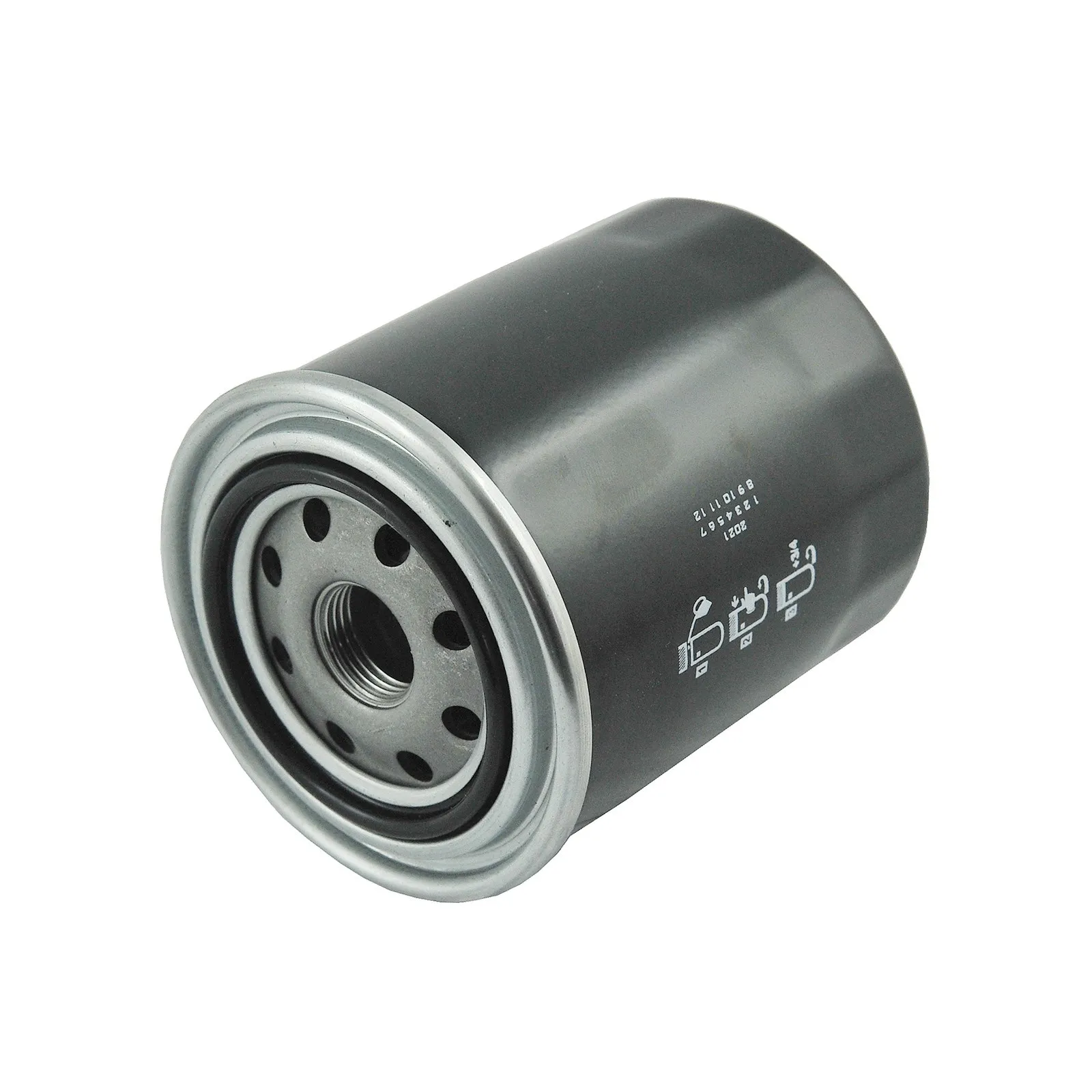

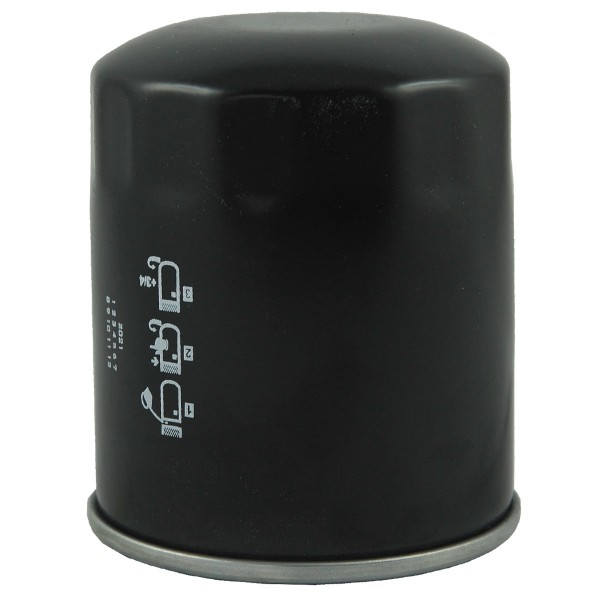

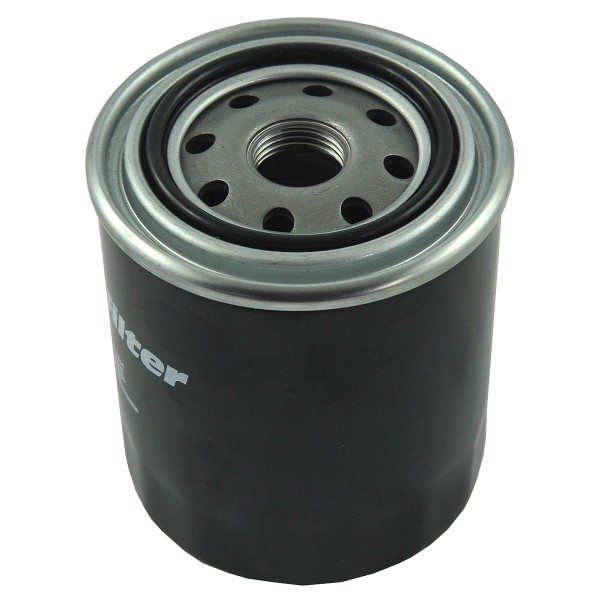

Hydraulic oil filter Kubota D1463 / Kubota KT / 81 x 102 mm / S.76893

S.76893
zł49.00
Tax included PL 23% Dostępny na zamówienie

39,84 netto

  • To order

Do you have any questions?

Hydraulic oil filter Kubota D1463 / Kubota KT / 81 x 102 mm / S.76893

Hydraulic oil filter with 3/4"-16UNF thread, dimensions 102 x 81 mm , for Kubota tractors and mini tractors of the Kubota KT series with Kubota D1463 engines and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or are generated during the use of the tractor, e.g. solid (mineral) particles that are generated during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, approximately every 100 hours for used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's manual and usually after the first 50 hours of operation (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted near the tractor box exactly in the oil flow of the hydraulic system , usually from the bottom of the box or under the floor of our tractor,

Dimensions :

  • height: 103mm,
  • diameter: 81mm,
  • base diameter: 84 mm,
  • gasket diameter: 52 mm internal, 61 mm external,
  • thread: 3/4"-16UNF,
  • original part numbers: 66021-36060,
  • comparative numbers: SH 60410, SH60410,
  • part numbers: S.76893.

Tractor models :

Kubota :

  • Kubota KT230.

Engine Models :

Kubota :

  • Kubota D1463.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.

Warehouse :
M01:F54

Specification

Magazyn: M01:F54
Condition
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota D1463
Tractor models
- Kubota KT230
Height (mm)
103
Diameter (mm)
81
Base diameter (mm)
84
Thread
3/4"-16UNF
Comparison numbers
SH 60410
SH60410
Original Part Number (OEM)
66021-36060
Part number
S.76893
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
52
Outer seal diameter (mm)
61
