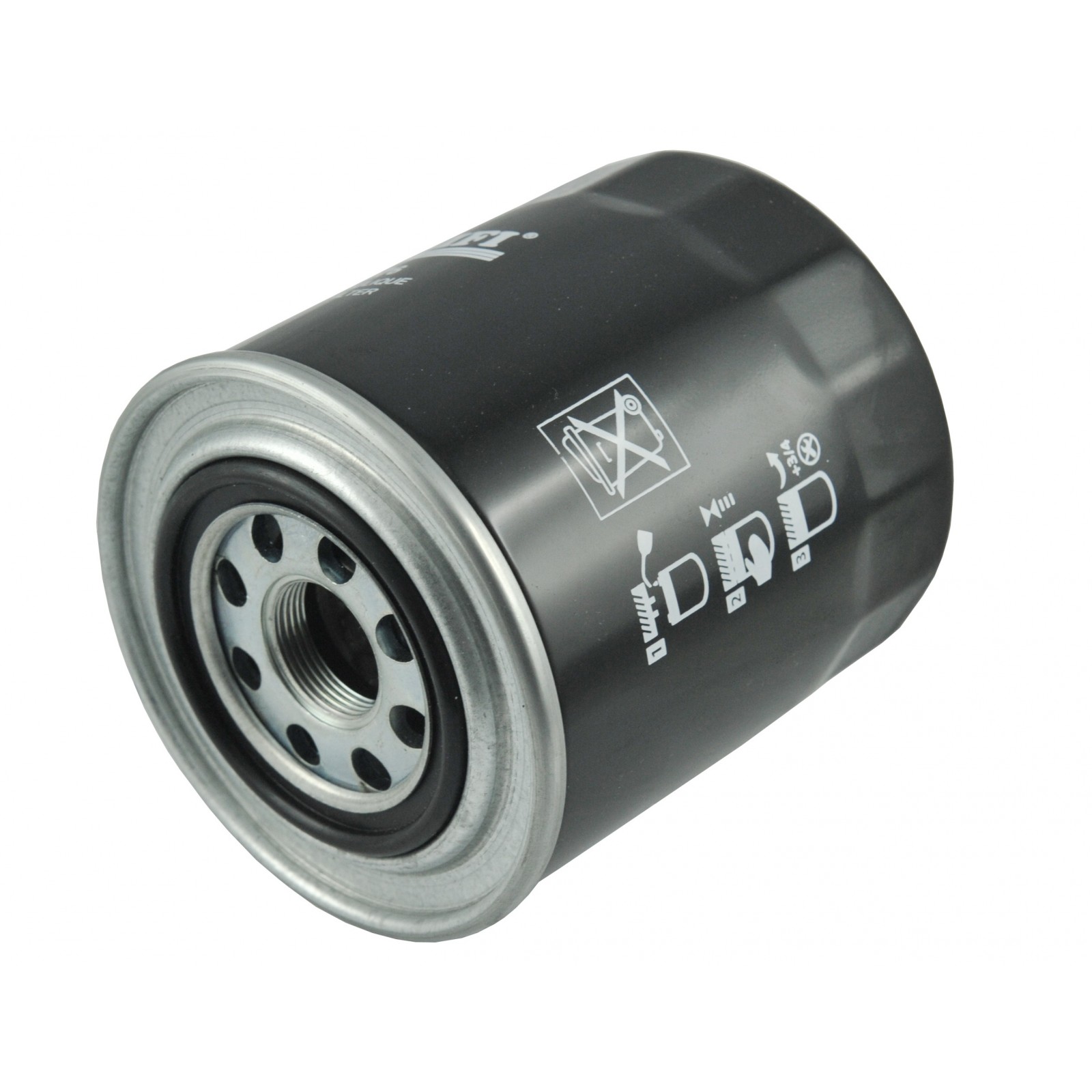

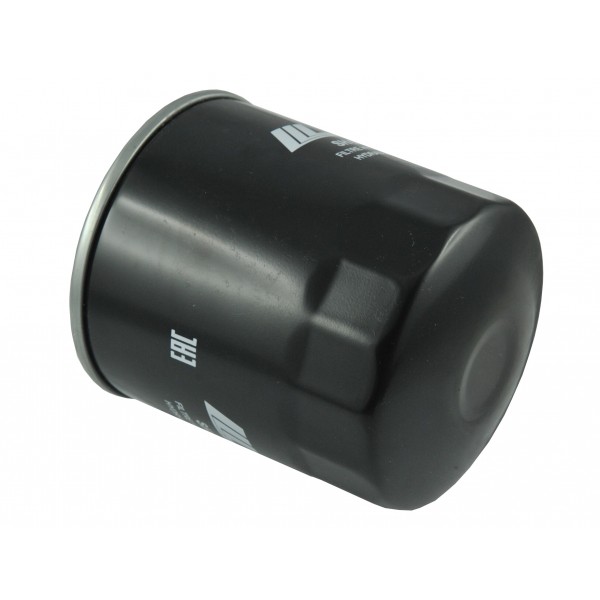

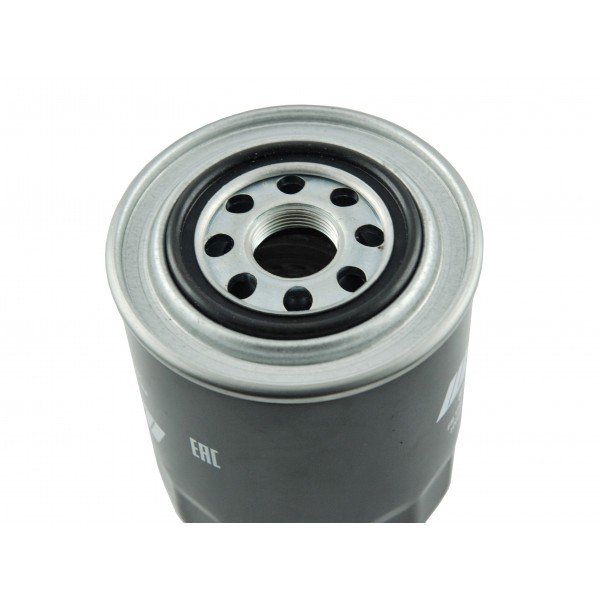

Hydraulic oil filter M26 x 1.5 / 106.50 x 124 mm / Honda / SH 60076

Hydraulic oil filter with M20 x 1.5 thread, 103 mm diameter and 124 mm high, for Japanese Honda TX20 series tractors and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that get into the hydraulic system or arise during tractor operation, e.g. solid (mineral) particles that arise during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or the vehicle is operated frequently, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually it takes place after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted in the vicinity of the tractor's box exactly along the flow of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor,

Dimensions :

• height: 124 mm,
• diameter: 103 mm,
• base diameter: 106.50 mm,
• gasket diameter: outer: 71 mm, inner: 56 mm,
• thread: M26x1,5,
• weight: 0.772 kg.
• comparative numbers: 15421759003, SH60076, SH 60076, SPH9902.

Tractor models:

Honda :

• Honda TX20.
