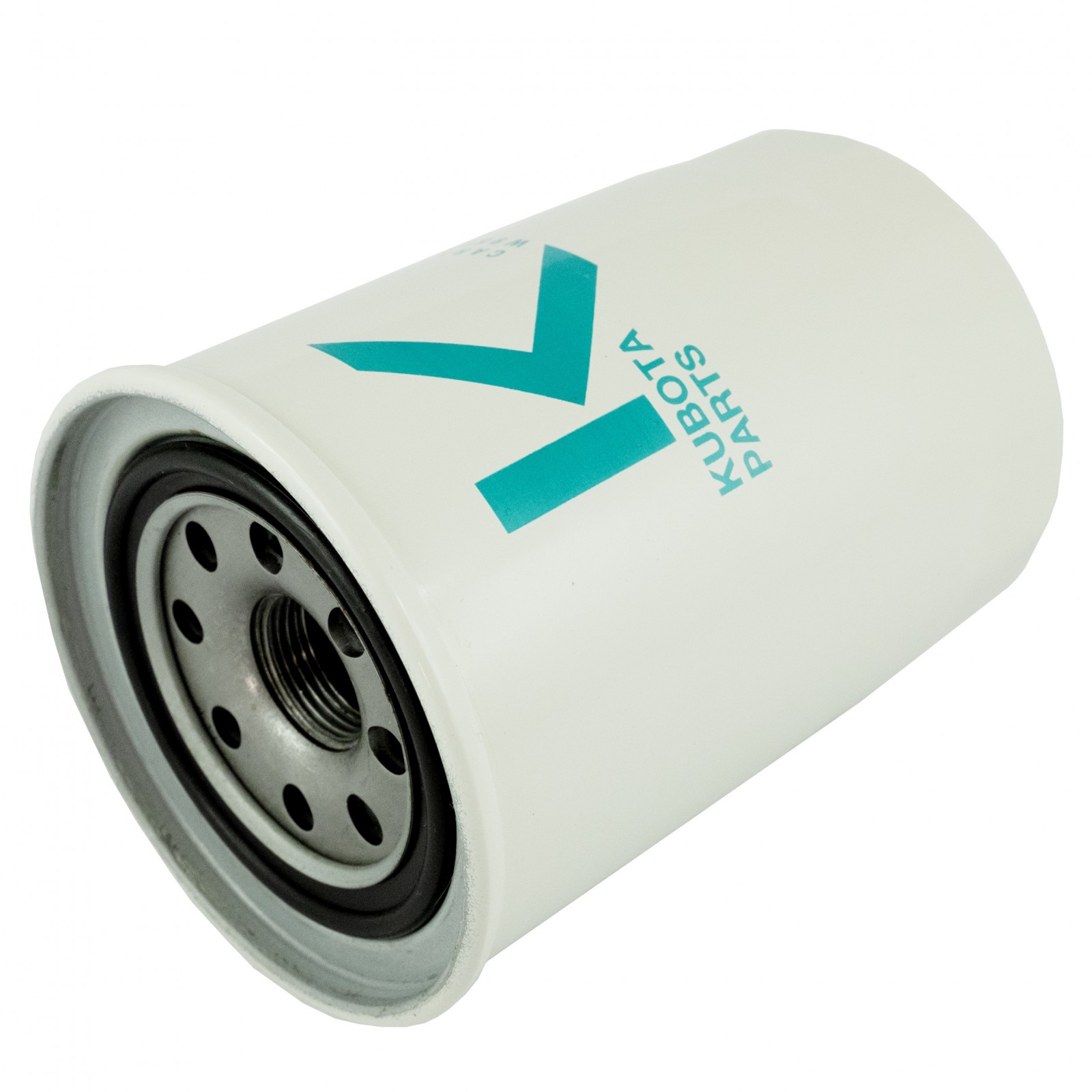

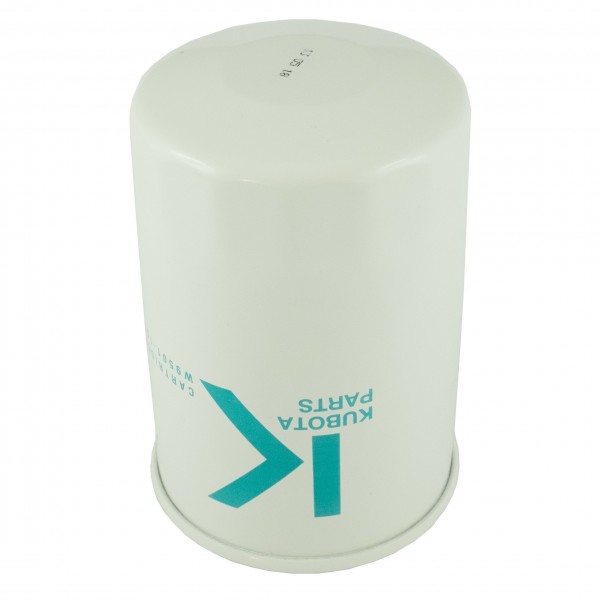

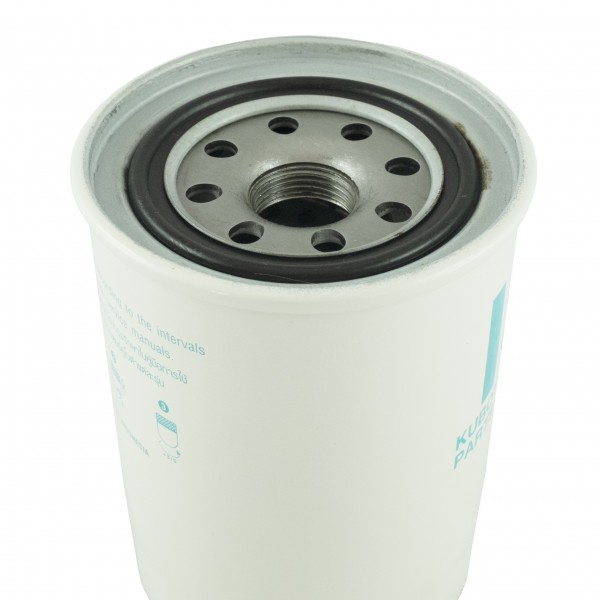

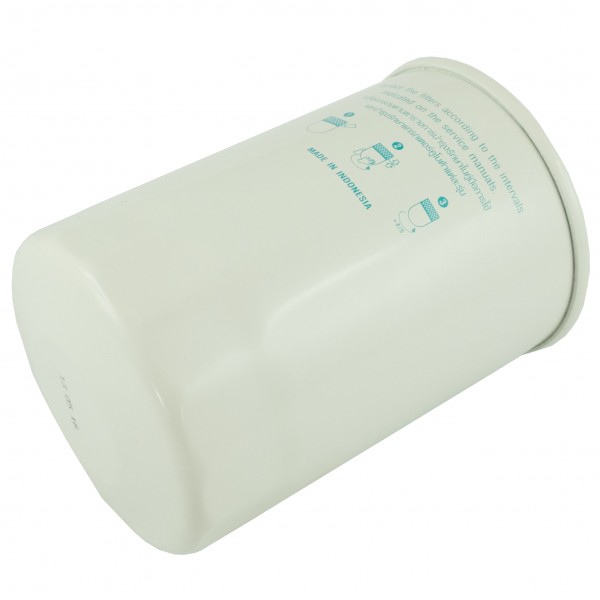

Hydraulic oil filter Kubota M20 x 1.5 / 120 x 80 mm / Kubota B2402 / W9501-15001

80x120 mm hydraulic oil filter with M2x1.5 thread for Japanese tractors from Kubota B series, Hinomoto CX series and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or arise during tractor operation, e.g. solid (mineral) particles that arise during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or the vehicle is operated frequently, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the operating manual of the machine, usually after the first 50 hours (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted in the vicinity of the tractor box exactly in the flow of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor. in the hydraulic system , there are no foreign objects that may damage our tractor or adversely affect the operation of the machine, reducing its operating parameters.

Dimensions :

• height: 120 mm,
• diameter: 80 mm,
• base diameter: 84 mm,
• thread: M20 x 1.5
• gasket diameter: outer 63 mm, inner 52 mm,
• comparative numbers: SH 60 410, HC-88010, 5-01-123-41 .
• weight: 0.400 kg.

Tractor models :

Kubota :

• Kubota B2402.

Hinomoto :

• Hinomoto CX18.

Engine Models :

Kubota :

• Kubota D1005,
• Kubota D1105.

Warehouse :
M01: K23
