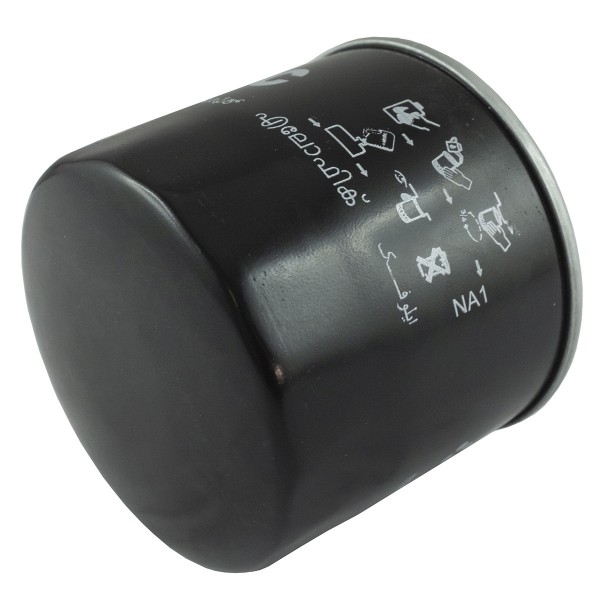

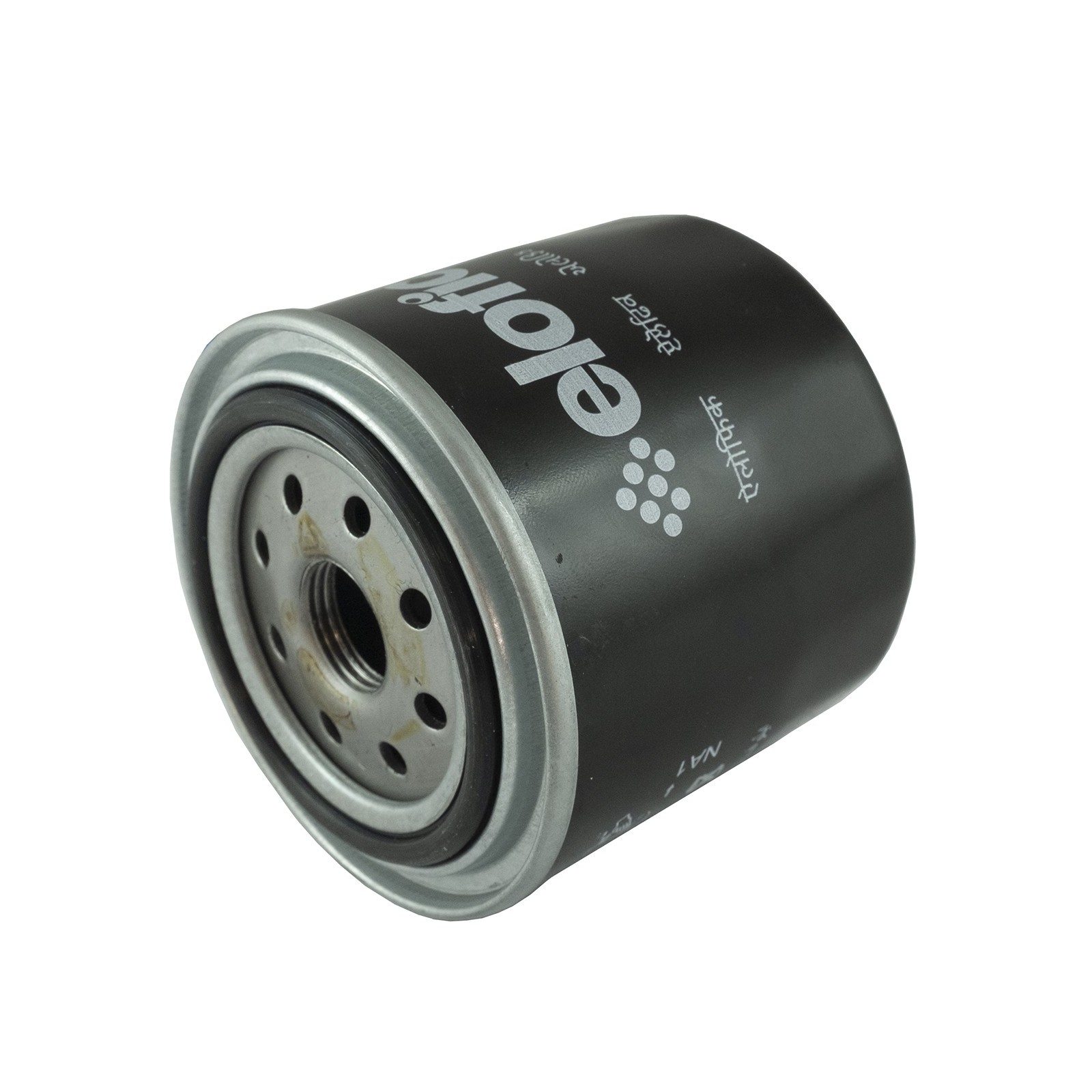

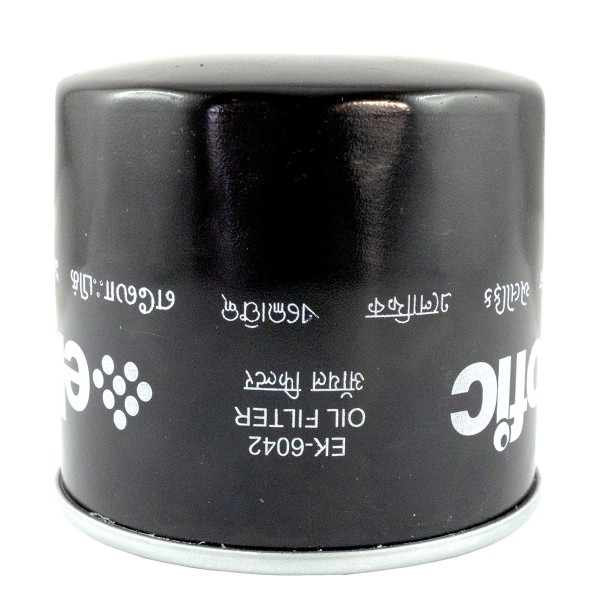

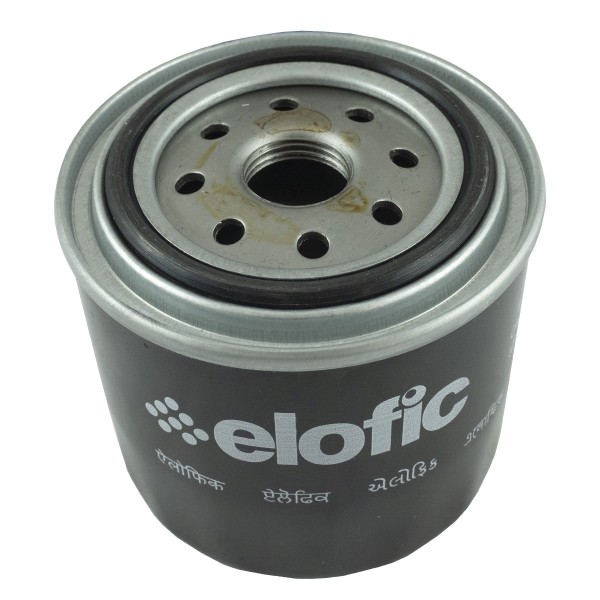

Hydraulic oil filter M20 x 1.5 / 80 x 75 mm / Kubota ZB / Startrac 273 / 11201246 / EK-6042

Hydraulic oil filter with the symbol EK-6042 , dimensions 75 x 80 mm for Stratrac 273 series tractors, Kubota ZB series and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal oil filter , screw-on, is a filter whose main task is to remove the smallest impurities from the oil, even 1/50 mm in size. The filter construction is very simple and consists of a metal can with a thread and a paper insert inside arranged in a so-called accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often caused by organic impurities, the breakdown of the oil itself during operation, fuel residues or by-products of oxidation. Mineral impurities are air pollutants and metal particles that appear in the engine during operation.

Dimensions :

• height: 75 mm.
• diameter: 80 mm.
• base diameter: 83 mm.
• thread: M20 x 1.5 mm.
• seal diameter: external: 65 mm, internal: 55 mm.
• weight: 0.400 kg.

Tractor models :

Kubota:

• Kubota ZB1600.

Startrac :

• Startrac 273.

The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.
