zł80.00
To order
Condition
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota D1005
Kubota D1105
Kubota D1105
Tractor models
Hinomoto CX18
Kubota B177 Bull Star
Kubota B2402
Kubota JB16
Kubota B177 Bull Star
Kubota B2402
Kubota JB16
Height (mm)
123
Diameter (mm)
80

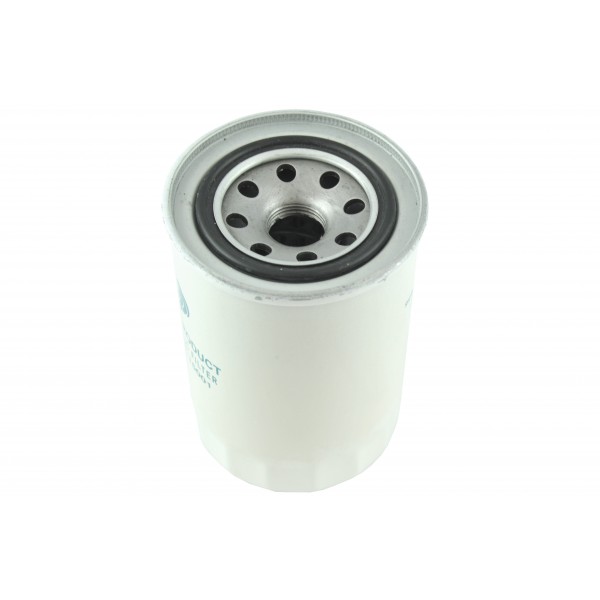

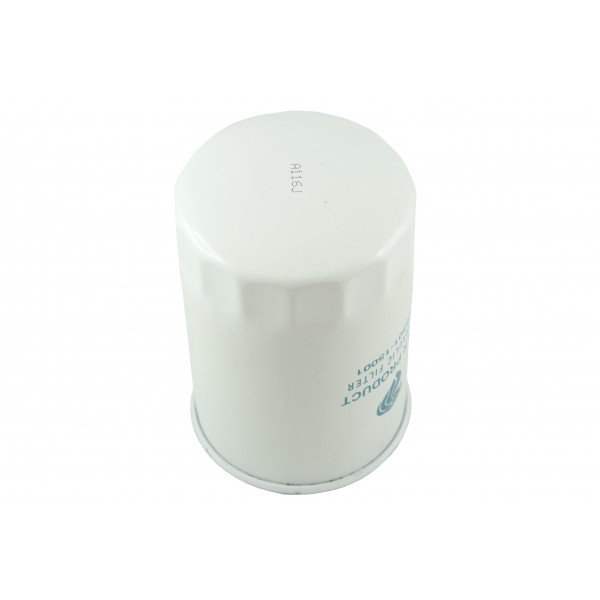

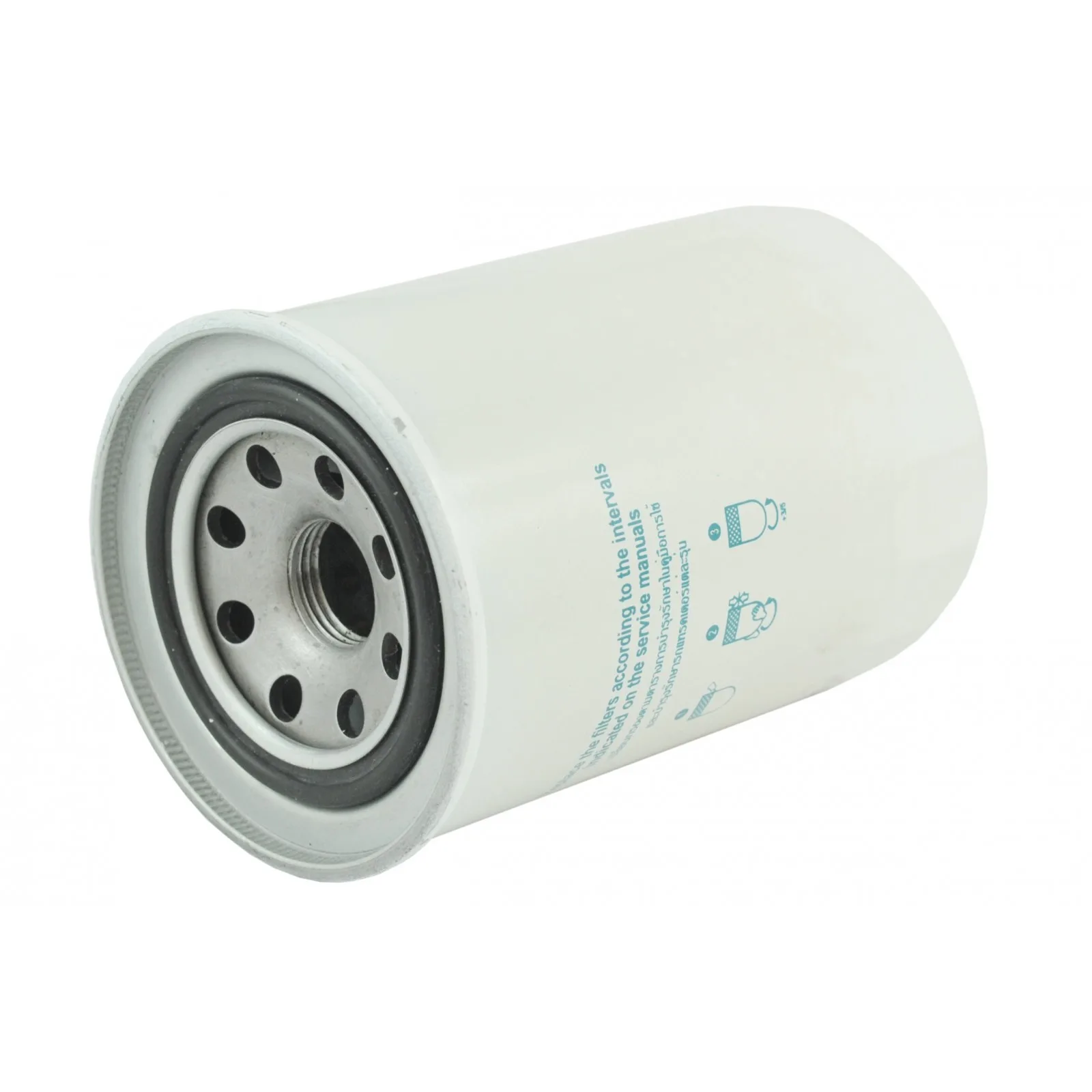

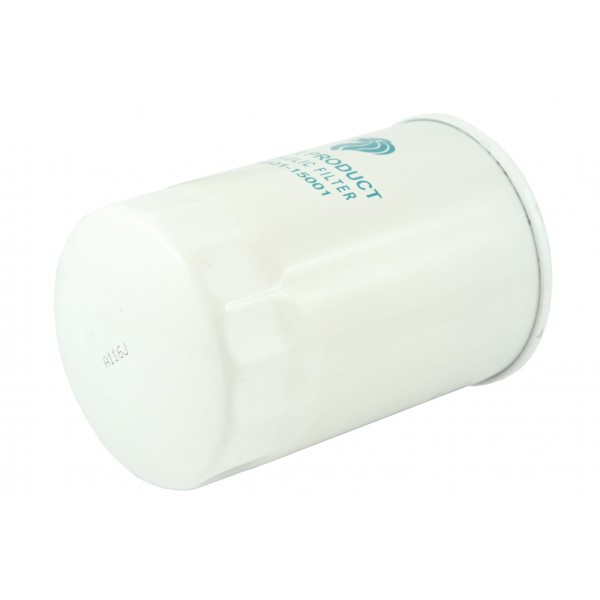

Hydraulic oil filter 123 x 80 mm / M20 x 1.5 / Kubota B / W9501-15001 / SH 60410 / HC-88010
5-01-123-41
Do you have any questions?
Hydraulic oil filter 123 x 80 mm / M20 x 1.5 / Kubota B / W9501-15001 / SH 60410 / HC-88010
Hydraulic oil filter with M20 x 1.5 thread size 123 x 80 mm , for Japanese tractors and mini tractors Kubota B series, Iseki TA series, TK , Mitsubishi MT series, Hinomoto E series, Mahindra , TOKO and others.
The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or arise during tractor operation, e.g. solid (mineral) particles that arise during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or the vehicle is operated frequently, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the operating manual of the machine, usually after the first 50 hours (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted in the vicinity of the tractor's box exactly along the flow of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor,
Dimensions :
- height: 123 mm,
- diameter: 80 mm,
- base diameter: 84 mm,
- thread: M20x1,5,
- gasket diameter: outer: 63 mm, inner: 52 mm,
- comparative numbers: W9501-15001 , SH 60410, HC-88010.
- weight: 0.400 kg.
Tractor models :
Kubota :
- Kubota B2402,
- Kubota JB16-2 Bulll Star.
Hinomoto:
- Hinomoto CX18.
Engine Models :
Kubota :
- Kubota D1005,
- Kubota D1105.
Replacing the hydraulic filter (regular) and cleaning the insert in the case of a mesh filter is a guarantee of failure-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that may damage our tractor or adversely affect the operation of the machine, reducing its operating parameters.
Warehouse :
M01: F52
Specification
Magazyn: M01:F52
Condition
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota D1005
Kubota D1105
Kubota D1105
Tractor models
Hinomoto CX18
Kubota B177 Bull Star
Kubota B2402
Kubota JB16
Kubota B177 Bull Star
Kubota B2402
Kubota JB16
Height (mm)
123
Diameter (mm)
80
Base diameter (mm)
84
Weight (kg)
0.400
Thread
M20 x 1.5
Comparison numbers
HC-88010
SH 60410
W9501-15001
SH 60410
W9501-15001
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
52
Outer seal diameter (mm)
63
Kubota is one of the leading manufacturers of heavy agricultural equipment based in Osaka. The company was established in 1890 by Gonshiro Kubota. For several years, it produced tractors under license from FIAT.
It was only in 1978 that the company released its first tractor entirely on its own components to the market. In 2010 , Kubota announced production of 3.5 million tractors. Nowadays, Kubota is one of the global concerns employing approximately 25,000 people around the world.
From the beginning of its activity, it has been cooperating with the best suppliers and manufacturers of parts and components, which results from cooperation with Fiat and Nissan. The company has 34 representative offices around the world, mainly in Europe: Germany, Great Britain, France, Spain, Poland, the United States and Canada.
Kubota is a company that is known for its long life and high quality of workmanship, which is why it is currently very popular among many users around the world.
Their wide range of agricultural tractors allows each user to choose a model tailored to their individual needs and preferences.
