Wheel hub / 20T / 44 x 185 mm / Hinomoto E16/E18 / 7-09-101-13

7-09-101-13
zł345.00
Tax included PL 23%

280,49 netto

  • Dostępność (4 Quantity): stock
wishlist

Do you have any questions?

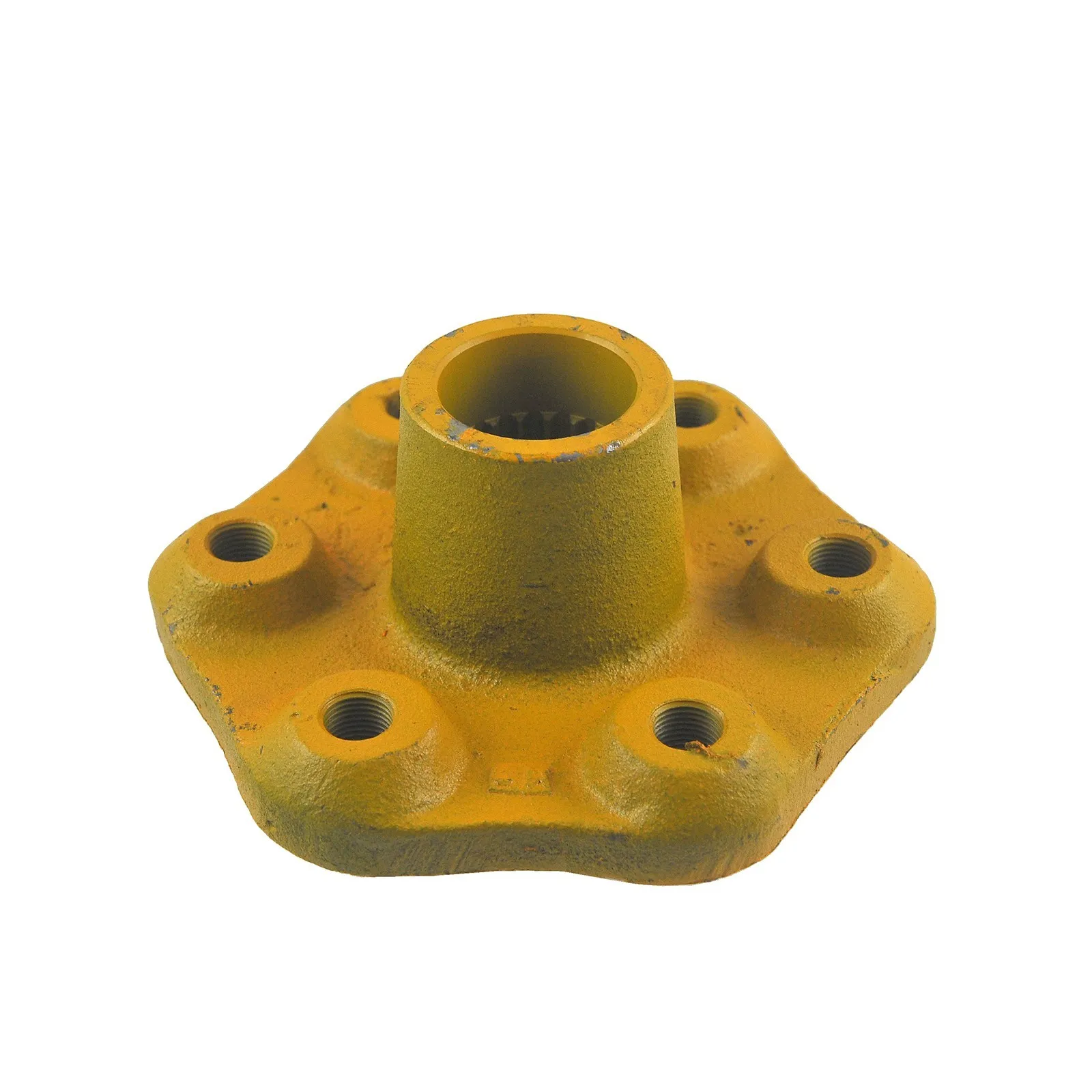

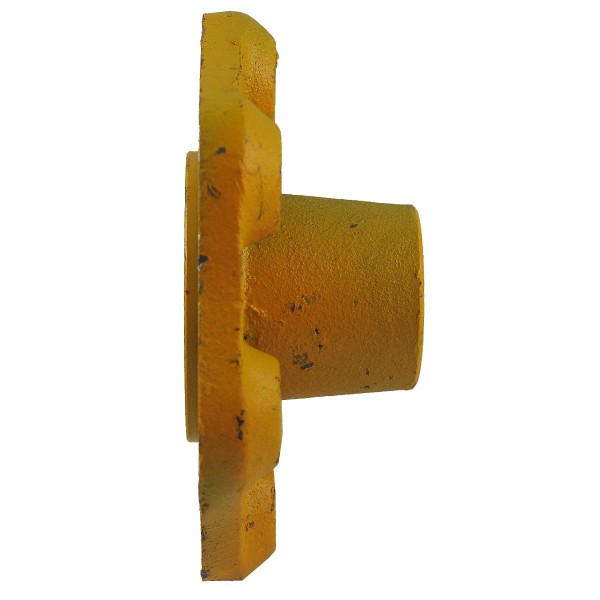

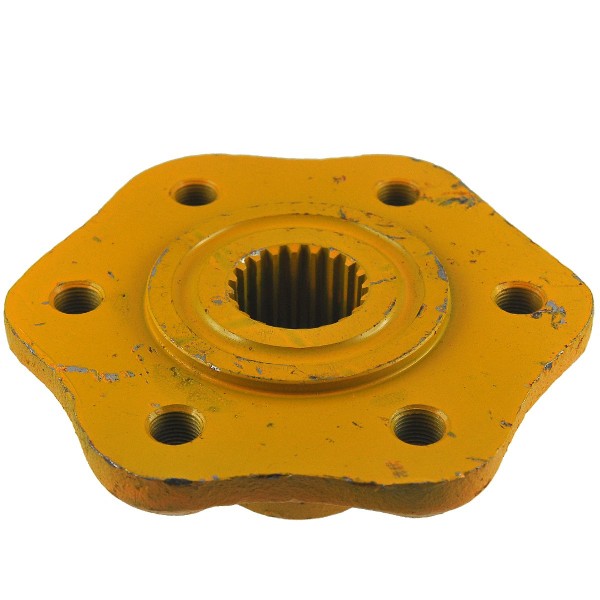

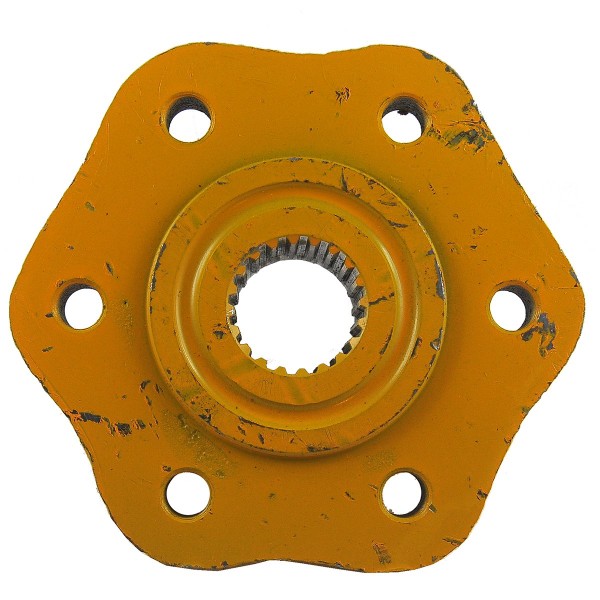

Wheel hub / 20T / 44 x 185 mm / Hinomoto E16/E18 / 7-09-101-13

Rear wheel hub ( 7-18-100-02 shaft) with an outer diameter of 180 mm , inner diameter of 44 mm (measured between the cutter teeth) and height of 70 mm for Hinomoto tractors of the Hinomoto E16, Hinomoto E18 series and others.

The hub is an element of the tractor's running gear to which the wheel is bolted. The hub is placed in the so-called reduction gear and allows the wheel to rotate freely and is responsible for maintaining the wheel in the correct position. The hub in tractors of simple construction is mounted directly on the transmission, drive shaft.

Dimensions :

  • height: 70 mm,
  • outer diameter: 180 mm,
  • number of holes for mounting screws: 6 pcs.
  • inner diameter: 45 mm (measured between cutter teeth), 40 mm (measured together with the cutter),
  • mounting screw hole spacing: 140 mm (measured diagonally), 70 mm (measured from each other),
  • diameter of mounting screw holes: M15,
  • number of teeth: 20T,
  • part numbers: 7-09-101-13.

Tractor models :

Hinomoto :

  • Hinomoto E16,
  • Hinomoto E18.

The first signs of wheel hub wear are problems with maintaining the right direction of travel, sometimes combined with loud noise coming from the wheel area, especially noticeable when braking and accelerating the tractor. An extremely worn wheel hub can lead to blockage or even separation of the wheel from the tractor.

Magazine : K18:B05:S01

Specification

Magazyn: K18:B05:S01
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Hinomoto E16
Hinomoto E18
Height (mm)
70
Outer diameter (mm)
180
Inner Diameter (mm)
40 / 35
40 / 45
Mounting bolt(s) hole diameter (mm)
M15
Bolt hole spacing (mm)
70 / 140
Part number
7-09-101-13

Hinomoto

HINOMOTO is one of the most popular Japanese manufacturers of agricultural tractors, known mainly in Japan. Hinomoto was a trade name for tractors manufactured by Toyosha. Toyosha has its roots in plows built by Denzou Tanoue in 1863. Hinomoto compact tractors appeared in the 1950s. It produced 68 models of mini tractors.

The company produced tractors and mini tractors with Toyosha engines under its own trademark HINOMOTO until 1990. TOYOSHA was also the previous name of the company under which agricultural equipment was produced. In 1990, the company became part of Hitachi Tierra, and the Hinomoto name was finally abolished in 1997.

HINOMOTO also produced tractors for other international concerns under their own names, including: for: Massey Ferguson, Deutz-Allis, Simplicity and Allis-Chalmers.


The Hinomoto company is the largest importer of Japanese mini tractors, single-axle tractors and other machines in Eastern Poland.
