Product description

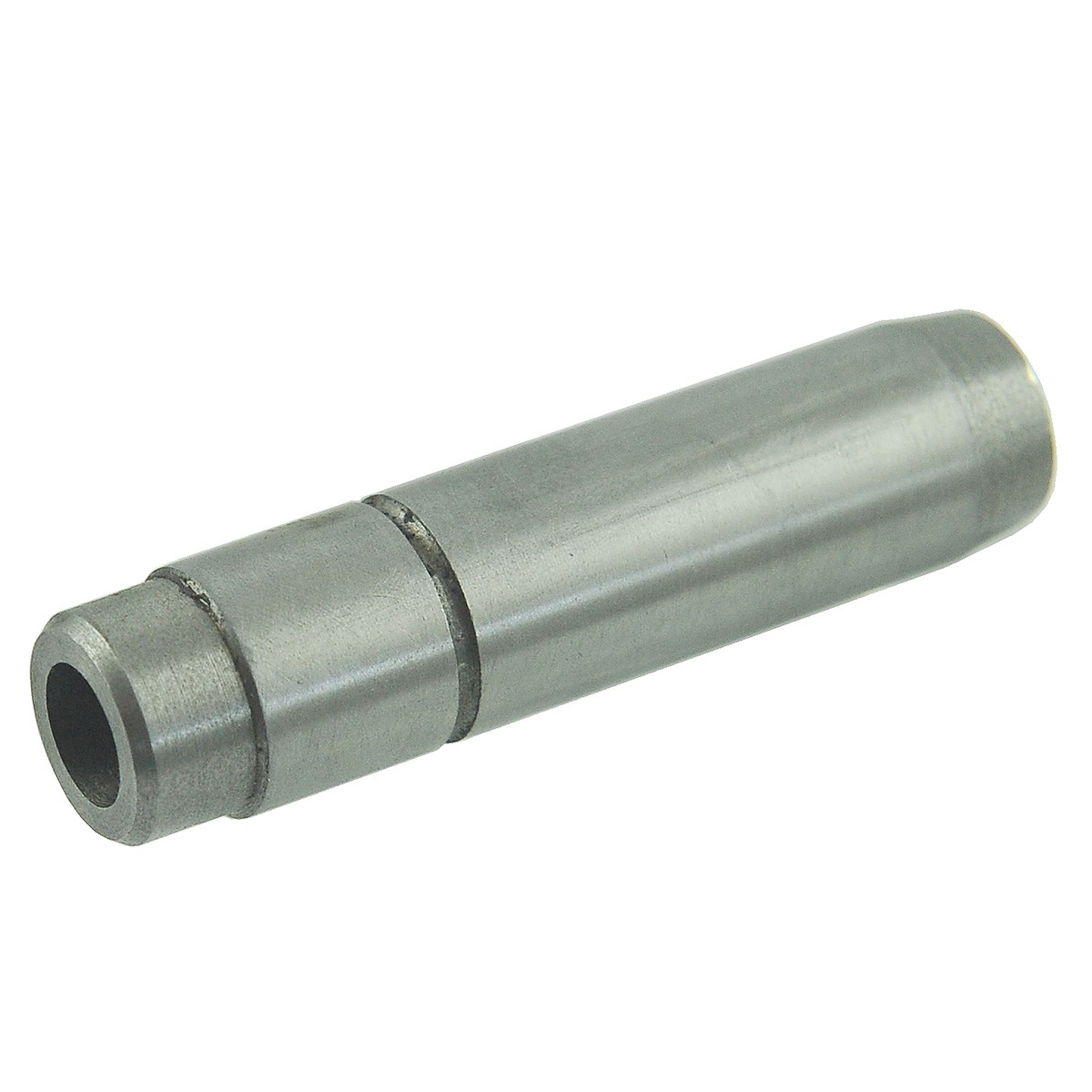

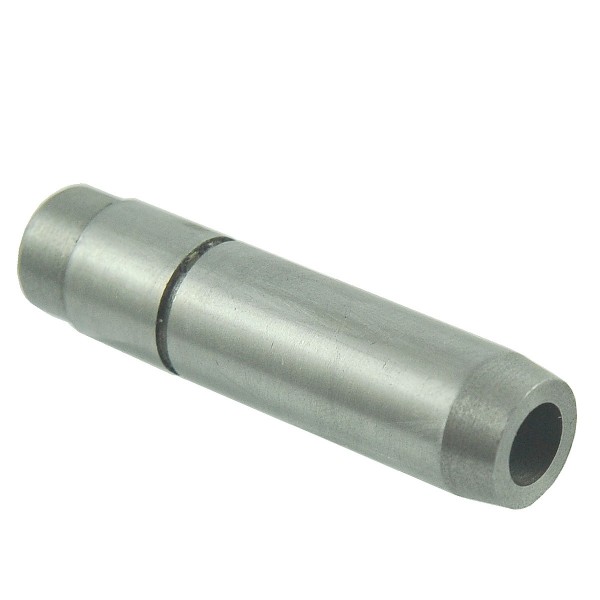

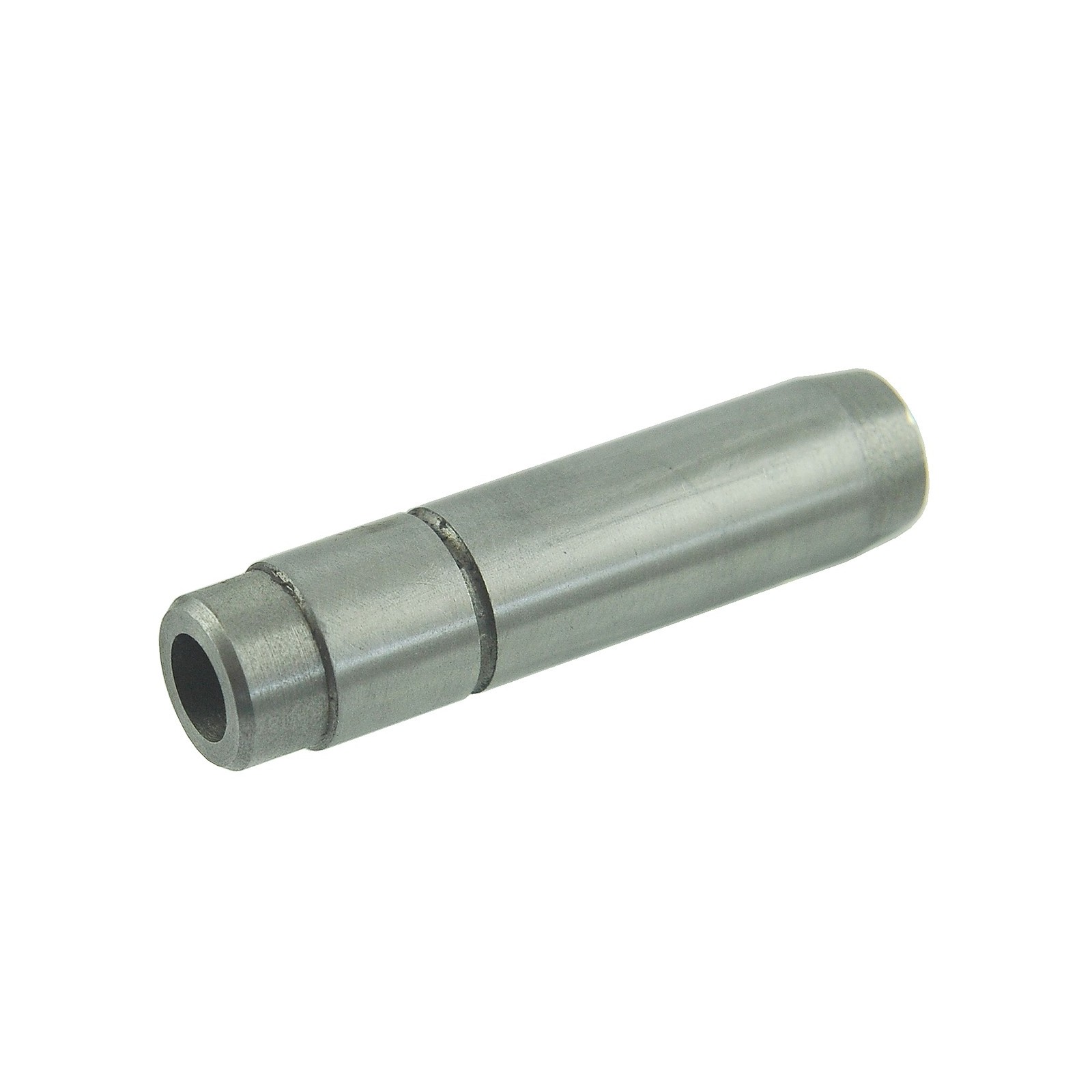

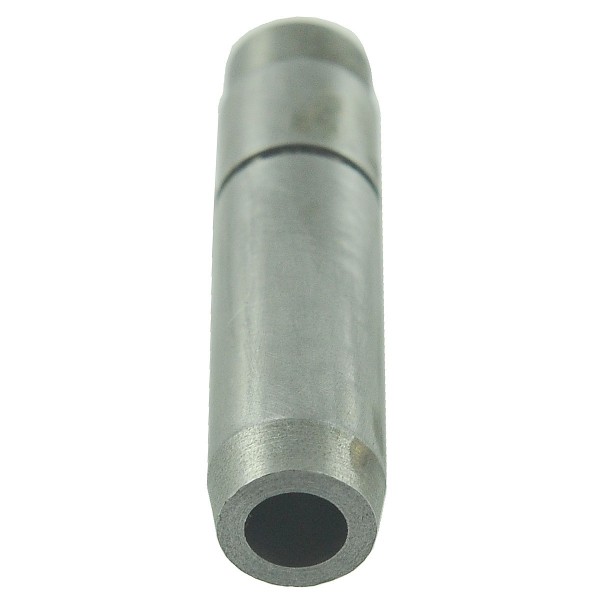

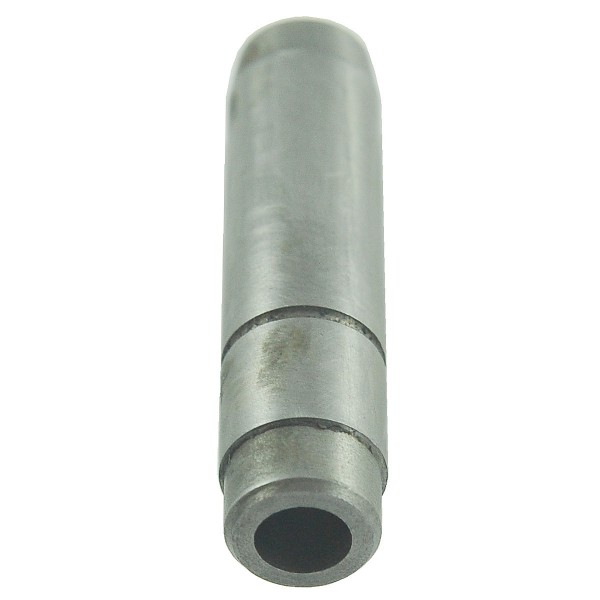

Engine valve guide ( 8-24-101-01 ) with a total length of 58 mm , an inner diameter of 8 mm and an outer diameter of 14 mm for Hinomoto tractors of the Hinomoto E16, Hinomoto E18, Hinomoto E23, Hinomoto E25 series with Toyosha S110, Toyosha S111, Toyosha P126 and other engines.
The valve guide is an element whose main task is to guide the valve stem and remove some of the heat from the valve head to the cylinder head. The valve guide holds the valve in the correct position during engine operation and provides the appropriate pressure for the correct operation of the valves. The correct position of the valve relative to the valve seat and the greatest possible accuracy of this fit are desirable, but it should also be remembered that too small a clearance can cause the valve to seize.
Dimensions :
- length: 58 mm.
- diameter: inner: 14 mm,
- inner diameter: 8 mm,
- original part numbers: 3280057M1, 72099807,
- comparison numbers: -,
- part numbers: 7-15-117-01.
Tractor models :
Hinomoto :
- Hinomoto E16,
- Hinomoto E18 with Toyosha S111 engine (does not fit Toyosha S107 engine),
- Hinomoto E23,
- Hinomoto E25.
Engine models :
Toyosha :
- Toyosha S110,
- Toyosha S111,
- Toyosha P126.
The first signs of valve guide wear are increased fuel or oil consumption, reduced engine power or uneven engine operation. Damaged guides should be replaced with new ones as soon as possible, because damaged guides can damage the valve system.
Magazine : M01:A44:S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Valve Guide..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
