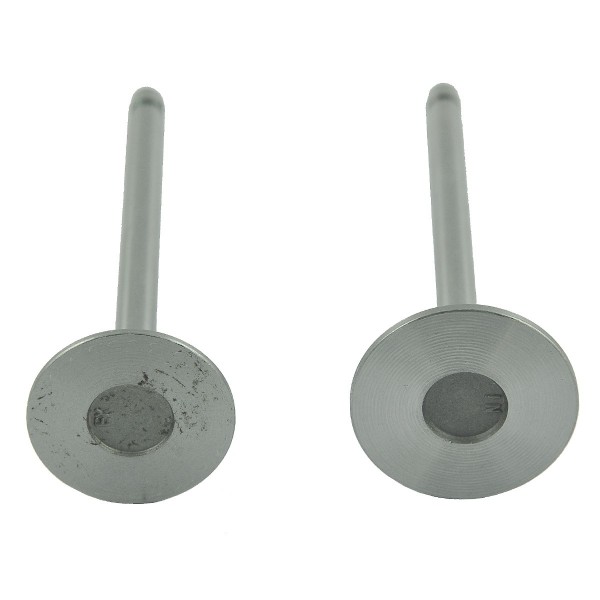

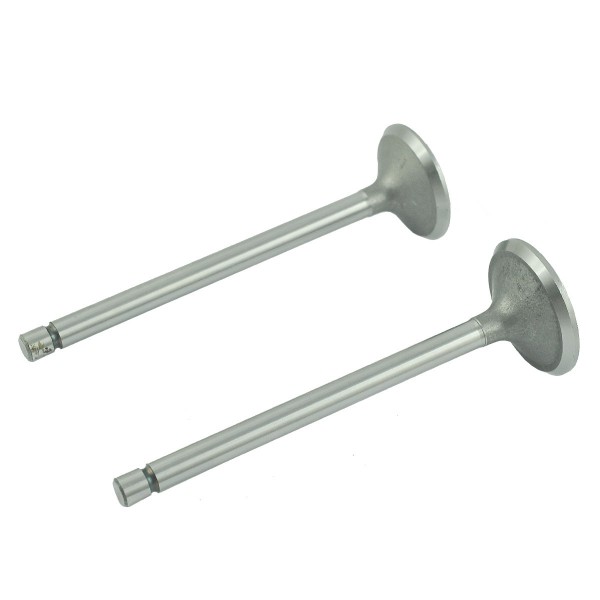

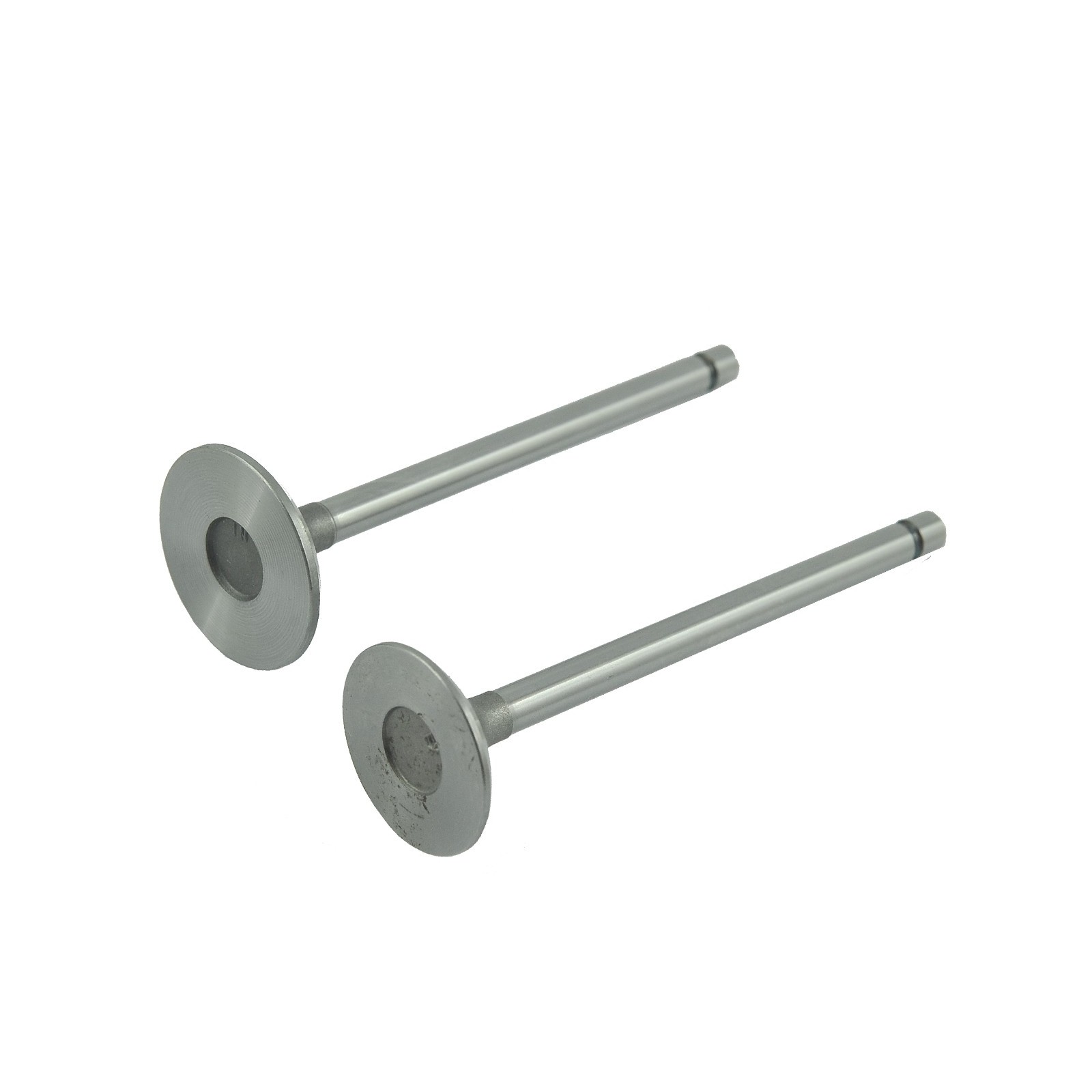

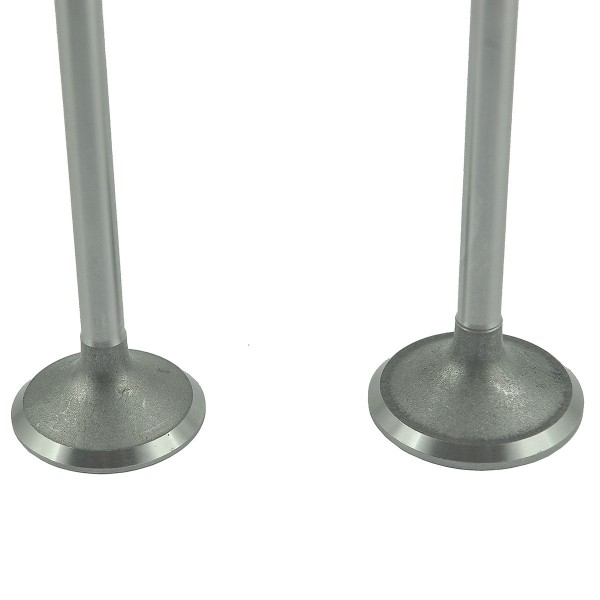

Engine Valves / IN / EX / Toyosha S111 / P126 / Hinomoto E16 / E18 / E23 / E25

Valve set 2 pcs . (1pc. inlet, 1pc. outlet, valve guide %C5% 9Bci-for-hinomoto/670-valve-guide-hinomoto-e16e18e23e25-toyosha-s110s111p126-7-15-117-01.html">7-15-117-01 ) Toyosha S111, Toyosha P126 engine with a length of 125.5 mm and a head diameter of 39.50 mm (IN) / 35.75 mm (EX) for Hinomoto tractors of the Hinomoto E16, Hinomoto E18, Hinomoto E23, Hinomoto E25 series and others.

Engine valves are components that are located in the head (overhead valve engine) or engine block (bottom valve engine) and their main task is to properly control the flow of air, fuel-air mixture and exhaust gases. We distinguish two types of valves:

• intake valves are responsible for opening the chamber in order to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

The valves consist of a rod with a plate at the end and are cast in one piece. The engine valves are made of special steel resistant to extremely high temperatures created during fuel combustion, so-called heat-resistant steel.

Dimensions :

• height: 125.5 mm,
• shaft diameter: 7.80 mm,
• mushroom diameter: 39.50 mm (IN), 35.75 mm (EX).
• original part numbers: 2201-1101-010 (IN), 2881-1102-000 (EX),
• part number: 8-24-101-01.

Tractor models :

• Hinomoto E16,
• Hinomoto E18,
• Hinomoto E23,
• Hinomoto E25.

Engine models :

Toyosha :

• Toyosha S111,
• Toyosha P126.

Engine valves are components that wear out when working in difficult conditions and under the influence of high temperatures. The most common valve damage is valve stem abrasion and carbon deposits. Valve deposits are the result of using low-quality oil, and valve head wear causes leaks in the system and loss of engine power.

Magazine : M01:A12:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
