zł1,300.00
To order
Condition
New
Production
OEM
Substitute
Substitute
Parts
Drive
Gear
Angular
PTO / PTO
540 (rpm)
Length (mm)
250
Height (mm)
190

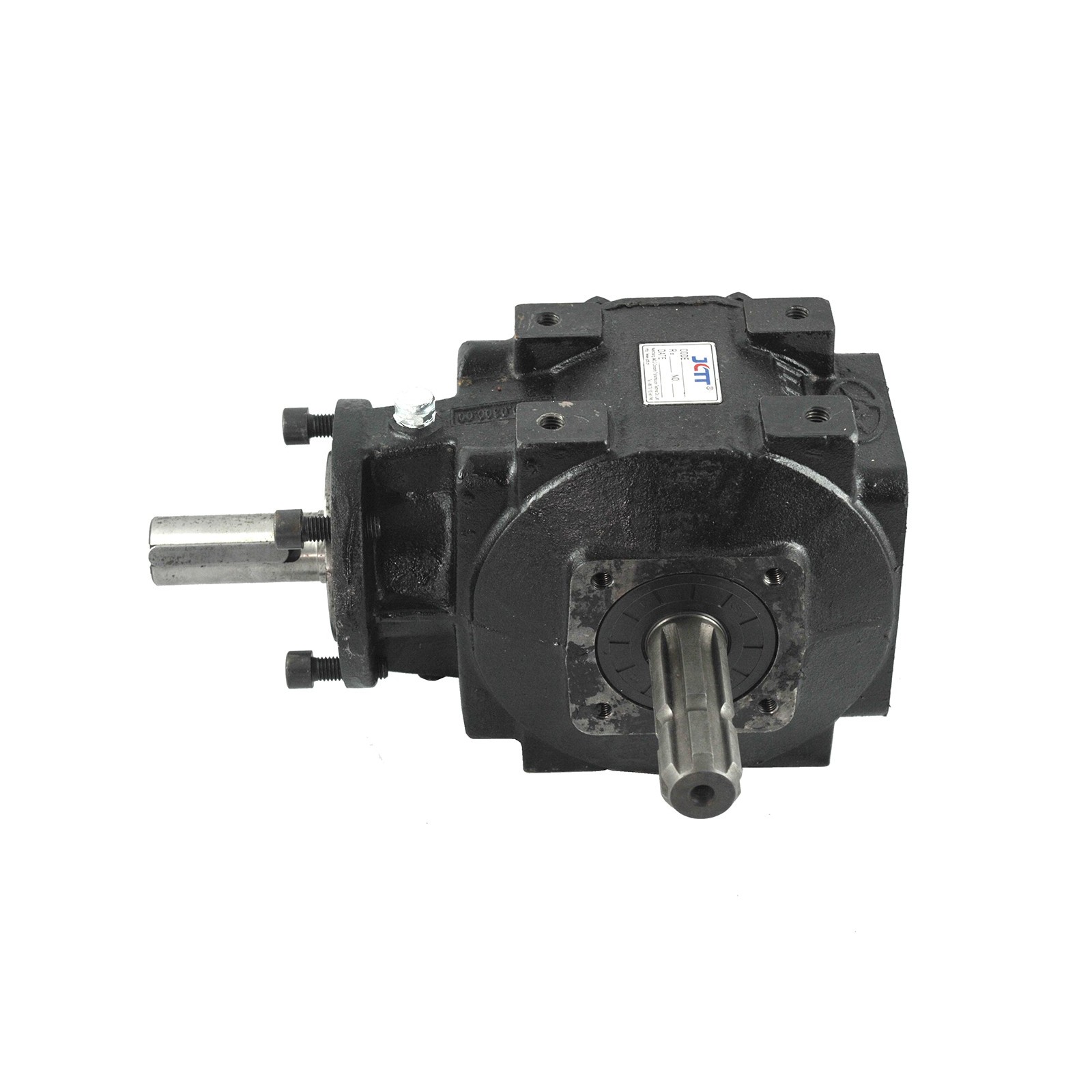

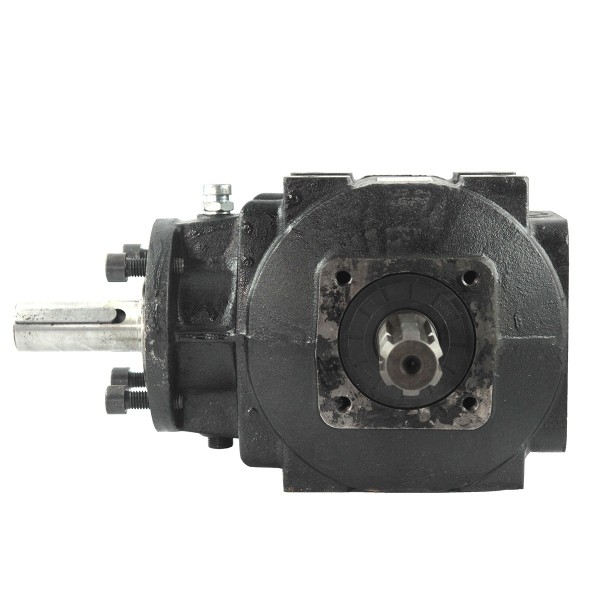

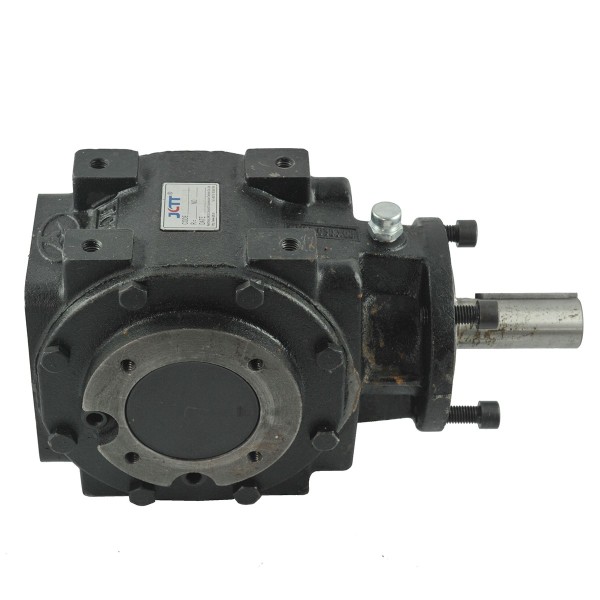

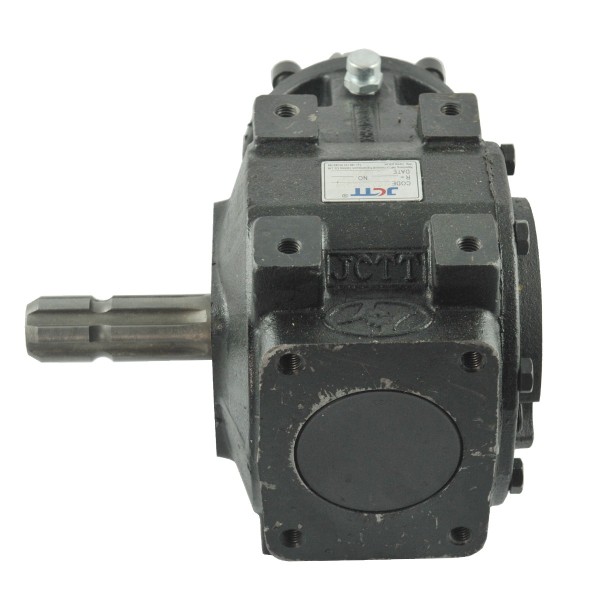

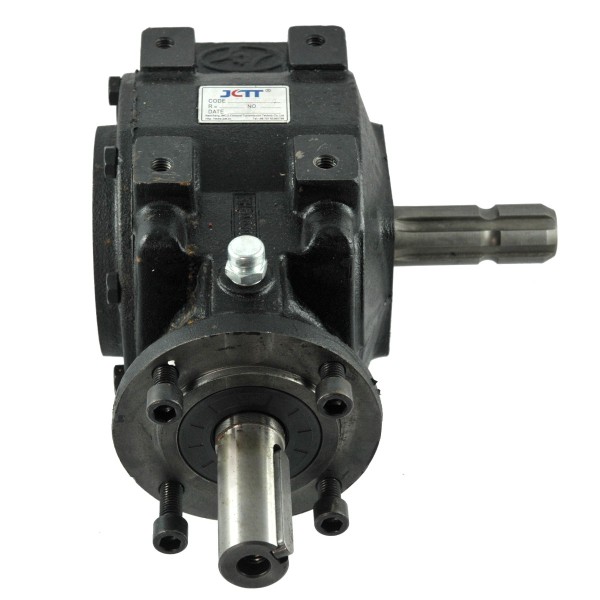

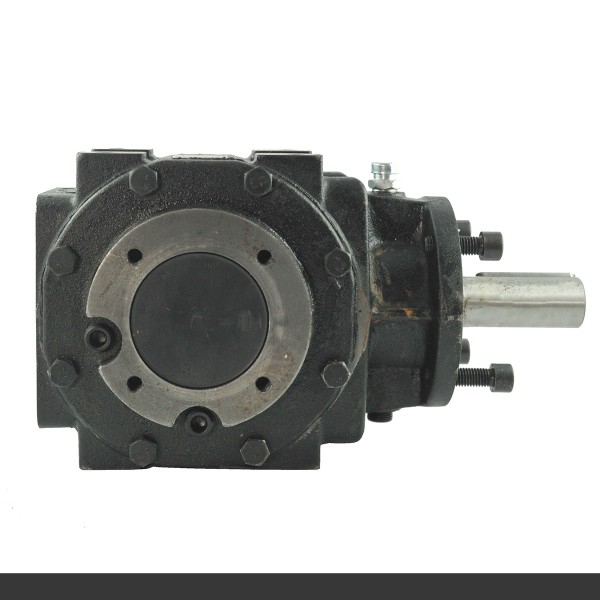

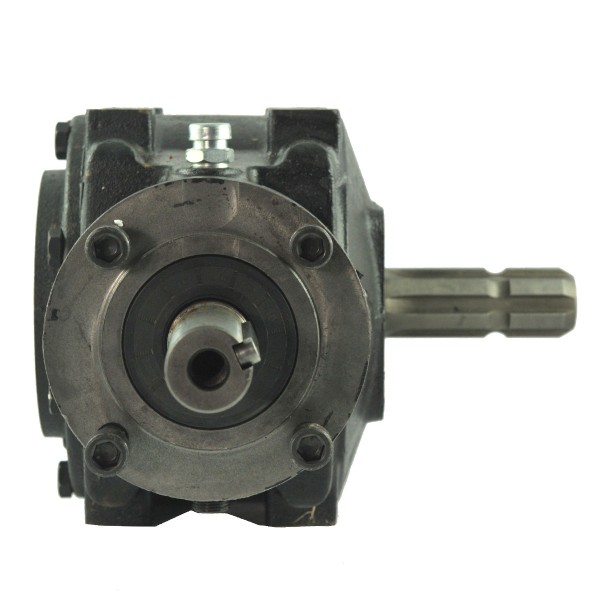

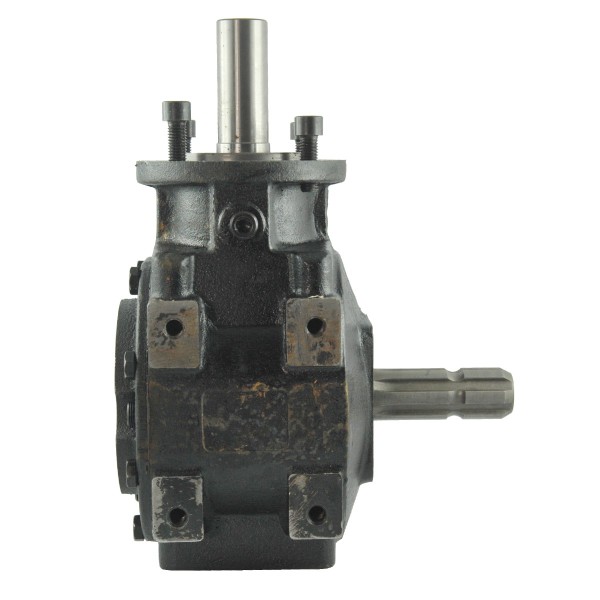

Angular gearbox 1: 3 / for AGF / 50KM rear-side flail mower
AGF XH50.300Z.03
Do you have any questions?
Angular gearbox 1: 3 / for AGF / 50KM rear-side flail mower
Angular gearbox for AGF rear-side mowers from 4FARMER and others. The gearbox in AGF mowers is located on the left side of the mower, standing behind the machine, and connects directly to the pulley, therefore the gearbox has the output shaft's left rotation direction (counterclockwise movement).
A bevel, toothed bevel gear with perpendicular axes is a gear with two axes perpendicular to each other as the drive unit. The axles are ended with toothed wheels and bevel gears that roll over one another. The bevel-helical gear unit consists of:
- housings (high-quality stainless steel),
- hubs (element connecting gears with a pulley),
- a rim (part of a gear with teeth, a connector with a hub),
- disc (connects the rim with the second hub with the operating shaft)
- power take-off shafts and the output shaft.
The main task of the angular gearbox is to adjust the rotation of the engine to rotational movement, driving the machine at an angle of 90 ° and changing the rotational speed of the machine adapted to the rotational speed of the PTO shaft of the tractor.
Dimensions:
- the direction of rotation of the input shaft PTO / PTO: left, counter-clockwise,
- length: 250 mm,
- width: 160 mm,
- height: 190 mm,
- shaft length WOM / PTO: 94 mm,

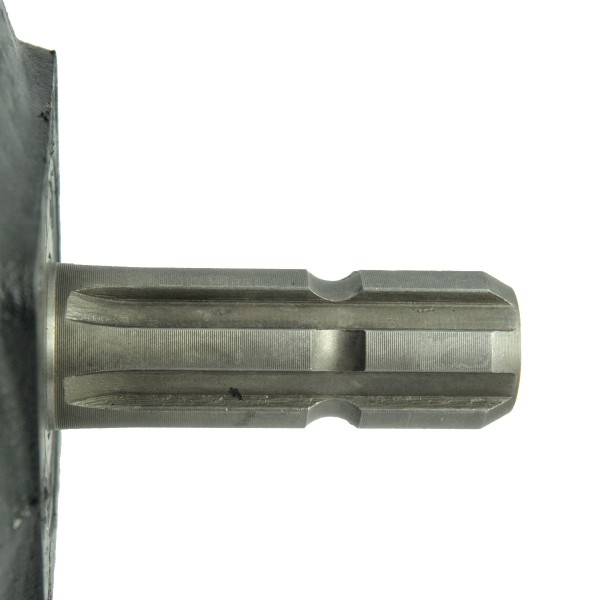

- diameter of the PTO shaft: 1 "3/8 Z6, 34 mm (measured with the teeth), 28 mm (measured between the teeth of the multi-wedge),

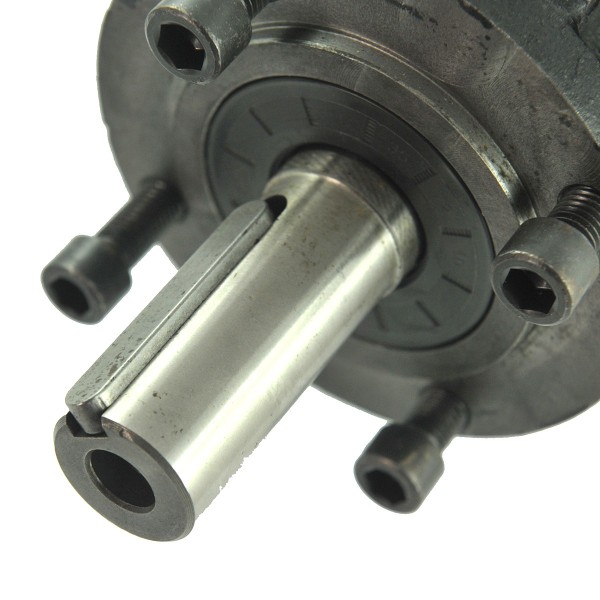

- length of the output roller: 84 mm,
- output roller diameter: 33 mm,
- spacing of holes for fastening screws: 113 x 83 mm,
- mounting screw holes diameter: M12 x 1.75 / M8 x 1.25,
- recommended speed of PTO shaft: 540 rpm,
- maximum tractor power: 50 HP,
- weight: 20 kg.
Mower models :
The bevel gear is exposed to high rotational forces and to high temperature (high temperature is caused by friction of the working units against each other, additionally there is a slight loss of power at this point), therefore most bevel gears work in full or partial oil immersion.
Specification
Magazyn: K10
Condition
New
Production
OEM
Substitute
Substitute
Parts
Drive
Gear
Angular
PTO / PTO
540 (rpm)
Length (mm)
250
Height (mm)
190
Width (mm)
160
Shaft length (mm)
84 (output roller)
94 (PTO / PTO shaft)
94 (PTO / PTO shaft)
Mounting bolt(s) hole diameter (mm)
M8 x 1.25
M12 x 1.75
M12 x 1.75
Shaft diameter (mm)
1"3/8 Z6
33 (output roller)
34 mm (measured with teeth), 28 mm (measured between the teeth of the spline)
33 (output roller)
34 mm (measured with teeth), 28 mm (measured between the teeth of the spline)
Bolt hole spacing (mm)
113 x 83
Weight (kg)
20
Mower models
4FARMER AGF 160
Recommended tractor power (hp)
no more than 50 hp
Direction of rotation
LEFT
Repositioning
1:3
