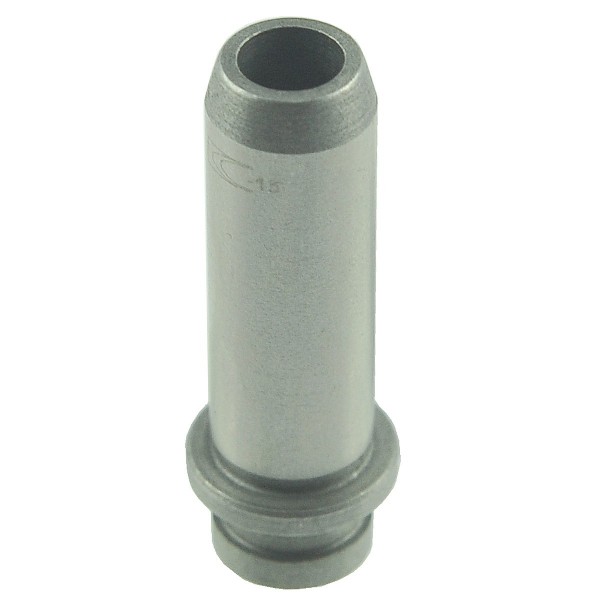

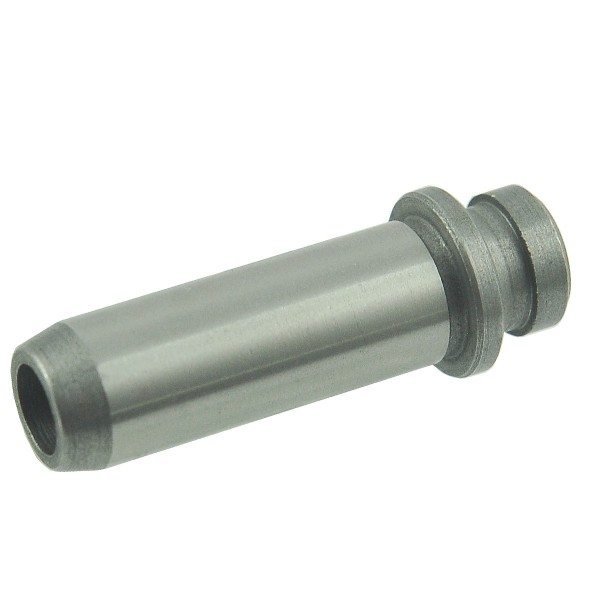

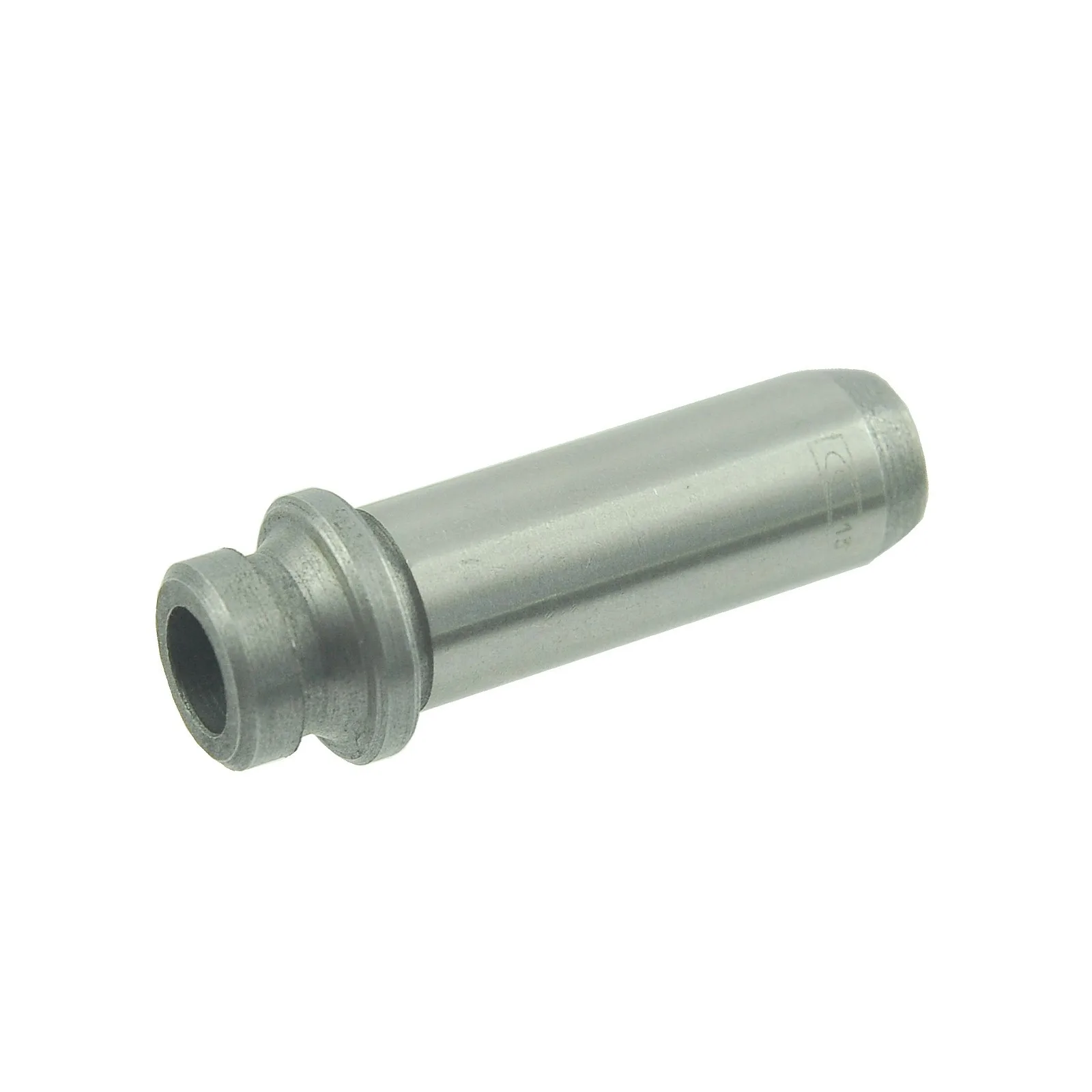

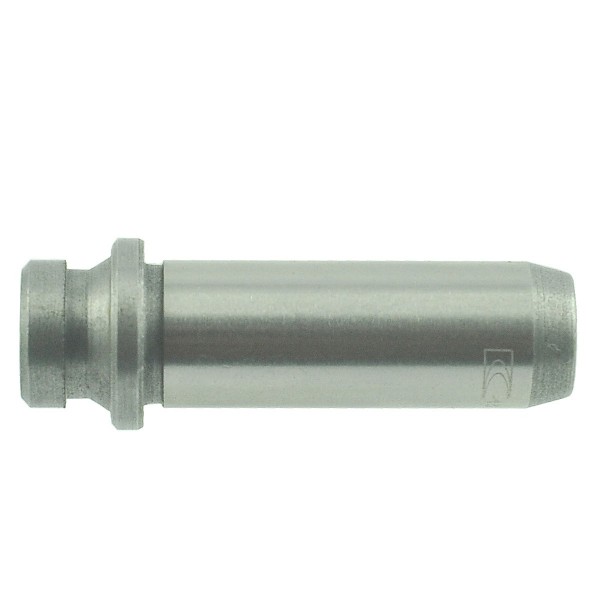

Valve guide / IN / Kubota V1500 / V1501 / V1502 / V1702 / V1902 / Z650 / Z750 / Z751 / Z851

IN intake valve guide (valves 6-24-101-01 , 15221-13110, 15221-13120, 15221-13112, EX guide 6-15-106-01 , 5-15-245-01 , 15601-13560) with a total length of 48.50 mm , an inner diameter of 8 mm , an outer diameter of 12.80 mm and a flange diameter of 16.80 mm for Kubota tractors of the Kubota B1902, Kubota B7000, Kubota L1-20, Kubota L1-22, Kubota L1-205, Kubota L175, Kubota L185, Kubota L225, Kubota L245, Kubota L1500, Kubota series L1501, Kubota L1801, Kubota L2000, Kubota L2002, Kubota L2200, Kubota L2201, Kubota L2202, Kubota L2402, Kubota L2600, Kubota L2601, Kubota L2602, Kubota L3202 with engines Kubota D1100, Kubota D1101, Kubota D1102, Kubota D1302, Kubota D1402, Kubota V1500, Kubota V1501, Kubota V1502, Kubota V1902, Kubota Z650, Kubota Z750, Kubota Z751, Kubota Z851 and others.

The valve guide is an element whose main task is to guide the valve stem and remove some of the heat from the valve head to the cylinder head. The valve guide holds the valve in the correct position during engine operation and provides the appropriate pressure for the correct operation of the valves. The correct position of the valve relative to the valve seat and the greatest possible accuracy of this fit are desirable, but it should also be remembered that too small a clearance can cause the valve to seize.

Dimensions :

• total length: 48.50 mm,
• inner diameter: 8 mm,
• outer diameter: 12.80 mm
• collar diameter: 16.80 mm,
• original part numbers: 15601-13560, 17311-13560, 17321-13560, 1C010-13560,
• reference numbers: 5-15-245-01 ,
• part numbers: 6-15-106-02.

Engine models :

Kubota :

• Kubota D1100,
• Kubota D1101,
• Kubota D1102,
• Kubota D1302,
• Kubota D1402,
• Kubota V1500,
• Kubota V1501,
• Kubota V1502,
• Kubota V1902,
• Kubota Z650,
• Kubota Z750,
• Kubota Z751,
• Kubota Z851.

Tractor models :

Kubota :

• Kubota B1902,
• Kubota B7000,
• Kubota L1-20,
• Kubota L1-22,
• Kubota L1-205,
• Kubota L175,
• Kubota L185,
• Kubota L225,
• Kubota L245,
• Kubota L1500,
• Kubota L1501,
• Kubota L1801,
• Kubota L2000,
• Kubota L2002,
• Kubota L2200,
• Kubota L2201,
• Kubota L2202,
• Kubota L2402,
• Kubota L2600,
• Kubota L2601,
• Kubota L2602,
• Kubota L3202.

The first signs of valve guide wear are increased fuel or oil consumption, reduced engine power or uneven engine operation. Damaged guides should be replaced with new ones as soon as possible, because damaged guides can damage the valve system.
