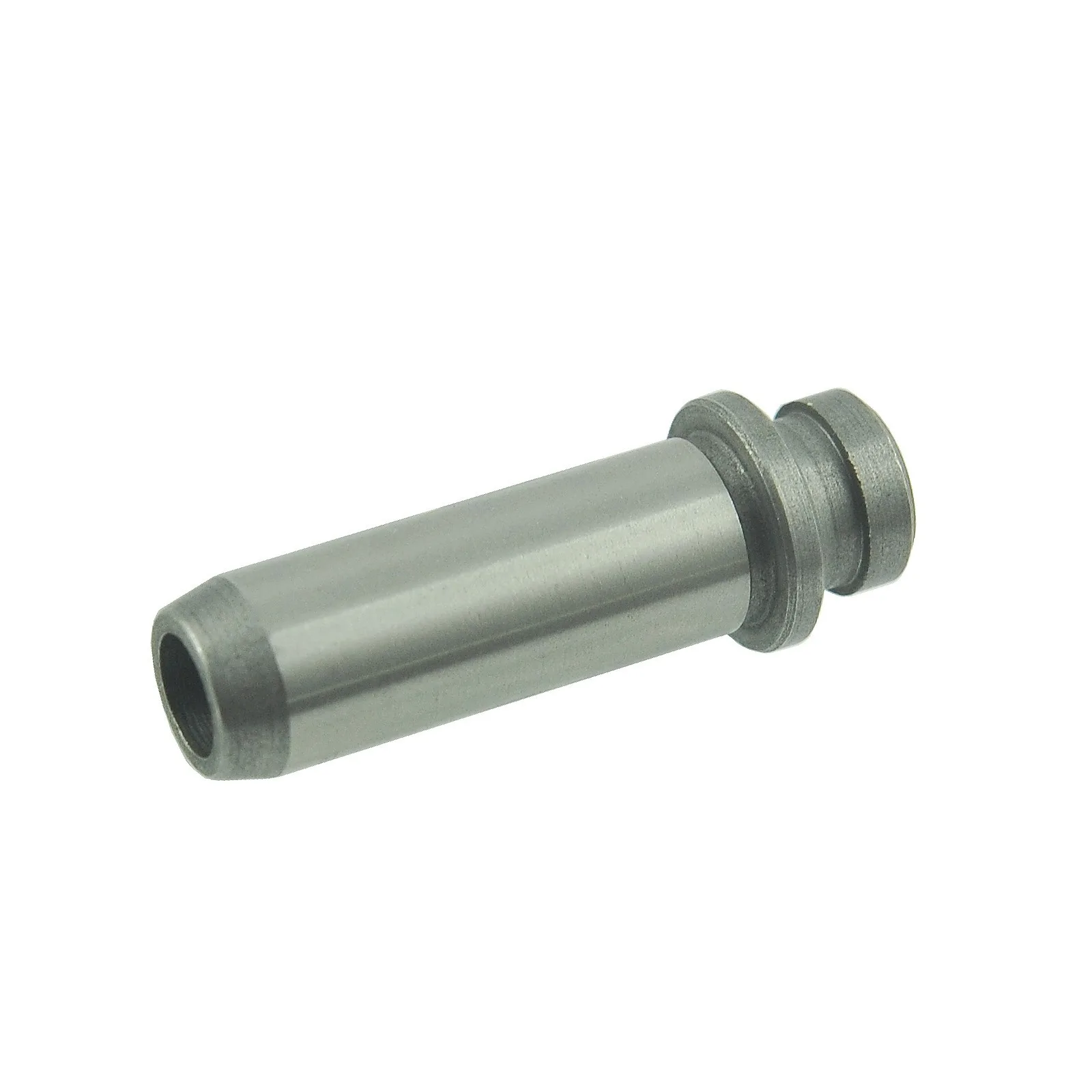

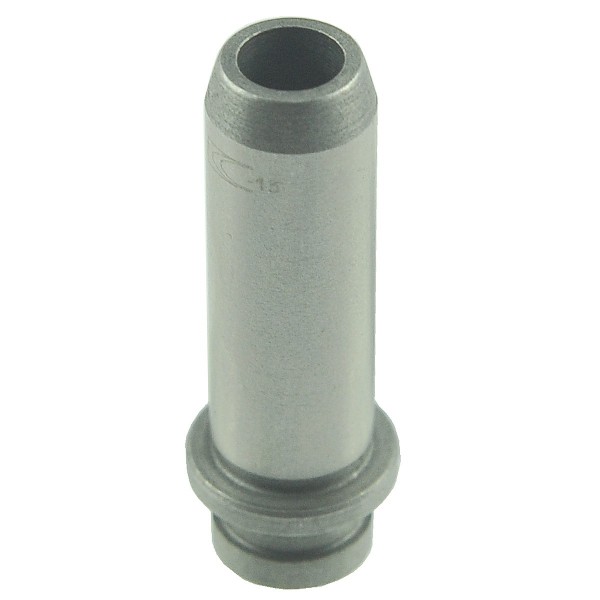

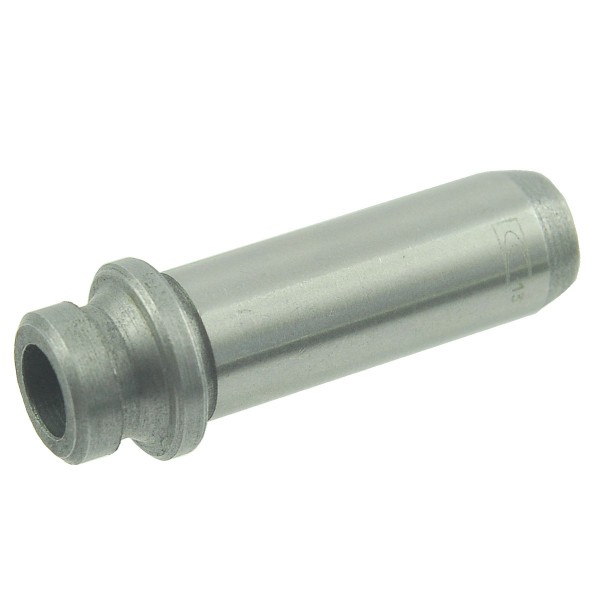

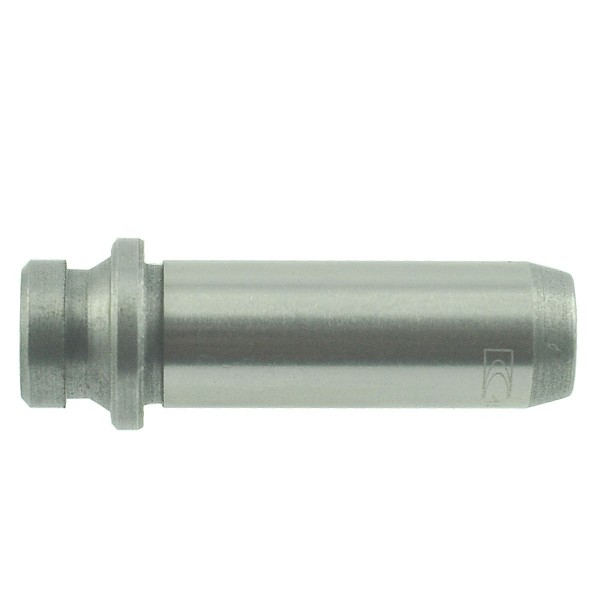

Suction and inlet valve guide IN (valves 6-24-101-01, 15221-13110, 15221-13120, 15221-13112, EX guide 6-15-106-01, 5-15-246-01, 15601-13560) with a total length of 48.50 mm , an inner diameter of 8 mm , an outer diameter of 12.80 mm and a flange diameter of 16.80 mm for Kubota tractors of the Kubota B1902, Kubota B7000, Kubota L1-20, Kubota L1-22, Kubota L1-205, Kubota L175, Kubota L185, Kubota L225, Kubota L245, Kubota L1500, Kubota L1501, Kubota series L1801, Kubota L2000, Kubota L2002, Kubota L2200, Kubota L2201, Kubota L2202, Kubota L2402, Kubota L2600, Kubota L2601, Kubota L2602, Kubota L3202 with engines Kubota D1100, Kubota D1101, Kubota D1102, Kubota D1302, Kubota D1402, Kubota V1500, Kubota V1501, Kubota V1502, Kubota V1902, Kubota Z650, Kubota Z750, Kubota Z751, Kubota Z851 and others.
The valve guide is a component whose primary function is to guide the valve stem and dissipate some of the heat from the valve head to the cylinder head. The valve guide maintains the valve in the correct position during engine operation and provides sufficient pressure for proper valve operation. Proper valve position relative to the valve seat and the highest possible accuracy are desirable, but it's also important to remember that too little clearance can cause valve seizure.
Dimensions :
- total length: 48.50 mm,
- inner diameter: 8 mm,
- outer diameter: 12.80 mm
- flange diameter: 16.80 mm,
- original part numbers: 15601-13560, 17311-13560, 17321-13560, 1C010-13560,
- comparison numbers: 6-15-106-02,
- part numbers: 5-15-245-01.
Engine models :
Kubota :
- Kubota D1100,
- Kubota D1101,
- Kubota D1102,
- Kubota D1302,
- Kubota D1402,
- Kubota V1500,
- Kubota V1501,
- Kubota V1502,
- Kubota V1902,
- Kubota Z650,
- Kubota Z750,
- Kubota Z751,
- Kubota Z851.
Tractor models :
Kubota :
- Kubota B1902,
- Kubota B7000,
- Kubota L1-20,
- Kubota L1-22,
- Kubota L1-205,
- Kubota L175,
- Kubota L185,
- Kubota L225,
- Kubota L245,
- Kubota L1500,
- Kubota L1501,
- Kubota L1801,
- Kubota L2000,
- Kubota L2002,
- Kubota L2200,
- Kubota L2201,
- Kubota L2202,
- Kubota L2402,
- Kubota L2600,
- Kubota L2601,
- Kubota L2602,
- Kubota L3202.
The first signs of valve guide wear include increased fuel or oil consumption, reduced engine power, or rough engine operation. Damaged guides should be replaced as soon as possible, as damaged guides can lead to valvetrain damage.
Magazine : M01:A23:S02
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
