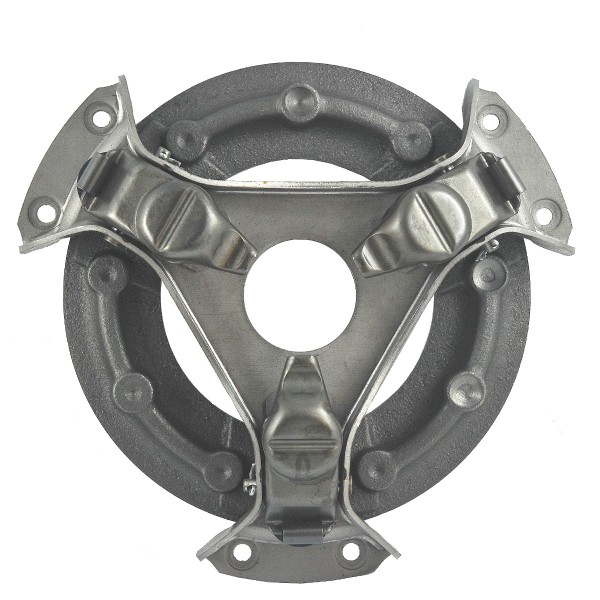

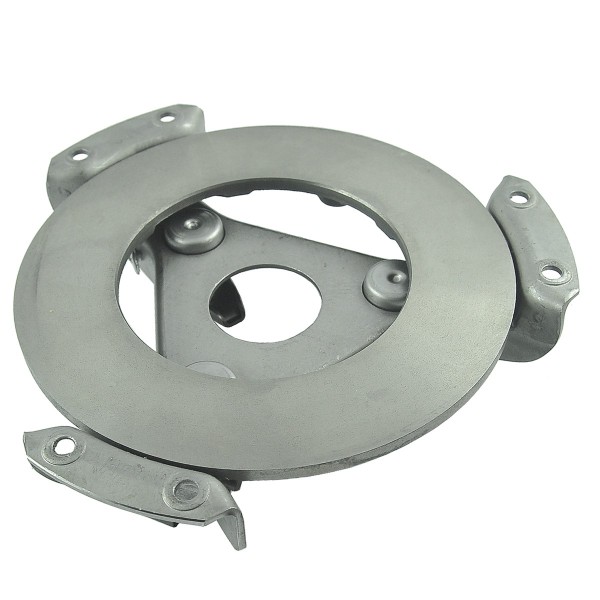

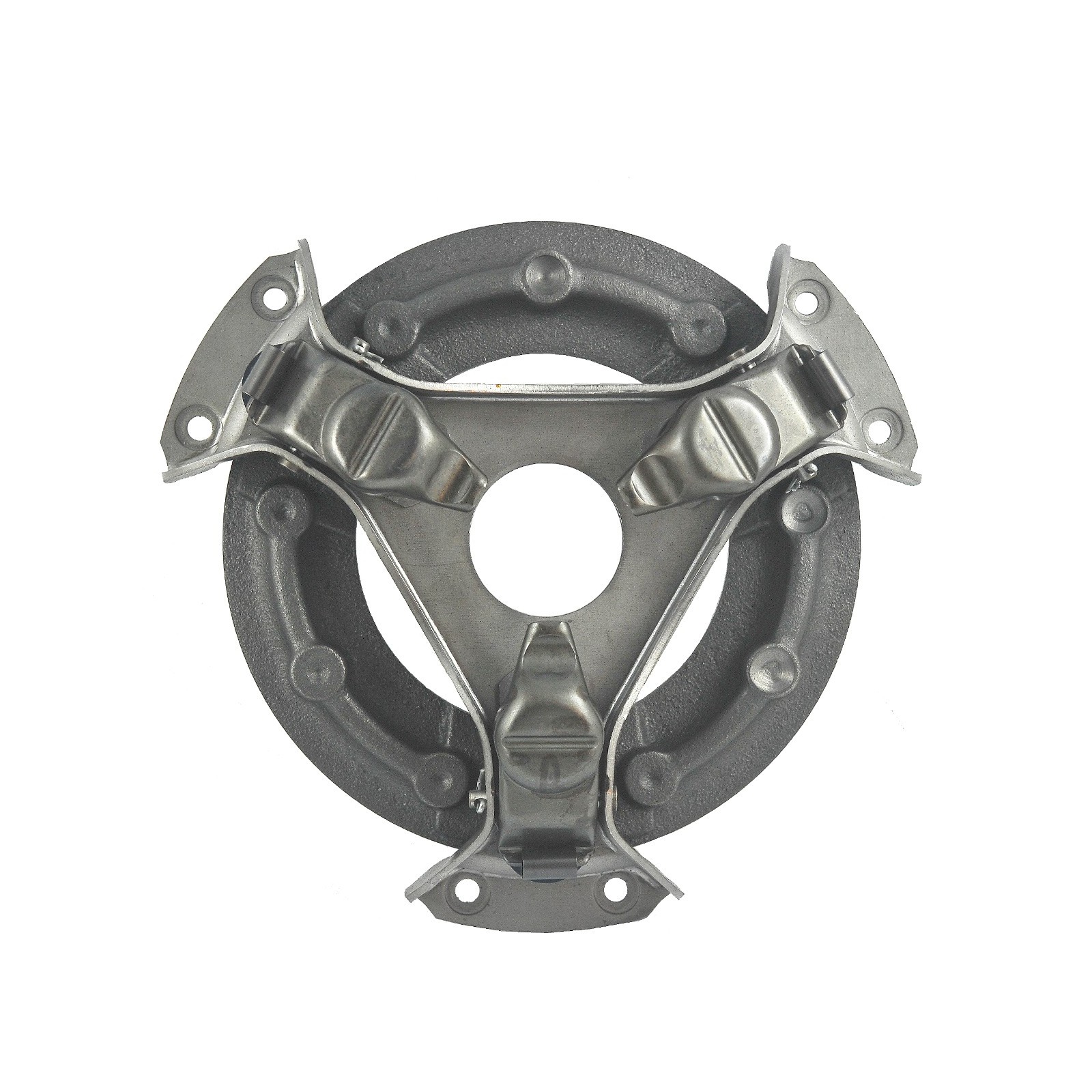

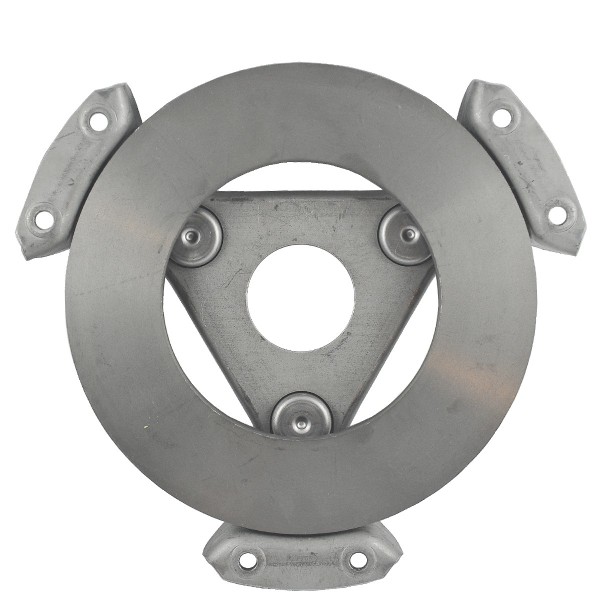

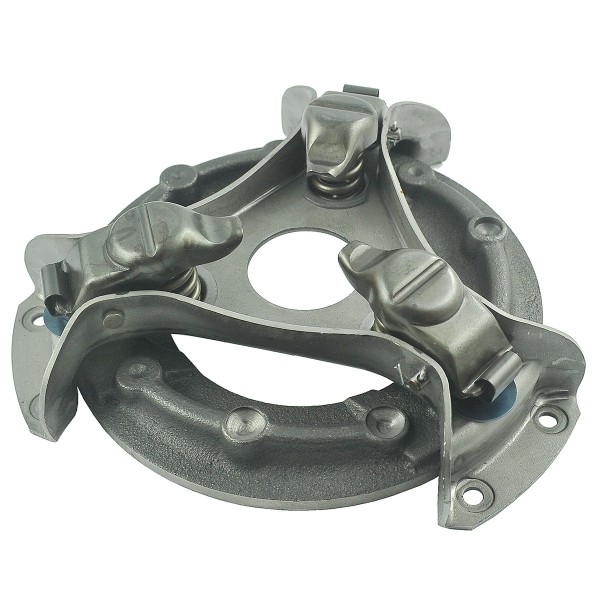

Clutch pressure plate / Shibaura S325 / SD1643 / SD1840 / SD1843 / SD2043 / SD2200 / SD2243 / SD2443 / SD2643

Clutch disc pressure plate (CDSType3 disc) with a pressure plate diameter of 127 / 217 mm for Shibaura tractors of the Shibaura S325, Shibaura SD1643, Shibaura SD1840, Shibaura SD1843, Shibaura SD2043, Shibaura SD2200, Shibaura SD2243, Shibaura SD2443, Shibaura SD2643, Shibaura SD2843, Shibaura SE2540 series and others.

The clutch pressure plate is the component that connects the gearbox to the engine, and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

Dimensions :

• Overall diameter (housing): 265 mm,
• Pressure plate internal diameter: 127 mm,
• Pressure plate outer diameter: 217 mm,
• Height: 70 mm,
• Spacing of mounting screw holes: 50 / 180 mm (measured from each other),
• Original part numbers: 320450010, F450011, FD320021, SBA320450011, SBA320400010, SBA320400211, SBA320400212, SBA320450010,

Tractor models :

• Shibaura S325,
• Shibaura SD1643,
• Shibaura SD1840,
• Shibaura SD1843,
• Shibaura SD2043,
• Shibaura SD2200,
• Shibaura SD2243,
• Shibaura SD2443,
• Shibaura SD2643,
• Shibaura SD2843,
• Shibaura SE2540.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine : K18:A29

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
