Condition
New
engine power (hp)
18 - 50
Minimum required tractor power (HP HP PS)
35
Drive
PTO (PTO)
Weight (kg)
390

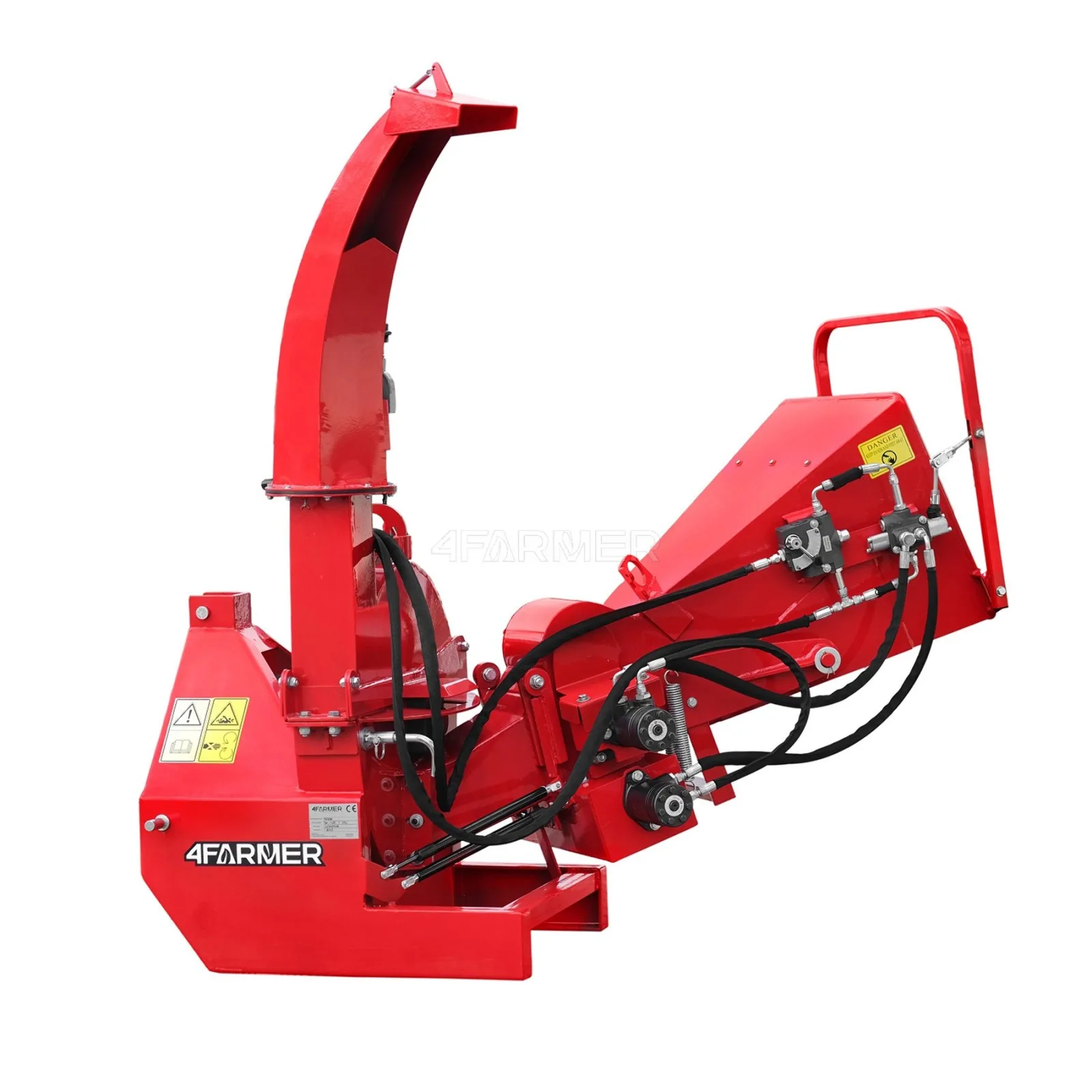

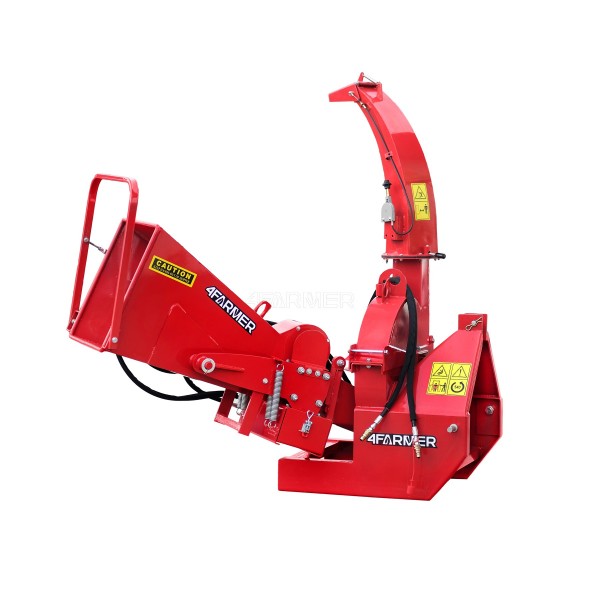

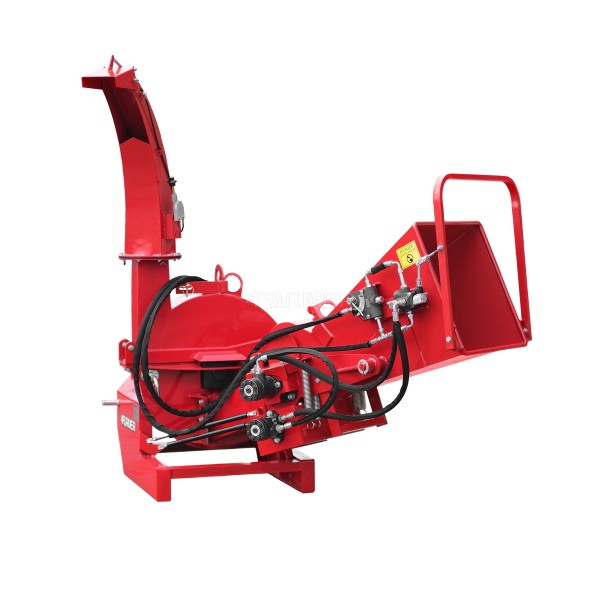

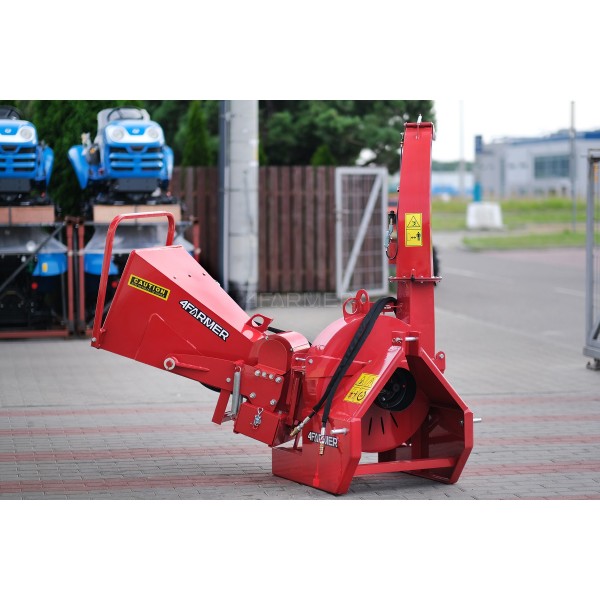

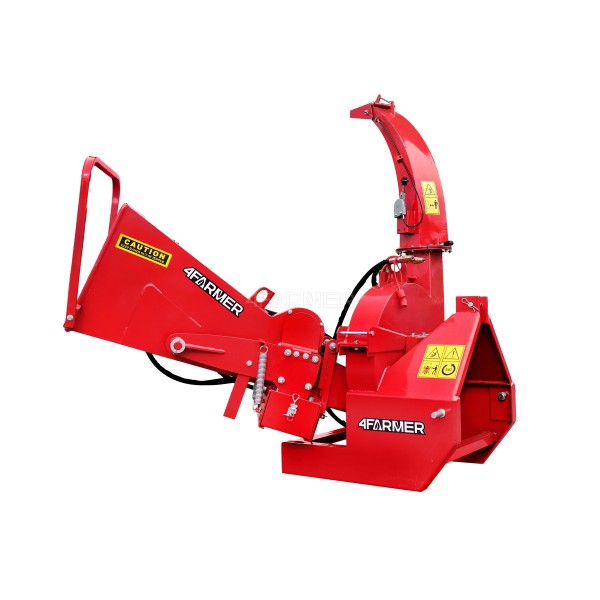

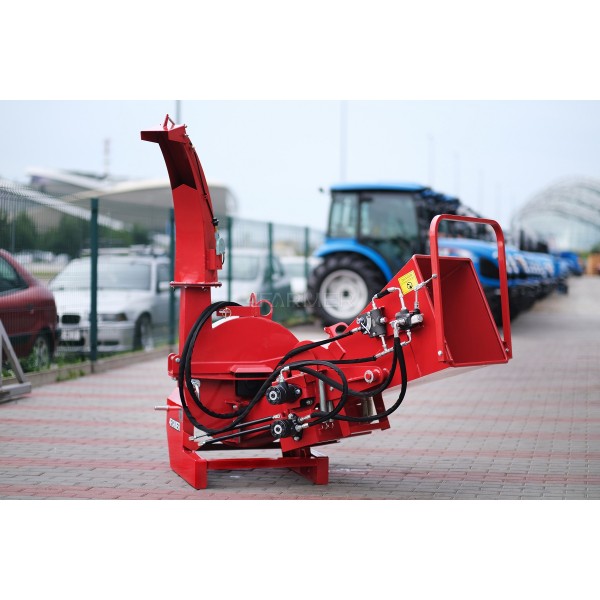

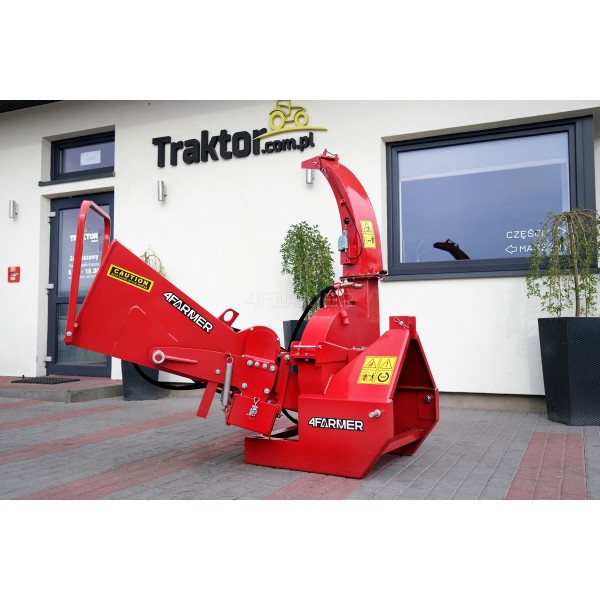

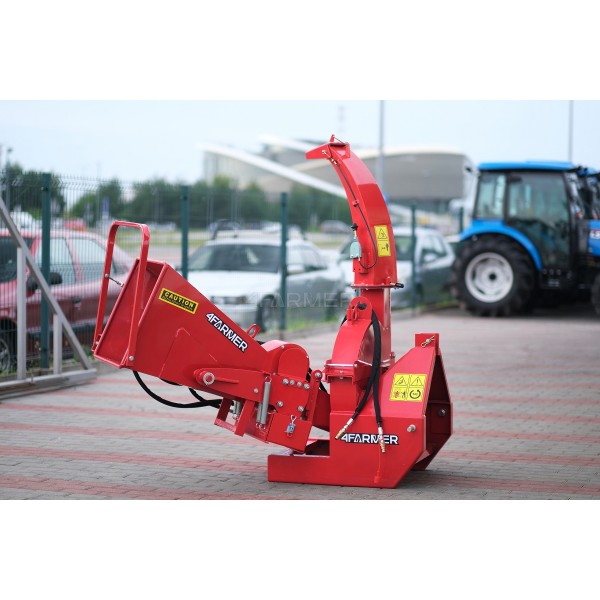

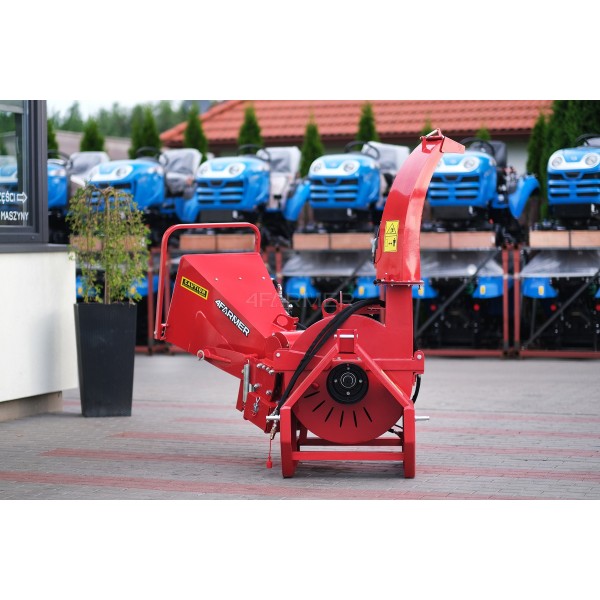

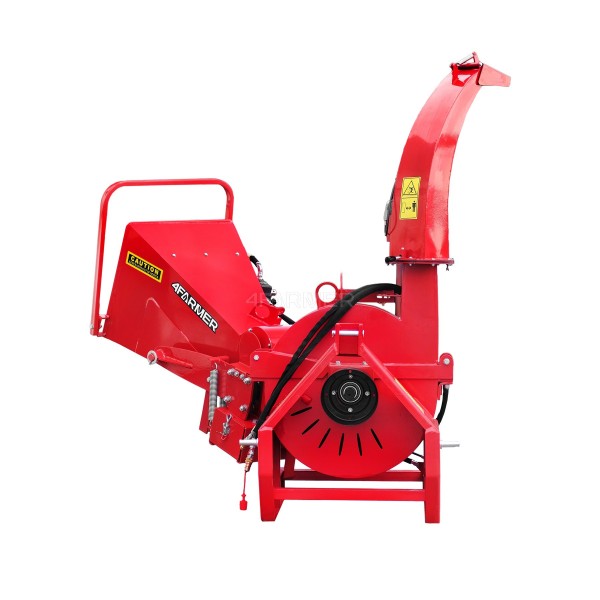

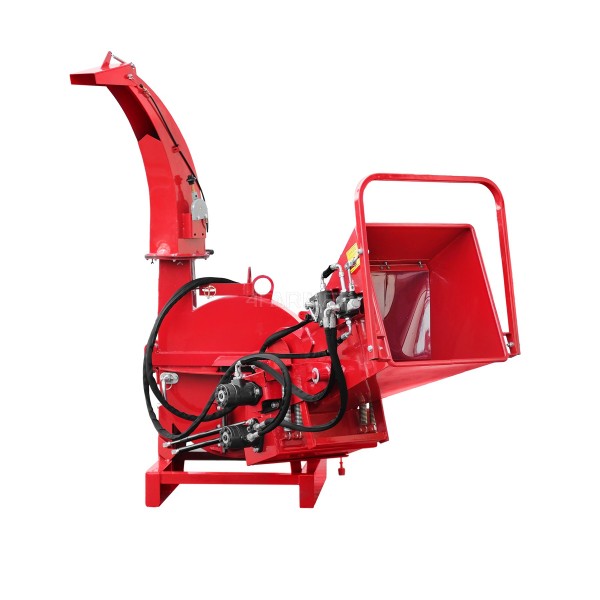

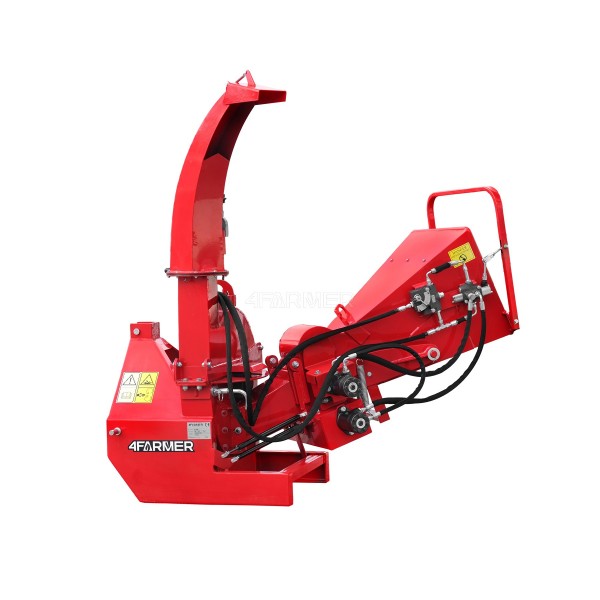

BX-42R 4FARMER Disc Chipper
Do you have any questions?
BX-42R 4FARMER Disc Chipper
Tractor chipper - how does it work?
These are devices that, as the name suggests, are designed to be used in conjunction with agricultural tractors . A tractor chipper works by connecting to the PTO shaft, which is why individual chippers require connection to a tractor with the appropriate engine power. Wood shredding machines are commonly used in forestry and agriculture. Their use allows for quick, precise and safe processing of even a significant number of trunks and branches.
Basic types of chippers: disc and roller. What are the differences?
In disc chippers, the element that shreds wood is a metal disc/disc with mounted blades (knives). This solution was patented in 1922 by German inventor Heinrich Wigger. The rotating disc/disc is set perpendicularly to the wood fed into the machine (manually or by means of a conveyor belt). The rotating disc with knives shreds it into chips (shavings), which are then thrown out of the device through the discharge chute. By choosing a disc chipper , we obtain fine material of uniform shape and size, which can then be used for mulching, for fuel, for the production of chipboard.
Roller chippers are machines designed to quickly process branches or tree trunks into short pieces. These devices are great for forests, parks, orchards or farms. Roller chippers have a completely different shredding mechanism. It is a rotating cylinder with sharp protrusions (knives). The material we get is wood cut into pieces about 10-16 cm long.
The BX42 R chipper perfectly shreds branches, tree trunks with a diameter of up to 10 cm, and with offshoots up to 25 cm. The chipper with a three-point suspension system is designed to work with an agricultural tractor with a minimum power of 18 hp.

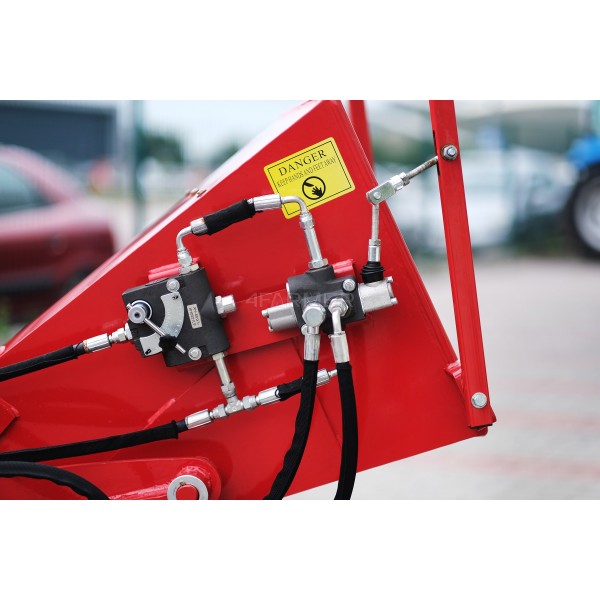

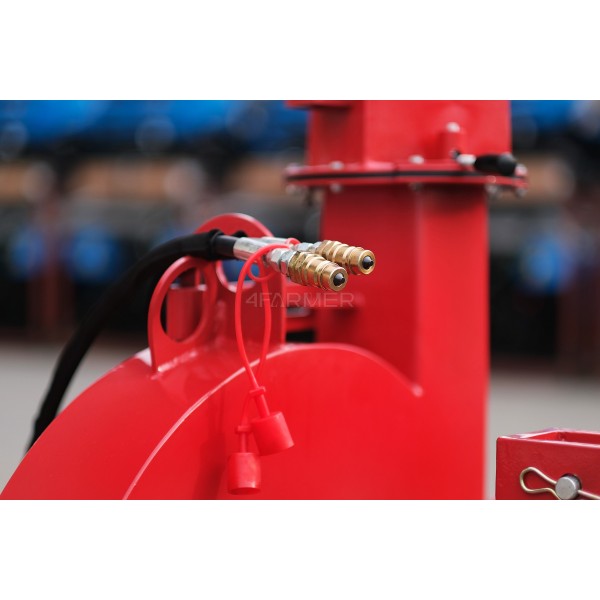

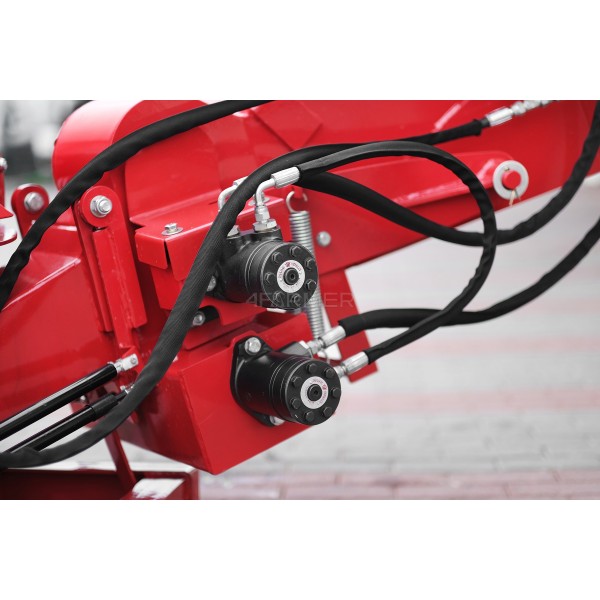

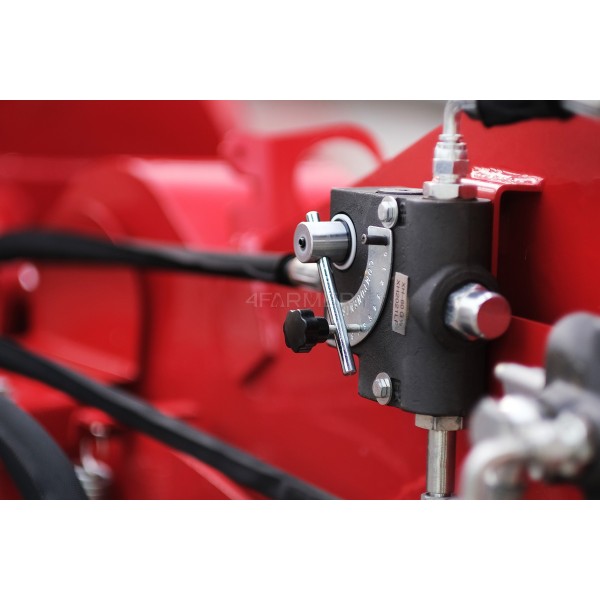

The material collection system is made of two hydraulically driven toothed shafts. The material collection mechanism has a 10-step collection speed regulator and a material output function. The hydraulic system drive comes from the tractor's hydraulic outputs (mounted with quick couplers).
- Tractor power for maximum efficiency - 35-40 HP
- Engine power - 18-50 HP
- Discharge cover - 10 X 25cm
- Rotor size - 63cm
- Number of cutting knives - 4 + 1 counter blade
- Knife type - hardened tool steel
- Rotor weight - 49 kg
- Material feeding mechanism - hydraulic drive - 2 gear shafts
- Mounting system - three-point suspension system (TUZ)
- Dimensions - (with folded feed hopper) 101cm DX 106cm SX 152cm W

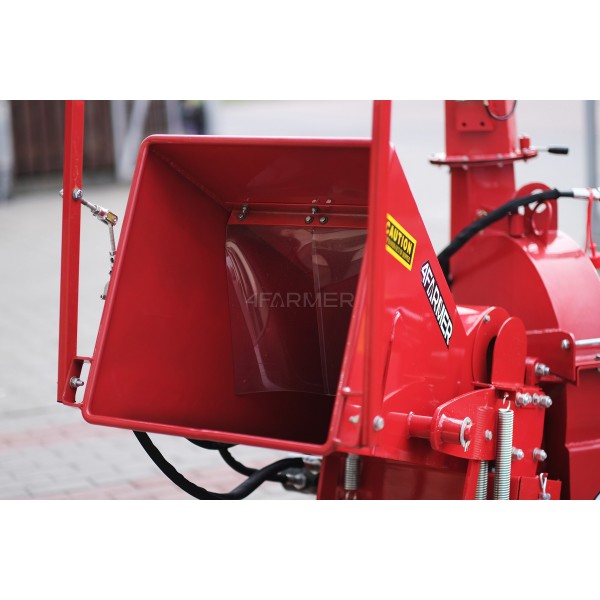

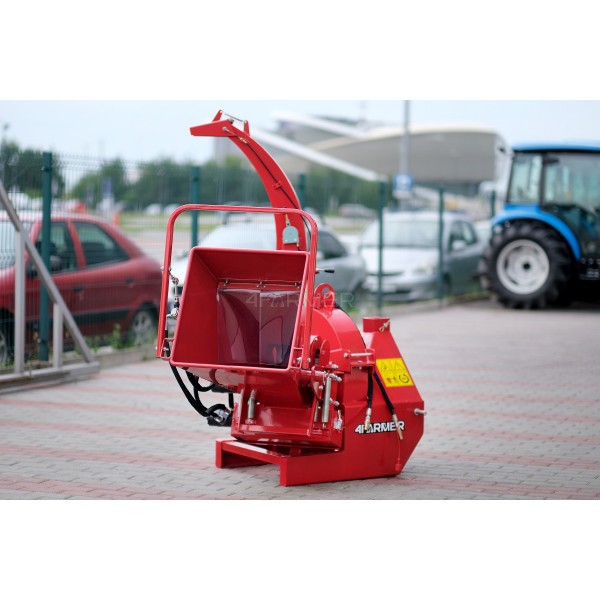

- Feed hopper - 50 X 50CM

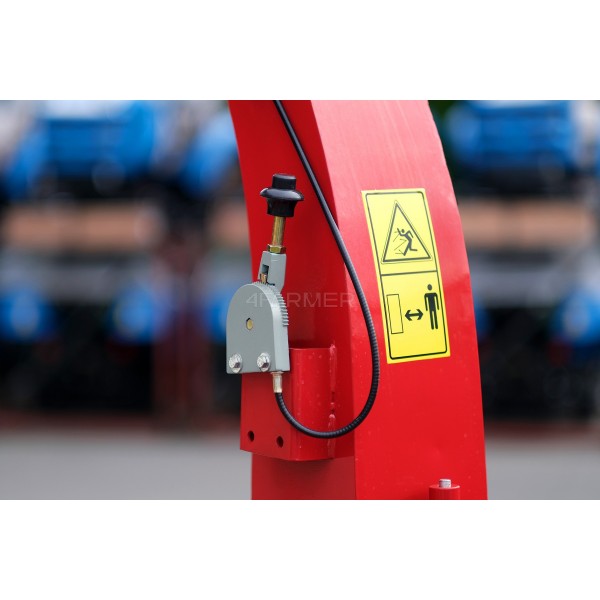

- Rotation of the discharge pipe - 360°
- Ejection tube height - 152CM
- Rated PTO revolutions per minute - 540-1000
- Chipper weight - 390 KG
Specification
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
