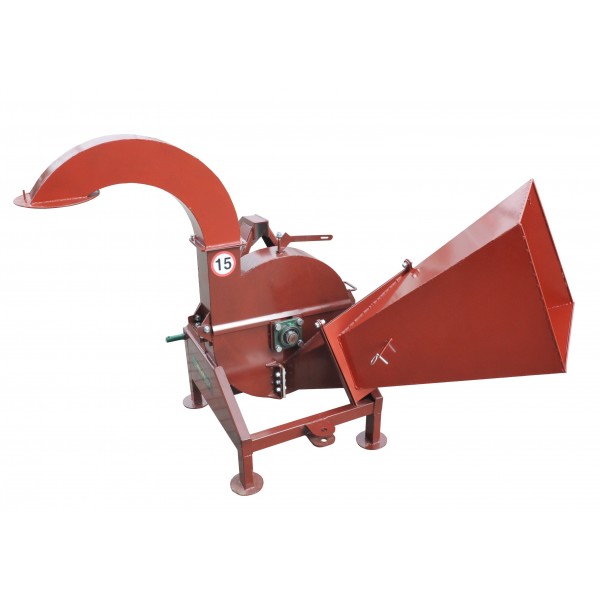

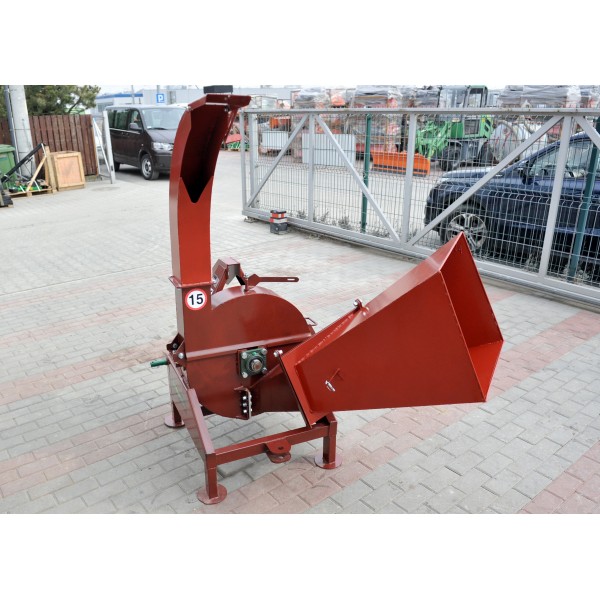

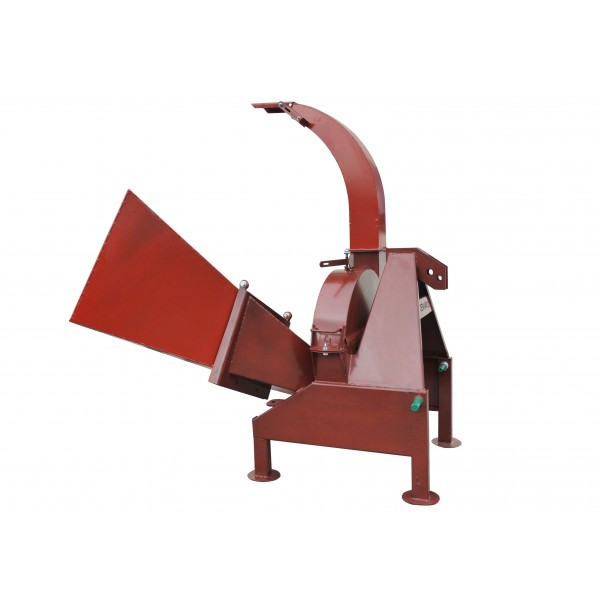

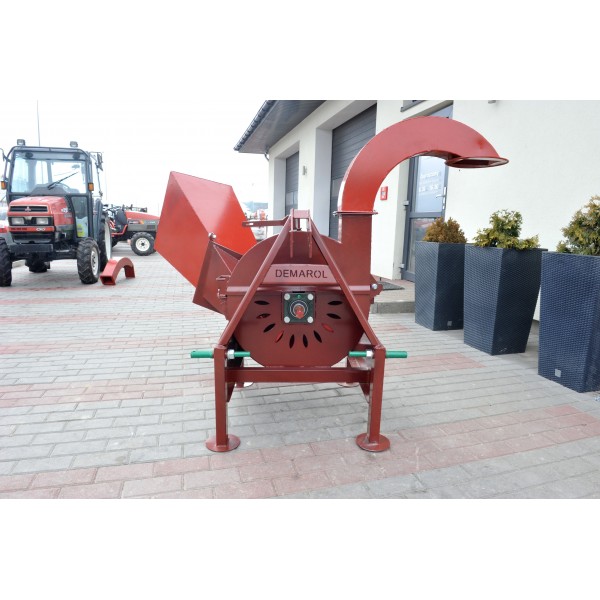

Disc Chipper R-13 Demarol

Tractor chipper - how does it work?

These are devices that, as the name suggests, are designed to be used in conjunction with agricultural tractors . A tractor chipper works by connecting to the PTO shaft, which is why individual chippers require connection to a tractor with the appropriate engine power. Wood shredding machines are commonly used in forestry and agriculture. Their use allows for quick, precise and safe processing of even a significant number of trunks and branches.

Disc Chipper - Worth Knowing

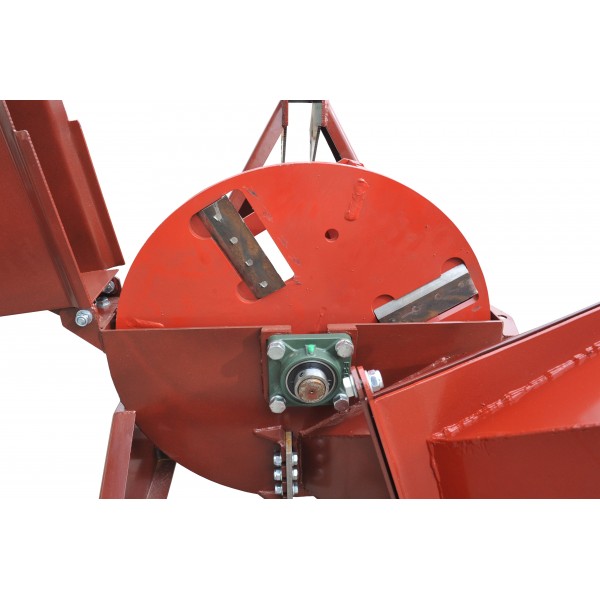

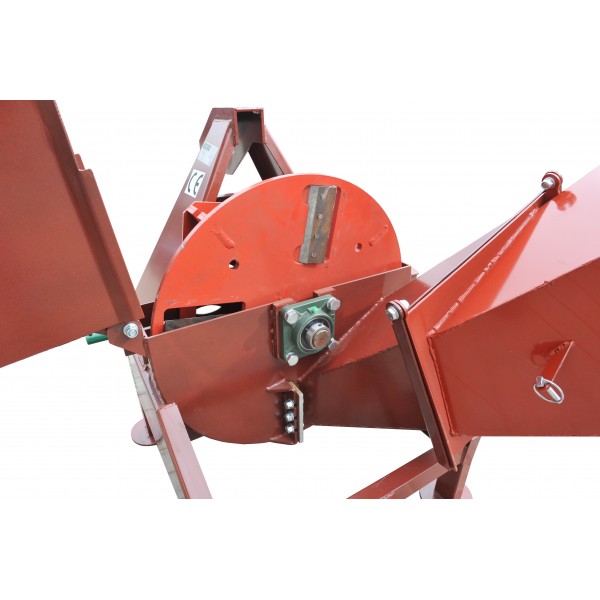

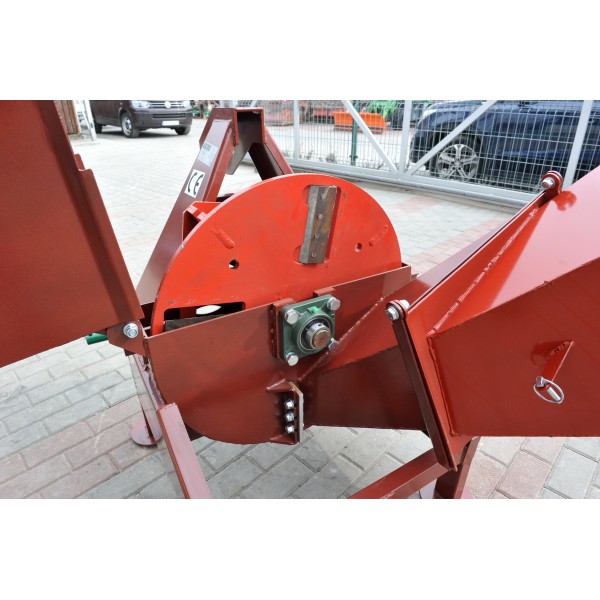

In disc chippers, the element that shreds wood is a metal disc/disc with mounted blades (knives). This solution was patented in 1922 by German inventor Heinrich Wigger. The rotating disc/disc is set perpendicularly to the wood fed into the machine (manually or by means of a conveyor belt). The rotating disc with knives shreds it into chips (shavings), which are then thrown out of the device through the discharge chute. By choosing a disc chipper , we obtain fine material of uniform shape and size, which can then be used for mulching, for fuel, for the production of chipboard.

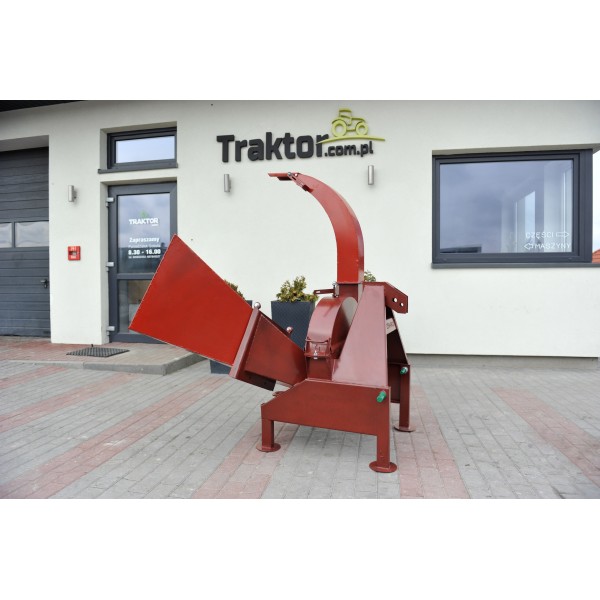

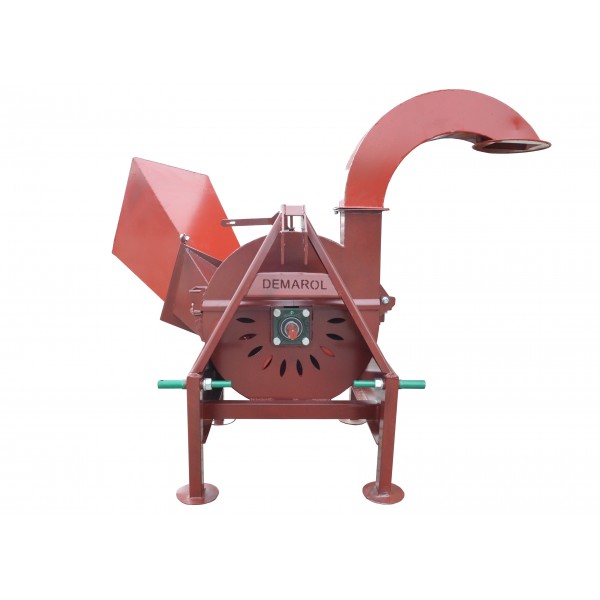

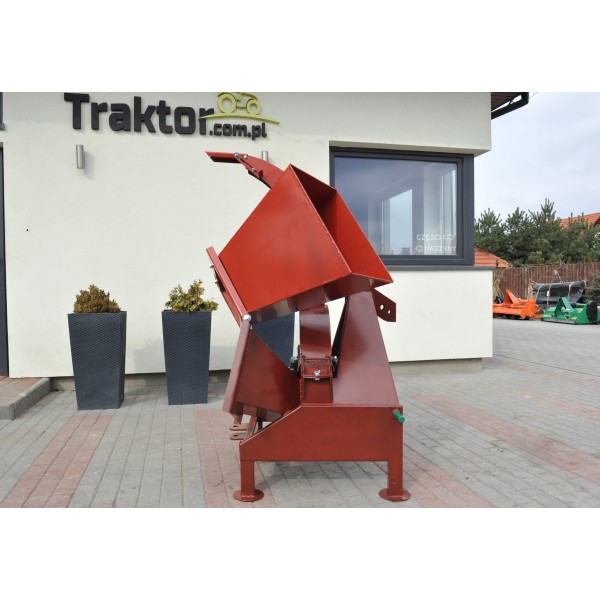

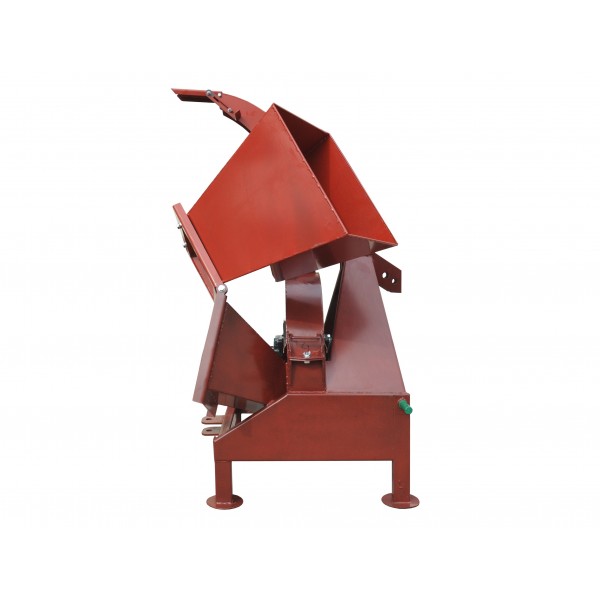

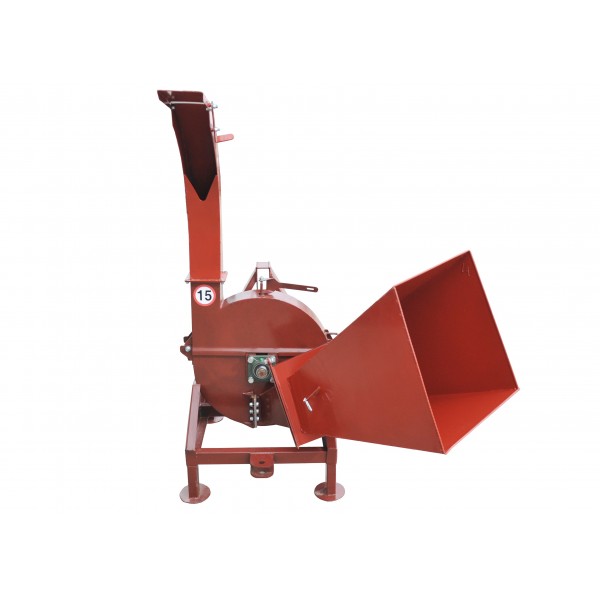

Disc branch chipper R13 - an irreplaceable help at work!

Polish-made chipper designed for shredding branches up to a maximum of 13 cm thick.

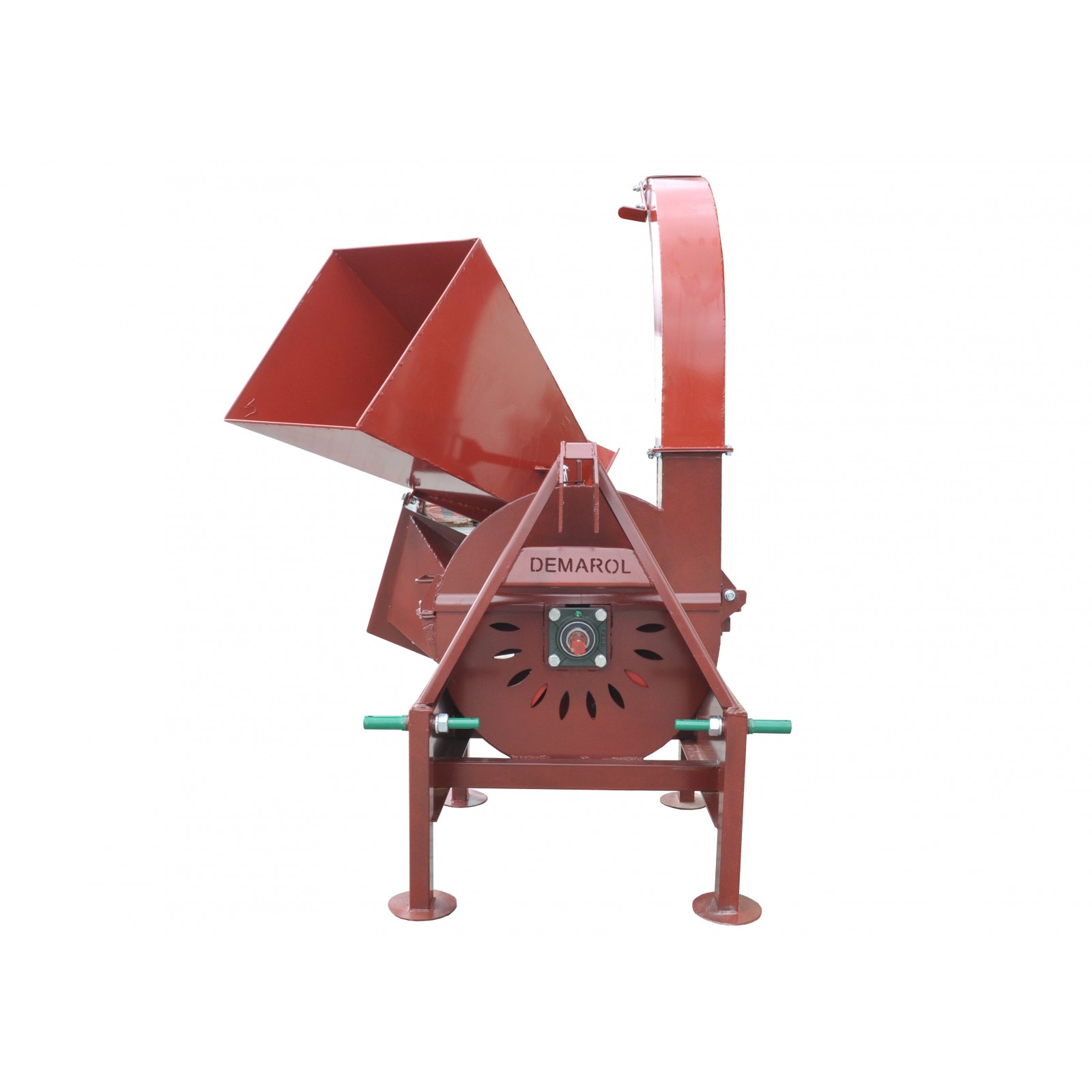

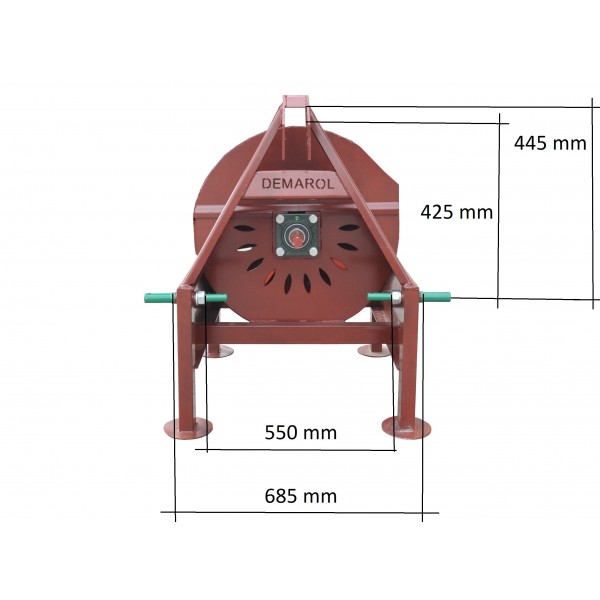

The chipper is powered by the tractor's PTO shaft and attached to a 3-point hitch CAT I or CAT II. The chipper's design allows for the shredded material to be thrown directly onto a trailer or, thanks to an additional attachment, the shredded material can be packed directly into bags.

• Maximum thickness of cut wood: 130 mm.

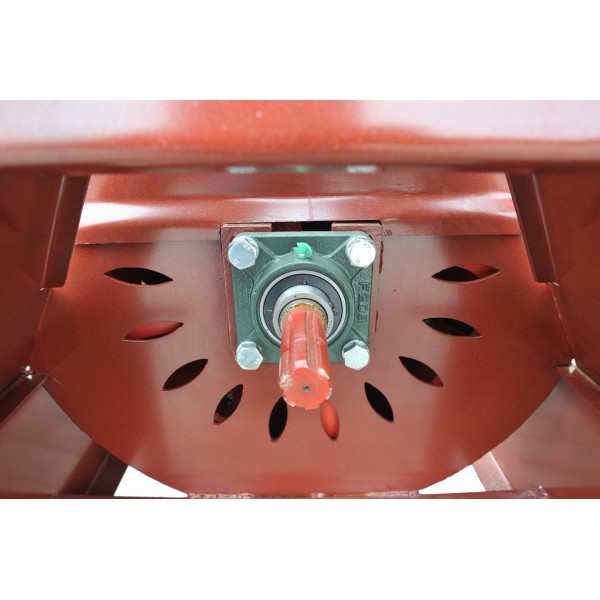

• Drive type: tractor PTO.
• Minimum tractor power: 17HP.

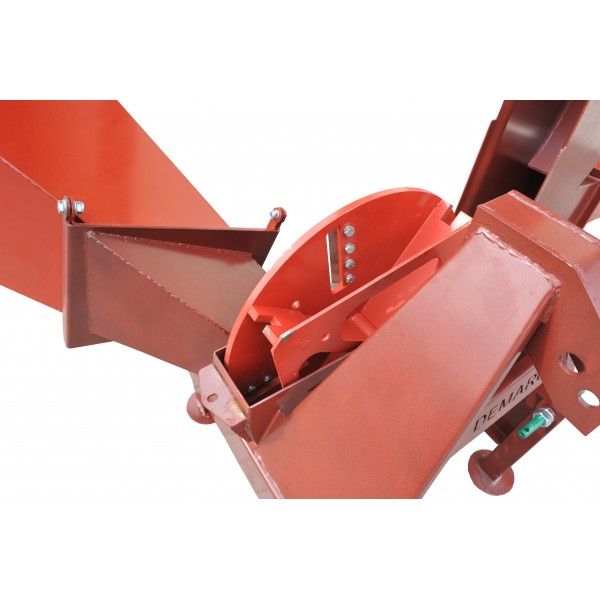

• Number of cutting knives: 4 cutting knives and 1 support knife.
• Cutting disc diameter: 640 mm.
• Weight: 210 kg.

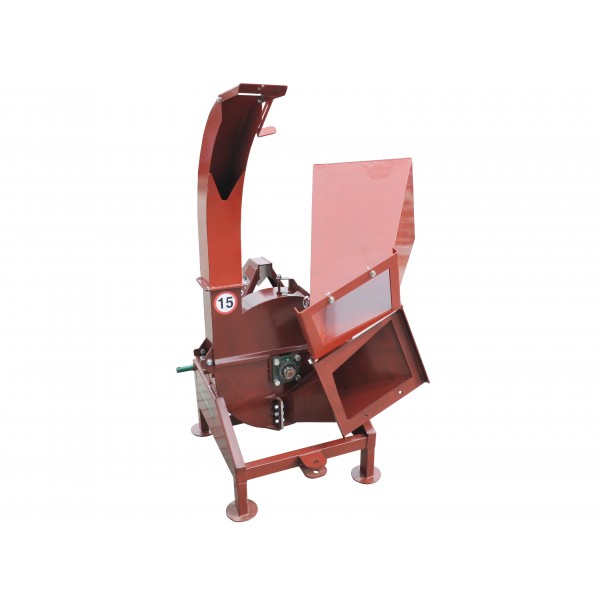

• Additional exhaust chimney for easier packing into bags.
• Double-sided pins with a diameter of 19 and 28 mm.
