Ball end of the three-point linkage arm Cat I / 22.10 x 68 mm

4F/KK/21-03-5
zł55.00
Tax included PL 23%

44,72 netto

  • Dostępność (490 Quantity): stock
wishlist

Do you have any questions?

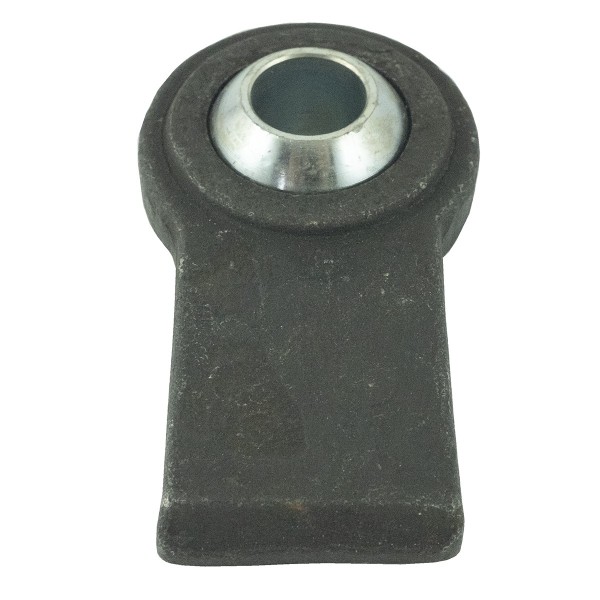

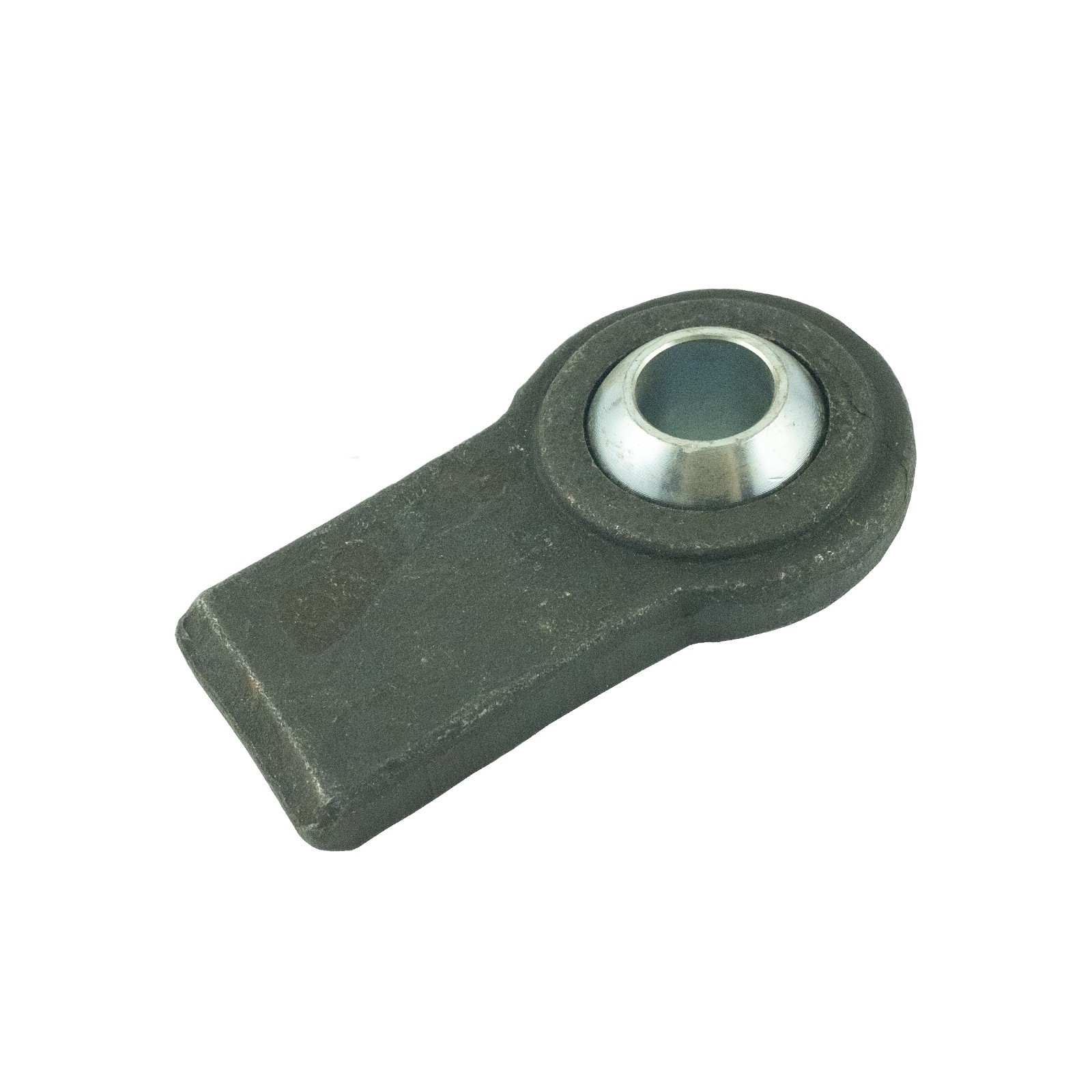

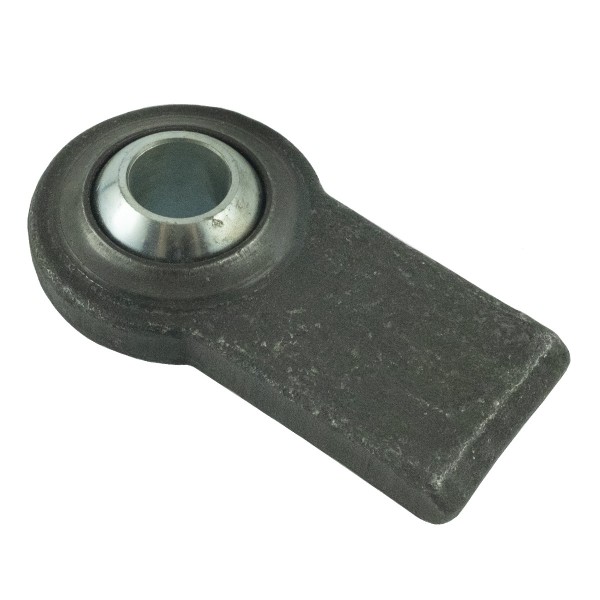

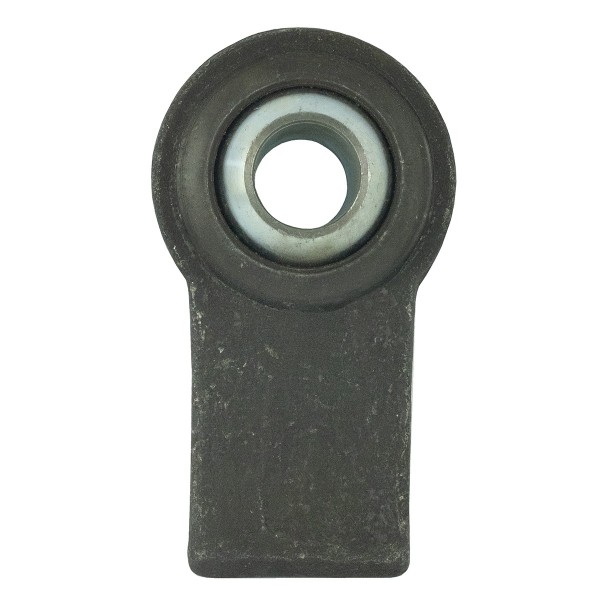

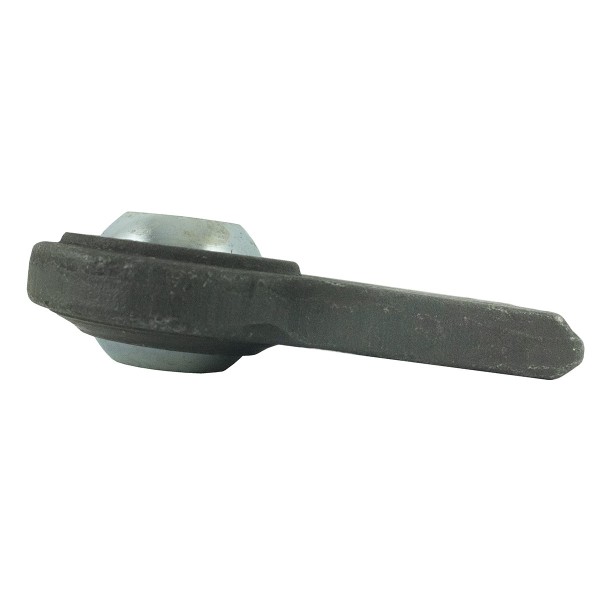

Ball end of the three-point linkage arm Cat I / 22.10 x 68 mm

What is a three-point linkage ball end?

Ball end of the lower arms of the three-point linkage Cat I. The ball end on pins is an element of the hitch of the lower beams of the tractor's hydraulic lift. The TUZ I is located on both sides. The swing end on pins is the most popular connection used in agriculture and depending on the size of the tractor, the ball ends can have an internal diameter of 19 to 50 mm.

Dimensions :

  • pin hole diameter: 22.10 mm,
  • pin mounting width: 35 mm,
  • total length: 125 mm,
  • working length: 90 mm,
  • head diameter: 68 mm,
  • width: 50mm,
  • thickness: 14mm,

Three-point linkage ball end with internal thread for the lower arms of the three-point linkage.

    Magazine: K13:P60

    *Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

    Specification

    Magazyn: K09 / K13
    Condition
    New
    Parts
    3-point linkage
    NEXT DOOR
    3 point
    Thickness (mm)
    14
    Overall length (mm)
    125
    Width (mm)
    50
    working length (mm)
    90
    Head diameter (mm)
    68
    Pin hole diameter (pins/mm)
    22.10
    Hammer/knife/pin mounting width (a) (mm)
    35
    Category
    1
