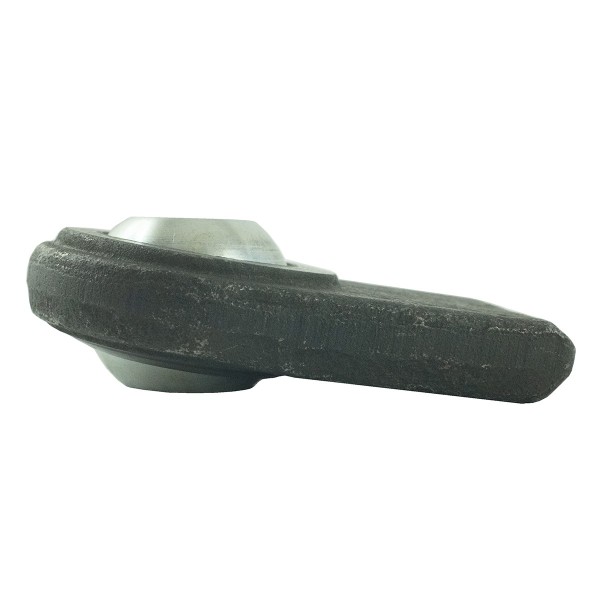

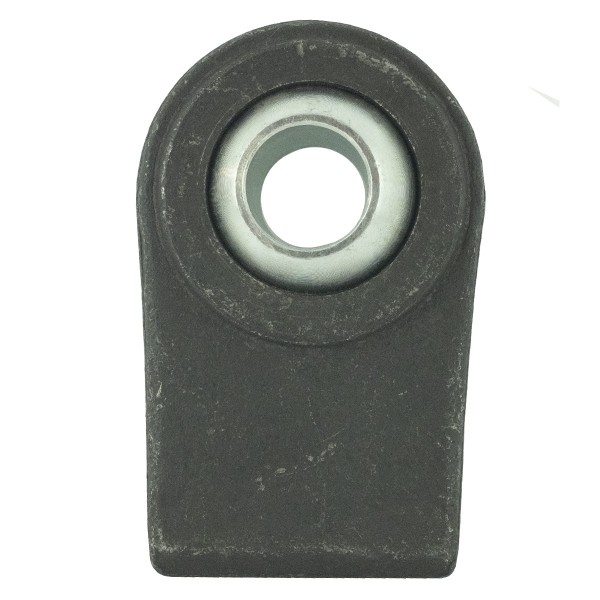

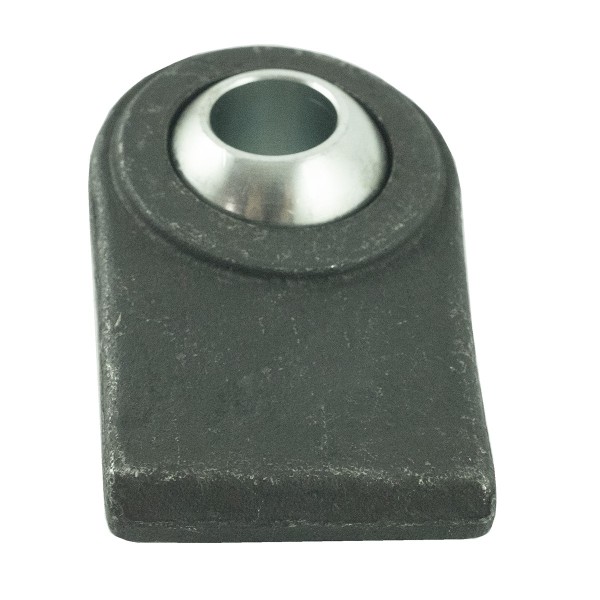

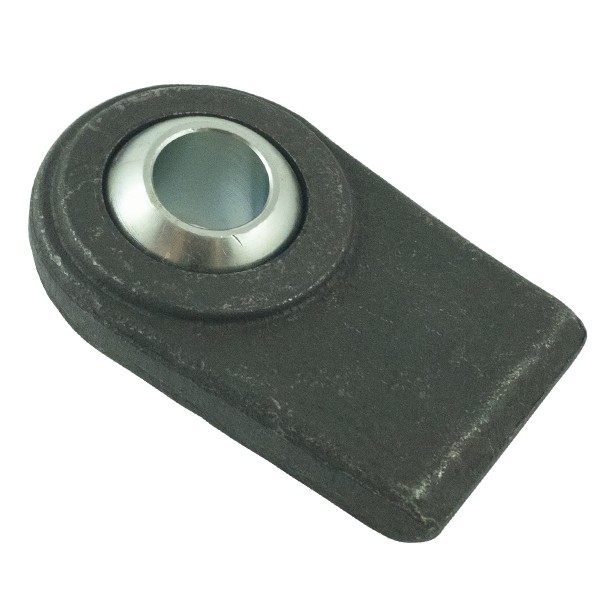

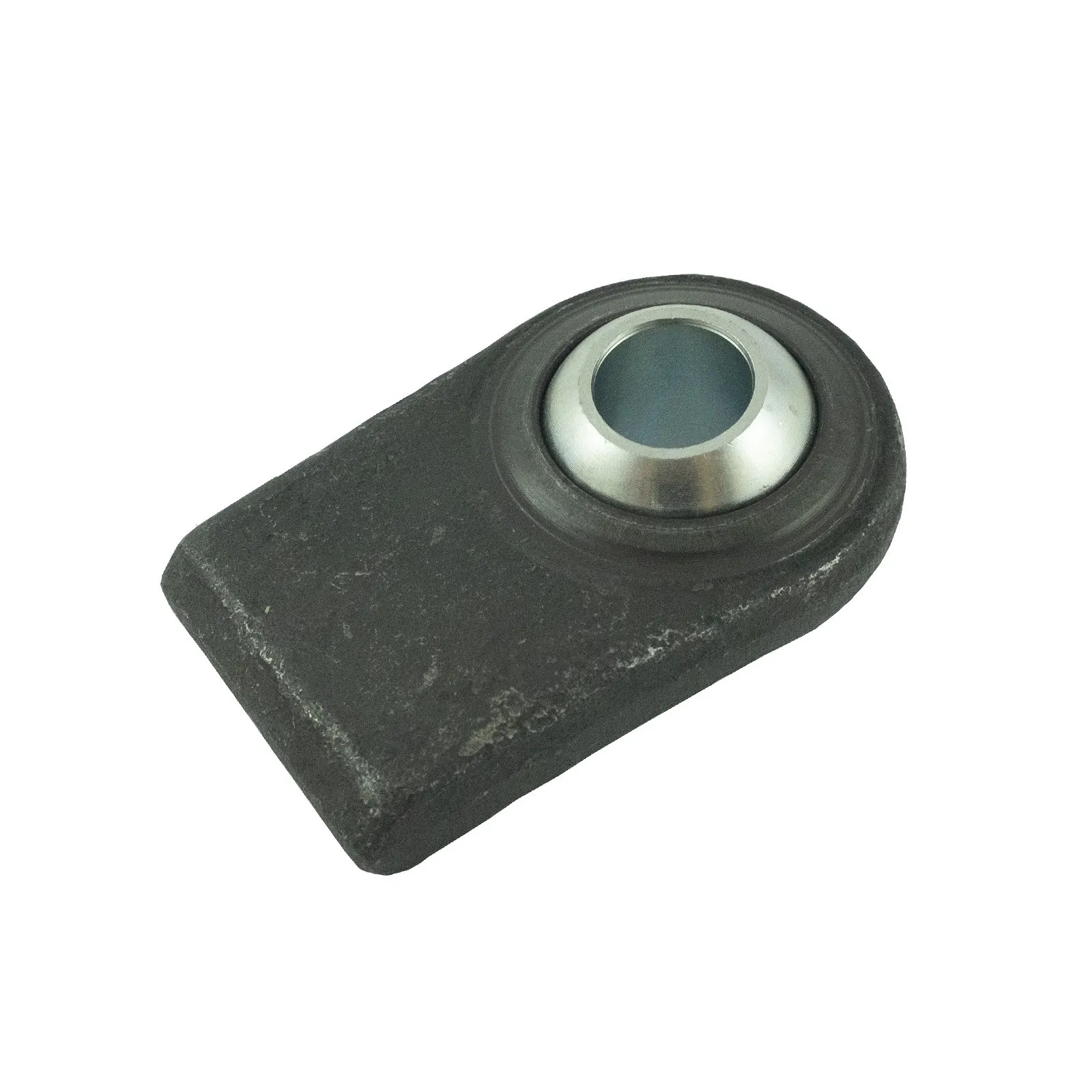

Ball end of the three-point linkage arm Cat I / 22.10 x 66 mm

Product code: 4F/KK/21-03-4
Brand 4FARMER
View other model
4 people purchased this product
zł34.96 netto
zł43.00
Includes VAT 23%

Lowest price from 30 days: zł43.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
444 pieces
Delivery See details Leasing & financing for businesses See details

Product description

What is a three-point linkage ball end?

Ball end of the lower arms of the three-point linkage Cat I. The ball end on pins is an element of the hitch of the lower beams of the tractor's hydraulic lift. The TUZ I is located on both sides. The swing end on pins is the most popular connection used in agriculture and depending on the size of the tractor, the ball ends can have an internal diameter of 19 to 50 mm.

Dimensions :

  • pin hole diameter: 22.10 mm,
  • pin mounting width: 35 mm,
  • total length: 108 mm,
  • working length: 70 mm,
  • head diameter: 66 mm,
  • width:55mm,
  • thickness: 18 mm.

Three-point linkage ball end with internal thread for the lower arms of the three-point linkage.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Width (mm)
55
NEXT DOOR
3 point
Overall length (mm)
108
Parts
3-point linkage
Thickness (mm)
18
Diameter of pin hole(s) (pins/pins / mm)
22.10
working length (mm)
70
Head diameter (mm)
66
Category
1
Width of attachment of beaters / knives / pins (a) (mm) / belt (s)
35
