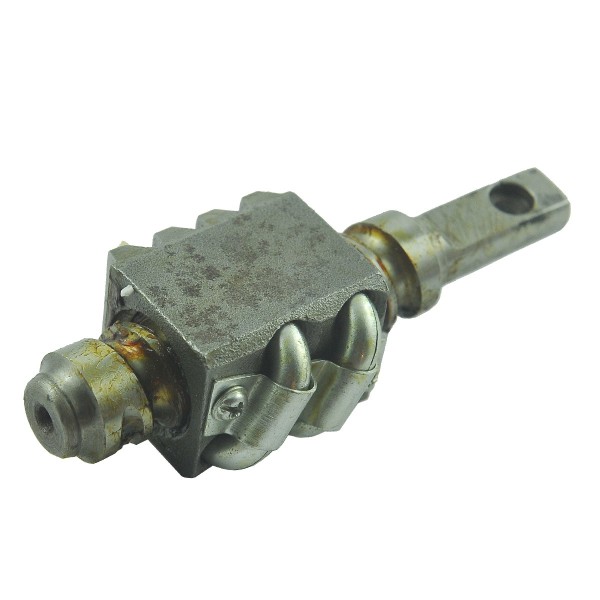

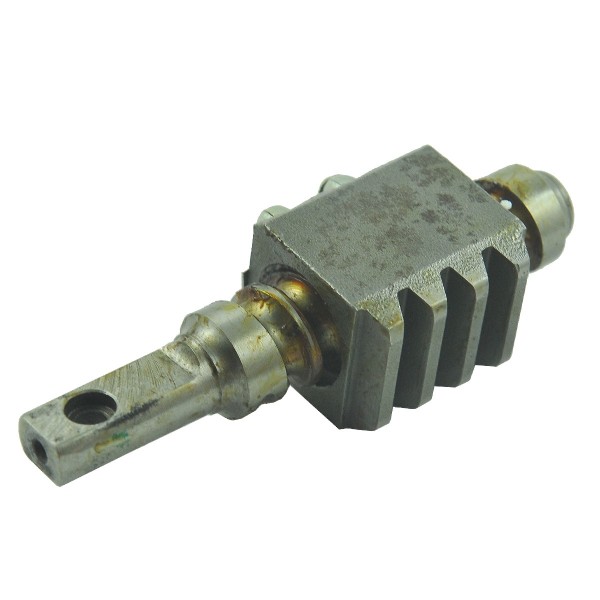

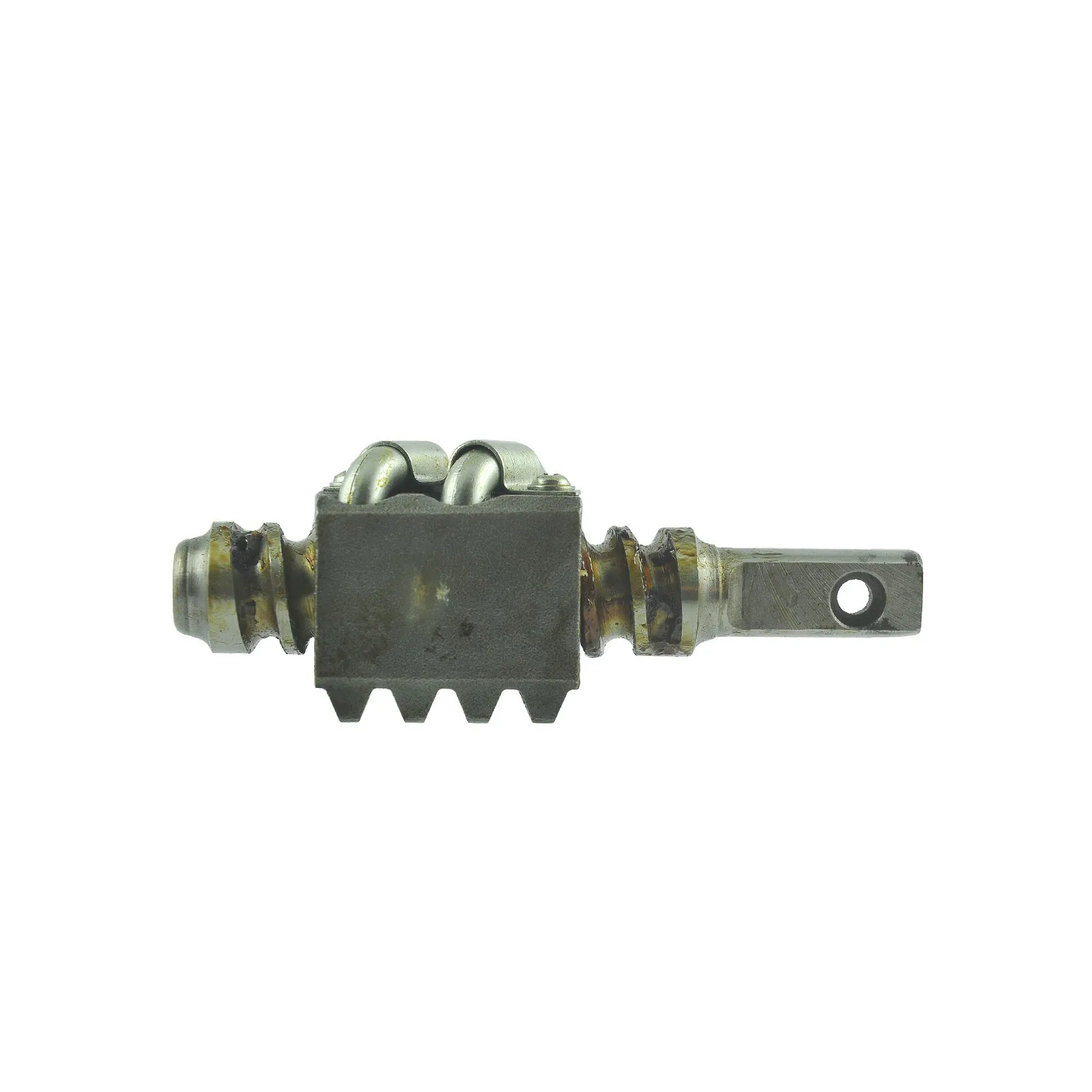

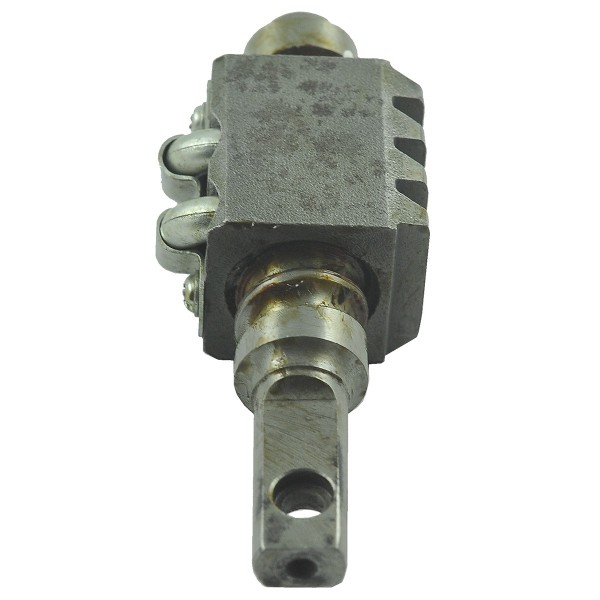

Steering column shaft 132 mm / Kubota L1802 / L2002 / L2202 / L2402 / L2602 / L2802 / L3202 / L3602 / L4202

Steering gear shaft with a total length of 132 mm for Kubota series tractors, Kubota L1802, Kubota L2002, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L2802, Kubota L3202, Kubota L3602, Kubota L4202 and others.

The worm with the steering column shaft is an element of the steering system, the steering column is sometimes called the rack and pinion and is responsible for the steering of the tractor. The shaft is directly bolted to the steering wheel on one side, and its worm part on the other side sets in motion the column rods connected to the steering rods of the front axle, during the rotation of the steering wheel. The worm gear is an element of the steering column responsible for steering the tractor, an element of which is the shaft with the worm.

Dimensions :

• length: 132 mm,
• cube dimensions: 45 x 40 x 35 mm (length x width x height),
• tip dimensions: 10 x 15.50 mm,
• original part numbers: 38240-16200 , 38240-16500,
• comparison numbers: 6-01-100-01 ,
• part numbers: KUSS-401.

Tractor models :

Kubota ;

• Kubota L1802,
• Kubota L2002,
• Kubota L2202,
• Kubota L2402,
• Kubota L2602,
• Kubota L2802,
• Kubota L3202,
• Kubota L3602,
• Kubota L4202.

The worm shaft is responsible for transferring the movement of the steering wheel to the rod ends and then to the steering wheels. This connection should be as smooth as possible and free from play. At the end of the shaft is mounted the so-called steering column worm with a thread resembling a screw thread, with which the gear wheel or other surface connected to the rod ends is directly integrated.
