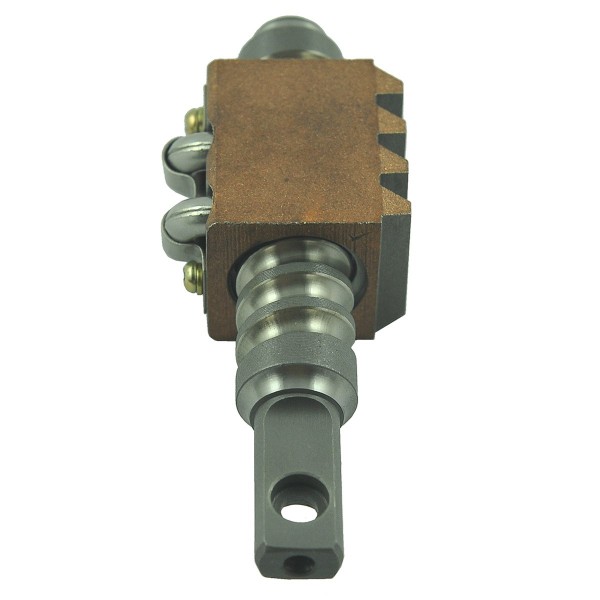

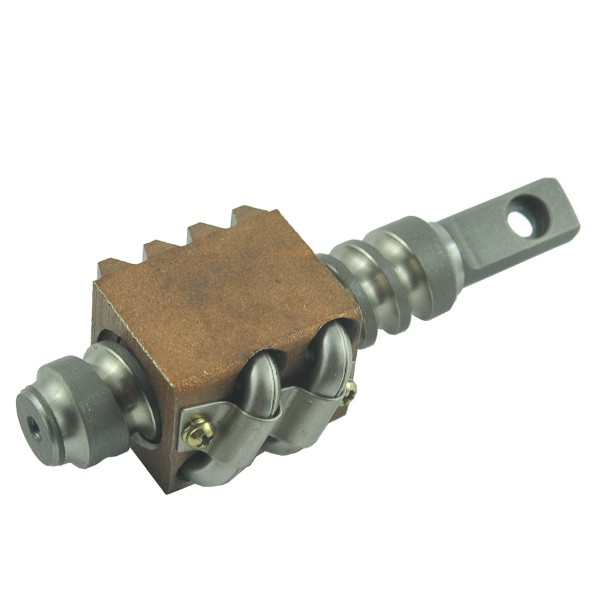

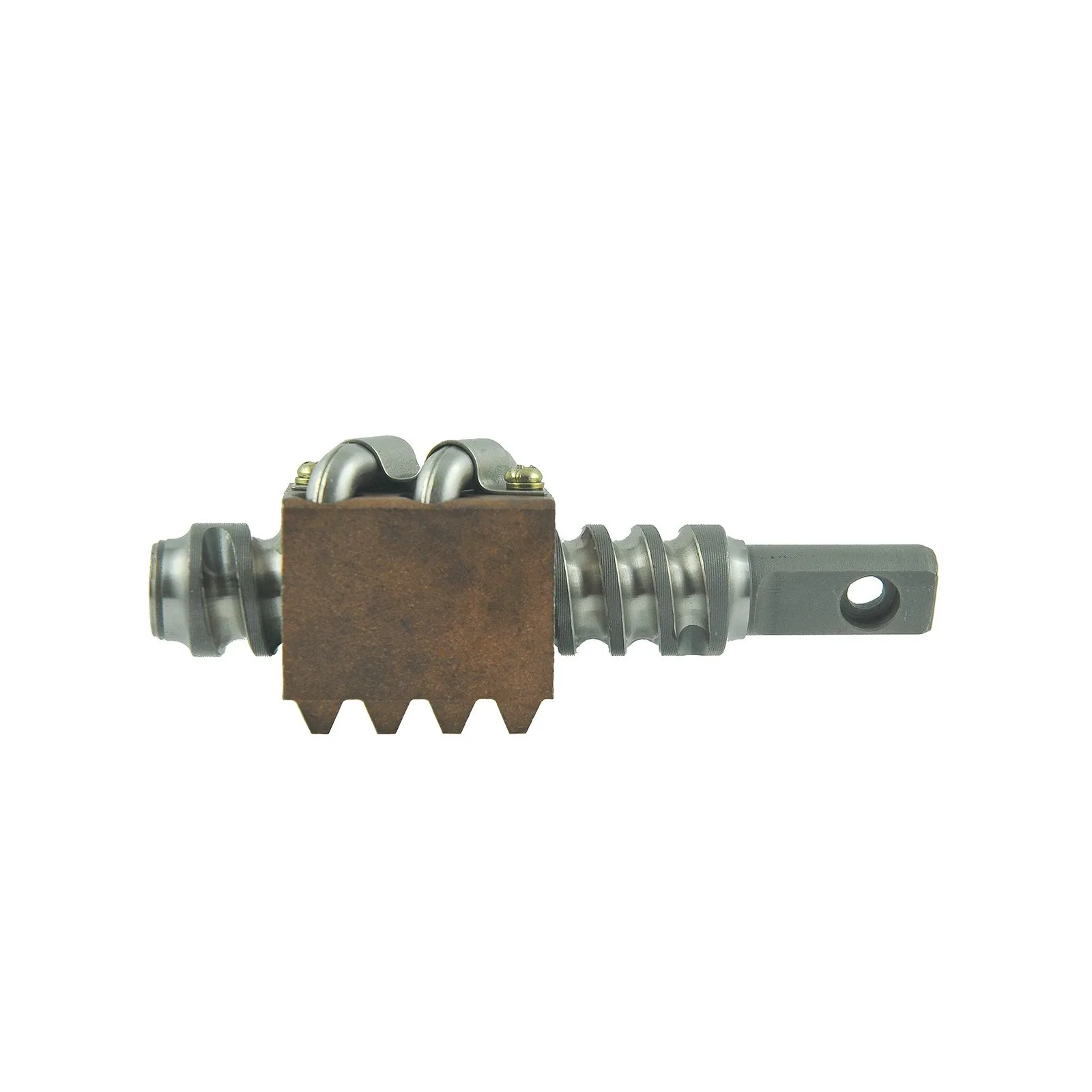

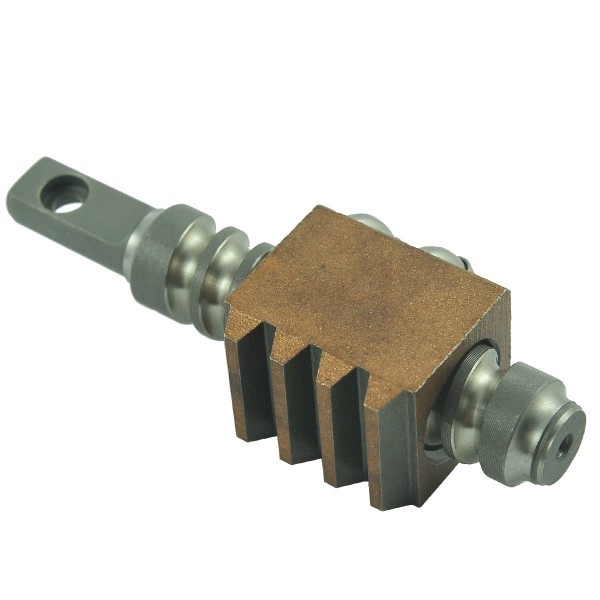

Steering column shaft / 135 mm / Kubota L1802 / L2002 / L2202 / L2402 / L2602 / L2802 / L3202 / L3602 / L4202

Steering gear shaft with a total length of 135 mm for Kubota series tractors, Kubota L1802, Kubota L2002, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L2802, Kubota L3202, Kubota L3602, Kubota L4202 and others.

The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for steering the tractor. The shaft is directly bolted to the steering wheel on one end, while its worm section on the other moves the steering rods connected to the front axle's steering rods during steering wheel rotation. The worm gear is a component of the steering column, which consists of a shaft with a worm gear, responsible for steering the tractor.

Dimensions :

• length: 135 mm,
• cube dimensions: 45 x 40 x 35 mm (length x width x height),
• tip dimensions: 10 x 15.50 mm,
• original part numbers: 38240-16500,
• Comparison numbers: %C5% 9Bci-do-kubota/566-wa %C5% 82-steering-column-l02-d %C5% 82ugi-13550mm.html">6-01-100-01 , %C5% 9Bci-do-kubota/31384-wa %C5% 82ek-steering-column-132-mm-kubota-l1802l2002l2202l2402l2602l2802l3202l3602l4202-38240-16200-38240-16500.html">KUSS-401 ,
• part numbers: 38240-16200.

Tractor models :

• Kubota L1802,
• Kubota L2002,
• Kubota L2202,
• Kubota L2402,
• Kubota L2602,
• Kubota L2802,
• Kubota L3202,
• Kubota L3602,
• Kubota L4202.

The worm shaft is responsible for transferring the steering wheel's movement to the tie rod ends, and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is a so-called steering column worm with a screw-like thread, directly integrated into which is a gear or other surface connected to the tie rod ends.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
