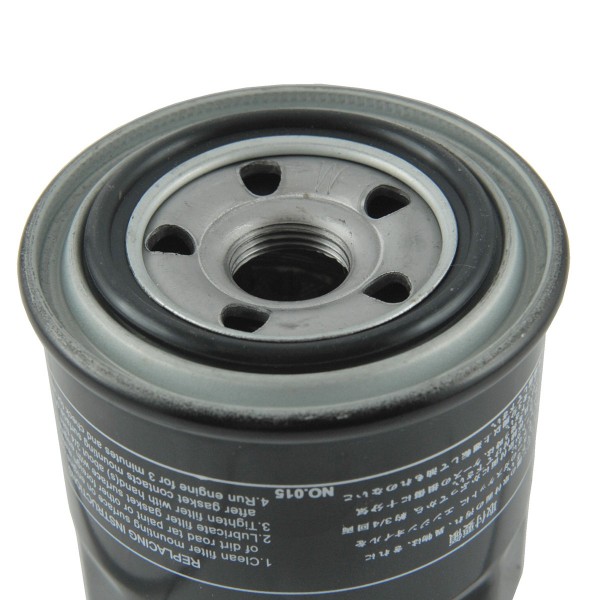

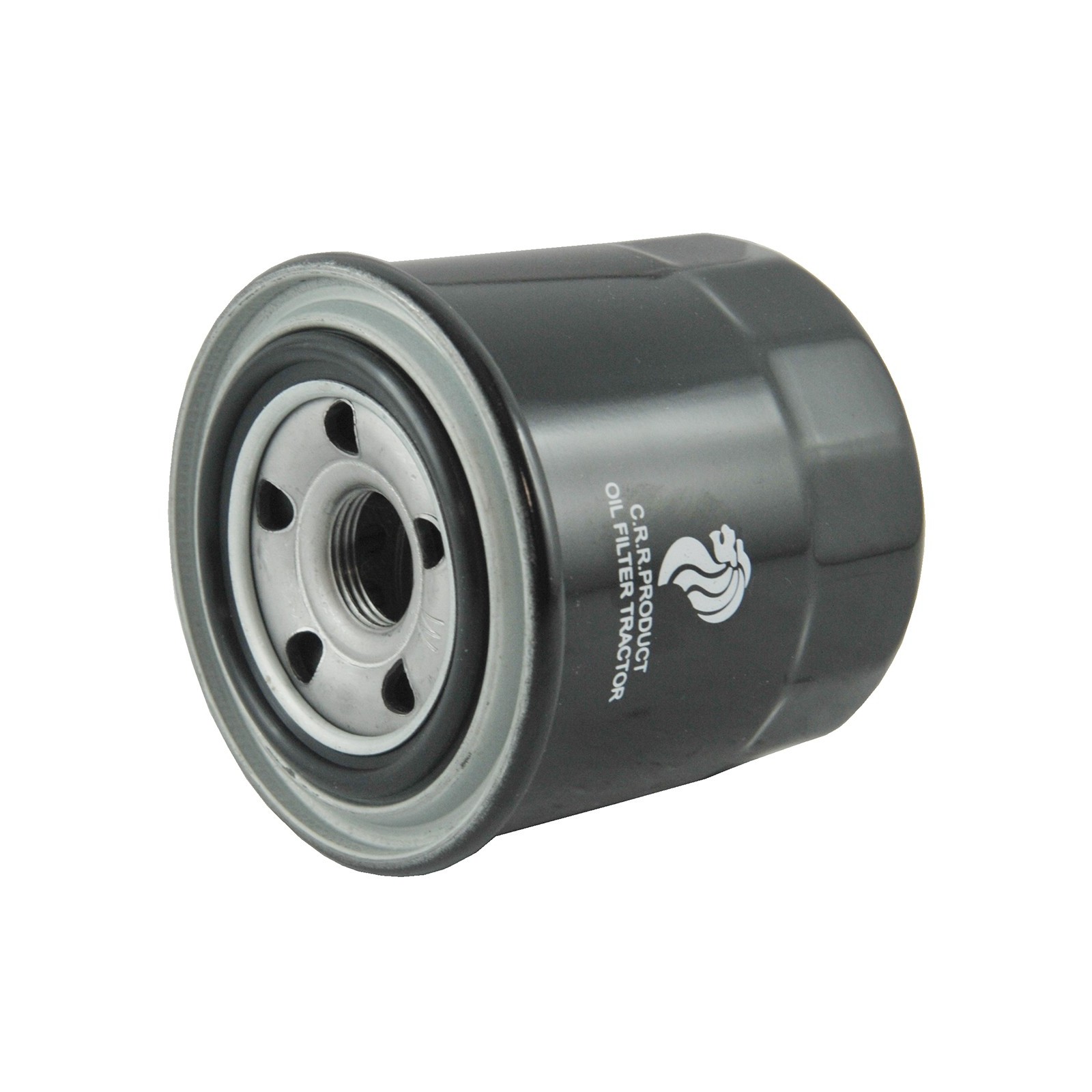

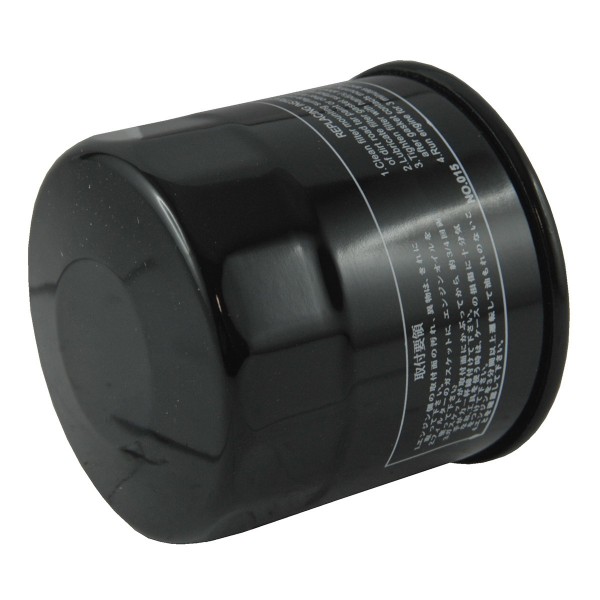

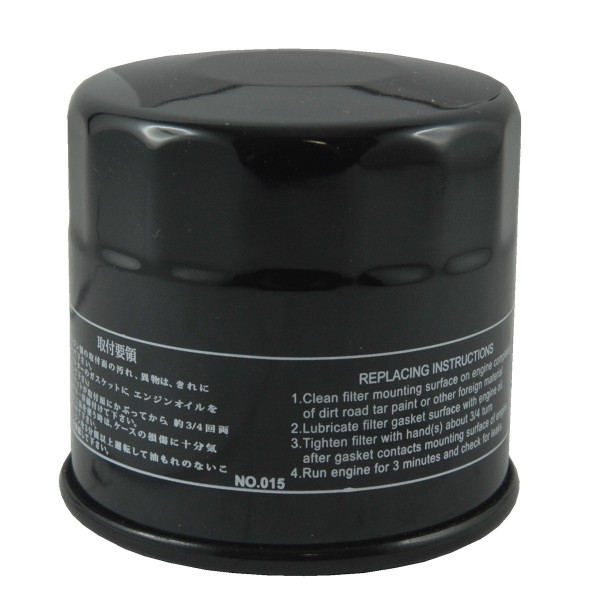

Fuel filter Yanmar EF352T / M20 x 1.5 / 80 x 82 mm / 129 150-35152 / SO 6105

Metal screw-in fuel filter with an outer diameter of 80 mm, a total height of 78 mm with a thread diameter of M20 x 1.5 for Japanese tractors of the Yanmar brand EF352T series and others.

The fuel filter is one of the most important elements of the fuel system that directly affects the proper operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro-organic impurities. Fuel filters are divided into two main groups due to their application and so we will use a different type of filter for a gasoline engine than for a diesel engine. Regardless of the type of fuel, the filtering material is made of various types of blotting paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions :

• outer diameter: 80 mm,
• base diameter: 82 mm,
• height: 82 mm
• gasket diameter: inner 50 mm, outer 64 mm.
• thread: M20 x 1.5,
• comparative numbers: 129150-35152, SO 6105.

Tractor models :

Yanmar :

• Yanmar EF352T.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or cause the engine to run intermittently. Sometimes a clogged fuel filter will cause the engine to lose nominal power or result in higher fuel consumption.
