Fuel filter M20 x 1.5 / Kubota DC60 / DC70 / L1501 / L1801 / L2201 / L3608 / L4708 / Kubota D1101 / Z750 / Z851

5-01-124-17
zł30.00
Tax included PL 23% Dostępny na zamówienie

24,39 netto

  • To order

Do you have any questions?

Fuel filter M20 x 1.5 / Kubota DC60 / DC70 / L1501 / L1801 / L2201 / L3608 / L4708 / Kubota D1101 / Z750 / Z851

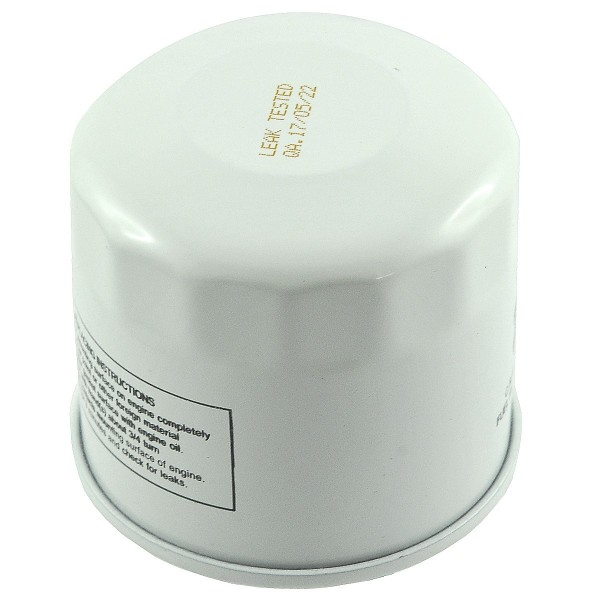

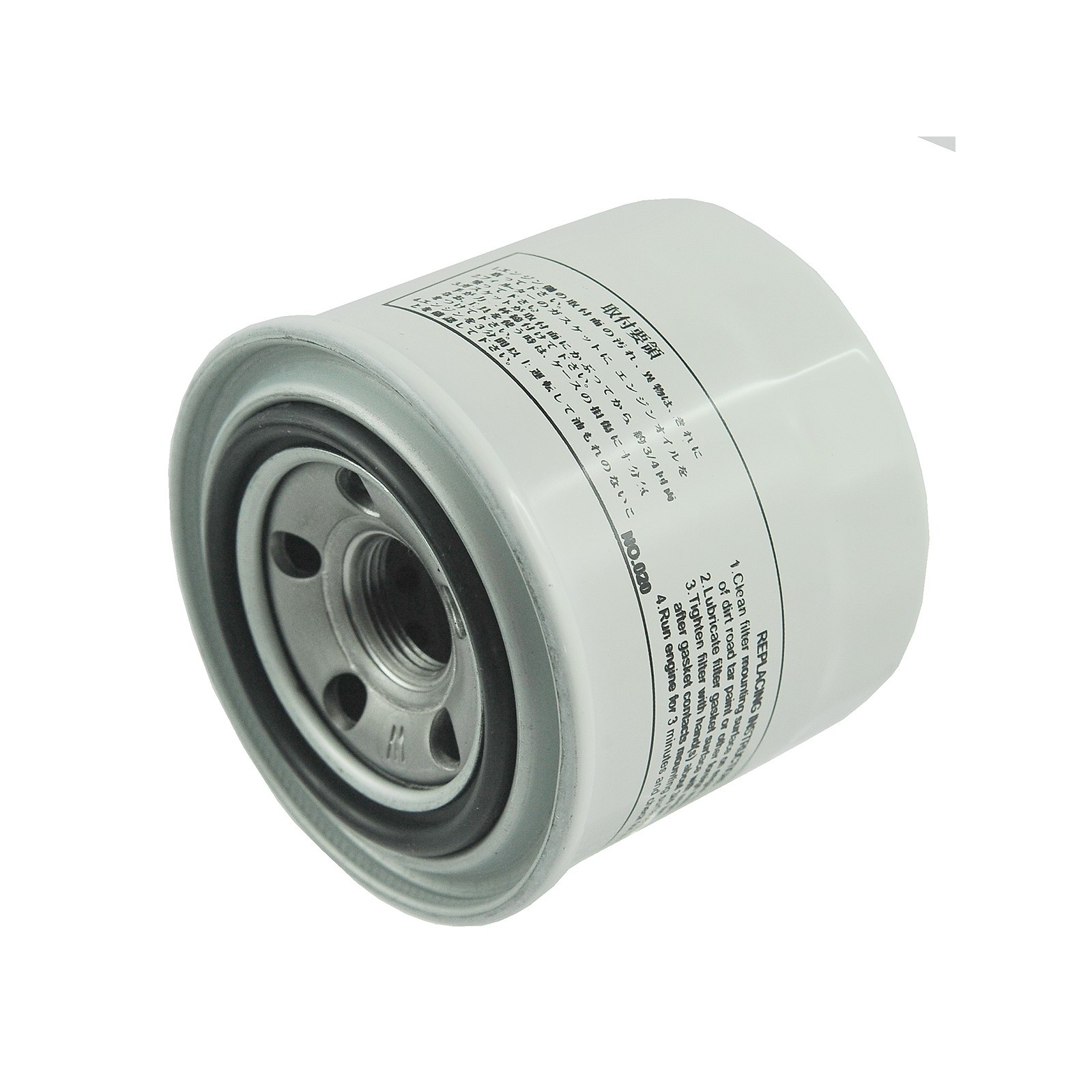

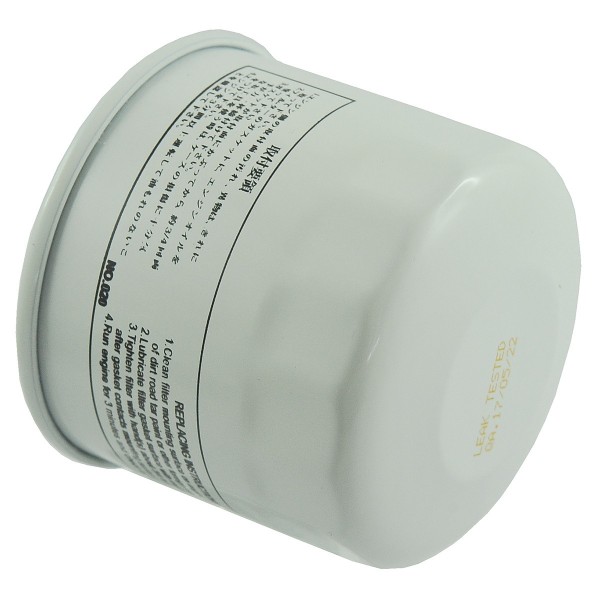

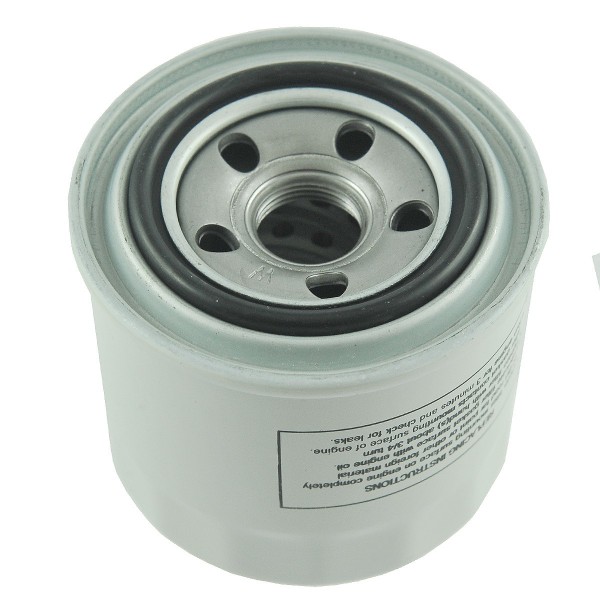

Screw-in fuel filter with an outer diameter of 80 mm , total height of 76 mm with a thread diameter of M20 x 1.5 for Japanese Kubota tractors of the Kubota L1501, Kubota L1801, Kubota L2201, Kubota L3608, Kubota L4708 series with Kubota D1101, Kubota D1703, Kubota V2203, Kubota V2403 , Kubota Z750, Kubota Z851 and others engines.

The fuel filter is one of the most important elements of the fuel system, which directly affects the correct operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro organic impurities. Fuel filters are divided into two main groups due to their application, and so for an engine with petrol fuel we will use a different type of filter than for an engine powered by diesel fuel. Regardless of the type of fuel, the filtering material is various types of paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions :

  • outer diameter: 80 m,
  • base diameter: 84 mm,
  • total height: 78 mm,
  • thread: M20 x 1.5,
  • seal diameter: inner 51 mm, outer 62 mm,
  • original part numbers: TC422-43010,
  • reference numbers: SN 25106,
  • part numbers: 5-01-124-17.

Tractor models:

  • Kubota L1501,
  • Kubota L1801,
  • Kubota L2201,
  • Kubota L3608,
  • Kubota L4708.

Machine models:

Kubota :

  • Kubota DC60,
  • Kubota DC70.

Engine models :

Kubota :

  • Kubota D1101,
  • Kubota D1703,
  • Kubota V2203,
  • Kubota V2403,
  • Kubota Z750,
  • Kubota Z851.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or may cause the engine to misfire. Sometimes a clogged fuel filter causes a loss of rated engine power or results in higher fuel consumption.

Warehouse :
M01:D73

Specification

Magazyn: M01:D73
Condition
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota V2203
- Kubota Z750
Kubota D1101
Kubota D1703
Kubota V2403
Kubota Z851
Tractor models
- Kubota L1501
- Kubota L1801
- Kubota L2201
Kubota L3608
Kubota L4708
Height (mm)
78
Diameter (mm)
80
Base diameter (mm)
84
Thread
M20 x 1.5
Machine models
Kubota DC60
Kubota DC70
Comparison numbers
SN 25106
Original Part Number (OEM)
TC422-43010
Part number
5-01-124-17
Filter type
Fuel filter
Inner seal diameter (mm)
51
Outer seal diameter (mm)
62
