Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Links
Tractor models
Iseki TS2510
Iseki TS2810
Iseki TS3110
Overall length (mm)
1528
working length (mm)
1500
Armor length (mm)
1485
Go to full specification >

Tachometer cable 1528 mm - Iseki TS2510/TS2810/TS3110

S.20350
5907500957719
zł110.00
Tax included PL 23%

89,43 netto

  • Dostępność (2 Quantity): stock

Do you have any questions?

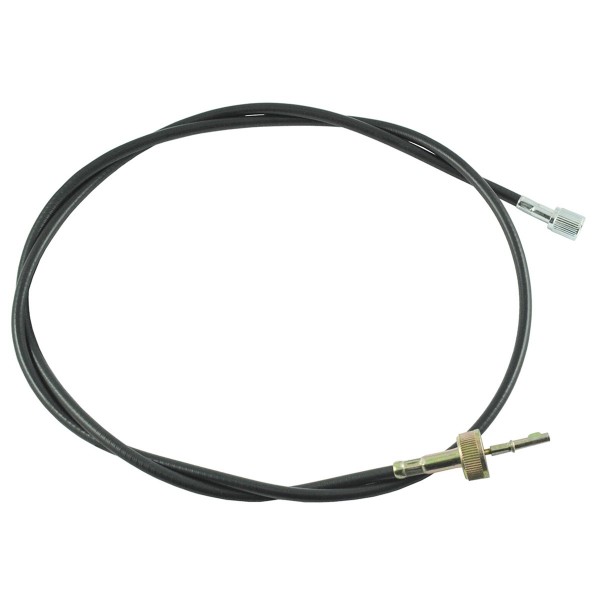

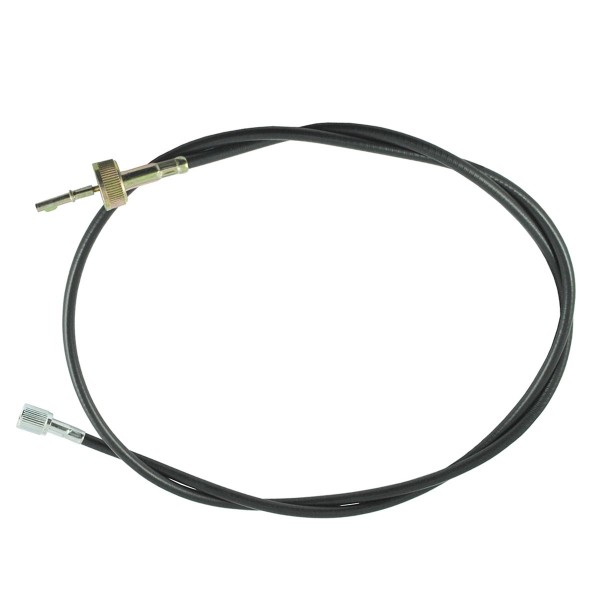

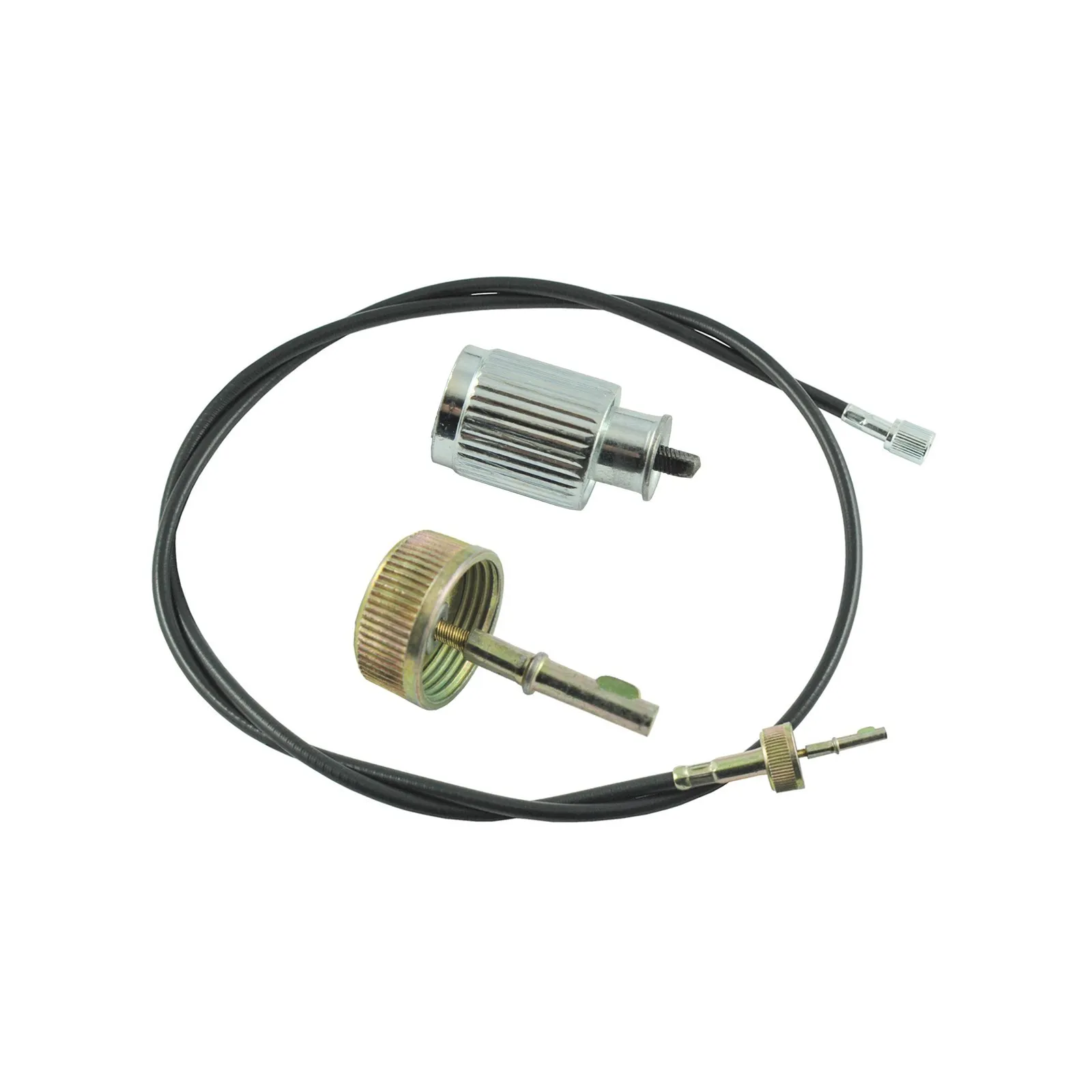

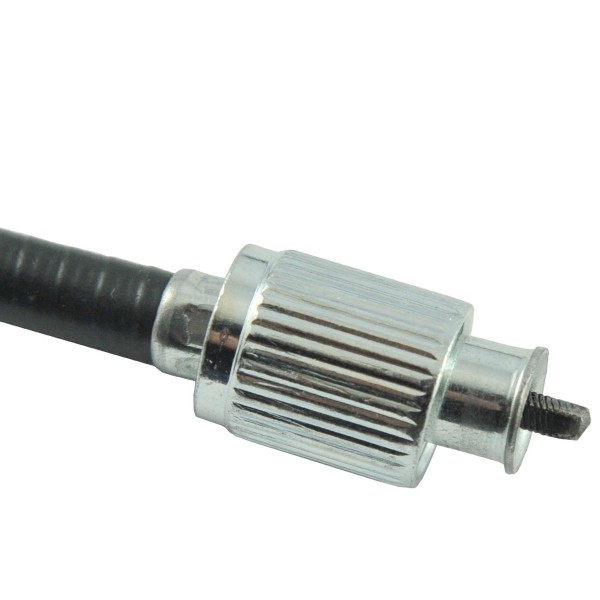

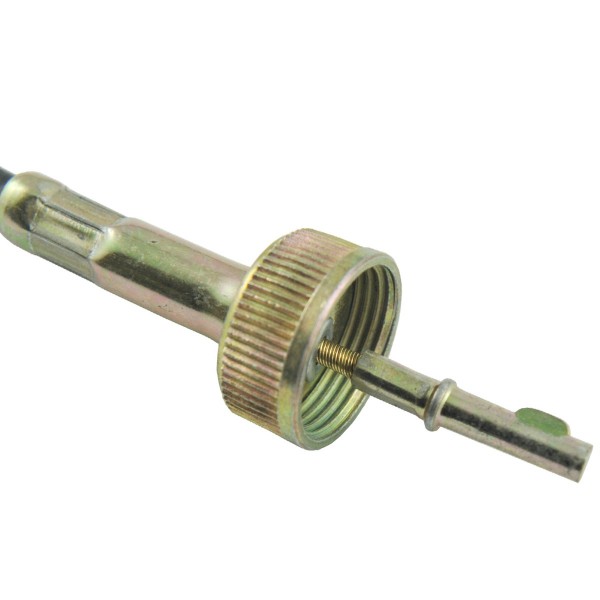

Tachometer cable 1528 mm - Iseki TS2510/TS2810/TS3110

Counter cable with a working length of 1500 mm with a splined end for Iseki tractors of the Iseki TS2510, Iseki TS2810, Iseki TS3110 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

  • working length: 1500 mm,
  • total length: 1528 mm,
  • rope length: 1528 mm,
  • armour length with rivets: 1485 mm,
  • armor diameter: 7 mm,
  • rope diameter: 3.00 mm,
  • cylindrical tip diameter: 4.50 mm,
  • square tip: 2.30 x 2.30 mm,
  • thread: M12 / M22,
  • original part numbers: ,
  • comparison numbers: 9-25-107-03 ,
  • part numbers: S.20350.

Tractor models :

Iseki :

  • Iseki TS2510,
  • Iseki TS2810,
  • Iseki TS3110.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:A36:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Magazyn: K18:B24:S01
Condition
New
Production
Substitute
Parts
Links
Tractor models
Iseki TS2510
Iseki TS2810
Iseki TS3110
Overall length (mm)
1528
working length (mm)
1500
Armor length (mm)
1485
Cable length (mm)
1528
Armor diameter (mm)
7
Cable diameter (mm)
3.00
Comparison numbers
9-25-107-03
Part number
S.20350
Type of rope
Tachometer cable
Thread 1
M12
Thread 2
M22
Cylindrical tip diameter (mm)
4.50
Square tip diameter (mm)
2.30
