Tachometer cable 880 mm - Iseki TS2200, TX1410

9-25-107-06
zł59.00
Tax included PL 23% Dostępny na zamówienie

47,97 netto

  • To order

Do you have any questions?

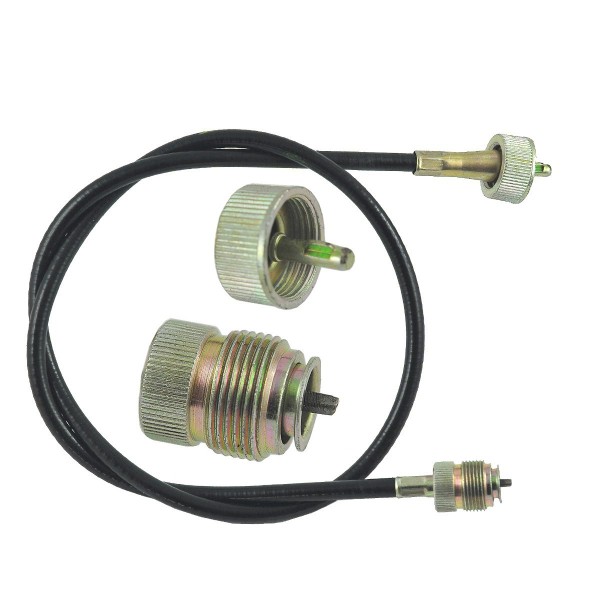

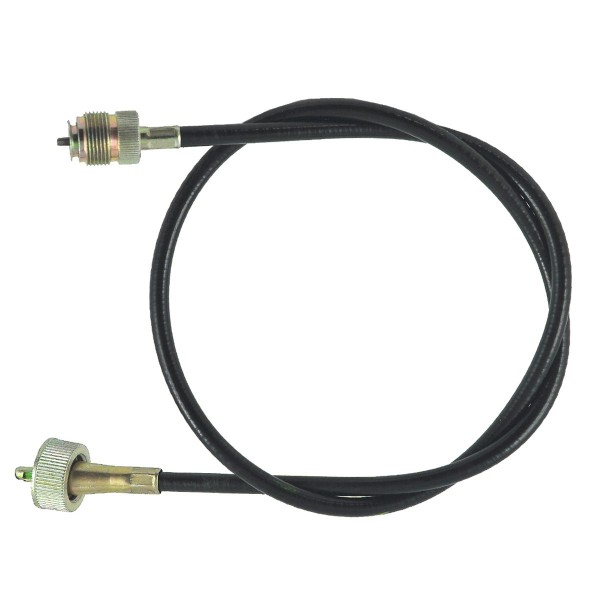

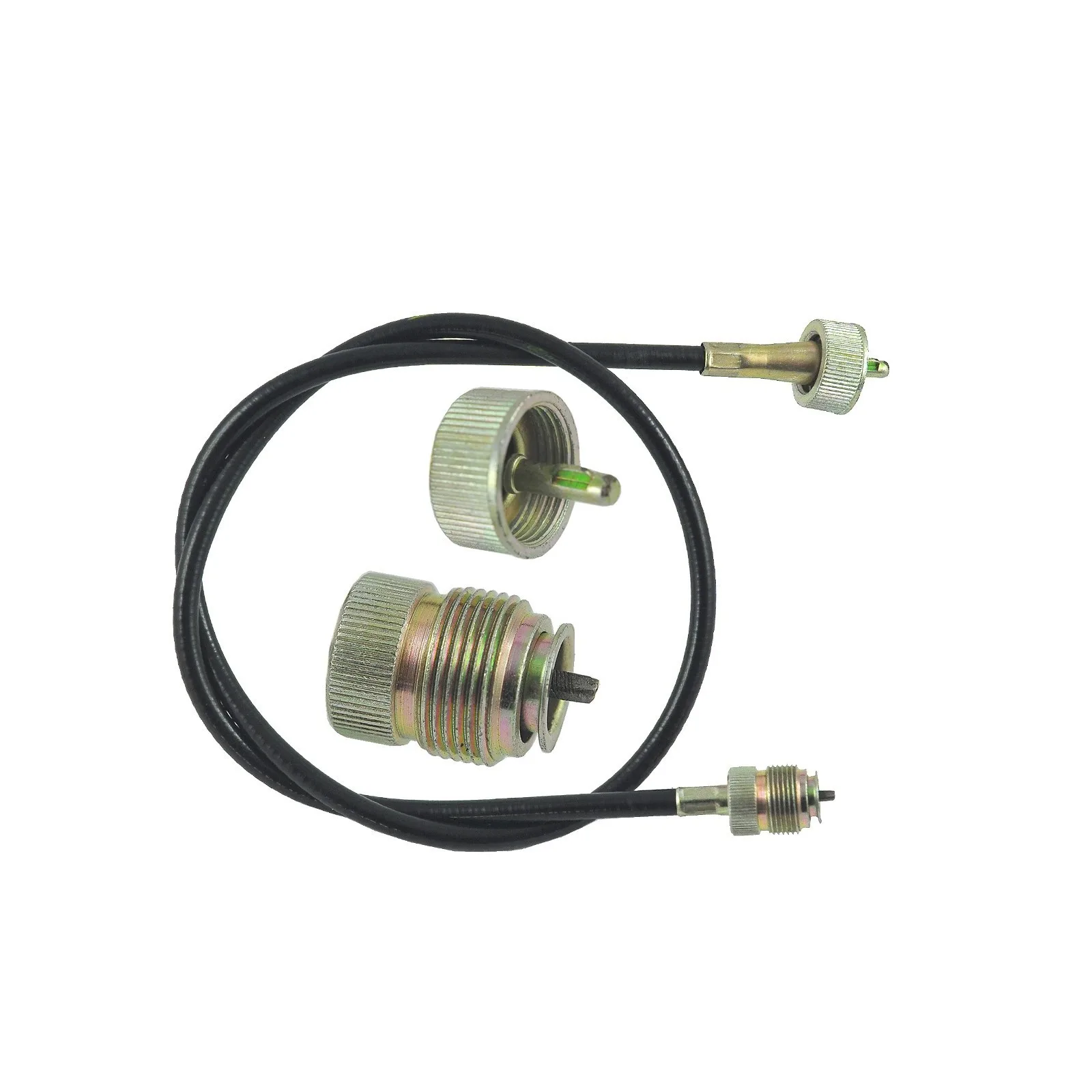

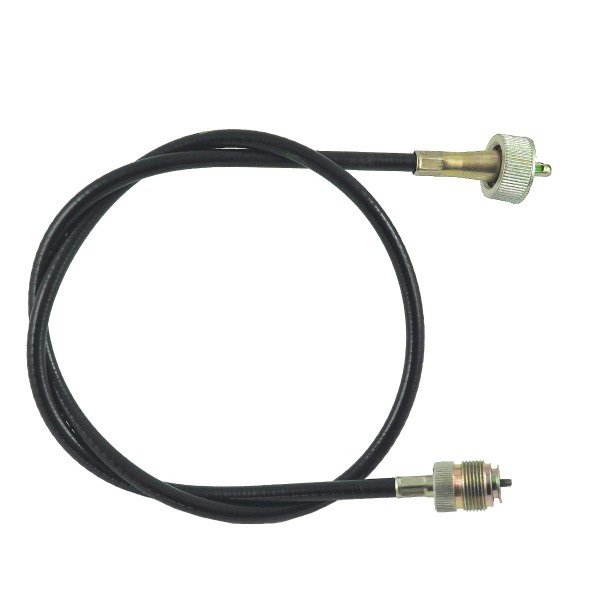

Tachometer cable 880 mm - Iseki TS2200, TX1410

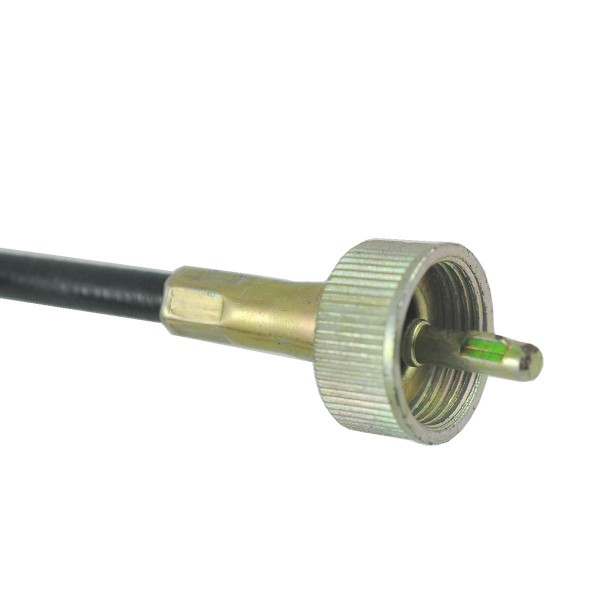

Counter cable with a total length of 880 mm with a "cylindrical" end with a spline for Iseki tractors of the Iseki TS2200, Iseki TX1410 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions :

  • total length: 880 mm,
  • rope length: 880 mm,
  • length of the armour with rivets: 860 mm,
  • armor diameter: 7 mm,

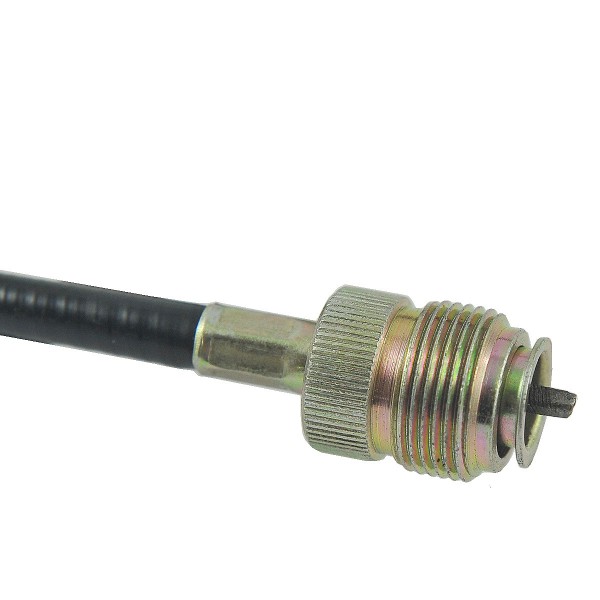

  • thread: M19 x 1.25 / M20 x 1.25,
  • tip diameter: 4.80 mm,
  • original part numbers: 1423-621-0030-0,
  • part numbers: 9-25-107-06.

Tractor models :

Iseki :

  • Iseki TS2200,
  • Iseki TX1410.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:A36:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Magazyn: M01:A36:S02
Condition
New
Production
Substitute
Parts
Links
Tractor models
Iseki TS2200
Iseki TX1410
Overall length (mm)
880
Armor length (mm)
860
Cable length (mm)
880
Armor diameter (mm)
7
Original Part Number (OEM)
1423-621-0030-0
Part number
9-25-107-06
Type of rope
Tachometer cable
Thread 1
M19x1.25
Thread 2
M20x1.25
Cylindrical tip diameter (mm)
4.80
