Tachometer cable 1200 mm - Kubota L1802/L2002/L2202/L2402

5-25-123-02
zł59.00
Tax included PL 23%

47,97 netto

  • Dostępność (90 Quantity): stock
wishlist

Do you have any questions?

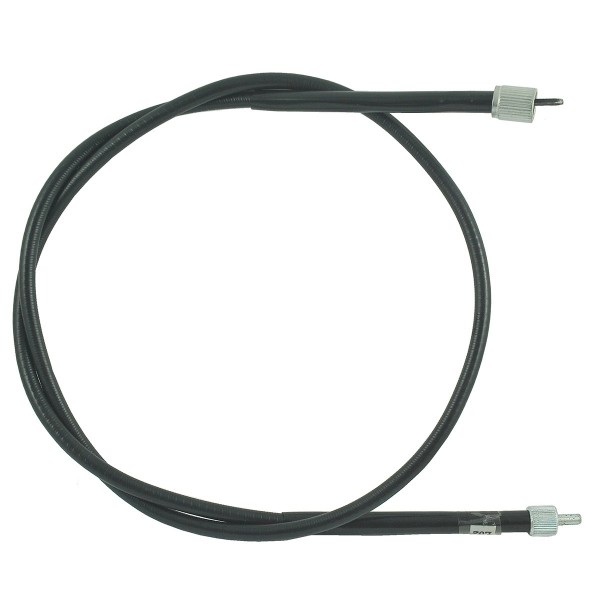

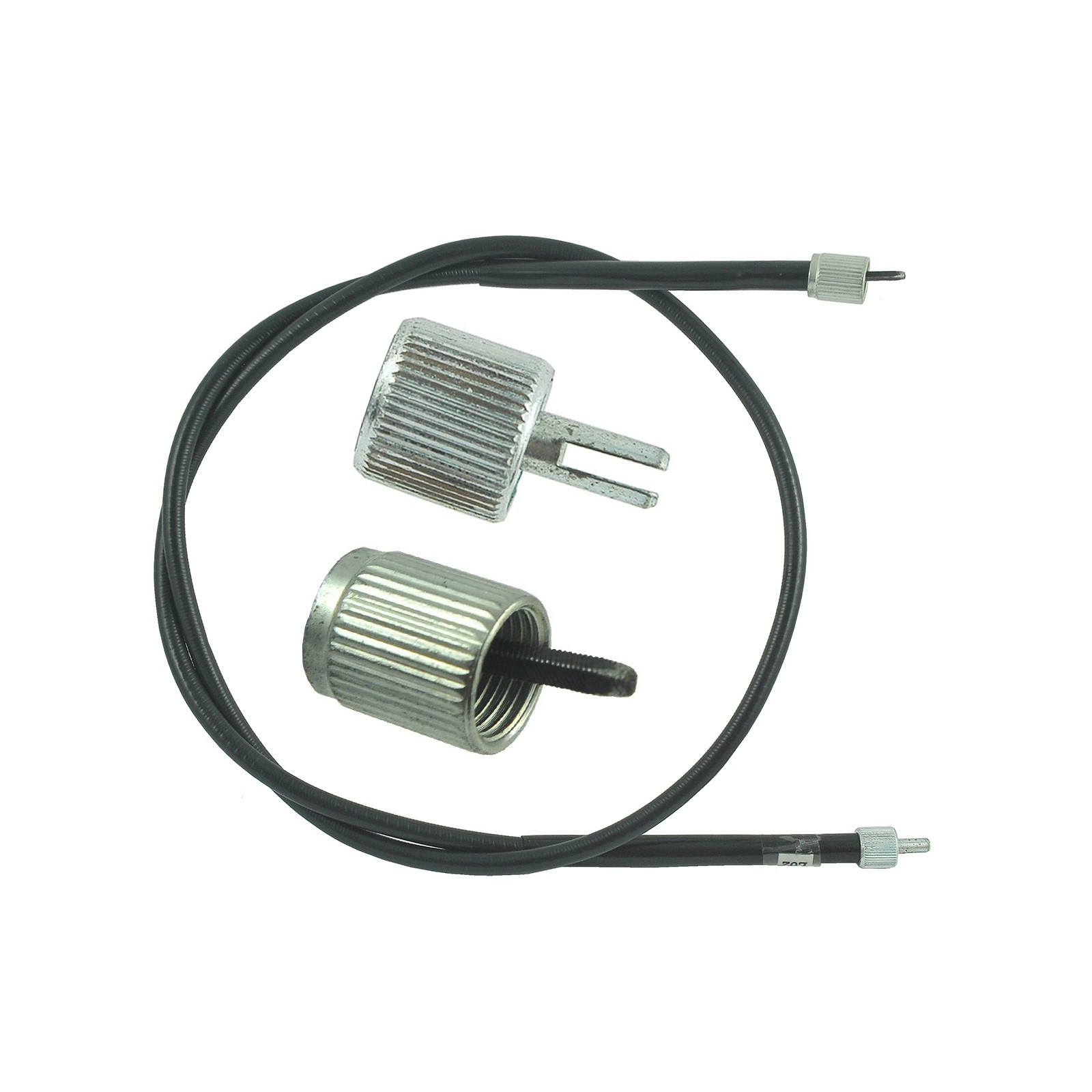

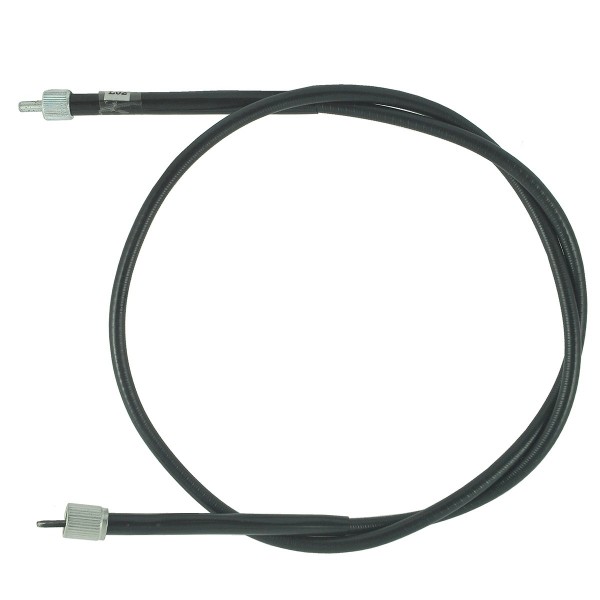

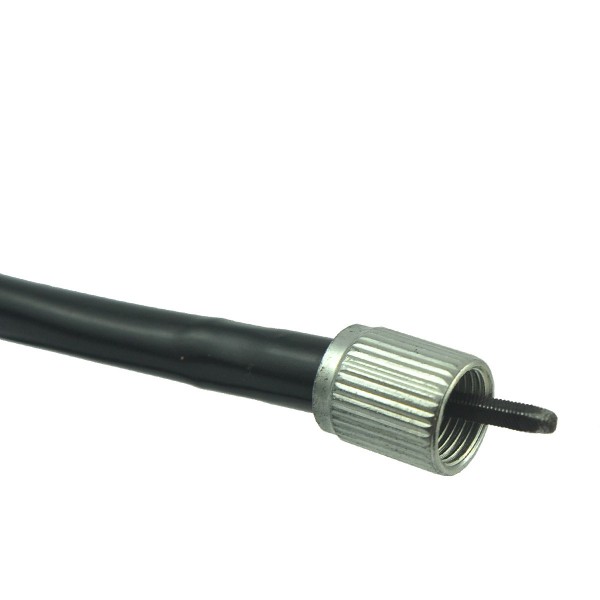

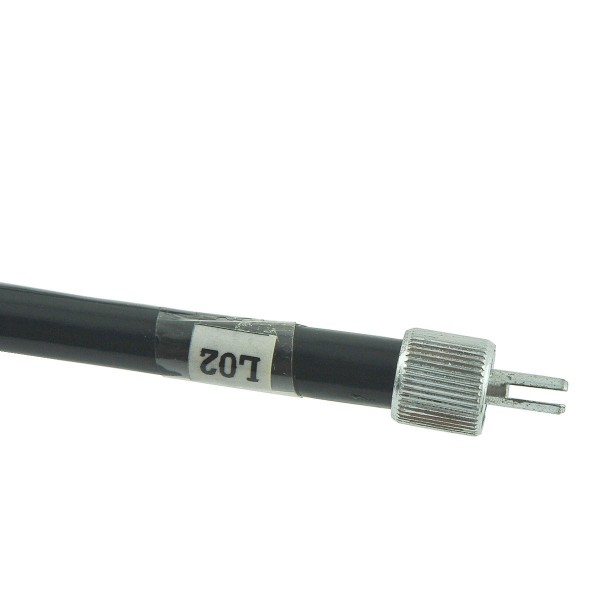

Tachometer cable 1200 mm - Kubota L1802/L2002/L2202/L2402

Counter cable with a total length of 1200 mm with a "cut" end for Kubota tractors of the Kubota L02, Kubota L1802, Kubota L2002, Kubota L2202, Kubota L2402 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

  • total length: 1200 mm,
  • rope length: 1200 mm,
  • working length: 1144 mm,
  • armour length with rivets: 1175 mm,
  • armor diameter: 7 mm,
  • rope diameter: 3.00 mm,
  • cylindrical tip diameter: 4.50 mm,
  • square tip: 2.30 x 2.30 mm,
  • thread: M11 / M12,
  • original part numbers: 38240-34654,
  • reference numbers: OBMT16 ,
  • part numbers: 5-25-123-02.

Tractor models :

Kubota :

  • Kubota L1802,
  • Kubota L2002,
  • Kubota L2202,
  • Kubota L2402.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:C31

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Magazyn: M01:C31
State
New
Production
Substitute
Parts
Links
Tractor models
- Kubota L2002
- Kubota L2202
- Kubota L2402
Kubota L1802
Overall length (mm)
1200
working length (mm)
1144
Armor length (mm)
1175
Cable length (mm)
1200
Armor diameter (mm)
7
Cable diameter (mm)
3.00
Comparison numbers
OBMT16
Original Part Number (OEM)
38240-34654
Part number
5-25-123-02
Type of rope
Tachometer cable
Thread 1
M11
Thread 2
M12
Cylindrical tip diameter (mm)
4.30
Square tip diameter (mm)
2.30
