To order
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Cub Cadet EX450
Yanmar EF453T
Yanmar EF494T
Number of teeth (pcs/T-teeth)
13T
Overall length (mm)
148
Cutter(s) length (mm)
66
wishlist

Drive shaft / 13T / Yanmar EF453T/EF494T / Cub Cadet EX450 / 198137-13350-1 / 5-18-131-01

5-18-131-01
zł65.00
Tax included PL 23%

52,85 netto

  • To order
wishlist

Do you have any questions?

Drive shaft / 13T / Yanmar EF453T/EF494T / Cub Cadet EX450 / 198137-13350-1 / 5-18-131-01

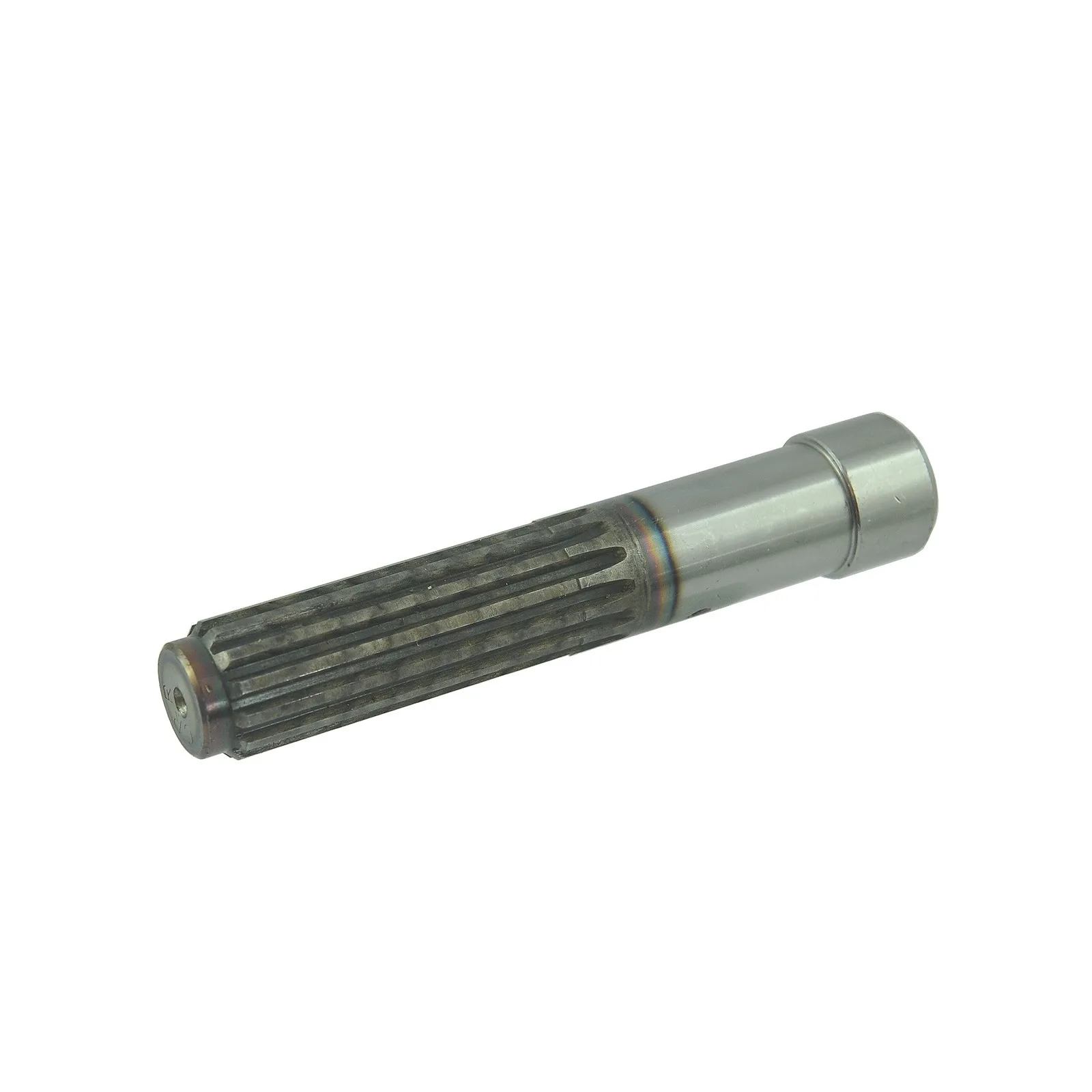

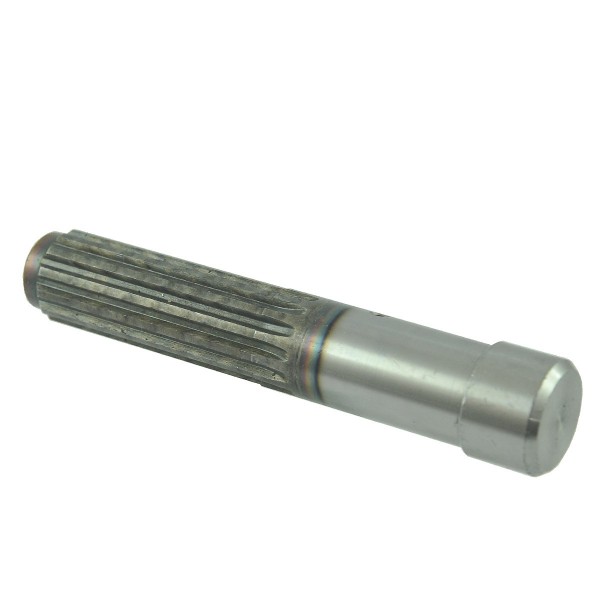

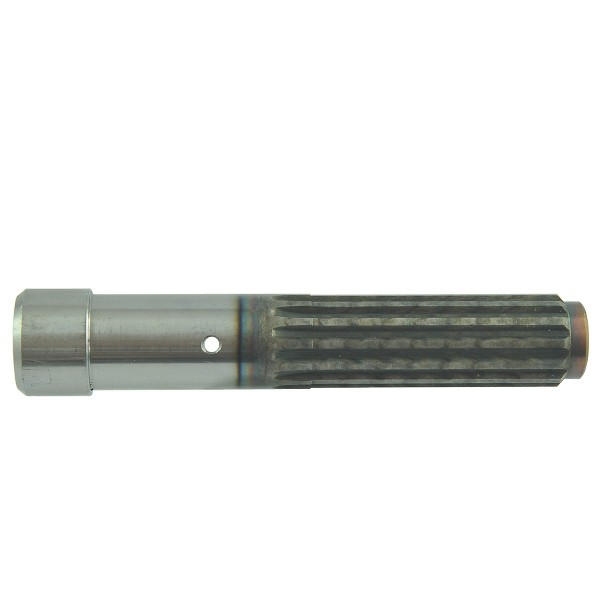

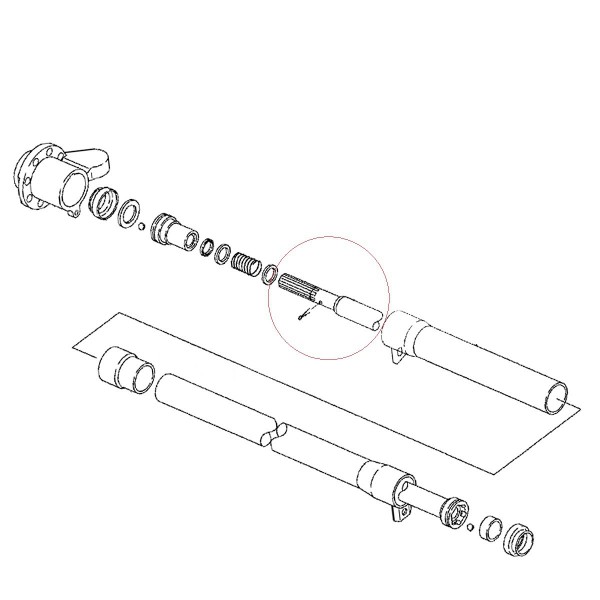

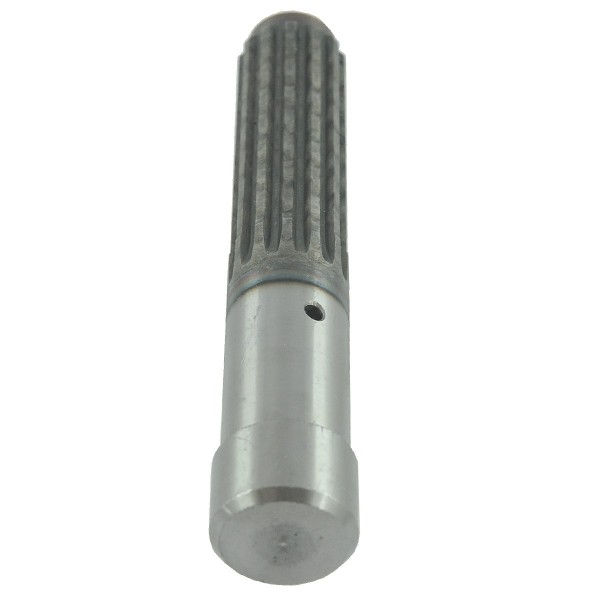

Center shaft of the front axle drive 4 x 4 (4WD) (connector 5-02-117-10 , powder drive 5-08-109-15 ) with a length of 148 mm, diameter 20.75 / 24.50 / 28 mm and a 13T cutter for Yanmar series tractors Yanmar EF453T, Yanmar EF494T and others.

The intermediate shaft is the part of the system responsible for transferring the drive from the engine to the tractor's driving axle(s) and/or the tractor's power take-off shaft. Tractors with 4 x 4 drive have two similar or identical shafts. The task of the gearbox shaft is to receive the driving force from the clutch disc and transmit it to one of the gears or to the PTO/PTO shaft. The drive shaft is one of the most precisely made things in the drive system and is always made of one piece of steel, because the shaft houses equally precisely made bearings, racks and gears that drive the tractor.

Dimensions :

  • length: 148 mm.
  • shaft diameter: 28 mm,

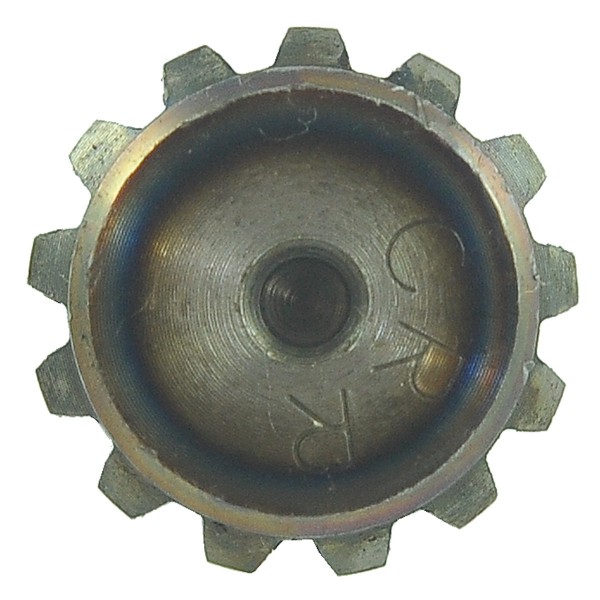

  • cutter diameter: 20.75 mm (measured between the cutter teeth), 24.50 mm (measured with the cutter),
  • working length of the cutter: 66 mm,
  • number of teeth: 13T,
  • original part numbers: 198137-13350-1,
  • part numbers: 5-18-131-01.

Tractor models :

Yanmar :

  • Yanmar EF453T,
  • Yanmar EF494T.

Cub Cadet :

  • Cub Cadet EX450.

Magazine :
M01:F72:S01

Specification

Magazyn: M01:F72:S01
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Cub Cadet EX450
Yanmar EF453T
Yanmar EF494T
Number of teeth (pcs/T-teeth)
13T
Overall length (mm)
148
Cutter(s) length (mm)
66
Diameter of Cutter(s) (mm)
20.75 / 24,50
Shaft diameter (mm)
28
Original Part Number (OEM)
198137-13350-1
Part number
5-18-131-01
