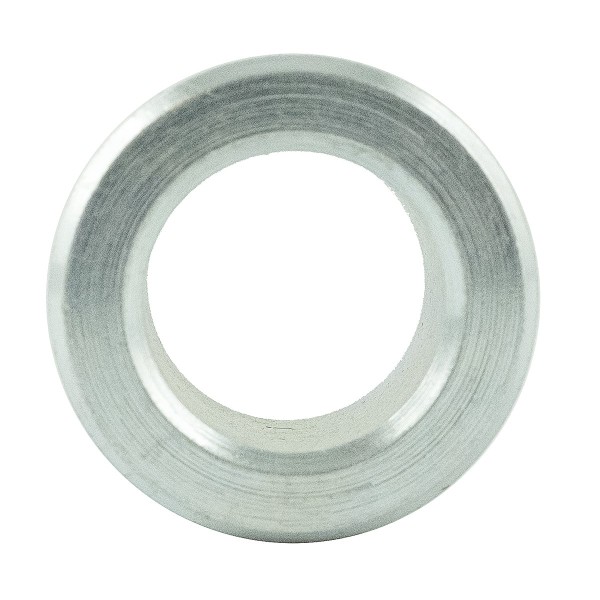

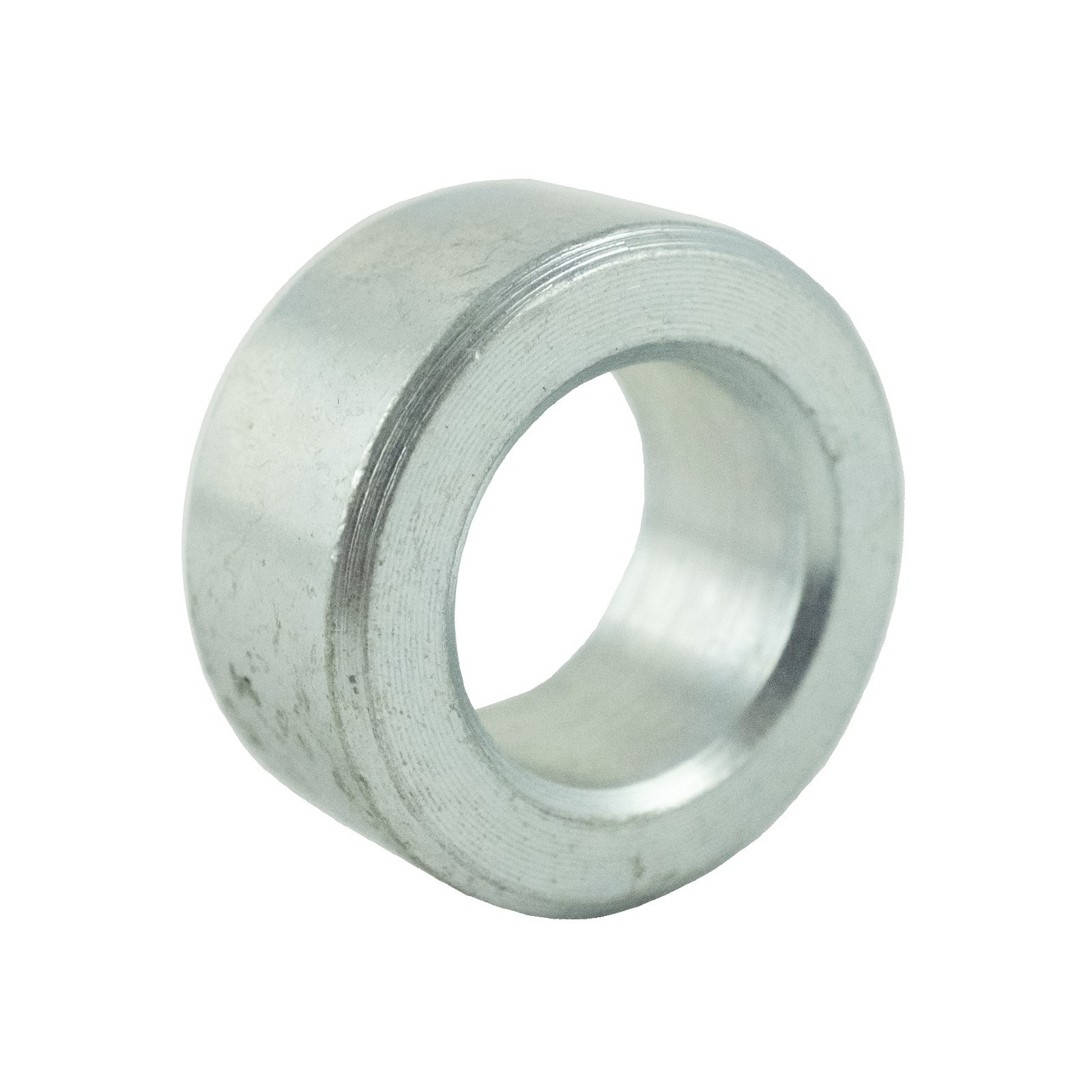

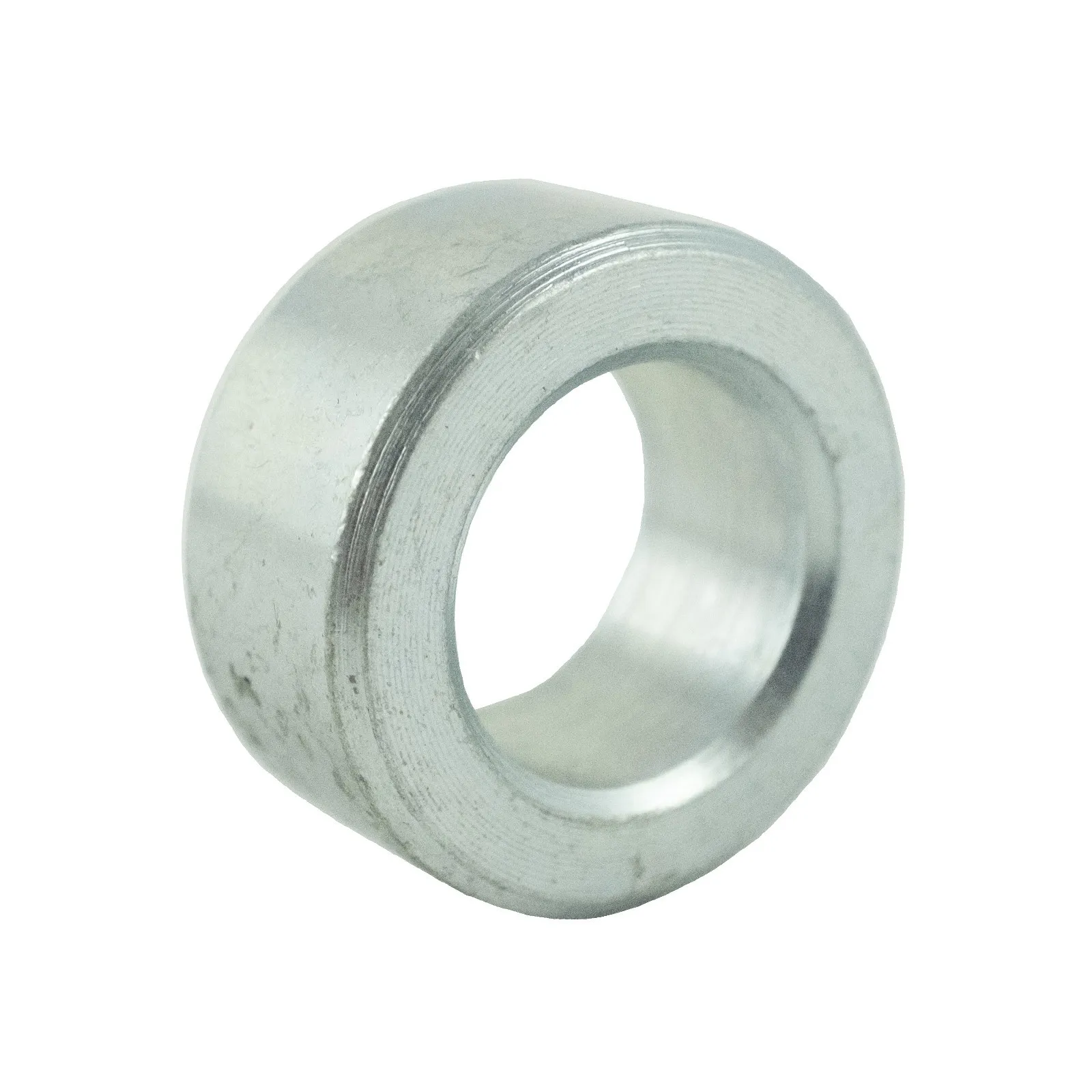

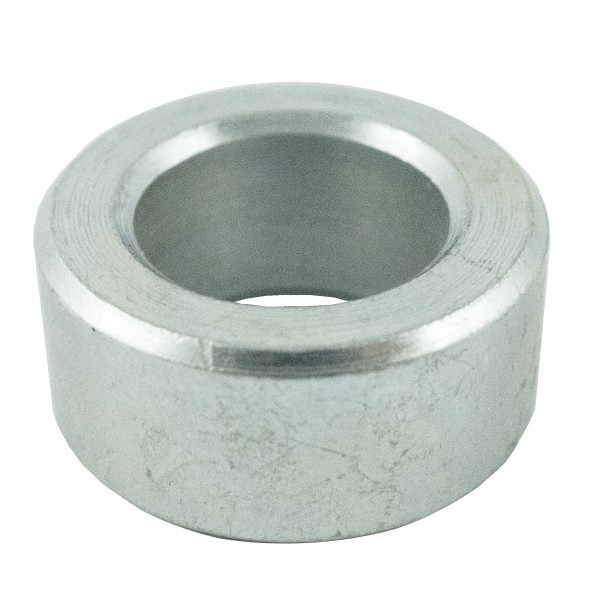

Bushing M16 / 11.50 mm / Y-type knives of the EFGC / EFGCH / EFGCN flail mower

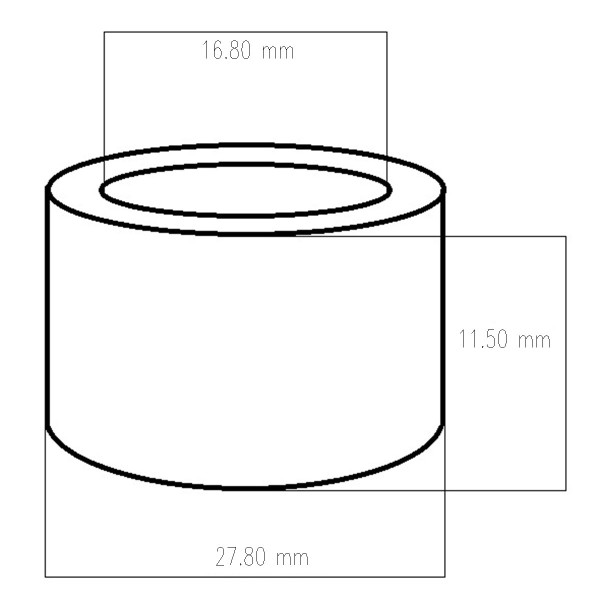

Dimensions :

• width / height (mm): 11.50,
• Inner diameter (mm): 16.80,
• Outer diameter (mm): 27.80,

To properly install one set of Y-type knives, we need two distance sleeves, which we put between the knife holder on the cutting shaft and the knives. The entire set of Y-type knives consists of:

• screw M16 x 80 ,
• nut M16 x 2.00,
• 2 x Y / X knife ,
• see what the whole set of Y / X knives looks like.

In flail mowers, the cutting element are hammers , the so-called flails , which can be replaced with hammer knives , which resemble an inverted letter Y. Y-type knives are interchangeable with flails and for proper installation you need distance sleeves that keep the knives in one position and do not allow for controlled movement.

Models of mowers in which we install Y knives with M16 sleeves:

• EFGC 4FARMER flail mower all sizes,
• EFGC-H 4FARMER flail mower all sizes,
• EFGCK flail mower 4FARMER all sizes,
• flail mower EFGCK-H 4FARMER all sizes,
• EFGCN 4FARMER flail mower all sizes,
• flail mower EGCN-H 4FARMER all sizes,
• EFGC GEOGRASSflail mower all sizes,
• EFGC TRX flail mower all sizes,
• EFGCHM GEOGRASS flail mower all sizes,
• EFGCHM TRX flail mower all sizes,
• VFLA / EFGC SANKO flail mower all sizes,
• and others.
