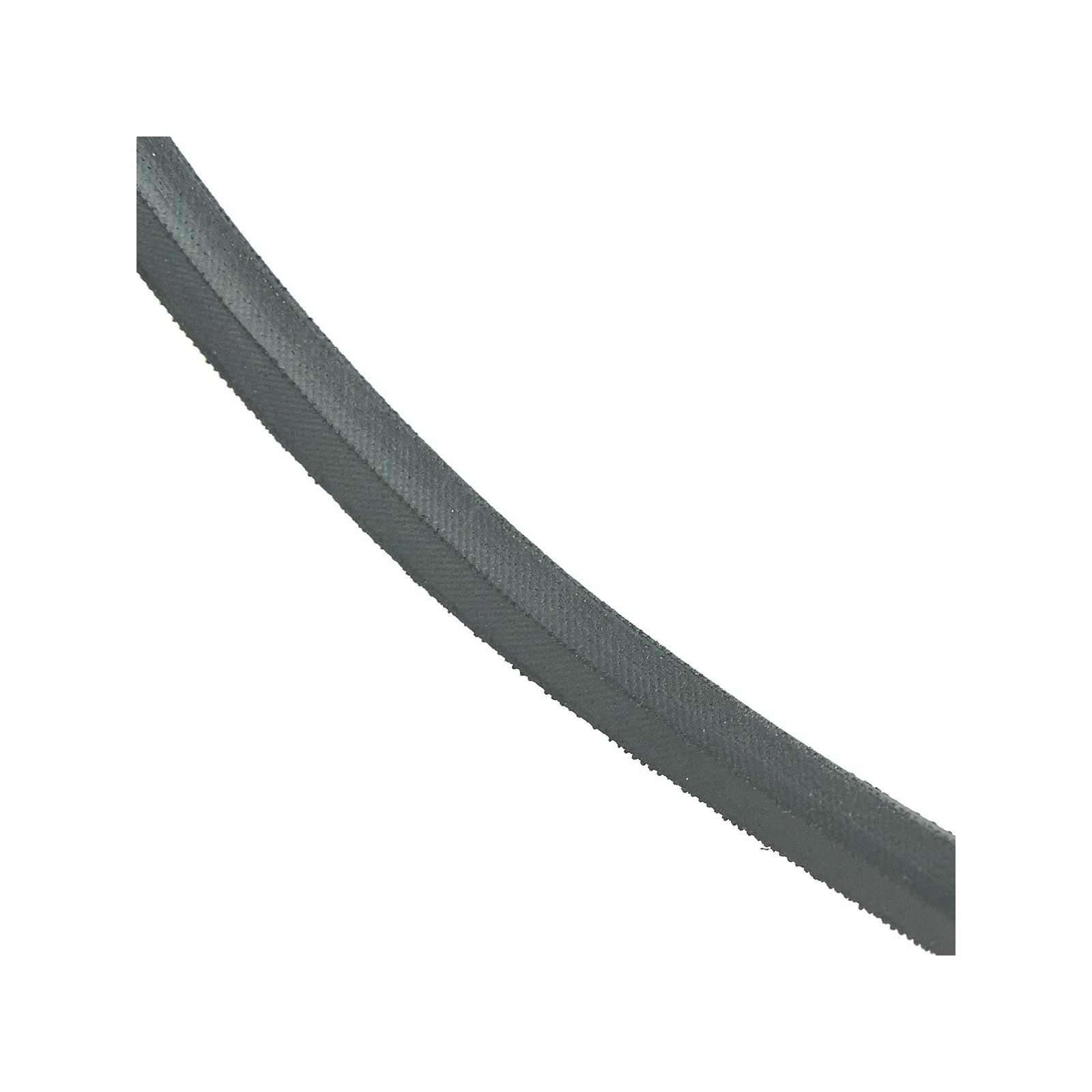

Fan belt 1041 Li / Kubota B1700, GL23, L3200, M4800, Kubota D1403, D1703, D1903, V1903, V2203

Water pump V- belt (pulley 5-20-102-49 , TC403-74250, fan %C5% 82odnicy- %C3% B8380-mm-kubota-d1463d1703-kubota-l3200l3408-6-14-201-01.html">6-14-201-01 , %C3% B8380-mm-kubota-d1463d1703-kubota-l3200l3408-34030-16210.html">ANT-103348 , %C3% B8380-mm-kubota-d1463d1403d1503v2203-m-di-kubota-kl225kl265kt210kt230-34070-16210.html">34070-16210 ) for Kubota tractors of the Kubota B1700, Kubota GL23, Kubota L3200, Kubota M4800 series with Kubota D1403, Kubota D1703, Kubota V1903, Kubota V2003, Kubota V2203 and others engines

A standard V-belt is designated by two length values: Ld and Li. Li is the inside length, and Ld is the so-called pitch length. According to the ISO standard, it can be roughly called the outside length, but it is the length measured at the strongest structural point of the belt. V-belt designations are usually capital letters of the alphabet indicating the belt cross-section (mm) Z, A, B, C, D, and length. The simplest classification of belts available on the market is narrow-section, classic, narrow-section toothed, and classic toothed.

V-belt length Li, Ld or La?

• Li - internal length,
• Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
• La - external length.

Dimensions :

• internal length (Li): 1041 mm,
• pitch length (Lp): mm,
• external length (La): mm,
• width: 13 mm,
• height: 8 mm,
• original part numbers: REMF-6415, 15469-97010 .
• reference numbers: 6-25-120-01A , 6-25-130-01 ,
• part numbers: ANT-101296.

Tractor models :

Kubota :

• Kubota B1700,
• Kubota GL23,
• Kubota L3200,
• Kubota M4800.

Engine model :

Kubota :

• Kubota D1403,
• Kubota D1703,
• Kubota V1903,
• Kubota V2003,
• Kubota V2203.

A V-belt is a component used to transmit power from an engine or transmission to an accessory or machine. V-belts are most often used to drive an alternator, coolant pump, or compressor, and in agriculture, belts are used in agricultural machinery and implements operating at high speeds. V-belts are the most frequently worn-out parts of agricultural machinery due to their material and damage resulting from overloading during operation. A worn V-belt should be replaced as soon as possible to prevent accidents or damage to the machine. An incorrectly installed V-belt or incorrectly adjusted tensioner, or too little or too much V-belt tension, can cause premature wear. The first signs of V-belt wear (e.g., belt stretching) include a loss of machine power or unusual noise during operation.

Warehouse :
K18:B19:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
