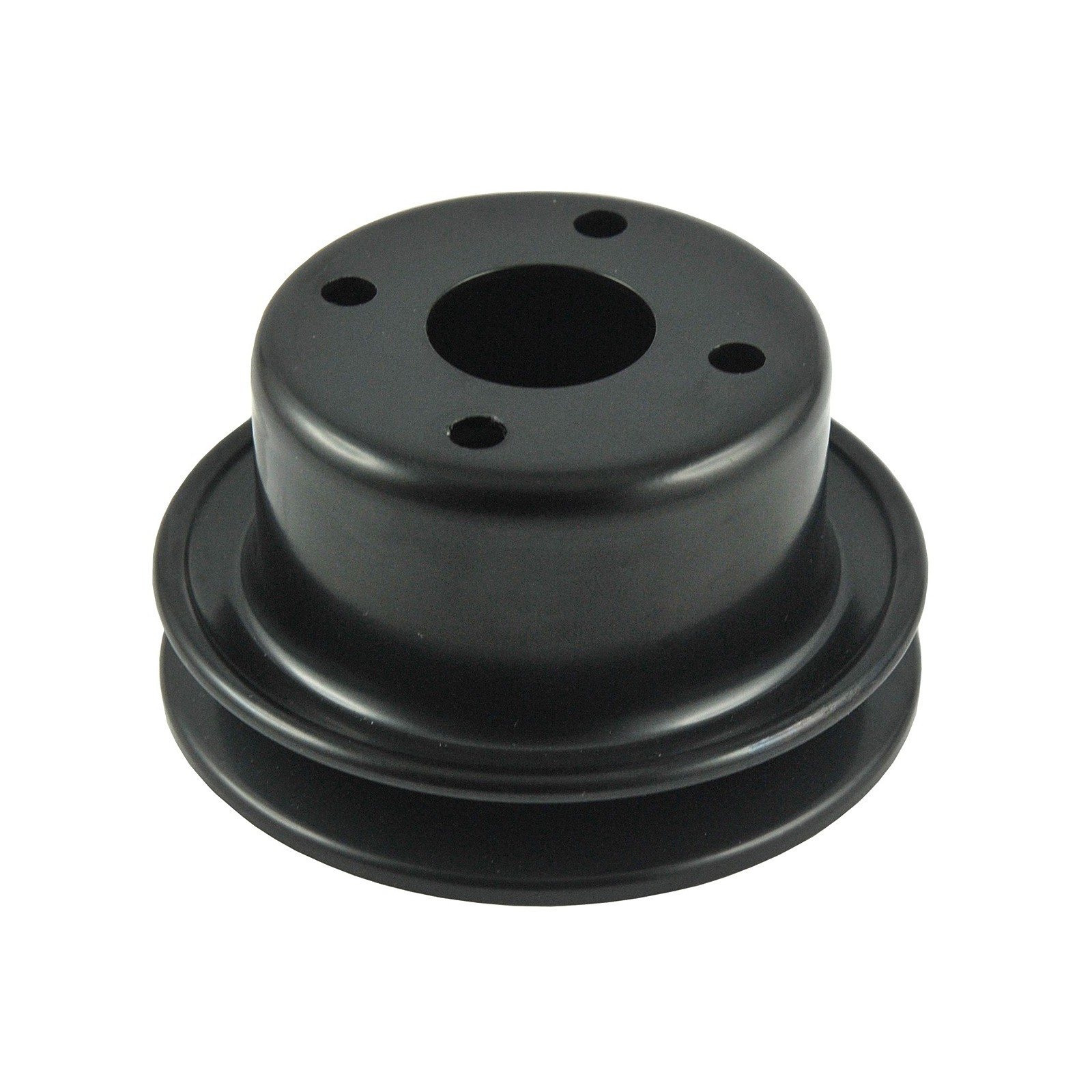

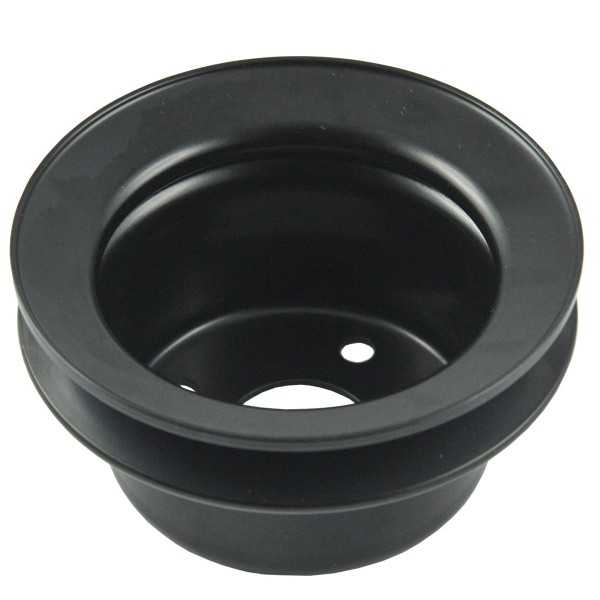

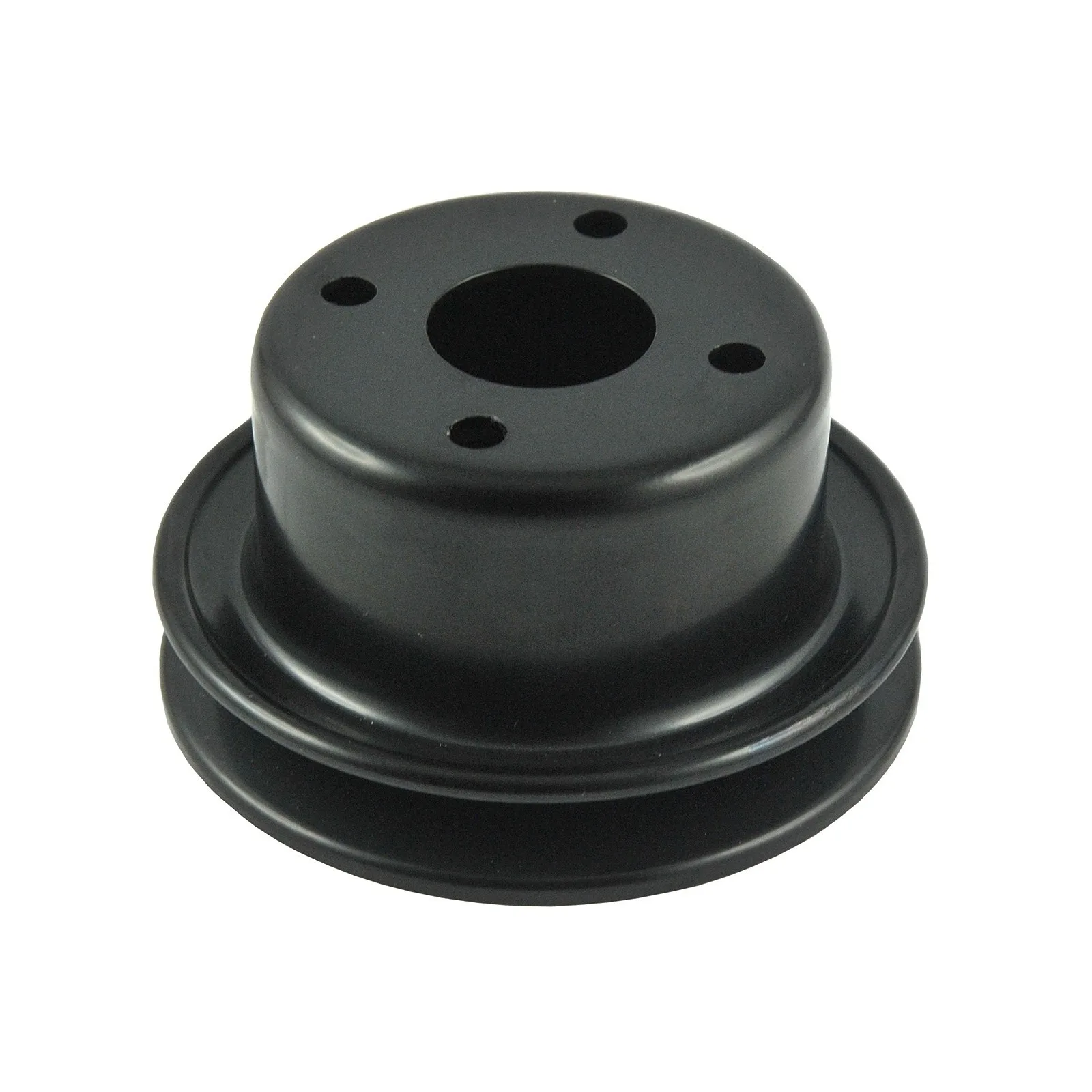

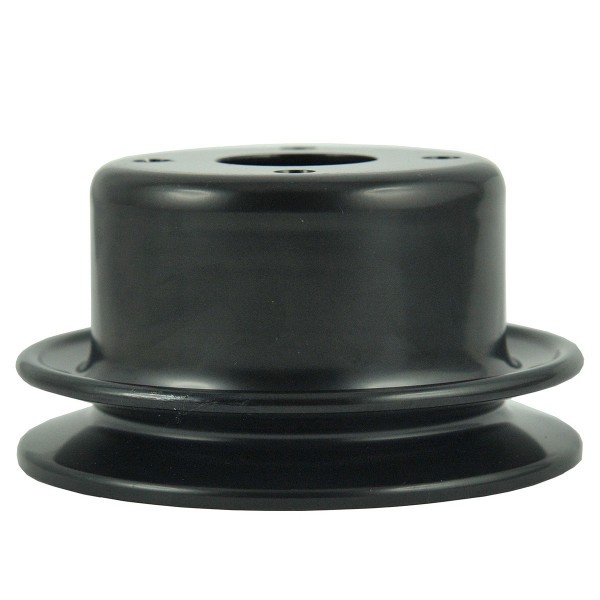

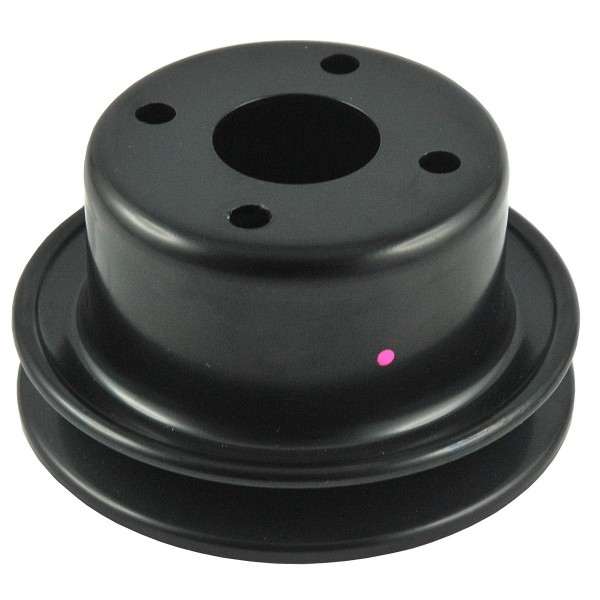

Water Pump Pulley / Kubota L2550 / L2850 / L3250 / L3408 / L4508 / L4708 / M5000

Product code: 5-20-102-49
Brand 4FARMER
View other model
3 people purchased this product
zł133.33 netto
zł164.00
Includes VAT 23%

Lowest price from 30 days: zł164.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
6 pieces
Delivery See details Leasing & financing for businesses See details

Product description

Water pump pulley (pump %C5% 9Bci-do-kubota/2567-water-pump-kubota-l3408-l4708-kubota-d1301-d1302-v1502-v1903-v2003-v2203-6-15-111-02.html">6-15-111-02 , %C5% 9Bci-for-kubota/8241-water-pump-kubota-l2550-l2850-l3250-l3408-l4708-kubota-d1301-d1302-v1502-v1903-v2003-v2203-1a021-73030.html">1A021-73030 , cinema belt %C5% 9Bci-for-mitsubishi/4015-fan-belt-13-x-1073-mm-kubota-v2203-kubota-l4508m5000m5018m-w9501-51000-refm-6410-6-25-130-01.html">6-25-130-01 , ANT-101296, 6-25-120-01A , 6-25-130-01 , 15469-97010 , fan %C5% 82pads-395-mm.html">6-14-201-02 , 34550-16210, water pump hub %C3% B863-mm-kubota-l2550l2850l3250l3408l4508l4708m5000-1a021-73520-5-15-272-04.html">5-15-272-04 , 1A021-73520) with an outer diameter of 98mm and a height of 50mm for Kubota tractors of the Kubota L2550, Kubota L2850, Kubota L3250, Kubota L3408, Kubota L4708, Kubota M5000 series with Kubota D1301, Kubota D1302, Kubota V1502, Kubota V1903, Kubota V2003, Kubota V2203 and other engines

The water pump pulley is a high-quality element that ensures efficient and reliable operation of the water pump in agricultural machinery. Thanks to its precisely made construction, the pulley guarantees correct power transfer, which affects the efficiency of engine cooling. The product is dedicated to Kubota models, such as L2550, L2850, L3250, L3408, L4508, L4708 , and M5000 . Its solid construction and ease of installation make it an excellent choice for every user of this brand's tractors.

Dimensions:

  • outer diameter: 72 / 98 mm,
  • height: 50 mm,
  • central hole diameter: 28 mm,
  • diameter of mounting screw holes: 7 mm,
  • mounting screw hole spacing: 50 mm (measured diagonally), 35 mm (measured from each other),
  • original part numbers: TC403-74250,
  • part numbers: 5-20-102-49.

Tractor models :

Kubota :

  • Kubota L2550,
  • Kubota L2850,
  • Kubota L3250,
  • Kubota L3408,
  • Kubota L4708,
  • Kubota M5000.

Engine model :

Kubota :

  • Kubota D1301,
  • Kubota D1302,
  • Kubota V1502,
  • Kubota V1903,
  • Kubota V2003,
  • Kubota V2203.

Magazine :K18:A01:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
35 / 50
Engine model
- Kubota V1502
