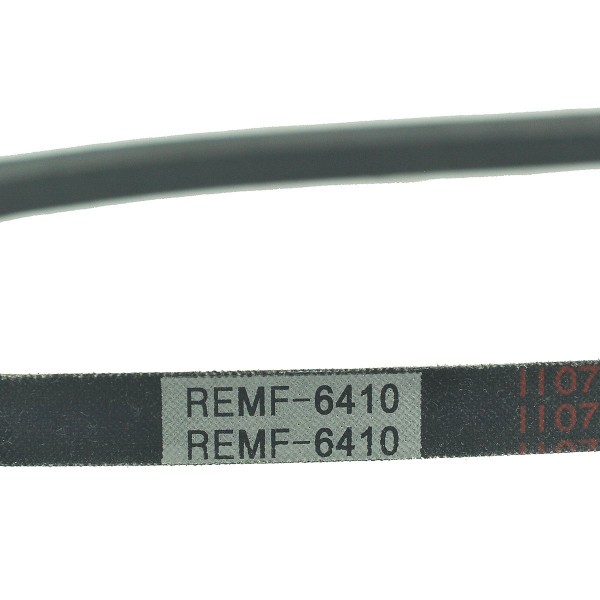

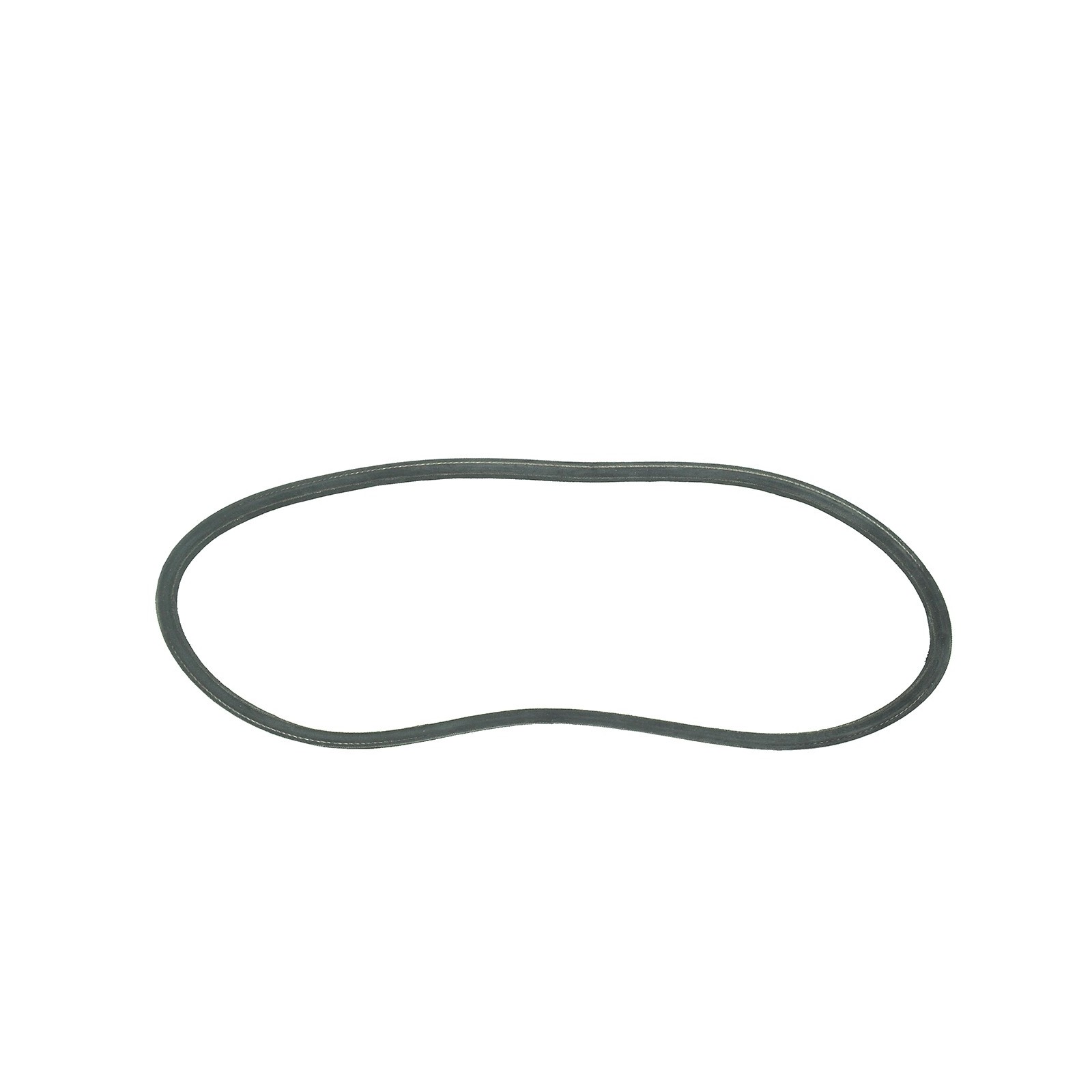

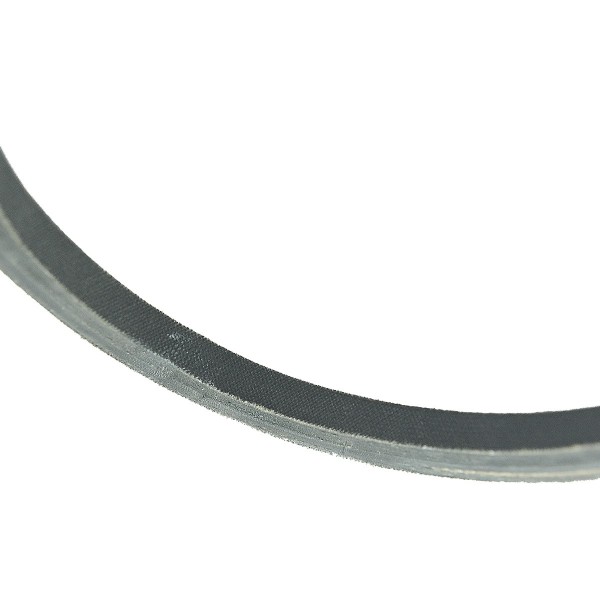

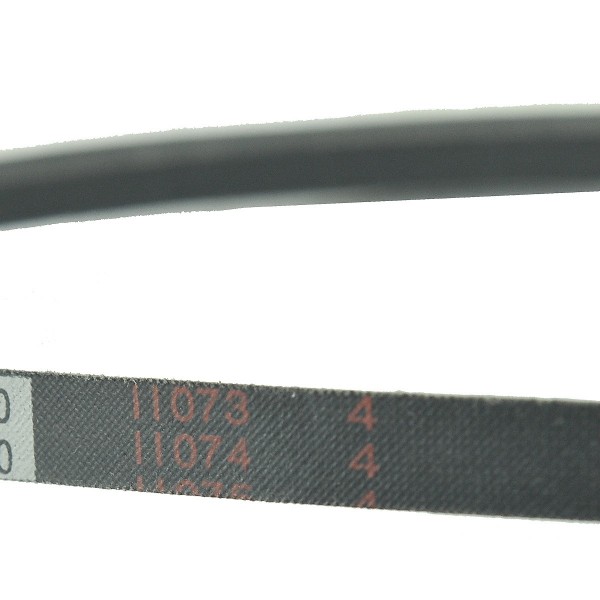

Fan belt / 13 x 1073 mm / Kubota V2203 / Kubota L4508 / M5000 / M5018 / W9501-51000 / REFM-6410 / 6-25-130-01

Water pump V-belt (water pump 6-15-111-02 , 1A021-73033 , pulley 5-20-102-49, fan 6-14-201-02 , 34550-16210) for Kubota tractors of the Kubota L4508 , Kubota L4708, Kubota M5000, Kubota M5018, Kubota M6040 series Kubota L4708, Kubota M5000, Kubota M5018, Kubota M6040 series with Kubota V2003, Kubota V2203 and other engines

A standard V-belt is marked with two length values Ld and Li. The length Li is the internal length, and the length Ld is the so-called pitch length, according to the ISO standard, in great simplification it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and lengths. The simplest division of belts available on the market is narrow-section belts, classic, narrow-section toothed and classic toothed.

V-belt length Li, Ld or La?

• Li - internal length,
• Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
• La - external length.

Dimensions :

• internal length (Li): mm,
• pitch length (Lp): 1260 mm,
• external length (La): 1073 mm
• width: 13 mm,
• height: 10 mm,
• original part numbers: W9501-51000,
• comparison numbers: 11714725,
• part numbers: REFM-6410, 6-25-130-01.

Tractor models :

Kubota :

• Kubota L4508,
• Kubota L4708,
• Kubota M5000,
• Kubota M5018,
• Kubota M6040.

Engine model :

Kubota :

• Kubota V2003,
• Kubota V2203.

A V-belt is an element that is used to transfer drive from an engine or transmission to an accessory or device. V-belts are most often used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and equipment that are subject to high rotational speeds. V-belts are the most frequently worn parts of agricultural machinery due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. An incorrectly fitted V-belt or incorrectly set tensioner, too low or too high V-belt tension can cause faster wear. The first signs of V-belt wear (e.g. belt stretching) are a decrease in machine power or an unnatural sound during operation of the device

Magazine : M01:A35:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
