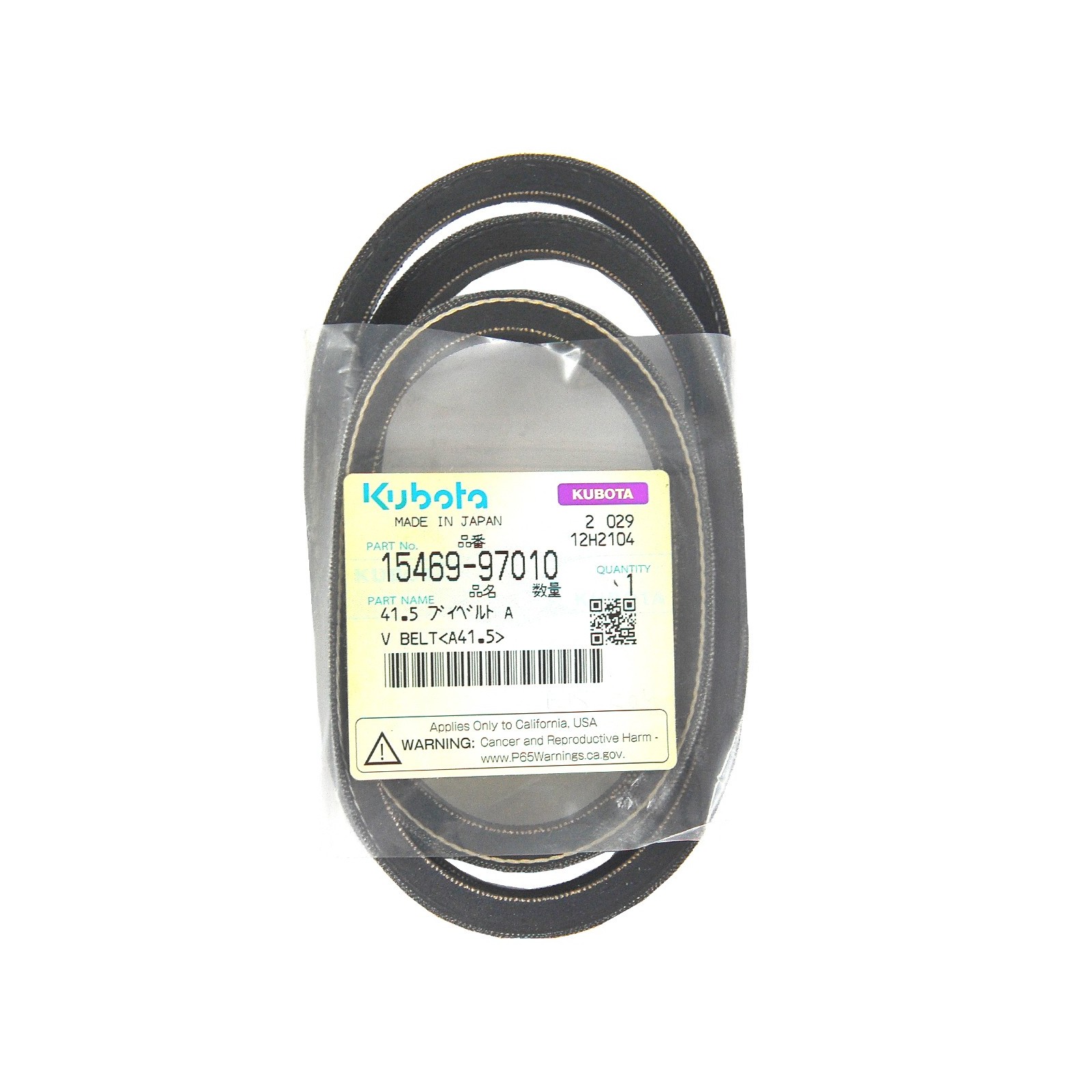

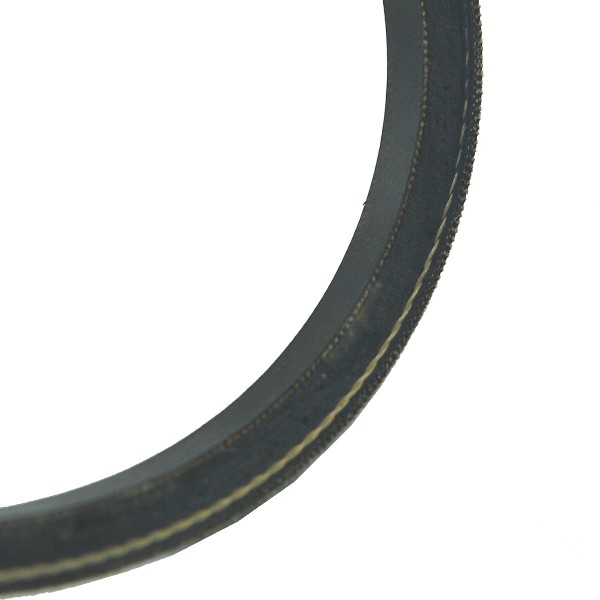

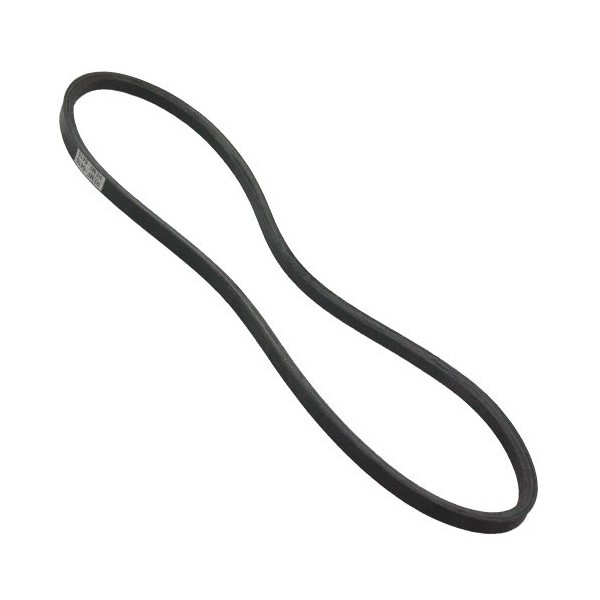

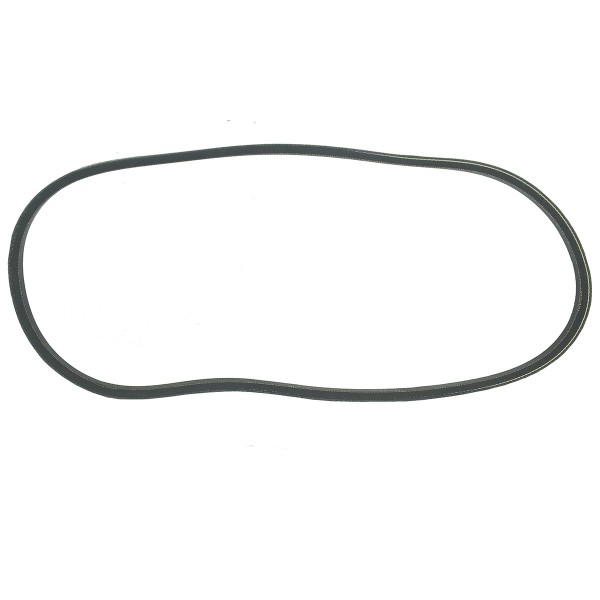

Fan belt / 1083 La / Kubota B1700 / GL23 / L3200 / M4800 / D1403 / D1703 / D1903 / V1903 / V2203 / 15469-97010

V-belt of the water pump (pulley 5-20-102-49, TC403-74250, fan 6-14-201-01, ANT-103348, 34070-16210) for tractors of the Kubota brand, series Kubota B1700, Kubota GL23, Kubota L3200, Kubota M4800 with Kubota D1403, Kubota D1703, Kubota V1903, Kubota V2003, Kubota V2203 engines and others.

A standard V-belt is marked with two length values, Ld and Li. The length Li is the inner length, and the length Ld is the so-called pitch length; according to the ISO standard, in a very simplified way it can be called the outer length, but it is the length measured at the structurally strongest point of the belt. V-belt designations are usually a capital letter of the alphabet denoting the belt section (mm) Z, A, B, C, D and the length. The simplest classification of the belts available on the market is: narrow-profile, classic, narrow-profile cogged and classic cogged belts.

V-belt length Li, Ld or La?

• Li - inner length,
• Ld/Lp - pitch length (measured at 3/4 of the wedge cross-section height, ISO dimension),
• La - outer length.

Dimensions:

• inner length (Li): 1030 mm,
• pitch length (Lp): 1054 mm,
• outer length (La): 1083 mm,
• width: 13 mm,
• height: 8 mm,

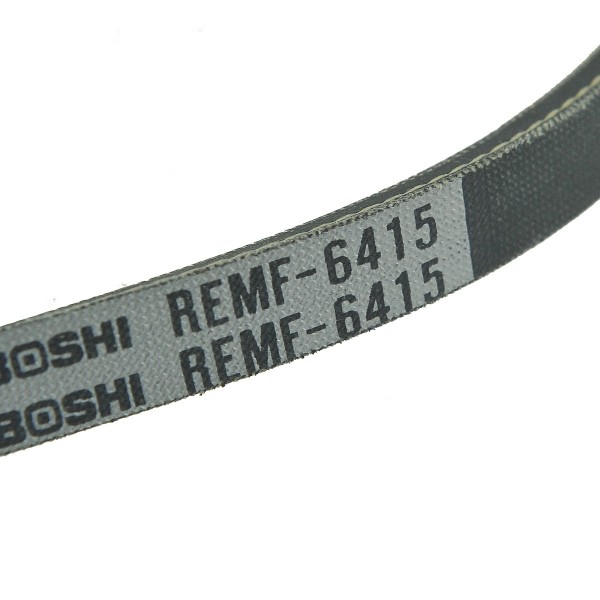

• cross-reference numbers: ANT-101296, 6-25-120-01A, 6-25-130-01,
• part numbers: REMF-6415, 15469-97010.

Tractor models:

Kubota:

• Kubota B1700,
• Kubota GL23,
• Kubota L3200,
• Kubota M4800.

Engine model:

Kubota:

• Kubota D1403,
• Kubota D1703,
• Kubota V1903,
• Kubota V2003,
• Kubota V2203.

A V-belt is an element used to transmit drive from the engine or gearbox to an attachment or device. V-belts are most often used to drive the alternator, coolant pump or compressor, and in agriculture belts are used in devices and attachments subject to high rotational speeds. V-belts are among the most frequently worn parts of agricultural machinery, due to the material they are made of and damage caused by overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. An incorrectly fitted V-belt or an incorrectly adjusted tensioner, as well as too low or too high V-belt tension, may cause faster wear. The first signs of V-belt wear (e.g. belt stretching) are a loss of machine power or an unnatural noise during operation of the device.

Warehouse:
K18:B19:S04
