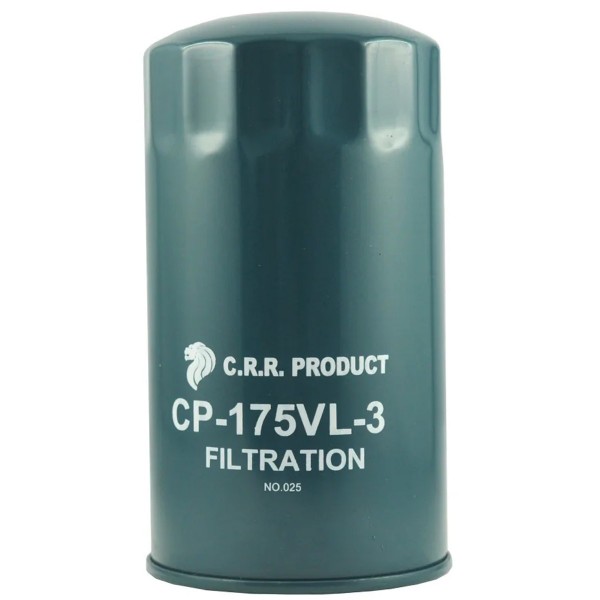

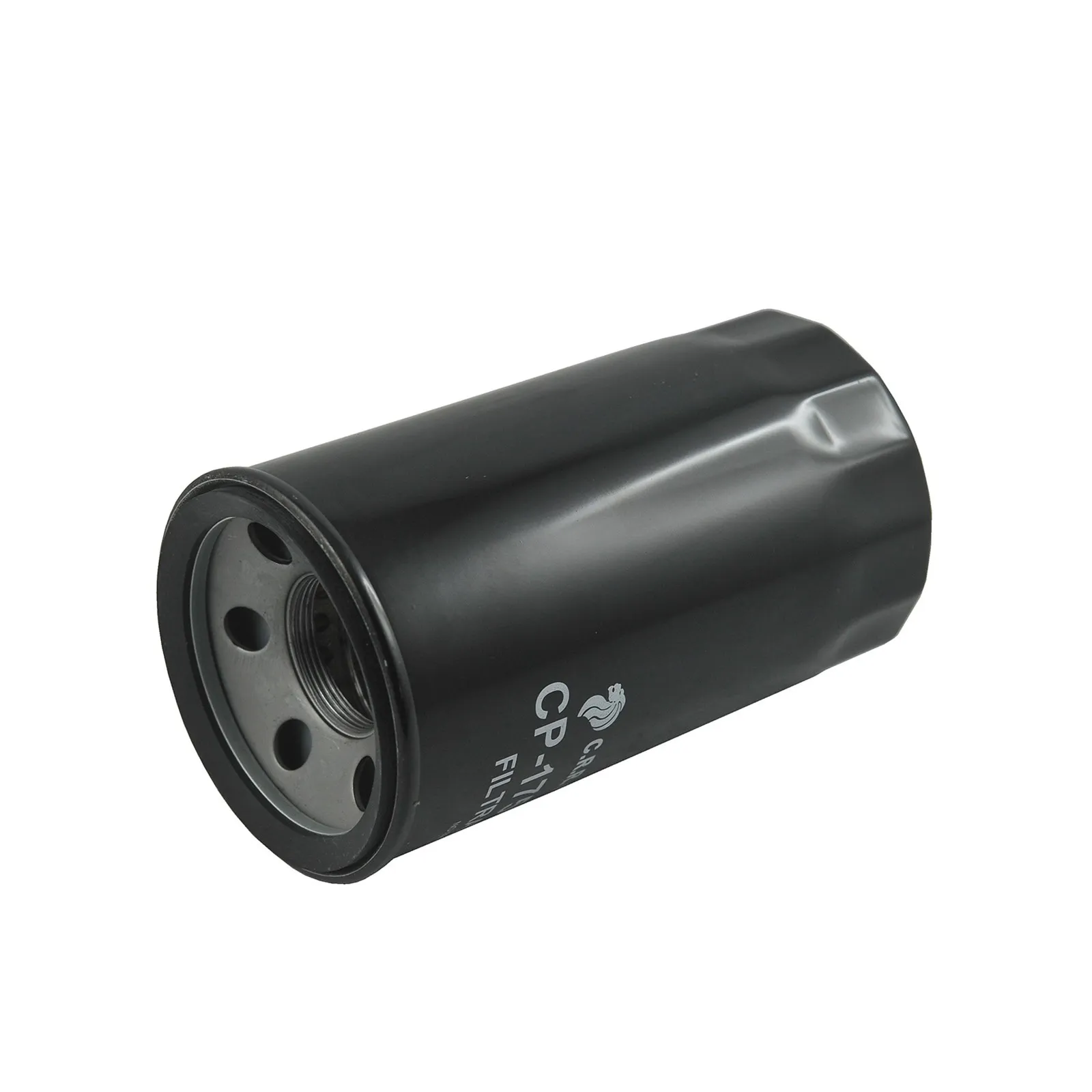

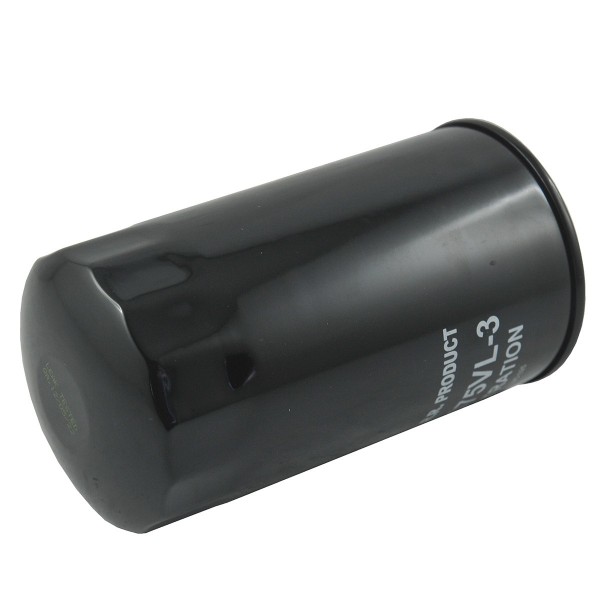

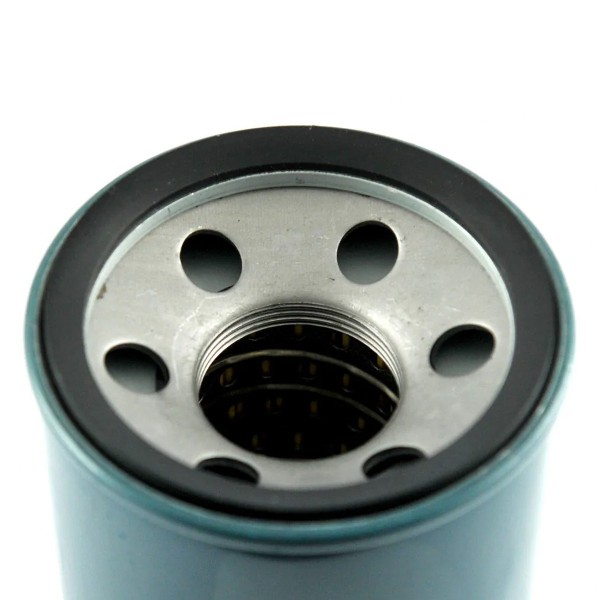

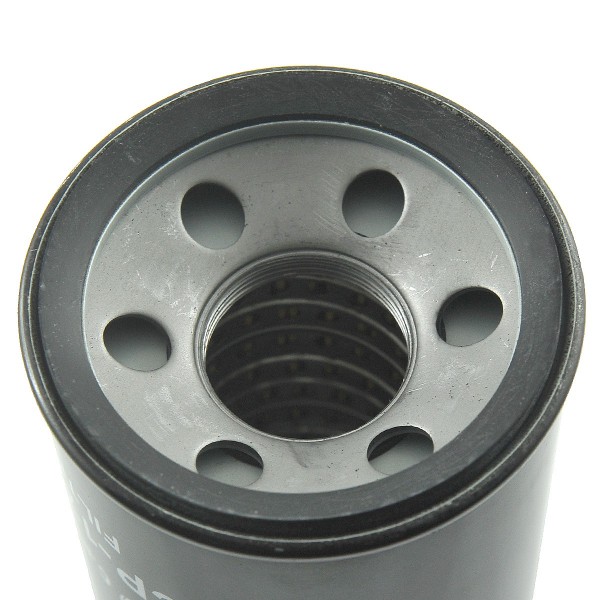

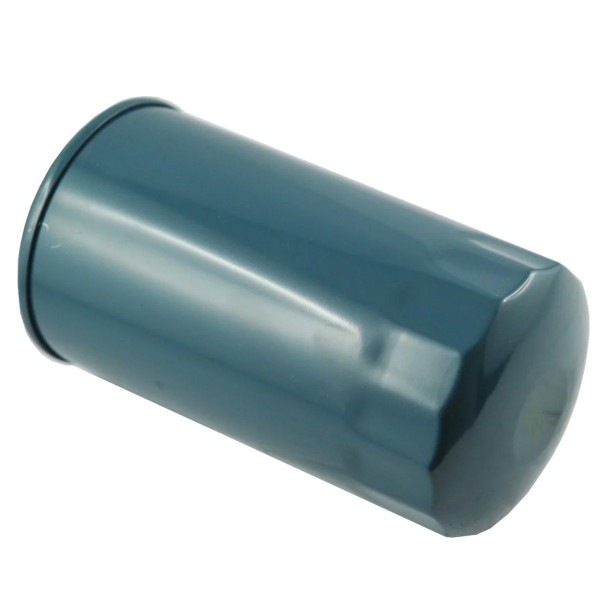

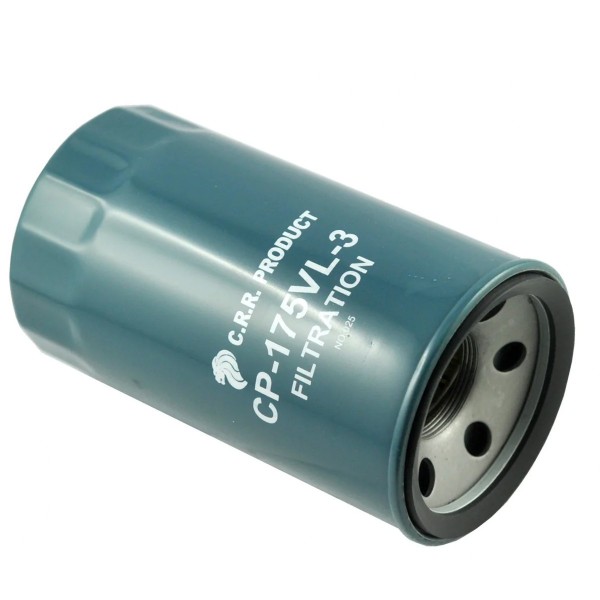

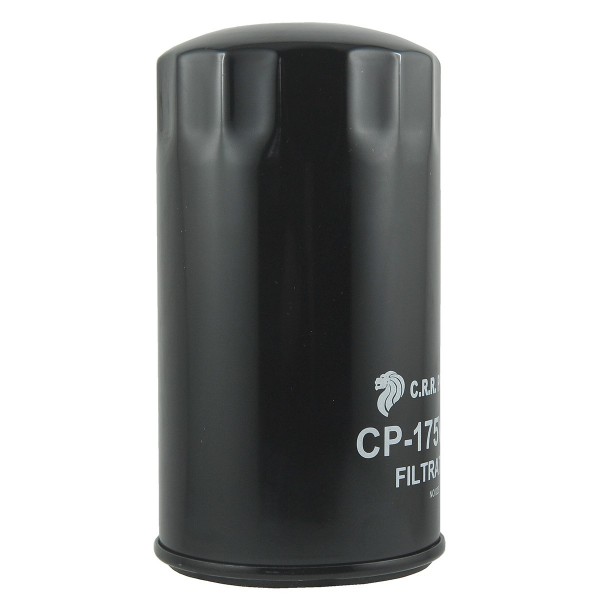

Yanmar EF453T Hydraulic Oil Filter / 1"1/2-16UNF / 194327-48450 / CP-175VL-3 / 5-01-123-25

Hydraulic oil filter with 1"1/2-16UNF thread, 177 mm high, 94 mm outside diameter for Yanmar tractors, Yanmar EF453T series and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor.

Dimensions :

• height: 177 mm,
• outer diameter: 94 mm,
• base diameter: 97.50 mm.
• gasket diameter: inner: 77 mm, outer: 90 mm,
• thread: 1"1/2-16UNF,
• original part numbers: 194327-48450,
• reference numbers: SH 60179,
• part numbers: CP-175VL-3, 5-01-123-25.

Tractor models:

Yanmar :

• Yanmar AF22,
• Yanmar AF30,
• Yanmar AF330,
• Yanmar EF453T,
• Yanmar EG330,
• Yanmar FX18D,
• Yanmar FX24D,
• Yanmar FX335,
• Yanmar YM1802,
• Yanmar YM2220.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.

Magazine : K18:A40
