Rear wheel hub 22T / 187 x 48 mm / Hinomoto E23/E25

7-09-101-10
zł345.00
Tax included PL 23%

280,49 netto

  • Dostępność (4 Quantity): stock
wishlist

Do you have any questions?

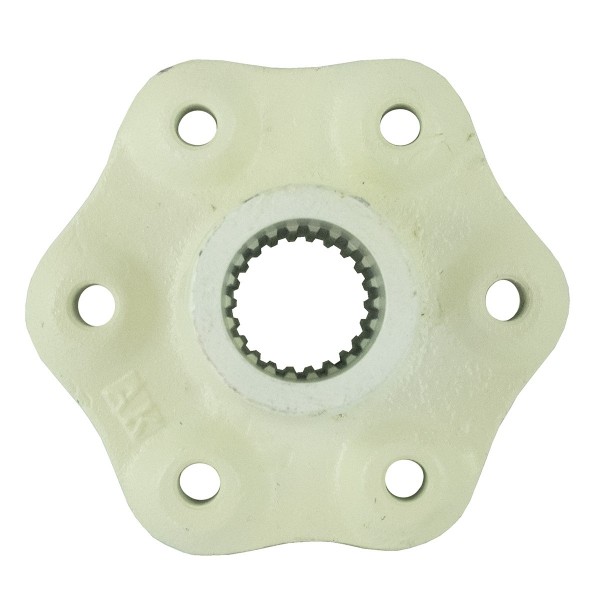

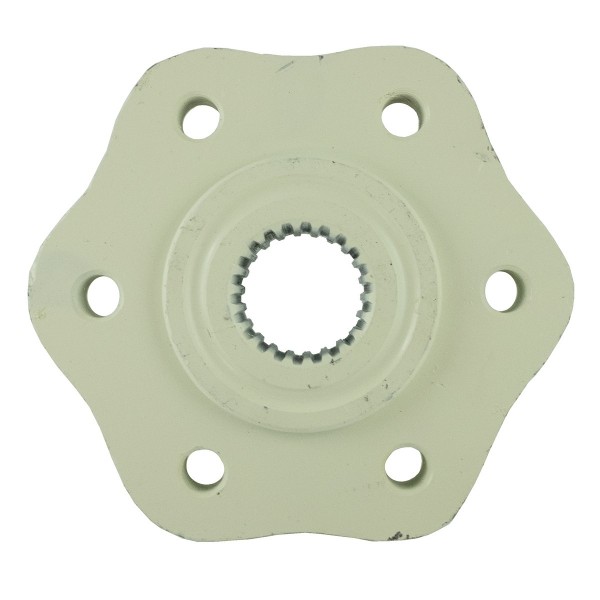

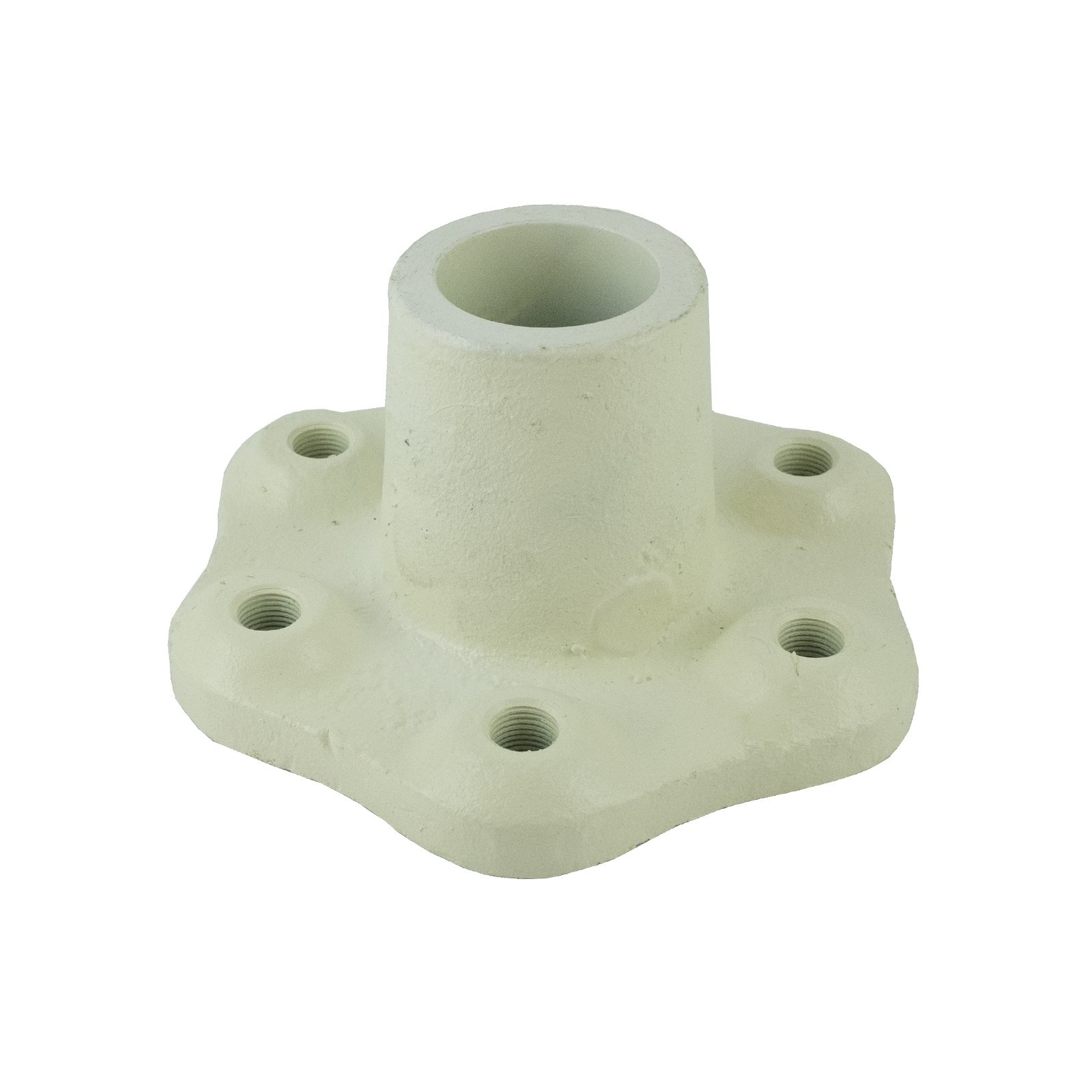

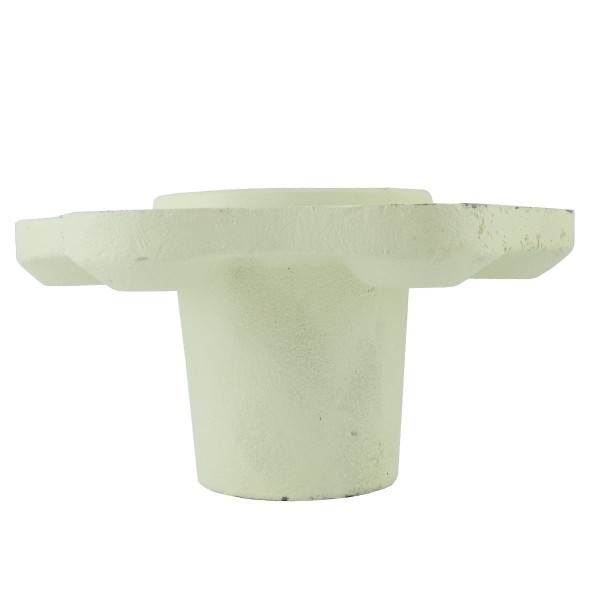

Rear wheel hub 22T / 187 x 48 mm / Hinomoto E23/E25

Rear wheel hub with an outer diameter of 187 mm , inner diameter of 48 mm (measured between the cutter teeth) and height of 190 mm for Hinomoto E Series tractors and others.

The hub is an element of the tractor's running gear to which the wheel is bolted. The hub is placed in the so-called reduction gear and allows the wheel to rotate freely and is responsible for maintaining the wheel in the correct position. The hub in tractors of simple construction is mounted directly on the transmission, drive shaft.

Dimensions :

  • height: 190 mm,
  • outer diameter: 187 mm,
  • number of holes for mounting screws: 6 pcs.
  • inner diameter: 48 mm (measured between cutter teeth),
  • mounting screw hole spacing: 140 mm (measured diagonally), 70 mm (measured from each other),
  • diameter of mounting screw holes: 14.40 mm,
  • number of teeth: 21T.

Tractor models :

Hinomoto :

  • Hinomoto E23,
  • Hinomoto E25.

The first signs of wheel hub wear are problems with maintaining the right direction of travel, sometimes combined with loud noise coming from the wheel area, especially noticeable when braking and accelerating the tractor. An extremely worn wheel hub can lead to blockage or even separation of the wheel from the tractor.

Magazine : K18:B05:S01

Specification

Magazyn: K18:B05:S01
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Hinomoto E23
Hinomoto E25
Number of teeth (pcs/T-teeth)
21T
Height (mm)
190
Outer diameter (mm)
187
Inner Diameter (mm)
48
Mounting bolt(s) hole diameter (mm)
14.40
Bolt hole spacing (mm)
140 / 70
Color
White
