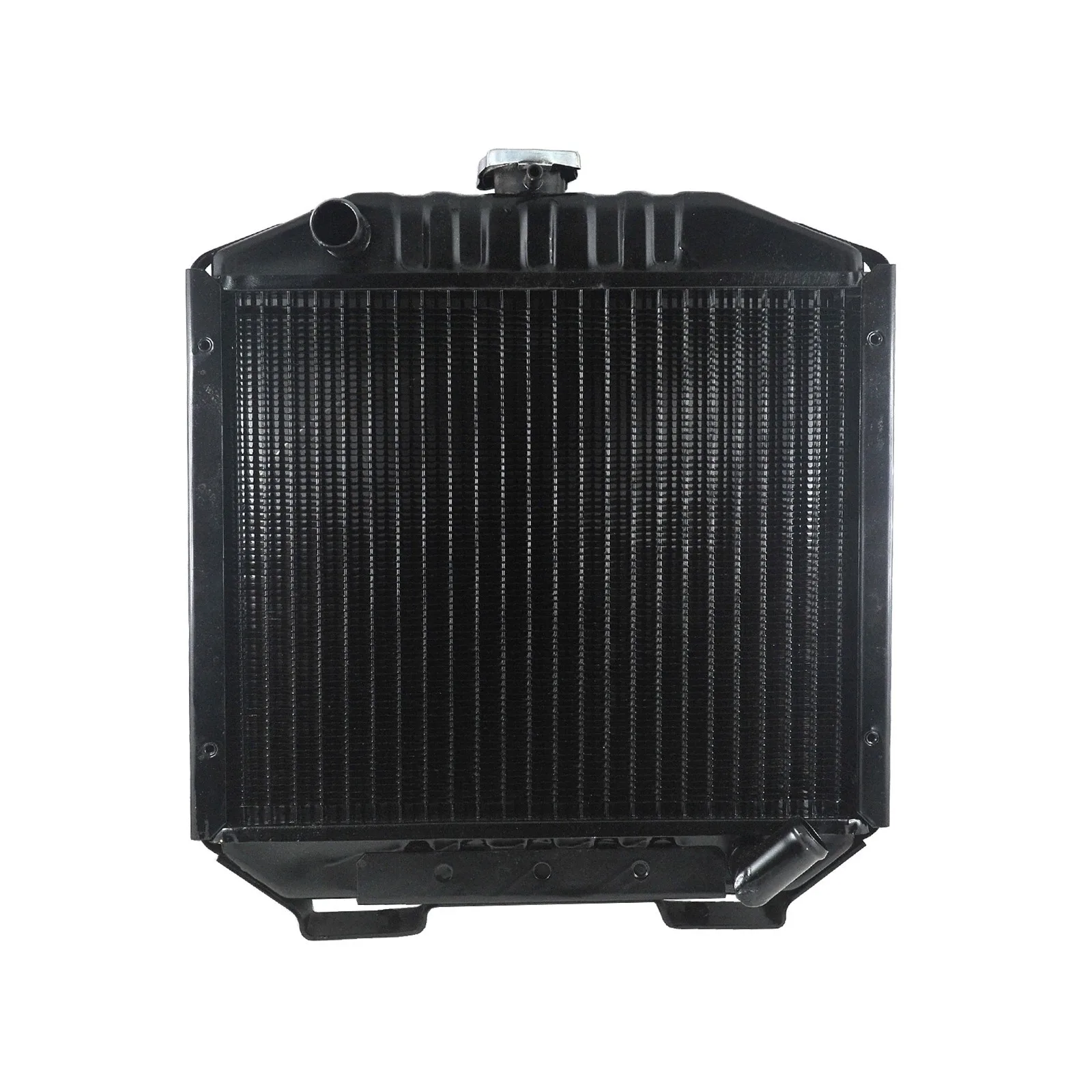

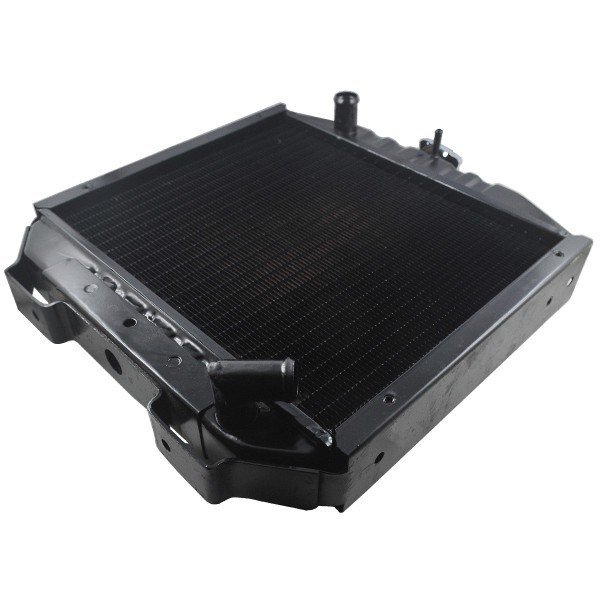

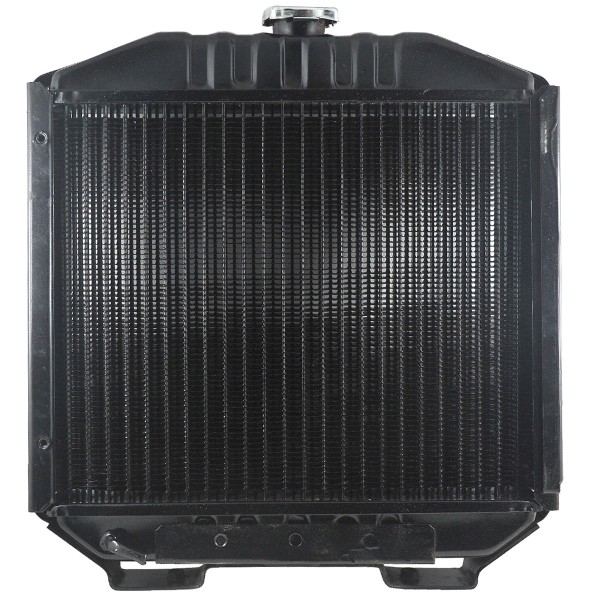

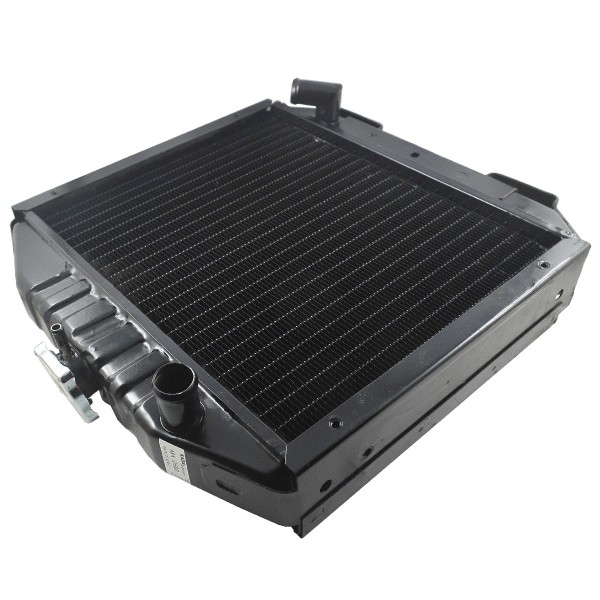

Radiator / Yanmar F20 / F22 / F24 / FX20 / FX22 / FX24

Radiator with a height of 430 mm (without cap and stands), a width of 420 mm and a thickness of 70 mm for Yanmar tractors of the Yanmar F20, Yanmar F22, Yanmar F24, Yanmar F205, Yanmar F215, Yanmar F235, Yanmar F245, Yanmar F255, Yanmar FX20, Yanmar FX22, Yanmar FX24, Yanmar FX205, Yanmar FX215, Yanmar FX235, Yanmar FX245, Yanmar FX255 series and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions :

• height: 430 mm (without cap and stands),
• width: 420mm,
• thickness: 70mm,
• original part numbers: 129157-44500,
• comparison numbers: -,
• part numbers: -.

Tractor models :

Yanmar :

• Yanmar F20,
• Yanmar F22,
• Yanmar F24,
• Yanmar F205,
• Yanmar F215,
• Yanmar F235,
• Yanmar F245,
• Yanmar F255,
• Yanmar FX20,
• Yanmar FX22,
• Yanmar FX24,
• Yanmar FX205,
• Yanmar FX215,
• Yanmar FX235,
• Yanmar FX245,
• Yanmar FX255.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : K19:S7

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
