Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Clutch
Height (mm)
40
Outer diameter (mm)
268
Pressure plate diameter (mm)
134 / 216
Bolt hole spacing (mm)
125 / 250
Go to full specification >

Clutch pressure plate / 8-1/2" / Iseki / 7-26-110-03

7-26-110-03
zł575.00
zł545.00
Tax included PL 23%

Lowest price in the period of 30 days before current promotion: zł480.00

Lowest price in the last 30 days

443,09 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

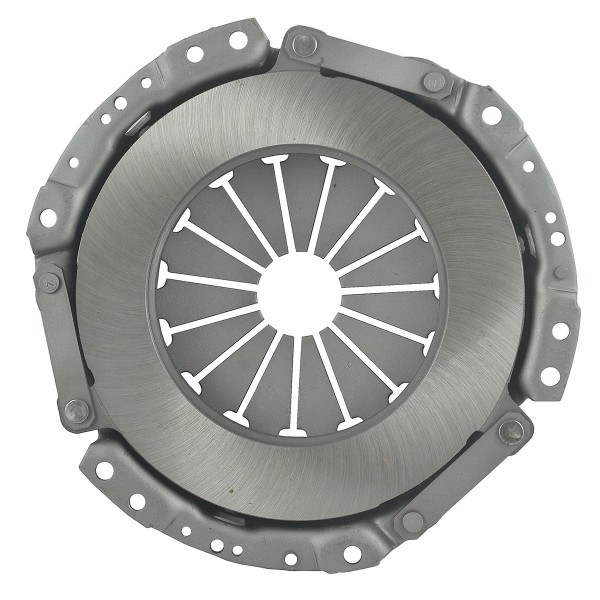

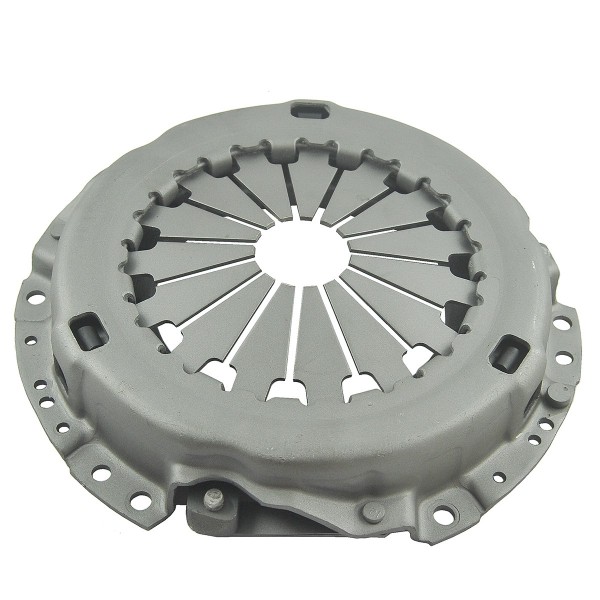

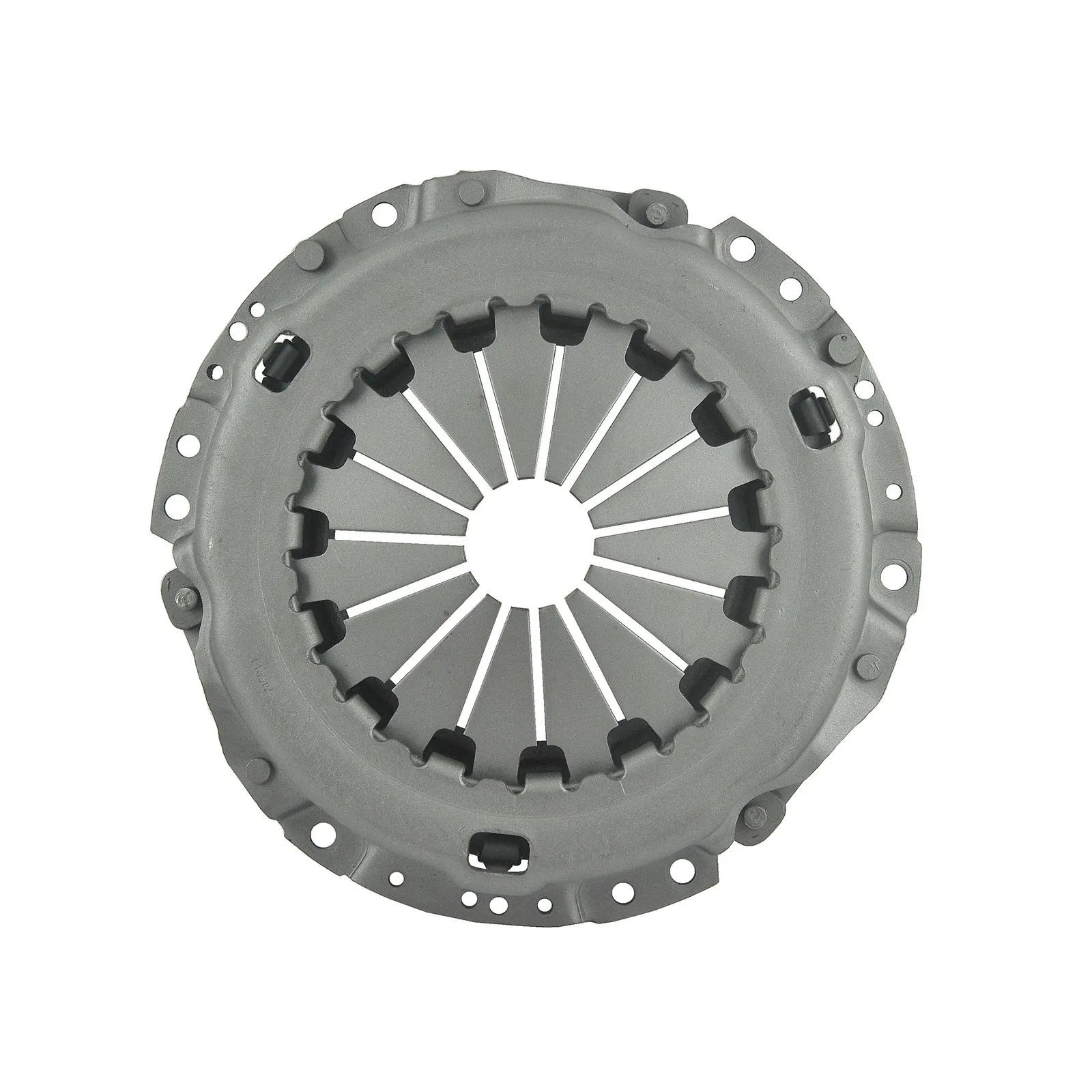

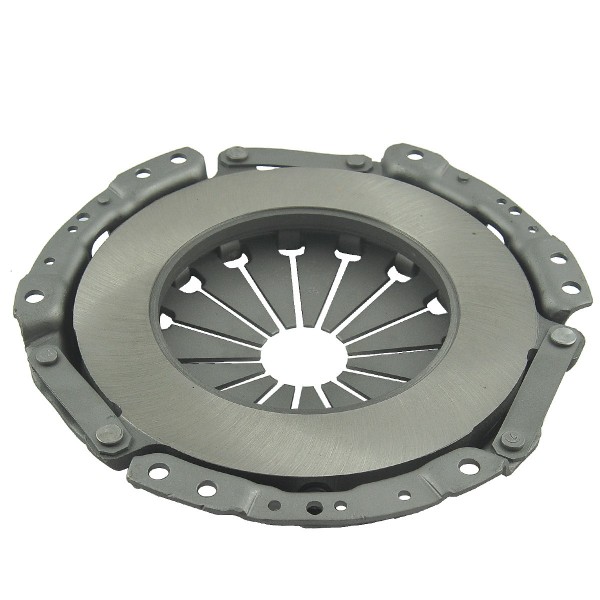

Clutch pressure plate / 8-1/2" / Iseki / 7-26-110-03

Clutch pressure plate (plate 8-05-100-02 ) with a housing diameter of 268 mm for Iseki and other tractors.

The clutch pressure plate is an element connecting the gearbox with the engine and is thus responsible for transferring the torque from the engine through the gearbox to the tractor's traction system. Simplifying this whole complicated process, the clutch pressure plate is responsible for moving the tractor, starting, stopping and shifting the forward speed. The clutch pressure plate consists of a housing, release springs and a disc, and its main task is to exert the appropriate friction force on the clutch disc, a force sufficient so that these two elements (the pressure plate and the disc) do not rotate at different speeds.

Dimensions :

  • height: 40mm,
  • outer diameter of the housing: 268 mm,
  • internal diameter of the pressure plate: 134 mm.
  • outer diameter of the pressure plate: 216 mm,
  • spacing of mounting bolts: 250 mm (measured diagonally), 125 mm (measured diagonally),
  • part numbers: 7-26-110-03.

The first signs of a worn clutch are an unnatural sound when pressing or releasing the clutch pedal, an unpleasant smell or grinding of the gearbox. When replacing the clutch, it is recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Warehouse :
M01:B95

Specification

Magazyn: M01:K18:A28
Condition
New
Production
Substitute
Parts
Clutch
Height (mm)
40
Outer diameter (mm)
268
Pressure plate diameter (mm)
134 / 216
Bolt hole spacing (mm)
125 / 250
Part number
7-26-110-03

Iseki

Iseki is the third largest manufacturer of agricultural machinery in Japan. It is characterized primarily by a continuous optimization process drawing energy from the combination of Japanese precision and German inventiveness. Since 1961, the company has been producing tractors, which quickly gained recognition not only in Japan. This is evidenced by the fact that ISEKI & Co., Ltd tractors have been and are sold all over the world under various names, including: AGCO, Bolens, Massey Ferguson and White. Several models that were sold in Japan were manufactured by the Italian Landini or French Massey Ferguson plants.

From the beginning of its activity , Iseki has focused primarily on the needs of users. It is currently described as one of the core suppliers in Japan and Europe and as a specialized manufacturer with a complete system solution for many customers. Iseki is associated with: competence, longevity, sustainable development and maximum efficiency.

When producing tractors, they use only high-quality materials and tools. Before releasing the product to the market, Iseki thoroughly tests the product in terms of careful design, reliability and manufacturing quality. Nowadays, Iseki invests in development and modernization, as evidenced by the opening in 2009 of a new training center for technical employees and dealers.
