Roller sand spreader, sand spreader (ball hitch) PWC 500 Dexwal
A sand spreader or sand spreader is most often associated with equipment typical for tractors. However, in the case of this model of the machine, it is intended to be connected, for example, to a quad bike . A sandblaster with a ball hitch will work well for vehicles with this type of mounting. The spreader can be used to spread sand, fine dry gravel or other chemicals. However, it is important that the granulation is not larger than 2 cm.

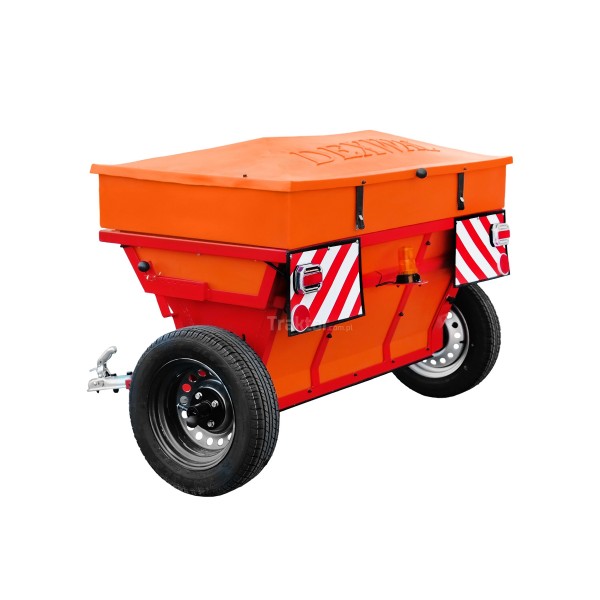

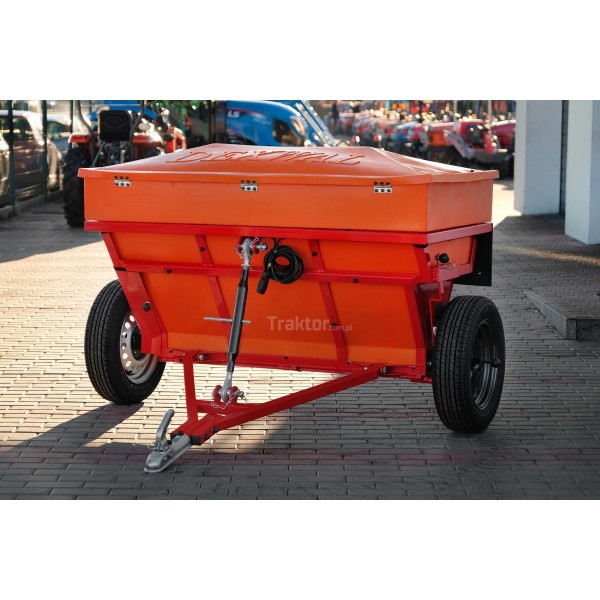

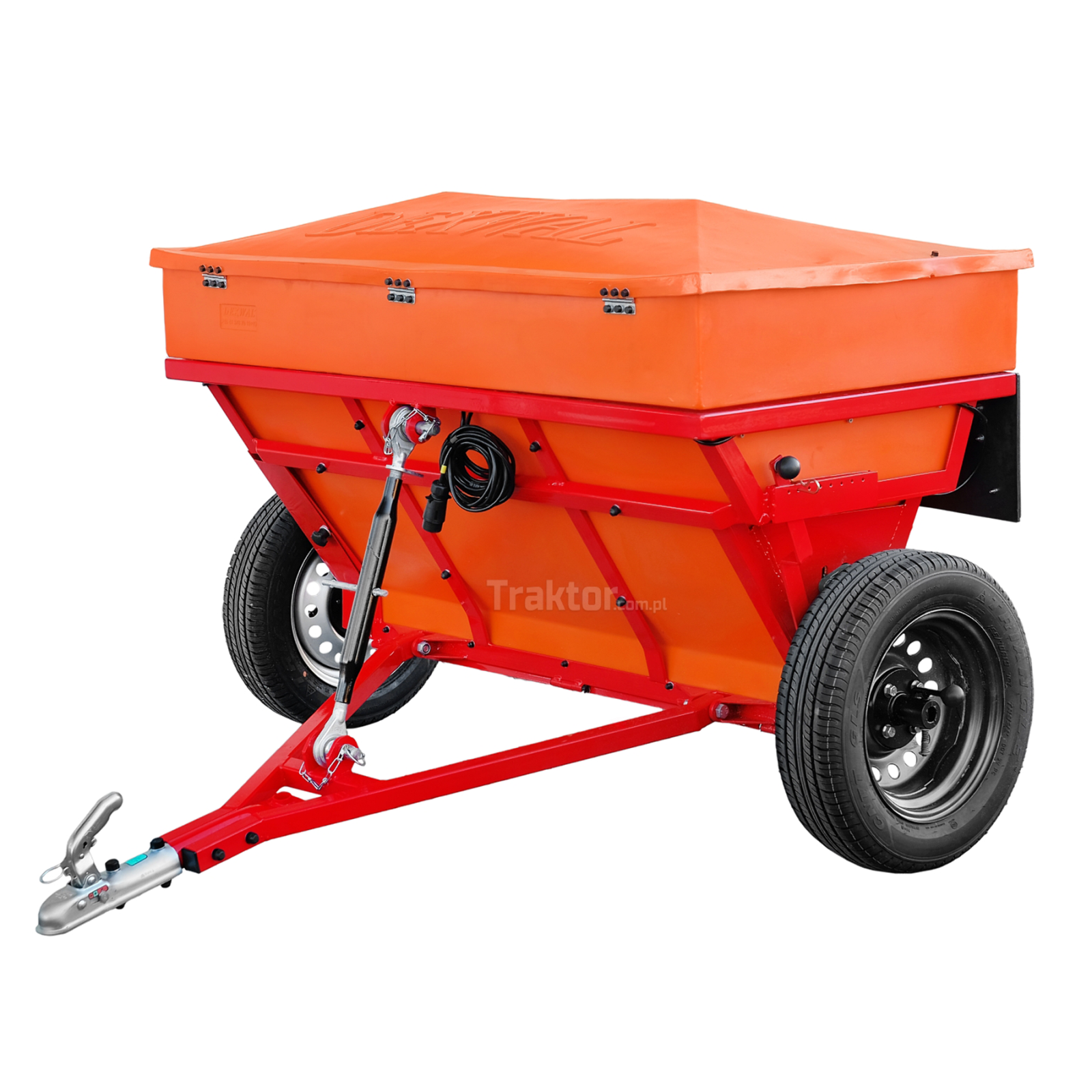

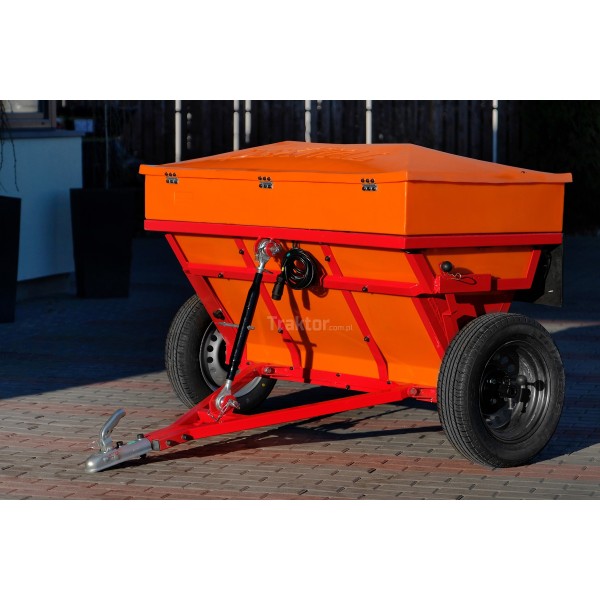

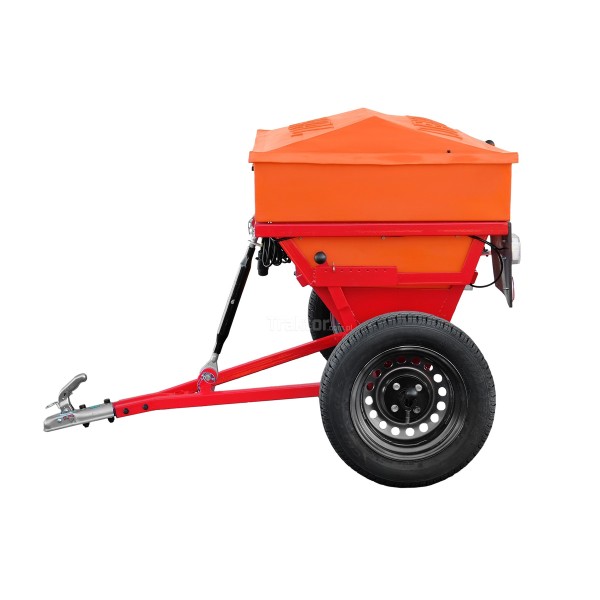

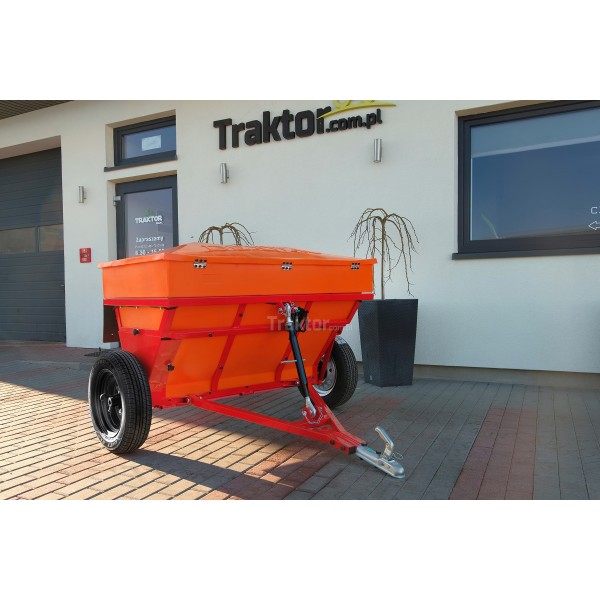

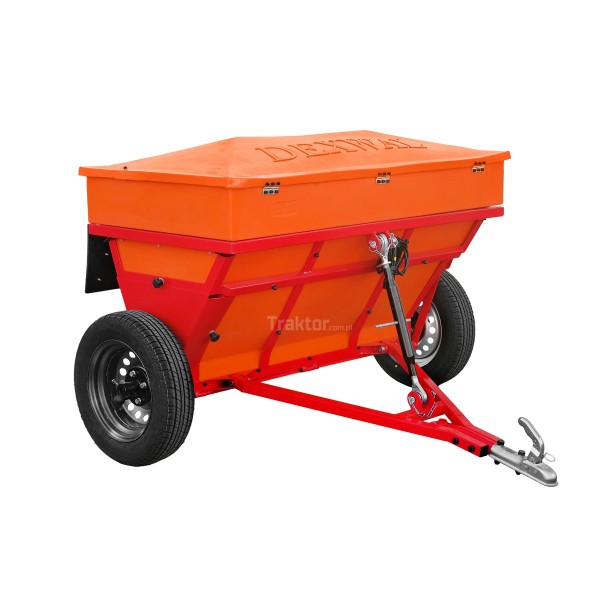

The Dexwal sand spreader is made of a solid frame connected to the tractor's ball hitch. A rectangular tank made of plastic is mounted on the frame. Seed is metered across the entire width of the machine. The sowing rate adjustment mechanism is located in the side part of the tank. Adjustment is made using one lever set according to a scale. The seed is dosed through an opening in the lower part of the tank, which is opened and closed by the previously mentioned adjustment of the sowing amount.

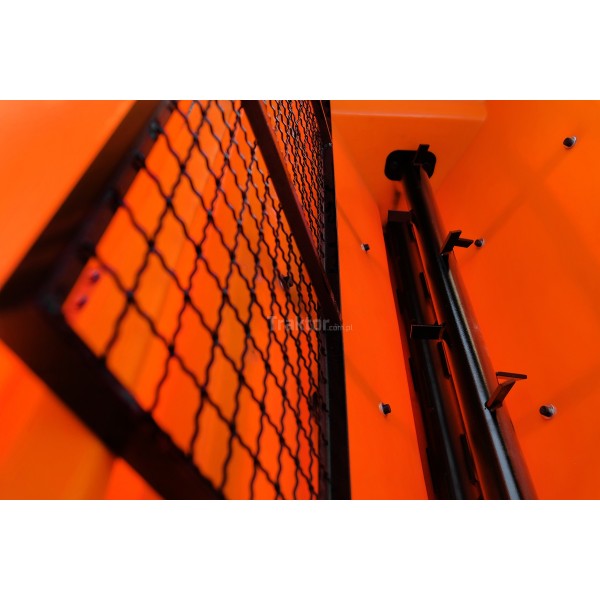

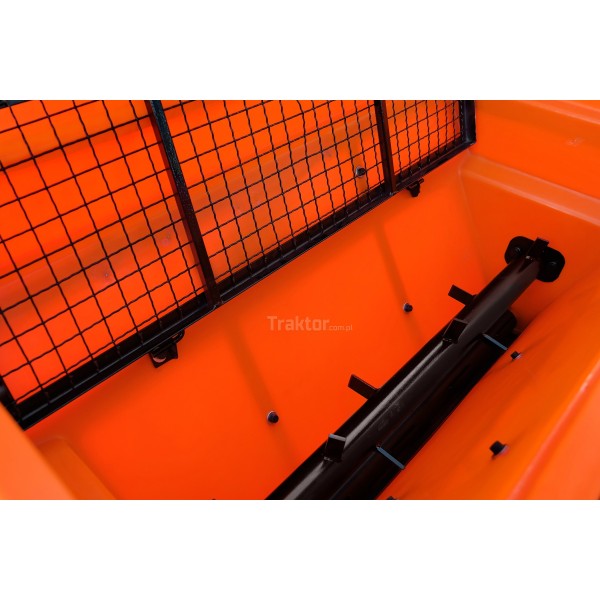

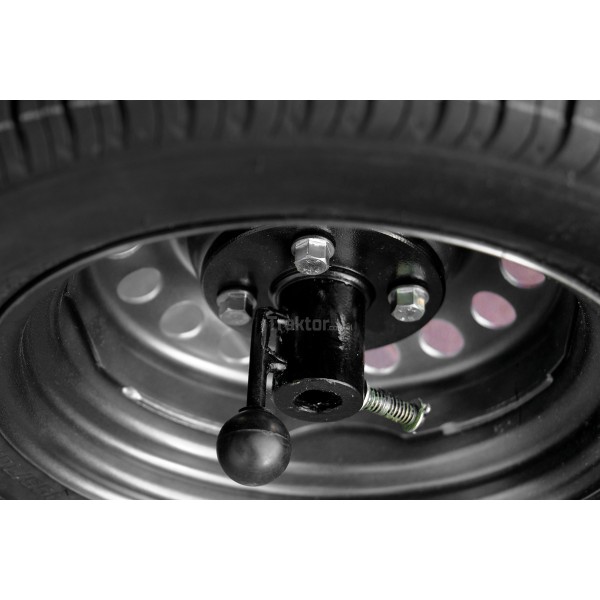

The seed is poured out by the seed shaft, which is driven by rotating wheels (differential mechanism). The rotating shaft, thanks to the falling force, spreads the fed seed onto a 120 cm wide surface. The rectangular tank with a capacity of 550 L is made of plastic and is attached to the frame with screws at four points.

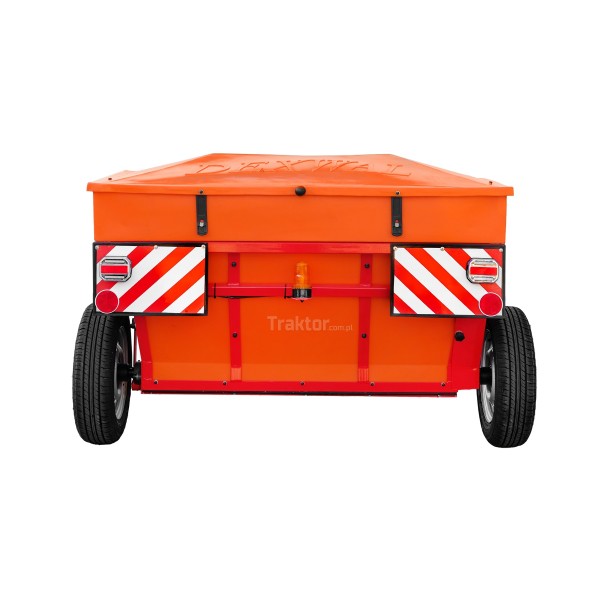

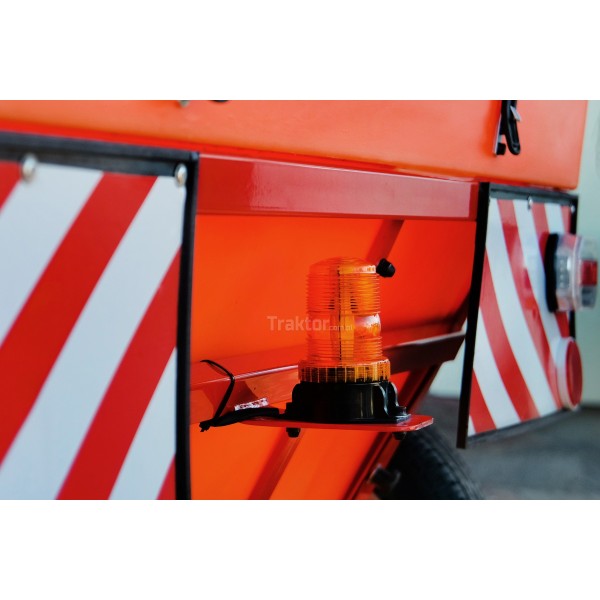

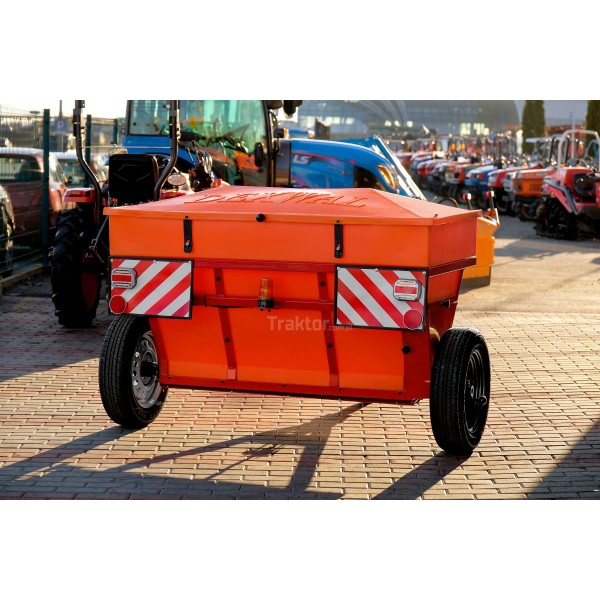

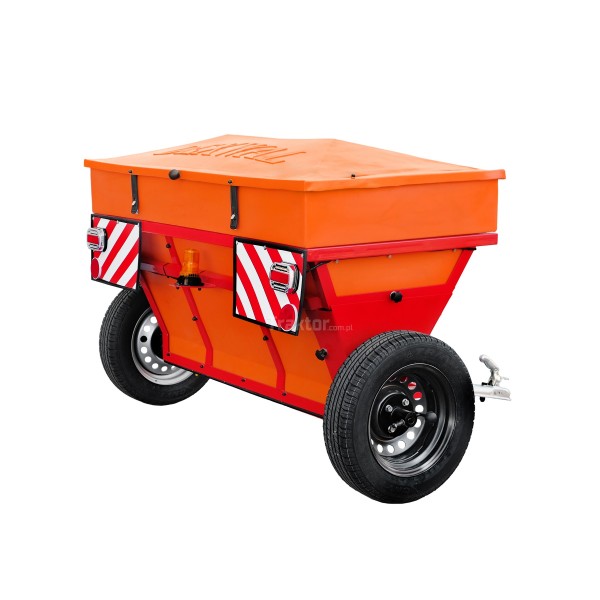

Light and warning boards are attached to the sandblaster .
Specification
State
New
Mark
Dexval
working width (mm)
1200
Trailer hitch
Yes
Equipment

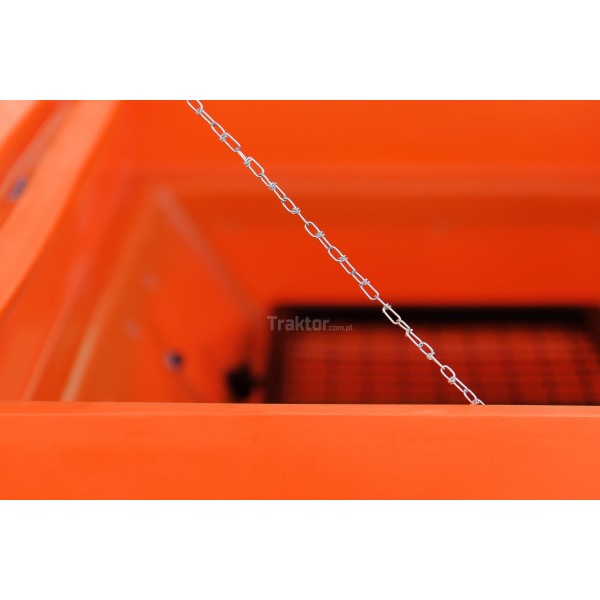

Pokrywa

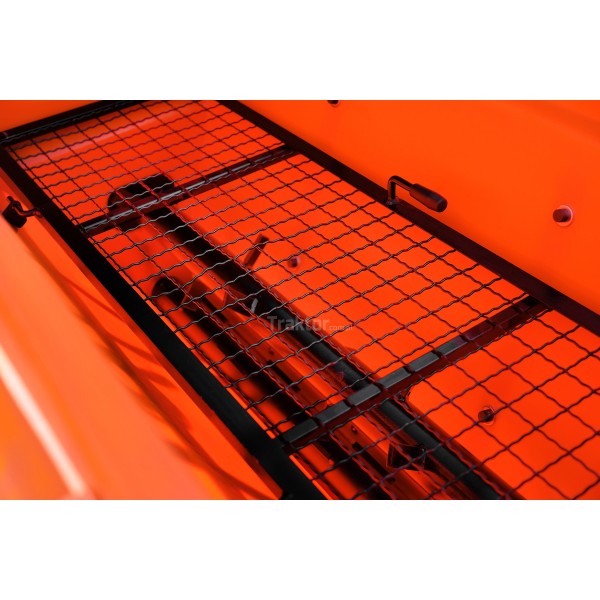

Pre-seeding sieve
Road lighting
Shredding shaft
Height (mm)
1150
Overall length (mm)
1550
Width (mm)
1800
Weight (kg)
145
Transport speed (km/h)
max 40
Tire size(s)
155/70 R13
Color
Orange
Machine type
Drawn
Type of sowing device
Wałowy
Operating speed (km/h)
4 -13
Tank capacity (L)
550
Dosing unit - type
Slotted
Spreading device drive
Differential
Maximum load capacity (kg)
900
Granulation (mm)
200
