zł70.00
To order
Condition
New
Parts
Drive
Tractor models
VST MT180
VST MT224
VST MT270,
VST MT224
VST MT270,
Thickness (mm)
1,80
Height (mm)
32,70
Hole diameter (mm)
1,80
Outer diameter (mm)
28,30
Bearing housing ring VST MT180 / MT224 / MT270, 18000600141
18000600141
Do you have any questions?
Bearing housing ring VST MT180 / MT224 / MT270, 18000600141

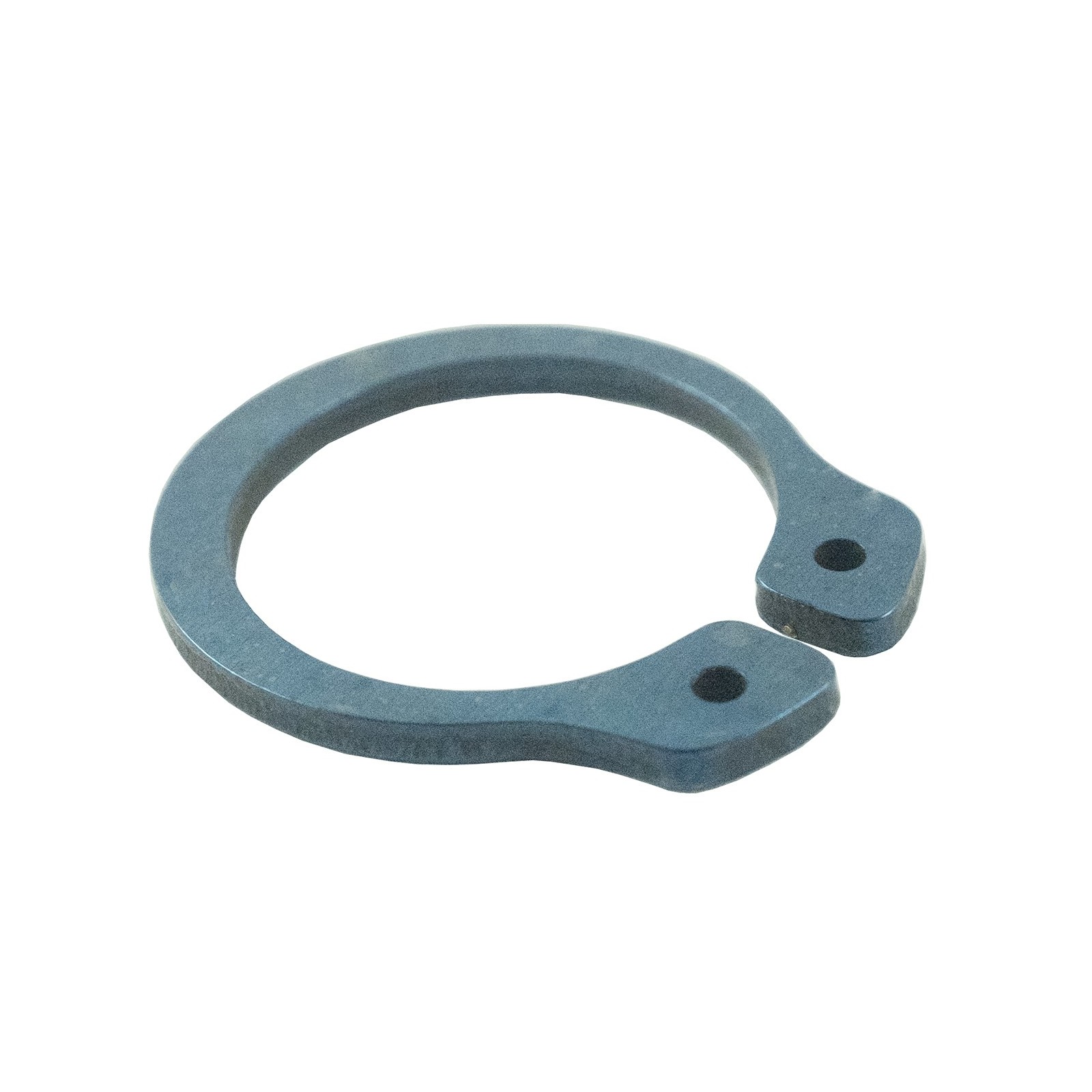

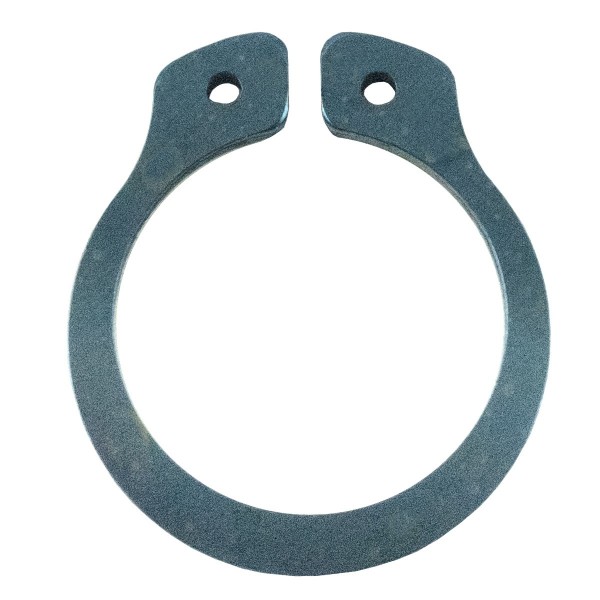

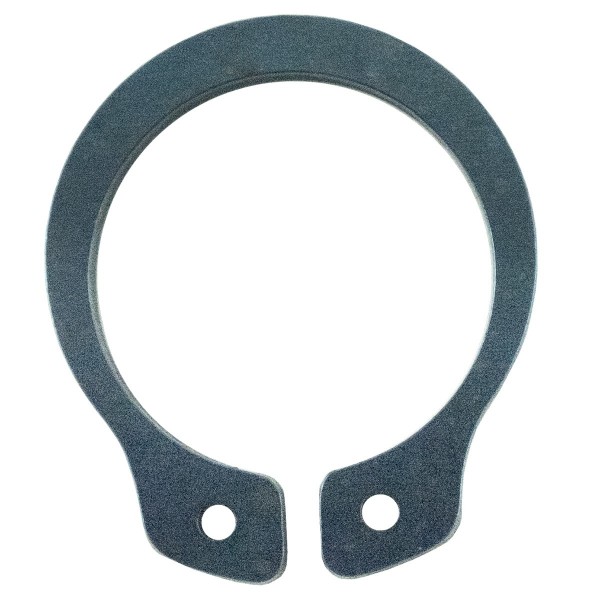

Locking ring for shafts, external for the handle, tapered roller bearing housing 30205 with an inner diameter of 23 mm , outer diameter 28 mm , height 33 mm and thickness 1.80 mm for VST tractors and mini tractors of the MT180, MT224, MT270 series and others.
A snap ring called a seger ring from the name of the company that first patented its invention. A safety ring is an element of a mechanical system that is assembled to prevent the movement of moving parts or machine parts. Bearings, bushings, gears are placed on the shaft and axles, and not secured with seger rings, they can be given axial shifts. Seger rings are divided into two groups, for shafts and for holes, and they differ from each other in shape at the place of mounting holes.
Dimensions:
- Internal diameter: 23.20 mm,
- Outer diameter: 28.30 mm,
- Height: 32.70 mm,
- Holes diameter: 1.80 mm,
- Thickness: 1.80 mm,
ORIGINAL PART VST.
Tractor models:
VST:
- VST MT180,
- VST MT227,
- VST MT270,

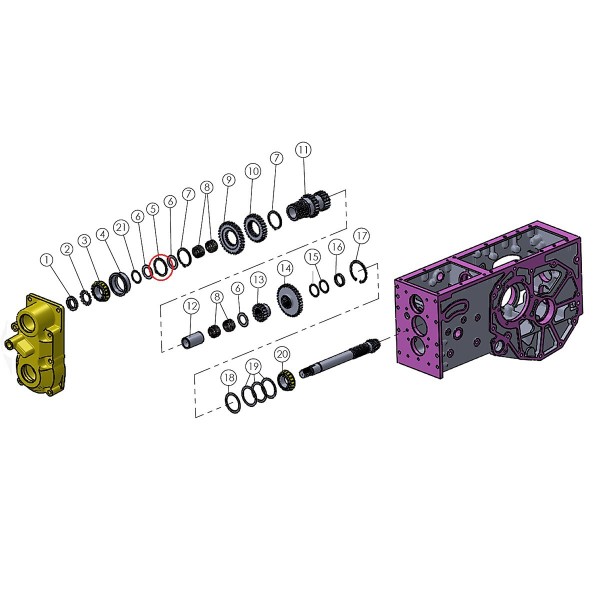

ITEM No. 5 MARKED IN RED ON THE GRAPHICS.
Warehouse :
M01: C22: S03
Specification
Magazyn: M01:C22:S03
Condition
New
Parts
Drive
Tractor models
VST MT180
VST MT224
VST MT270,
VST MT224
VST MT270,
Thickness (mm)
1,80
Height (mm)
32,70
Hole diameter (mm)
1,80
Outer diameter (mm)
28,30
Inner Diameter (mm)
23,20
Case
Cast iron
Bearing type
conical
VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.
In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.
VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).
Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
