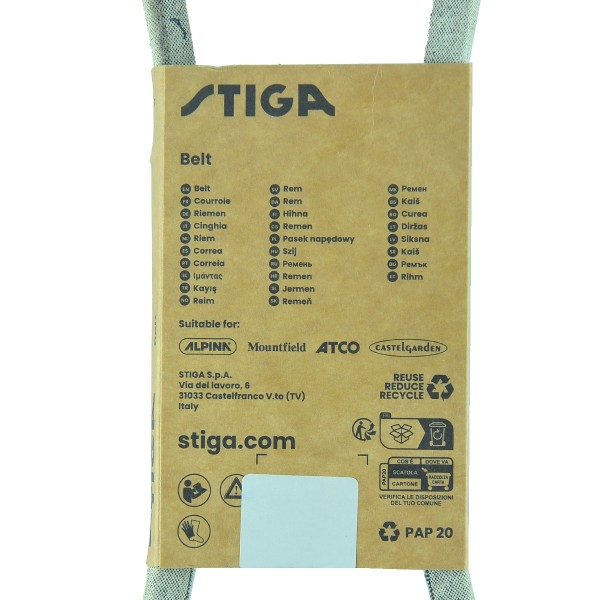

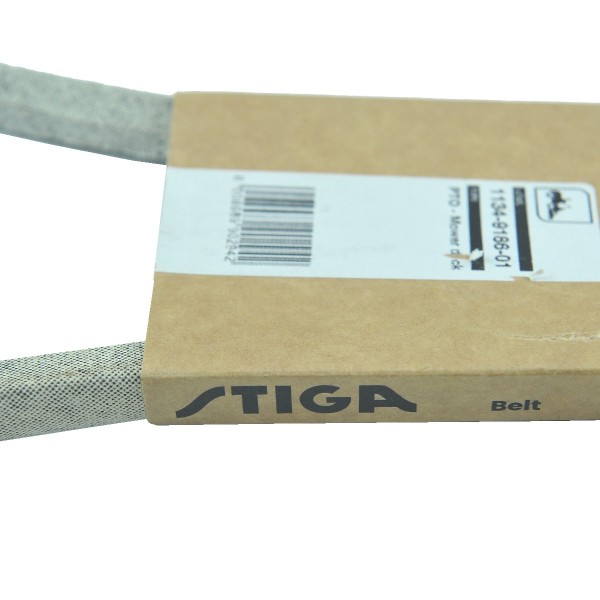

V-belt / 85MQ // Stiga Park 300 M / 135062024/0 / 1134-9186-01
Do you have any questions?
V-belt / 85MQ // Stiga Park 300 M / 135062024/0 / 1134-9186-01

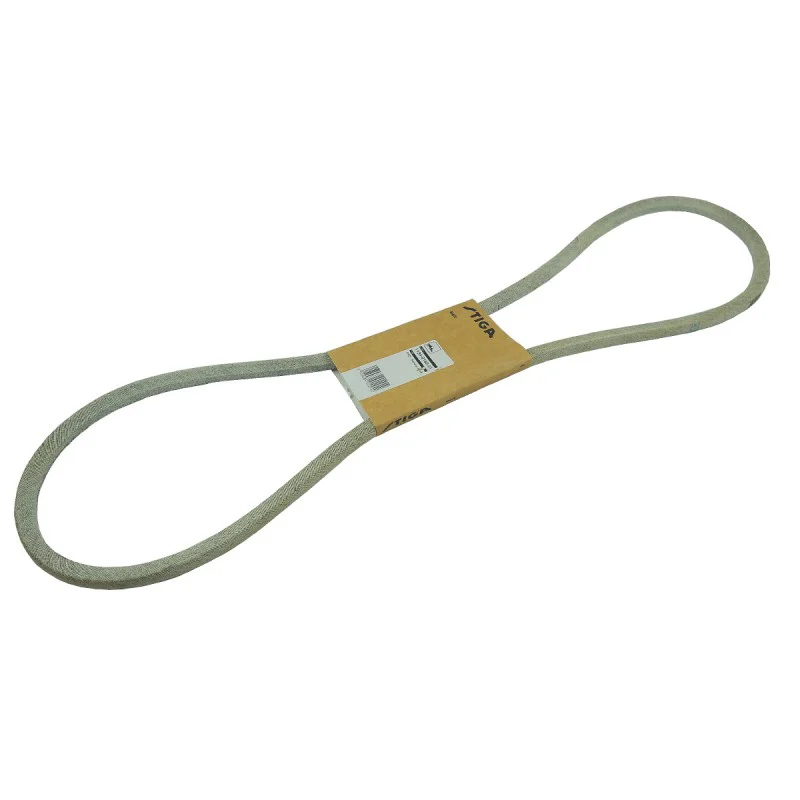

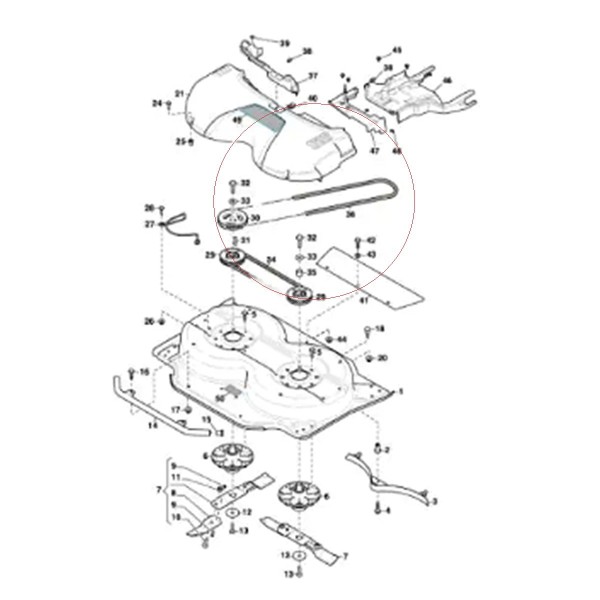

V-belt for the mower drive, cutting unit with internal length - mm , external length - mm , width - mm and height - mm for Stiga mower tractors of the Stiga Park 300M series with a Stiga 85MQ mower with a cutting width of 850 mm and others.
A standard V-belt is marked with two length values: Ld and Li. The length Li is the internal length and the length Ld is the so-called pitch length, according to the ISO standard, in simple terms it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet indicating the cross-section of the belt (mm) Z, A, B, C, D and length. The simplest division of belts available on the market are narrow-profile belts, classic belts, narrow-profile toothed belts and classic toothed belts.
V-belt length Li, Ld or La?
- Li - internal length,
- Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
- La - external length.
Dimensions :
- internal length (Li): - mm,
- pitch length (Lp): - mm,
- external length (La): 1422 mm,
- width: 12 mm,
- height: 11 mm,

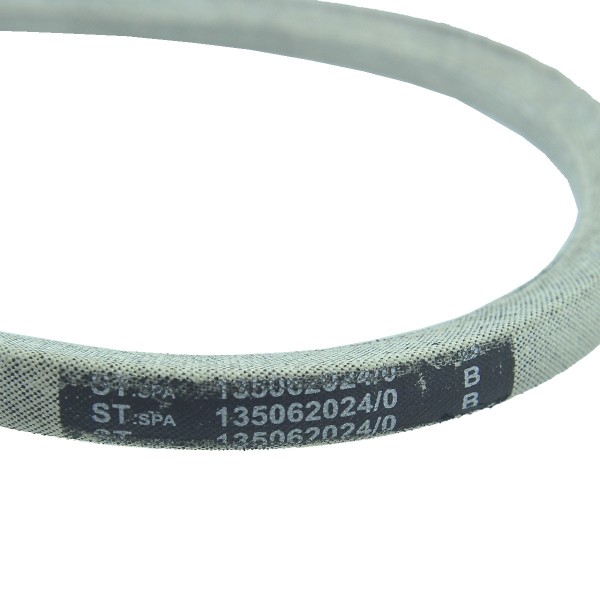

- comparison numbers: 135062024/0,
- part number: 1134-9186-01.
Lawn mower models :
Stiga :
A V-belt is an element that is used to transfer power from the engine or transmission to the accessory or device. V-belts are most often used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and accessories that operate at high rotational speeds. V-belts are the most frequently worn parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. A poorly installed V-belt or incorrectly set tensioner, too little or too much tension on the V-belt may result in faster wear. The first signs of V-belt wear (e.g. belt stretching) are a loss of machine power or an unnatural sound when the device is operating.
Warehouse :
M01:B76:S02
Specification
The company, founded in Sweden, initially produced sports equipment for table tennis and hockey. In 1954, the company started producing engine lawn mowers, and in the following years Stiga expanded its product range to include garden tractors and petrol lawn mowers.
A major achievement was the introduction of the Stiga Garden battery-powered mower to the market, for which the company was awarded the "Nordic Golden Swan" in 1955. Over the years, Stiga has gained not only the gardening market, but also the table tennis market.
In 2000, the Italian manufacturer of lawn mowers and garden tools, Castelgarden, as well as Alpina, an Italian factory of tractors, mowers and chainsaws, also joined the Stiga group. Currently, Stiga products can be found in over 80 countries around the world, including: in Australia, Venezuela, Zambia and Taiwan.
Today, STIGA is a well-known brand of lawn mowers and a wide range of electric gardening equipment, distributed throughout Europe and beyond.
