Mower drive belt / 24 x 1800 mm / Stiga Estate 6122/7122/9122 / 135065606/0
Do you have any questions?
Mower drive belt / 24 x 1800 mm / Stiga Estate 6122/7122/9122 / 135065606/0

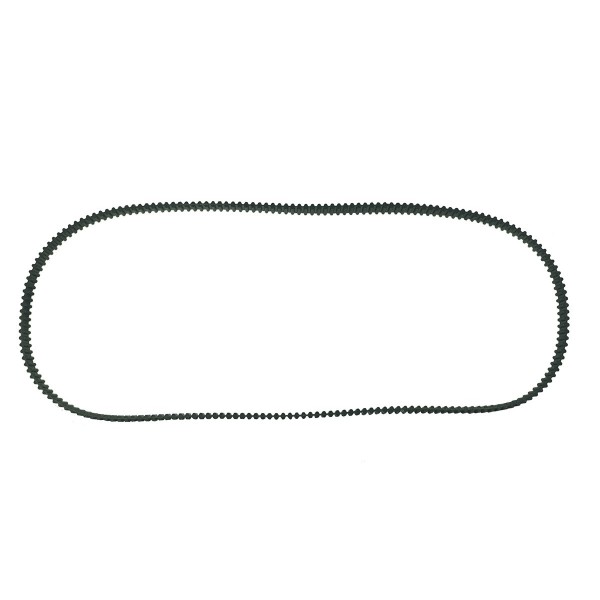

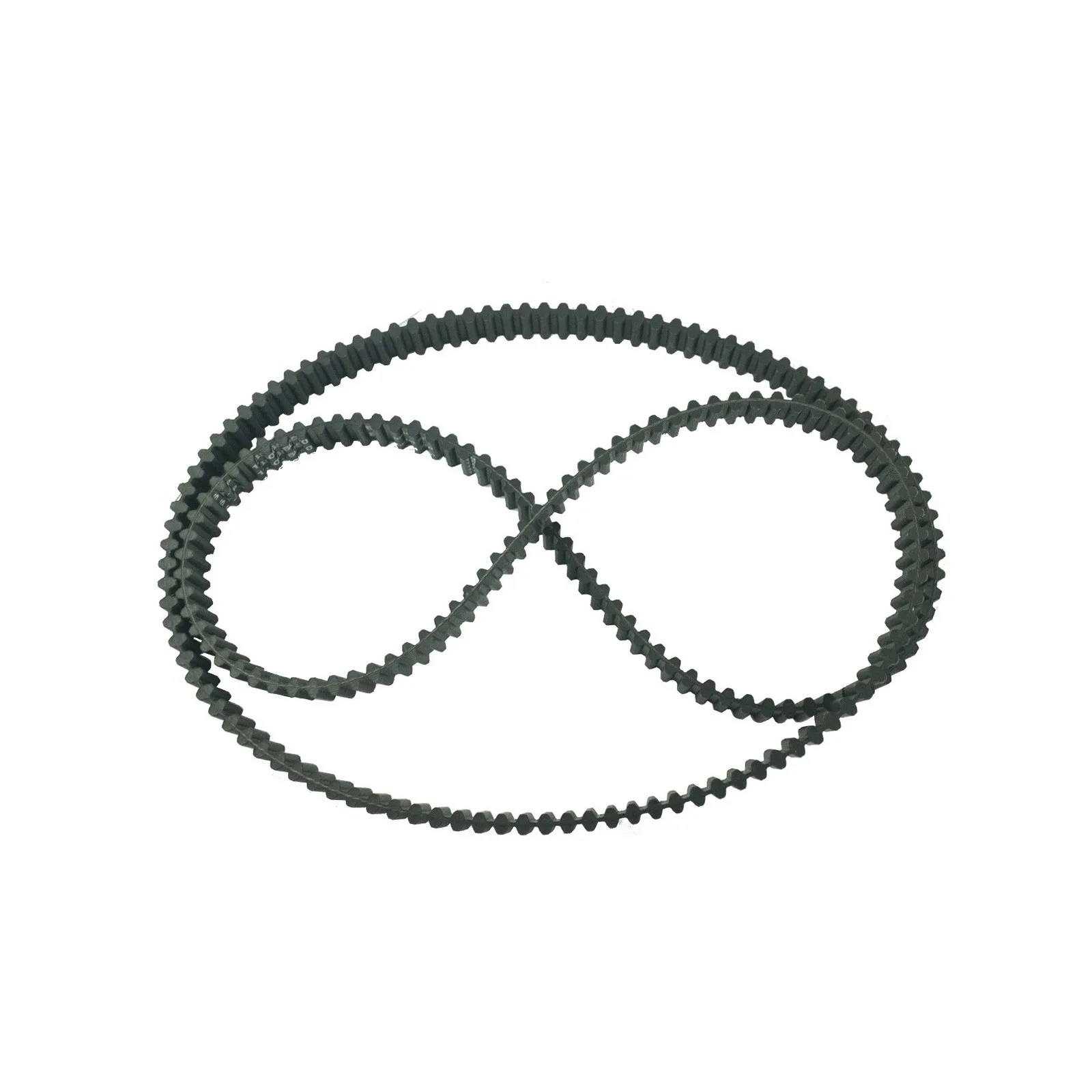

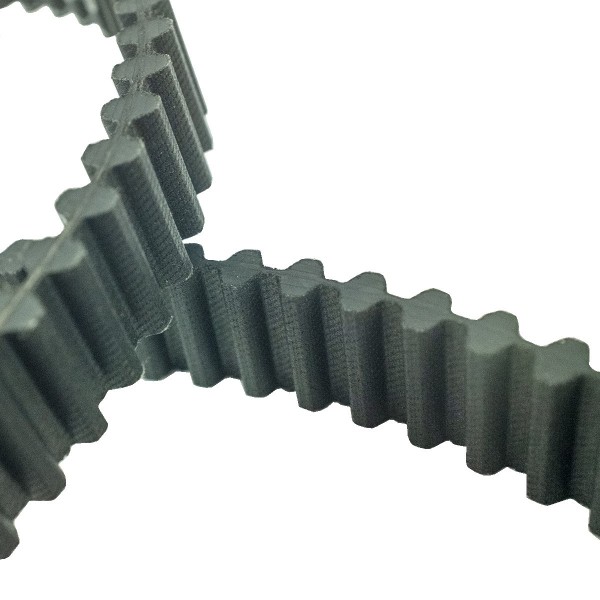

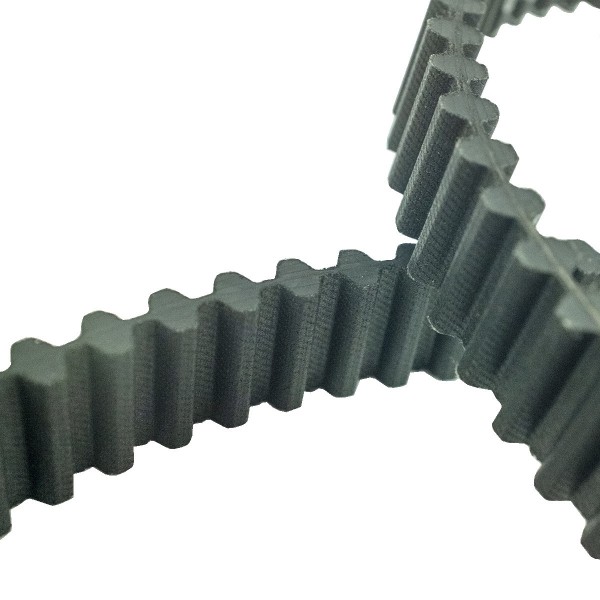

Mower drive belt with teeth, toothed , 1800 mm long, 24 mm wide and 7.30 mm thick for Stigs lawn tractors with a 1220 mm Twin Cut mower with a cutting width of 1220 mm.
A standard V-belt is marked with two length values Ld and Li. The length Li is the internal length, and the length Ld is the so-called pitch length, according to the ISO standard, it can be called the outer length, but it is the length measured at the strongest structural point of the belt. The designation of the V-belt is usually a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and length. The simplest division of belts that are on sale is narrow-profile, classic, narrow-profile toothed and classic toothed.
V-belt length Li, Ld or La?
- Li - internal length,
- Ld /Lp - pitch length (measured at the height of 3/4 of the wedge section, ISO dimension),
- La - outer length.
Dimensions :
- width: 24mm,
- pitch length (Lp): 1800 mm,
- thickness: 7.30mm,
- number of teeth: 225,
- part numbers: 135065606/0.
Mower models :
Stiga :
- Stiga Estate 6122 HW,
- Stiga Estate 7122 HWS,
- Stiga Estate9122 HWSY PRO.
The V-belt is an element that is used to transfer the drive from the engine or transmission to the equipment or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural equipment and equipment that are subjected to high rotational speeds. V-belts are the most frequently wearing parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. Replace a worn V-belt with a new one as soon as possible to prevent an accident or damage to the machine. Incorrectly installed V-belt or incorrectly set tensioner, too little or too much tension on the V-belt can cause faster wear. The first signs of wear of the V-belt (e.g. stretching of the belt) is a decrease in machine power or an unnatural sound during operation.
Warehouse :
M01:B92:S01
Specification
Stiga Estate 7122 HWS
Stiga Estate 9122 HWSY PRO
The company, founded in Sweden, initially produced sports equipment for table tennis and hockey. In 1954, the company started producing engine lawn mowers, and in the following years Stiga expanded its product range to include garden tractors and petrol lawn mowers.
A major achievement was the introduction of the Stiga Garden battery-powered mower to the market, for which the company was awarded the "Nordic Golden Swan" in 1955. Over the years, Stiga has gained not only the gardening market, but also the table tennis market.
In 2000, the Italian manufacturer of lawn mowers and garden tools, Castelgarden, as well as Alpina, an Italian factory of tractors, mowers and chainsaws, also joined the Stiga group. Currently, Stiga products can be found in over 80 countries around the world, including: in Australia, Venezuela, Zambia and Taiwan.
Today, STIGA is a well-known brand of lawn mowers and a wide range of electric gardening equipment, distributed throughout Europe and beyond.
