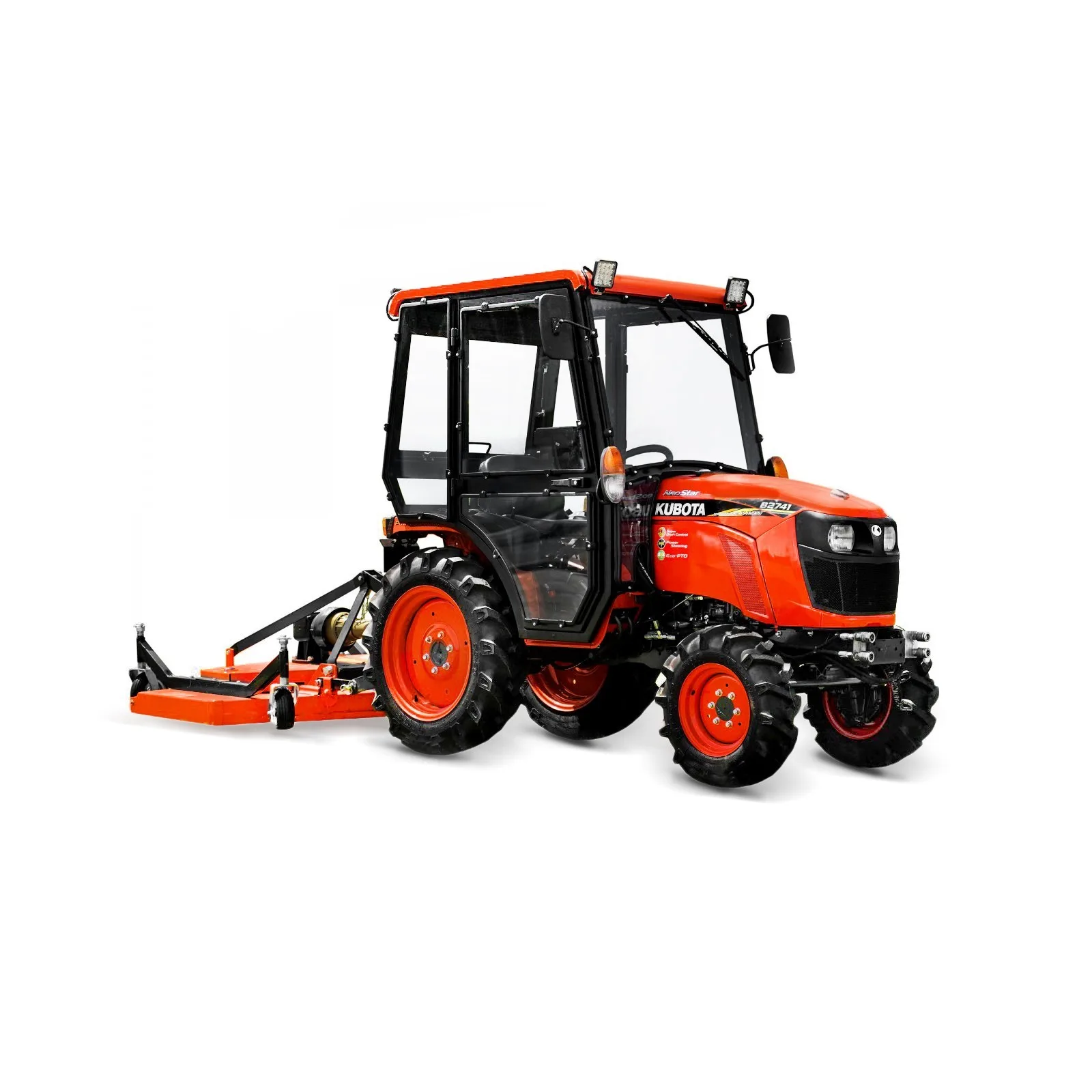

Kubota B2741 Neo Star 4x4 - 27 HP / CAB + DM150 maintenance mower

The highest technology in its class

Kubota B series tractors are the most technologically advanced Kubota products in the class of mini agricultural and municipal tractors.

Simple, durable design - reliable engine

Kubota B series machines meet standards regarding exhaust emissions, vibration levels and safety. In its tractors, the manufacturer of Kubota B series machines guarantees stable and high engine performance and extremely high comfort of use. Optimal working and operating conditions are possible thanks to the use of extremely high-quality raw materials and components for their production. The agricultural industry in different countries differs from each other and each market has its own characteristics, which means that the demand for appropriate agricultural equipment varies from country to country. Kubota B series tractors meet the expectations of customers on global markets, which is why Kubota products are very highly rated by consumers themselves in various parts of the world

The most important features of the Kubota B2741S tractor

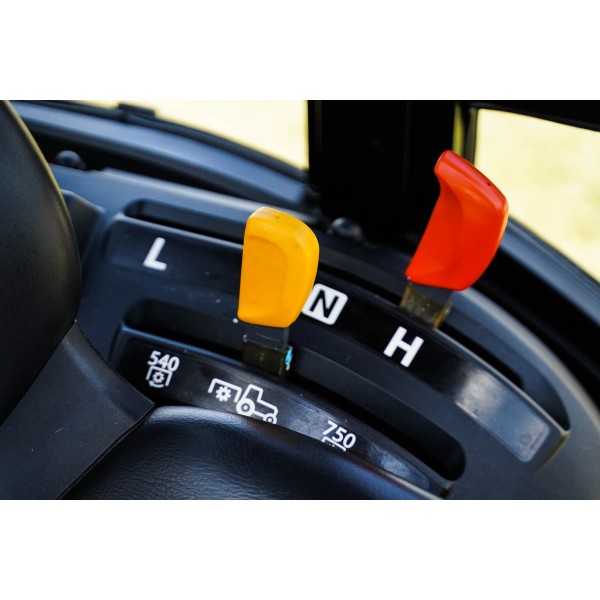

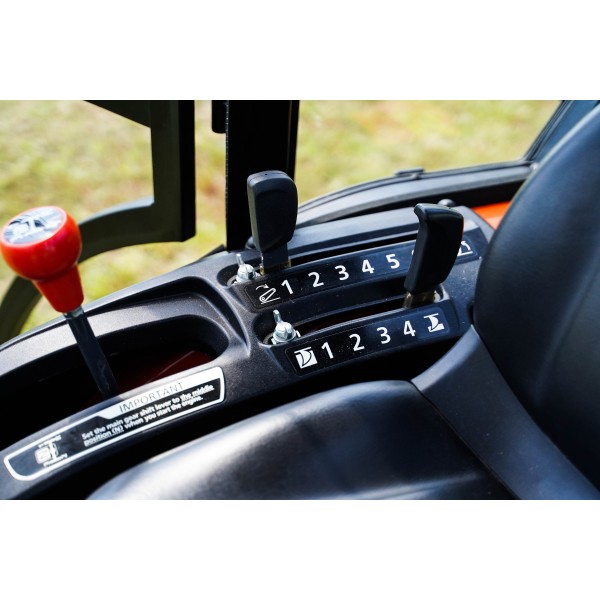

Kubota B2741S is a 4x4 tractor with a power of 27 HP with a 3-cylinder DIESEL engine, Kubota D1305-E4, E-TVCS, while the PTO/PTO output power is 14.3 kW (19.17HP) at 2600 rpm. Additionally, in this model, the user has the ECO-PTO function available, which allows the engine speed to be maintained at 540 rpm while reducing the engine speed from 2,600 to 1,830 rpm and is used when working on flat, even terrain and with a relatively small load. The tractor has a rear three-point linkage Cat I and a mechanical gearbox with 9 forward gears and 3 reverse gears. The maximum speed that Kubota B2741S can achieve is 19.8 km/h, and the minimum is 2.0 km/h. The tractor is very compact, as evidenced by its small dimensions (length: 2410 mm, width: min. width: 1015 mm, height to the handlebar: 1280 mm). The wheelbase is 1,560 mm and the weight of the tractor without accessories is only 650 kg.

Additional equipment

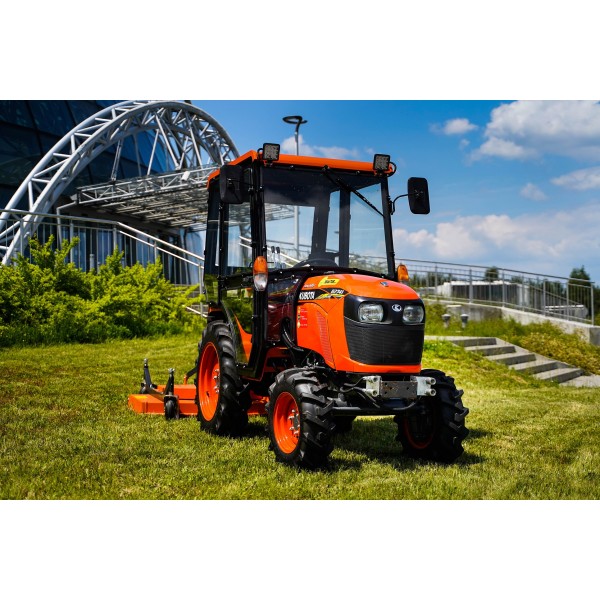

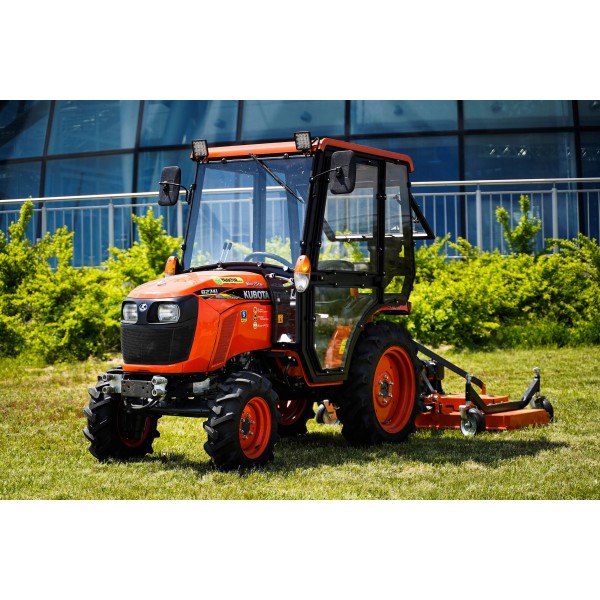

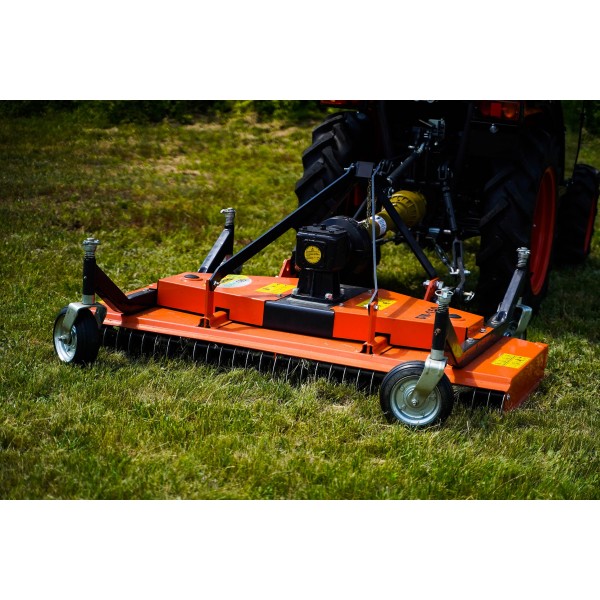

The mower shown in the photos with our tractor is a maintenance mower . We use this type of mower to mow large areas and when we want nicely cut grass. The maintenance type mower is mainly used for mowing green grass, but it can also be used to mow small wastelands, remembering to remove hard elements or mechanical obstacles from the mowed surfaces that may damage the mower blades or the mower itself. The mower included with the Kubota B2741 tractor is a DM150 mower from Geograss .

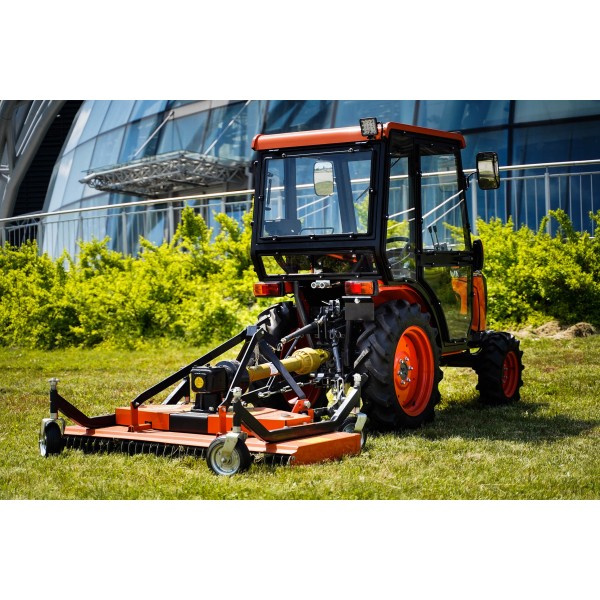

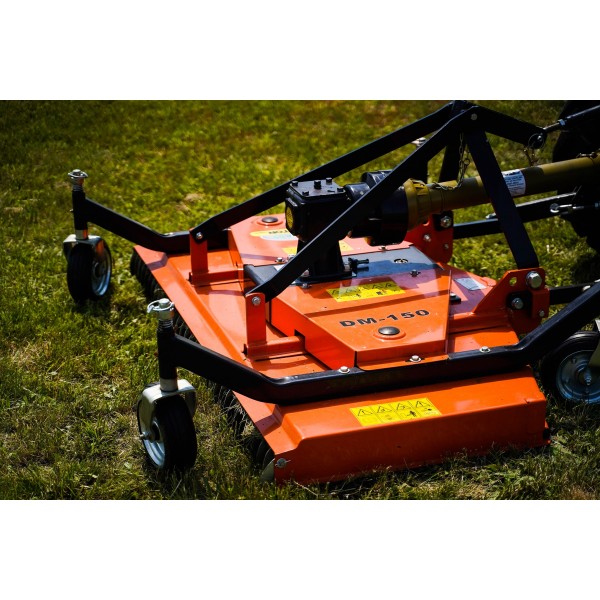

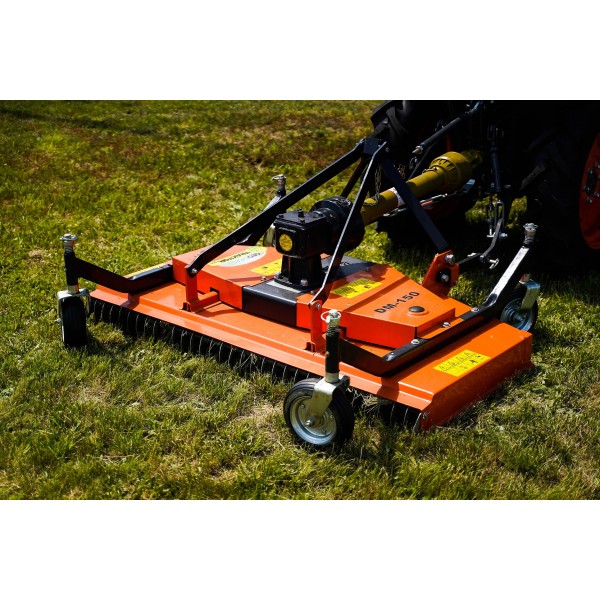

The mower is attached to the tractor using a 3-point rear hitch suspension system and is powered by the tractor's PTO/PTO shaft (recommended revolutions: 540 rpm). The mower has 3 cutting knives, a strong angle gear and four support wheels, which, in addition to driving, are also used to adjust the cutting height. The cutting width of the DM-150 maintenance mower is 150 cm.

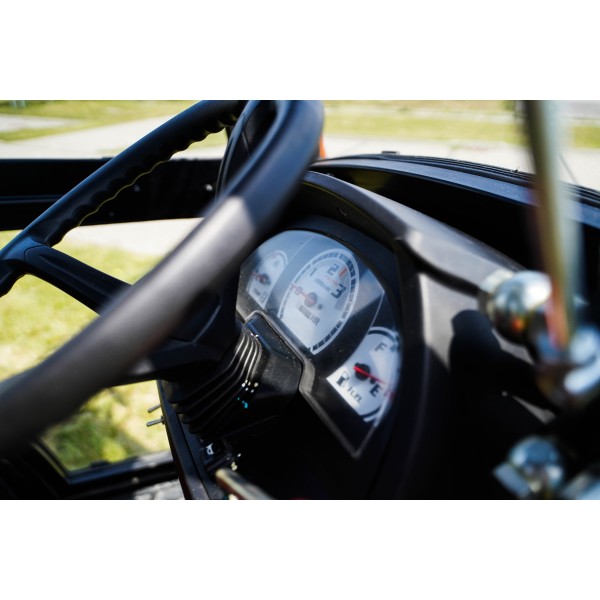

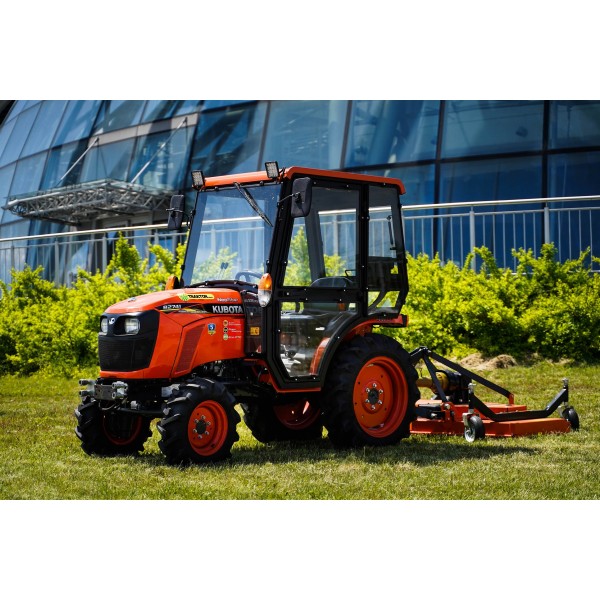

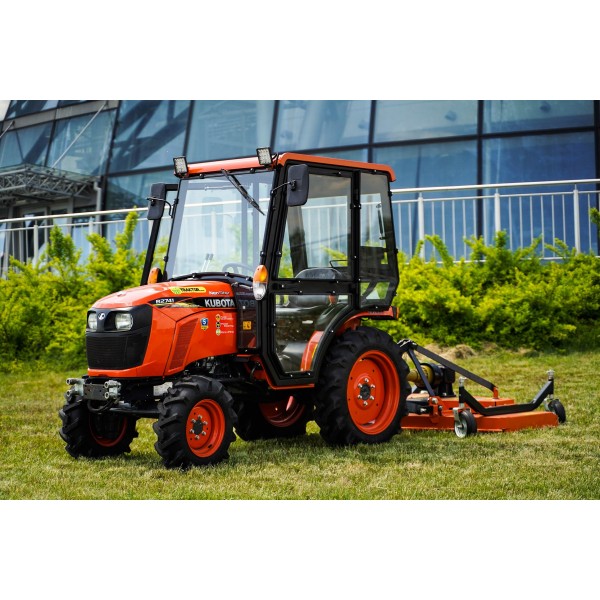

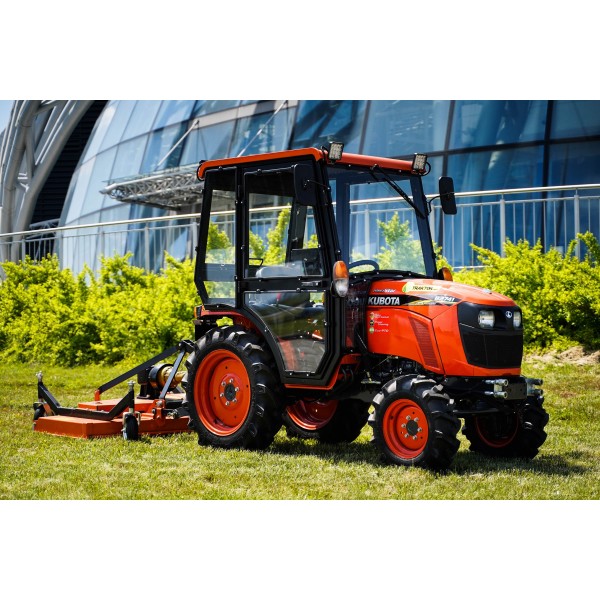

A heated cabin with side mirrors, wipers, tiltable front and rear windows with additional LED external lighting is the basic version of the cabin manufactured by our company, with which we equip our Kubota B2741 tractors. The cabin is very comfortable and versatile, and very precisely made and solidly mounted, which makes getting in and out of the tractor easy. The comfort of work in the cabin is improved by the anti-slip floor, wipers and ventilation system, as well as the tilting rear and front windows.
