Orchard sprayer TL400S-PSM100 400L (Italian brass heads) Tad-Len
An orchard sprayer is a basic tool for every gardener. It is used for spraying plant protection products, irrigation and foliar fertilization. It is also a device necessary for fighting troublesome pests of our crops, as well as for fighting insects on large surfaces that are troublesome to people and animals.
The wide range of products available on the market makes buying the right device quite a challenge. Therefore, when deciding to buy a sprayer for our farm, we must match the equipment to our needs. The area of cultivation and the number of treatments performed should be taken into account. In our climate, where spring frosts often occur, a garden sprayer works perfectly for fogging, protecting crops from freezing.
Orchard sprayer TL400S-PSM100 400L Tad-Len - the most important information

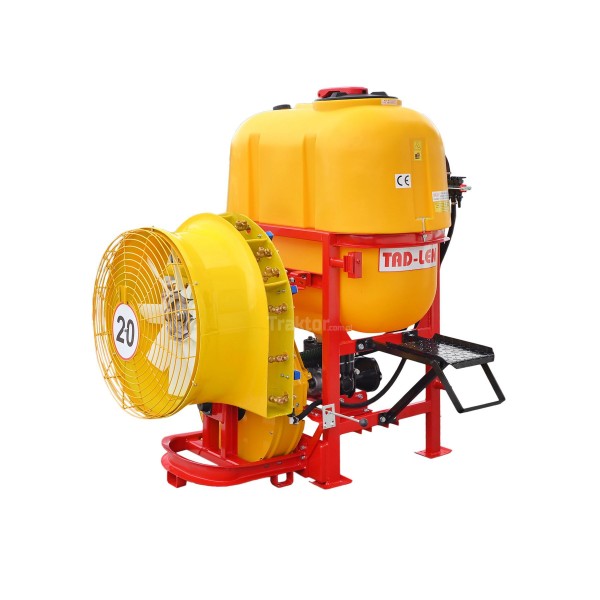

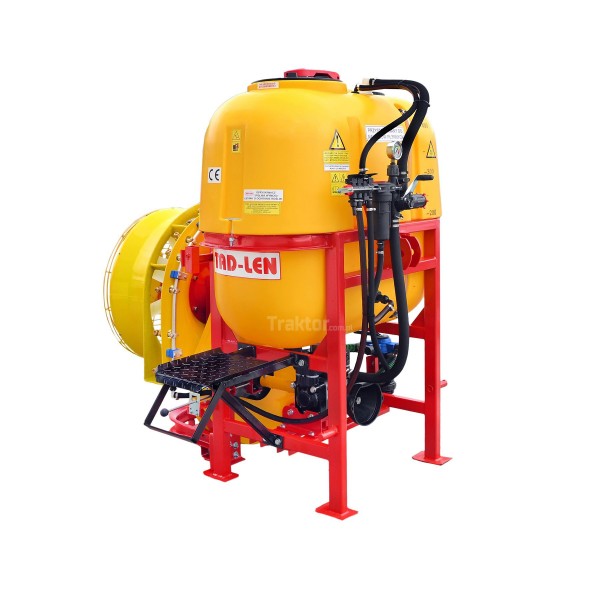

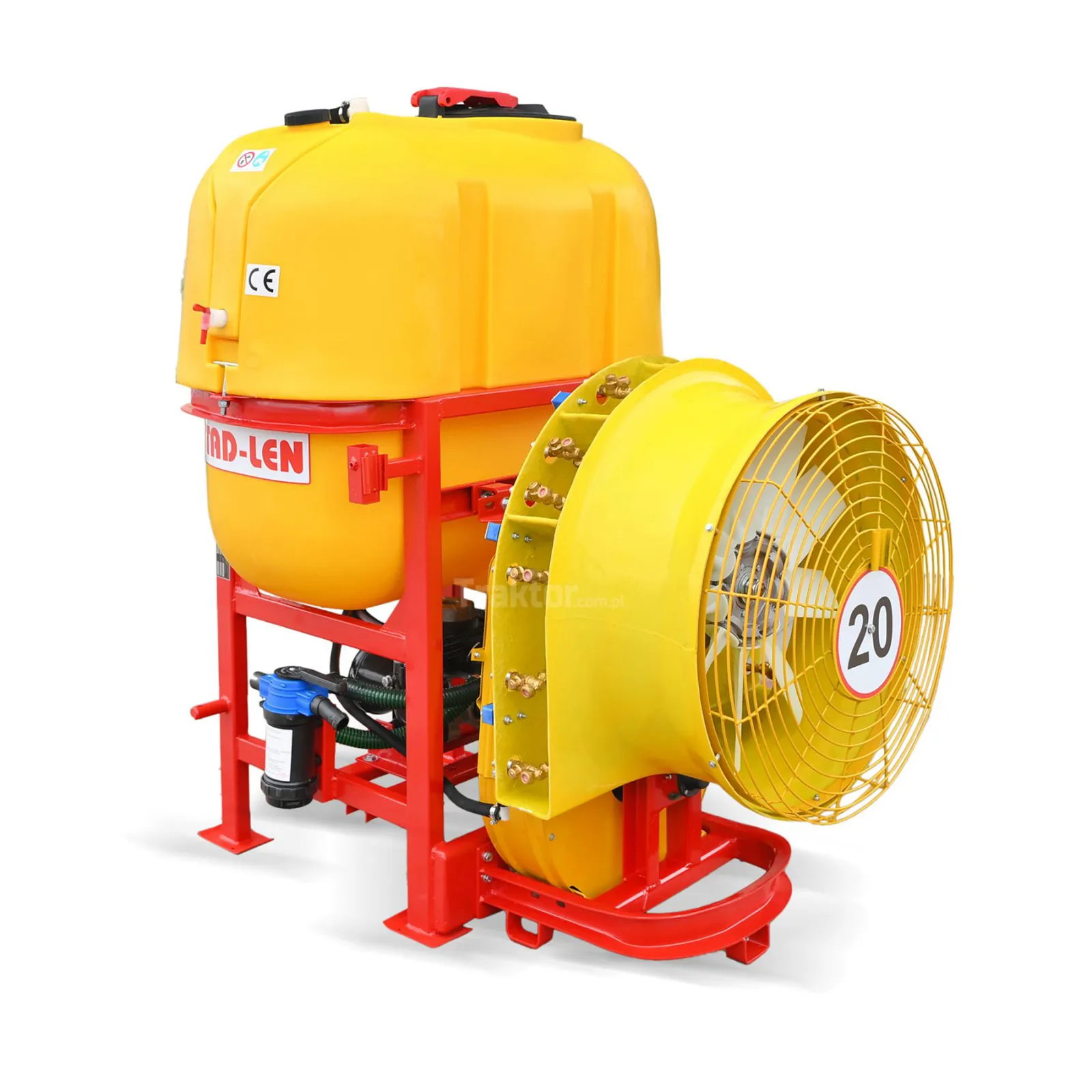

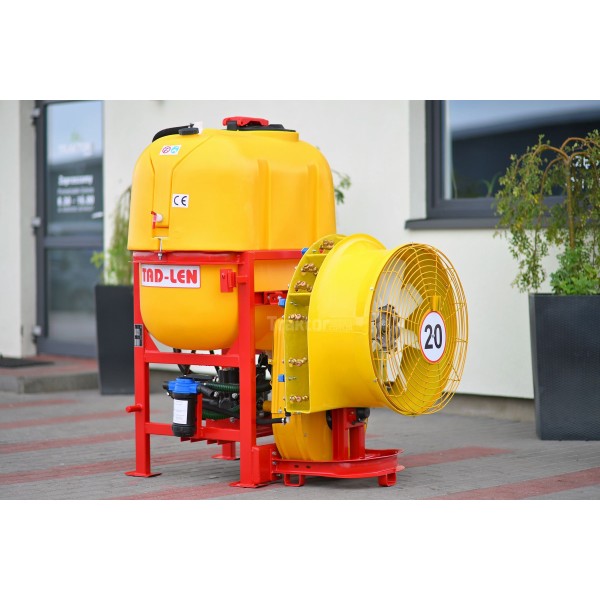

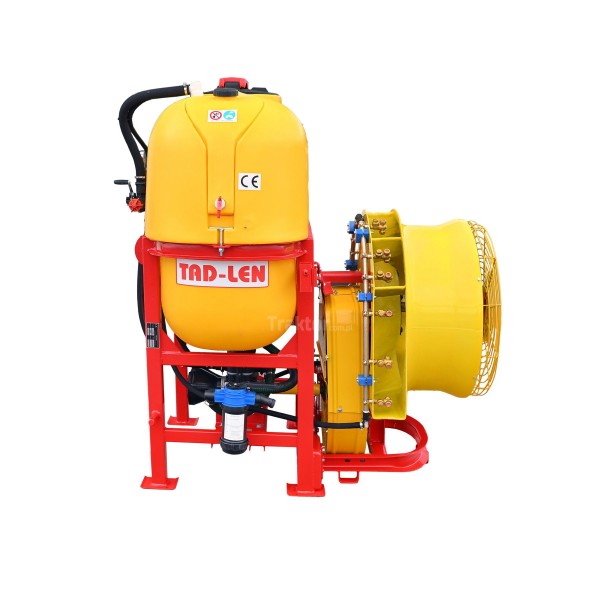

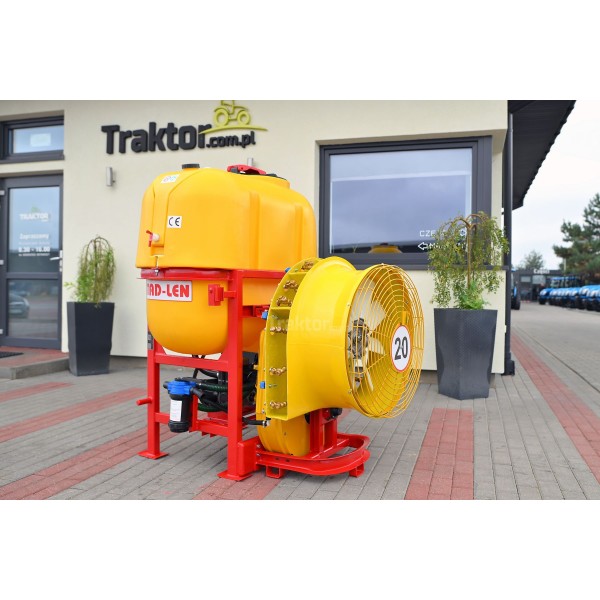

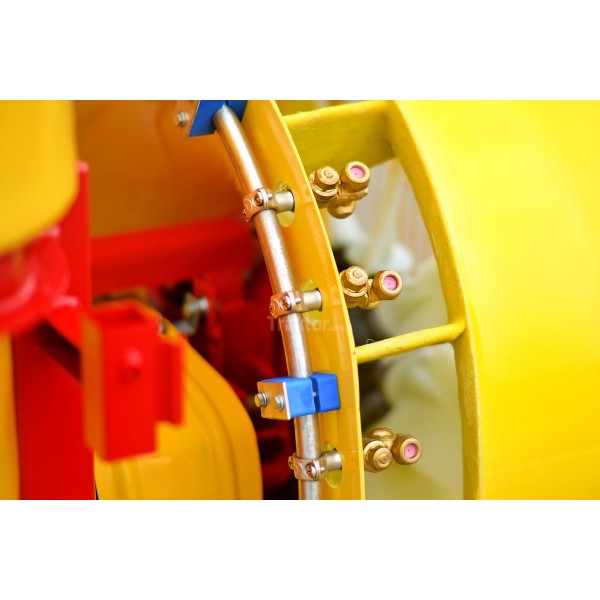

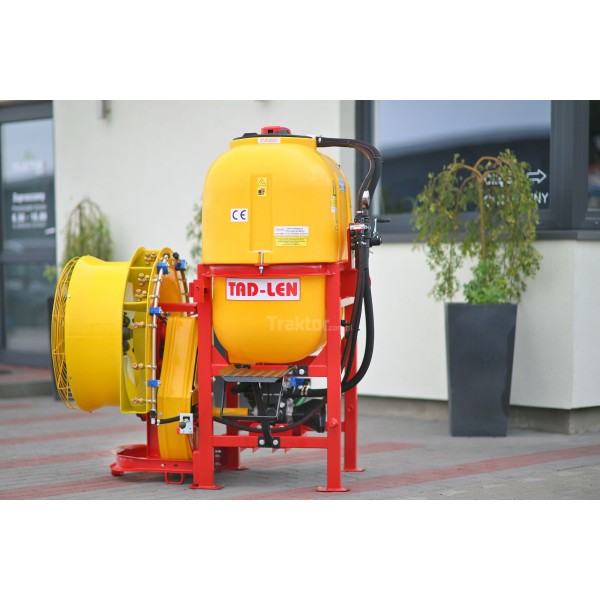

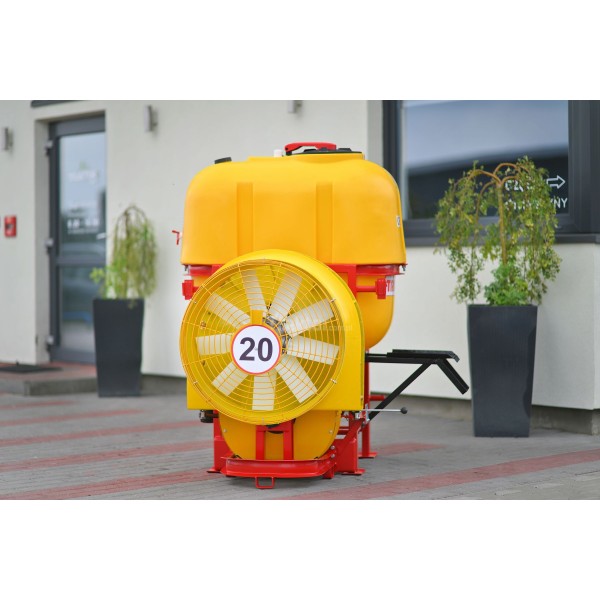

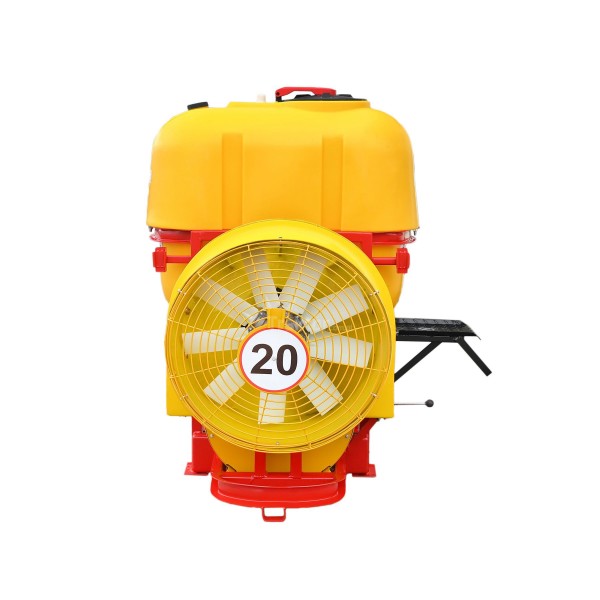

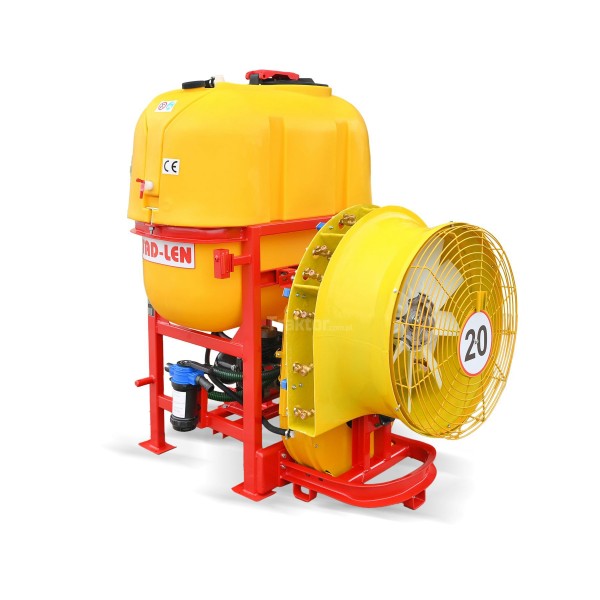

This is an orchard model with a round fan attachment (model 4028), most often chosen by our customers. This model has a capacity of 400L, is equipped with 12 brass tips, 6 on both sides. These tips are much more durable and allow for many years of use of the machine.

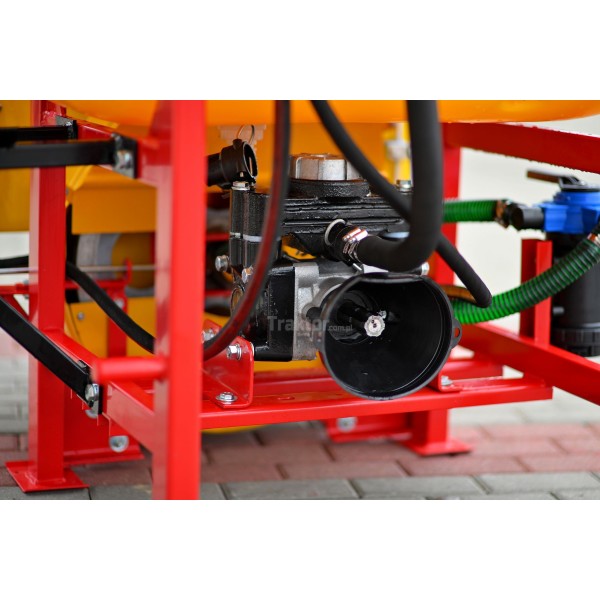

The sprayer is equipped with a Monsun PSM100 diaphragm-piston pump. It is a two-cylinder pump, mounted on roller and slide bearings. It is made of an aluminum alloy, plastics and good quality steel, which makes it resistant to the corrosive effects of fertilizers and plant protection products. The pump with two splined shaft ends is designed for orchard sprayers. At 540 rpm, the pump capacity is 110 l/min.
Orchard sprayers are adapted to fertilization and carrying out specialized plant protection treatments.
The Tad-Len brand offers sprayers with the option of choosing the right attachment, tank capacity, and type of tips. All this to best match the device to the individual needs of the customer.
The machines offered are reliable and easy to operate, and meet European safety requirements.
The mounted orchard sprayer can also have a tank capacity of 500l, 600l, 800l, 1000l.
It is possible to choose another orchard attachment:
- traditional orchard attachment
- column attachment for berry plants
- column attachment for berry plants and low trees.
Specification
Condition
New
Capacity (L)
400
Weight (kg)
250
Transport speed (km/h)
twenty
Overall width (mm)
1400
Number of nozzles (pcs.)
12
Nominal pump capacity (L/min)
110
Nacisk na zaczep
375
Typ przystawki wentylatorowej
Model 4028
Wydajność powietrza m3/h
22,000
Zapotrzebowanie mocy (kW)
8,8

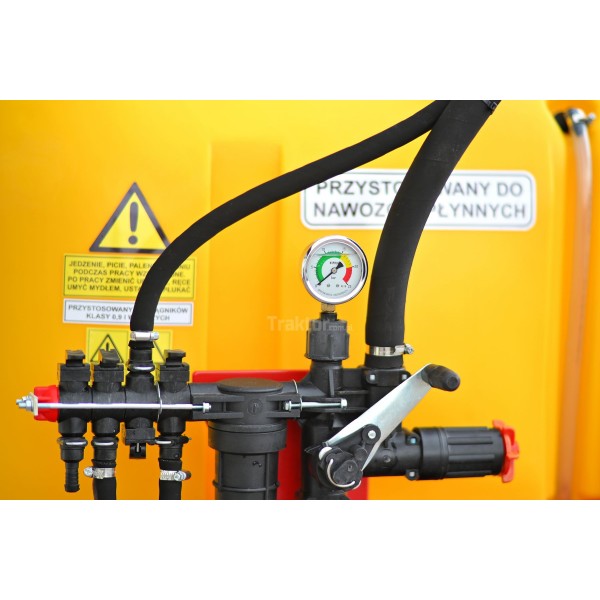

Zawór sterujący
ZSF
Dawkowanie cieczy l/h
200 - 1500
Wydajność opryskiwacza (W01)
0.9 - 3.6
Zakres prędkości roboczych (km/h)
3 - 8
